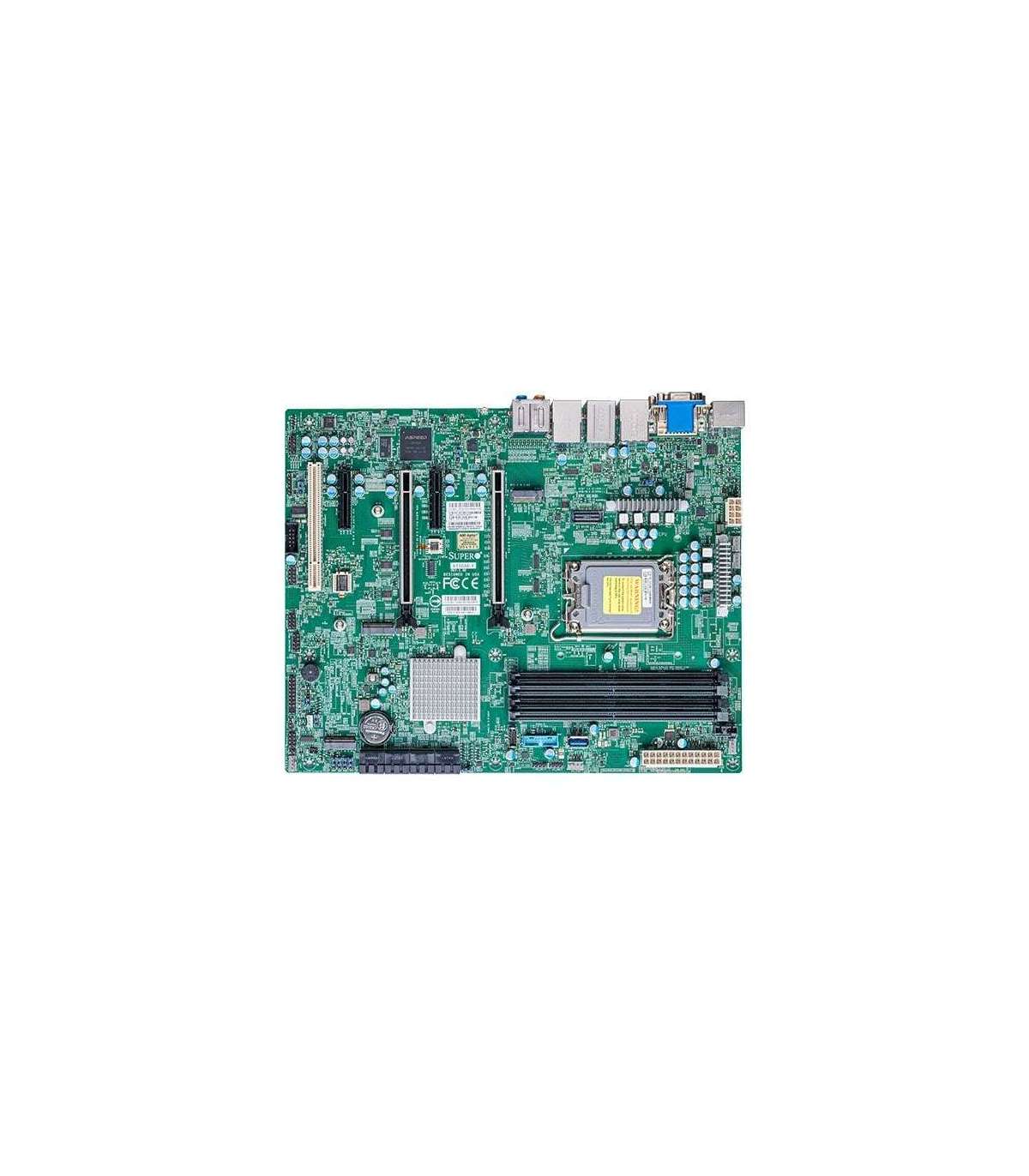

Supermicro MBD-X13SAE-F Intel W680 LGA 1700 ATX

Характеристики

Depth

243.8 mm

Width

304.8 mm

Storage temperature (T-T)

-20 - 60 °C

Operating temperature (T-T)

0 - 50 °C

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

3

Processor cores

24

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 2.0 ports quantity

4

Component for

Server

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

192 GB

Motherboard chipset

Intel W680

HDMI version

2.0b

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

HDMI ports quantity

1

Audio chip

Realtek ALC888S

USB 3.2 Gen 2x2 Type-C ports quantity

2

Processor socket

LGA 1700

Compatible processor series

Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9

Motherboard form factor

ATX

Motherboard chipset family

Intel

Supported memory clock speeds

3600
4000
4400

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Intel® I219-LM

BIOS type

AMI

Supported storage drive interfaces

M.2, PCI Express 3.0, PCI Express 5.0

VGA (D-Sub) ports quantity

1

ECC сompatibility

ECC & Non-ECC

TPM connector

Yes

RAID levels

0
1
5
10

DisplayPorts quantity

1

RAID support

Yes

DVI-D ports quantity

1

Supported memory module capacities

8GB
16GB
24GB
32GB
48GB

DisplayPort version

1.4a

Serial port headers

1

BIOS memory size

32 Mbit

Memory voltage

1.1 V

ACPI version

6.0

System Management BIOS (SMBIOS) version

3.0
