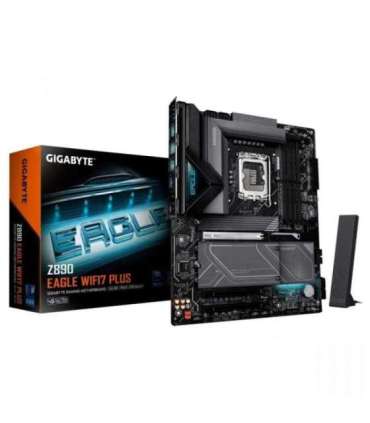

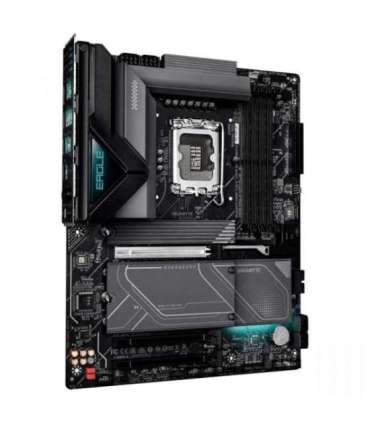

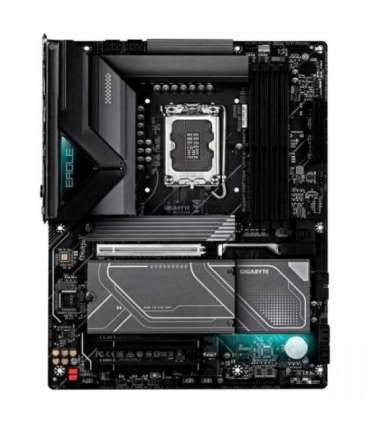

Motherboard Z890 EAGLE WIFI7 PLUS s1851 4DDR5 USBC/DP ATX

Описание:

Z890 EAGLE WIFI7 PLUS

• Ultra Turbo Mode: Unlock the Hidden performance
• Supports Intel Core Ultra processors (Series 2)
• Digital twin 14+1+2 phases VRM solution
• D5 Bionic Corsa for Infinite Memory Performance
• AI Perfdrive: Provides optimal and customized BIOS preset profile for users
• Premium Compatibility: 4*DDR5 with XMP Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click: M.2 heatsinks with screwless design
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• New Power Monitor in HWinfo for real-time monitoring on CPU power phases
• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity: USB4 Type-C with DP-Alt, DisplayPort
• High-Res Audio: ALC1220 & WIMA Audiophile Grade Capacitors

Модель:

Z890 EAGLE WIFI7 PLUS

Тип чипсета:

Intel Z890 Express Chipset

Подробная информация об интерфейсах дисков/приводов:

CPU:

• 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset:

• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
• 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Graphics:

Integrated Graphics Processor-Intel HD Graphics support:

• 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

Звуковая карта:

• Realtek ALC1220 CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

Сетевой интерфейс:

LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module:

• Intel Wi-Fi 7 BE202 (BE200NGW M)
• 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.4
• Support for 11be 160MHz wireless standard

Специальные функции:

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

Основная система ввода/вывода:

• 1 x 512 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Габариты:

30.5 x 24.4 cm

Программное обеспечение:

Norton Internet Security (wersja OEM)
