Motherboard MAG X870E TOMAHAWK MAX WIFI AM5 4DDR5 ATX
380,4 €
(вкл. НДС)
Ежемесячный платеж от 14.69€
Артикул:
MAG X870E TOMAHAWK MAX WIFI
Бренд:
2.21 кг
Сравнить0
Tasumine kättesaamisel
Описание:
MAG X870E TOMAHAWK MAX WIFI
- Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and EZ M.2 Shield Frozr II are built for high high-performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Модель:
MAG X870E TOMAHAWK MAX WIFI
Тип чипсета:
AMD X870E
Подробная информация об интерфейсах дисков/приводов:
4x M.2
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
- M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M.2_1 slot (From CPU)
- Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
M.2_2 slot (From CPU)
- Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
Graphics:
- 1 x HDMI - Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz*
- 2 x Type-C DisplayPort - USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz
Звуковая карта:
- Realtek ALC4080 Codec
- 7.1-Channel USB High Performance Audio
- Supports up to 32-bit/384kHz playback on front panel
- Supports S/PDIF output
Сетевой интерфейс:
LAN: 1 x Realtek 8126 5G LAN
WIRELESS LAN & BLUETOOTH Wi-Fi 7
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
- Supports Bluetooth 5.4, MLO, 4KQAM
Габариты:
243.84 x 304.8 mm
Designation:
CE+WEEE
MAG X870E TOMAHAWK MAX WIFI
Характеристики
- Expansion slots
- 3 x PCIe x 16
- RAID
- Tak
- Тип процессора
- AMD Ryzen
- Производитель чипсе&
- AMD
- Вид памяти
- DDR5
- Частота шины памяти
- 5600 MHz
6400 MHz
8400 MHz
- Макс. размер памяти
- 256
- Слот процессора
- Socket AM5
- Интегрированный про&
- Nie
- Макс. количество устр
- 4
- Сетевой интерфейс
- 1 x 10/100/1000/2500/5000 Mbit/s
Bluetooth
Wi-Fi 802.11a/b/g/n/ac/ax/be
- USB порты на задней пане&#
- 12
- USB порты на материнско
- 9
- USB 3.0/USB 3.1 gen 1
- 7
- Шина FireWire (IEEE 1394)
- Nie
- COM порт
- Nie
- LPT порт
- Nie

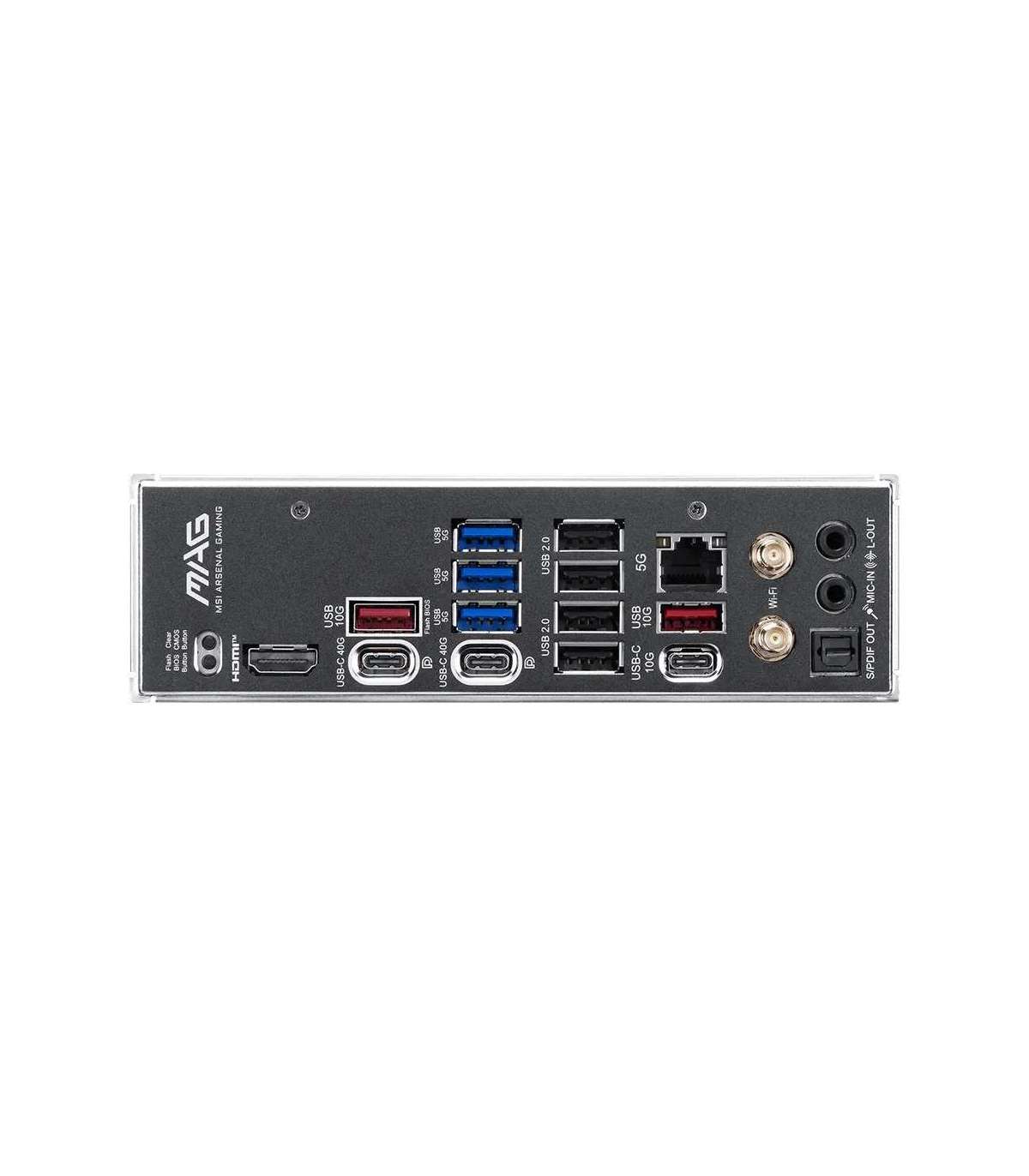

- Внешние разъемы
- 1 x HDMI
1 x Line Out
1 x MIC
1 x Przycisk BIOS Flash
1 x Przycisk Clear CMOS
1 x RJ-45
1 x S/PDIF
1 x USB 3.2 Gen 2 Type-C
2 x USB 3.2 Gen 2 Type-A
2 x USB4 Typ-C
2 x Wi-Fi Module
3 x USB 3.2 Gen 1 Type-A
4 x USB 2.0
- Onboard connectors
- 1 x 4pin wentylator procesora
1 x 4pin wentylator procesora chłodzenie cieczą
1 x 8-pin PCIe
1 x 24pin ATX zasilanie
1 x Czujnik otwarcia obudowy (chassis intrusion)
1 x EZ Conn-header
1 x EZ Memory Detection LED
1 x Przedni panel audio
1 x TPM
1 x Taśma LED RGB
1 x USB 3.2 Gen 2x2 Type-C
2 x 8pin 12V zasilanie
2 x System panel (front)
2 x Zworka Direct OC
3 x Adresowalna dioda LED
4 x EZ Debug LED
4 x M.2
4 x SATA III 6Gb/s
4 x USB 2.0/1.1
4 x USB 3.2 Gen 1 Type-A
6 x 4pin wentylator obudowy
- Форм-фактор платы
- ATX
- Поддерживаемые опер&
- Windows 11
- USB 3.1/USB 3.1 gen 2
- 3
- Number of DDR5 slots
- 4
