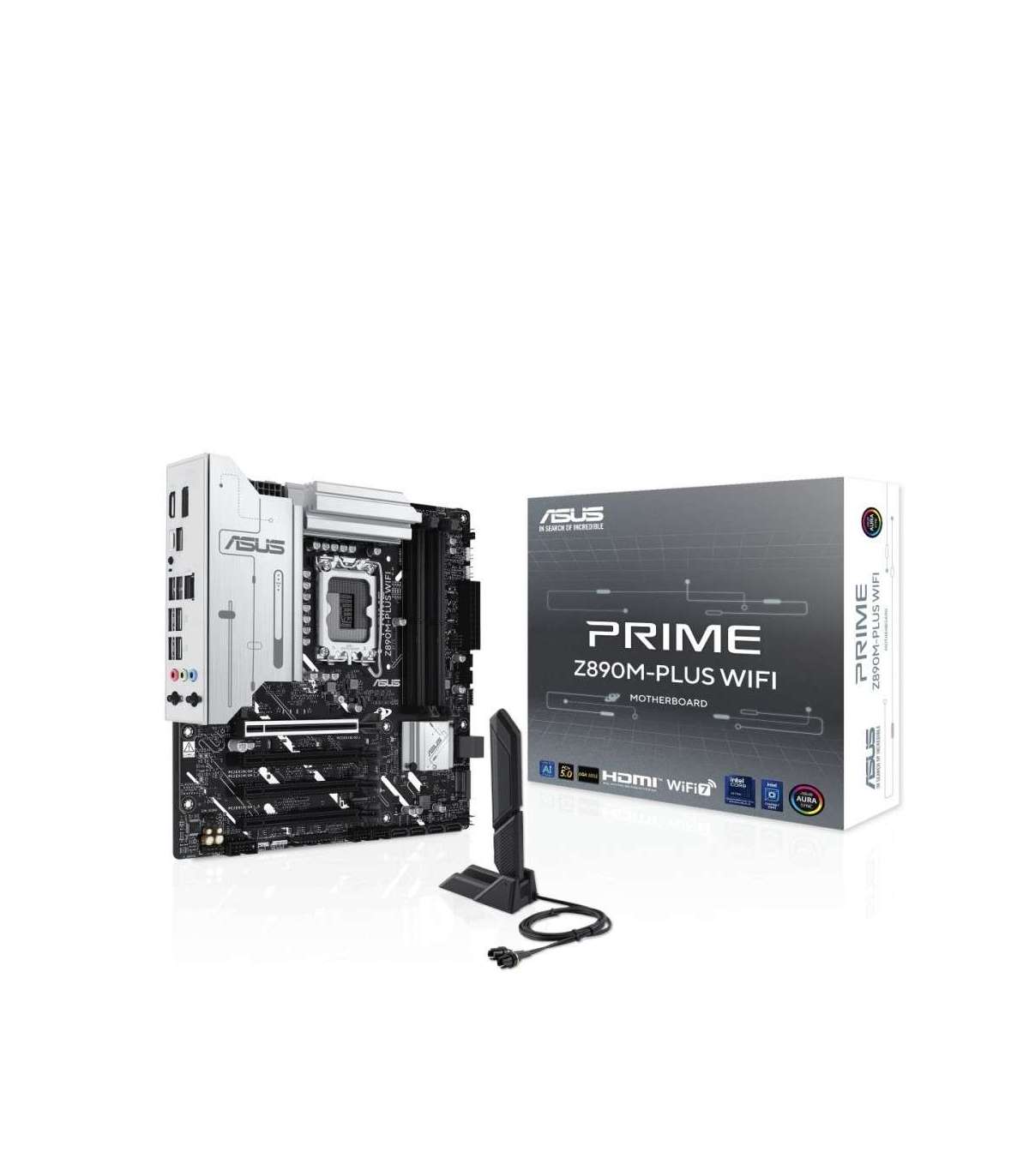

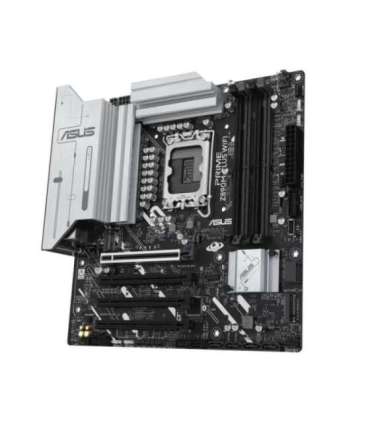

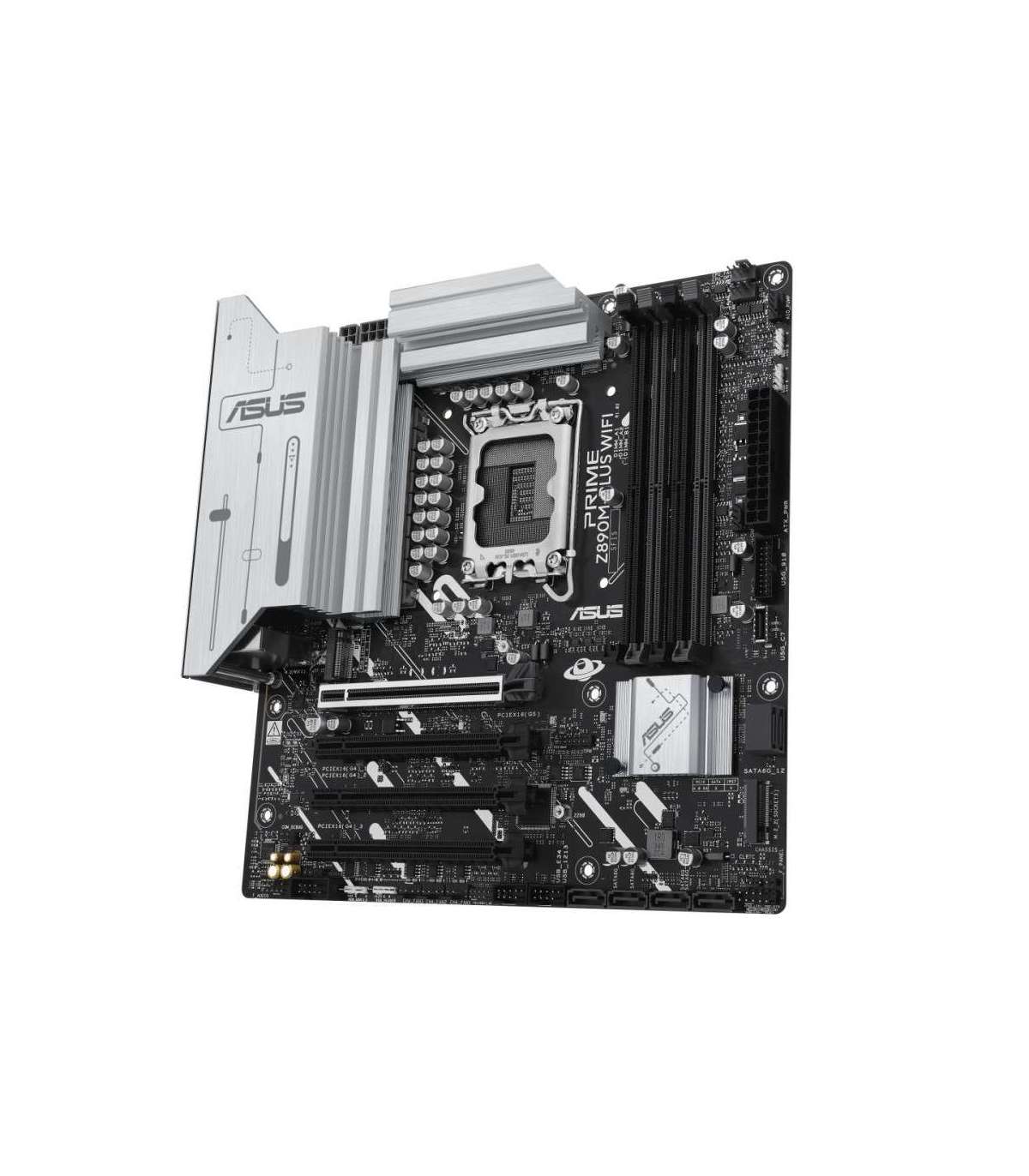

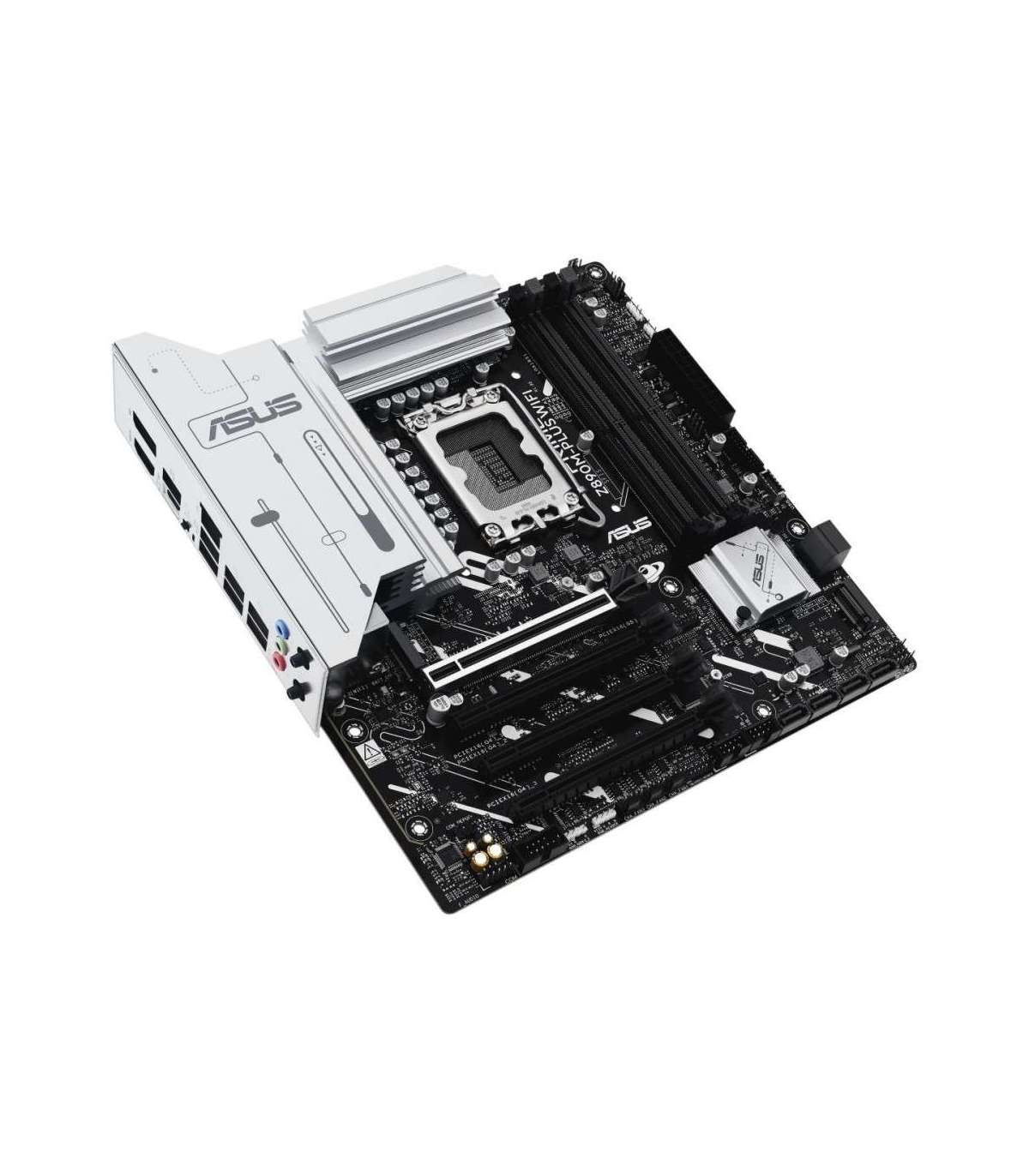

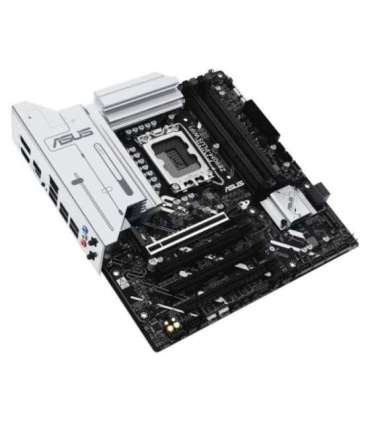

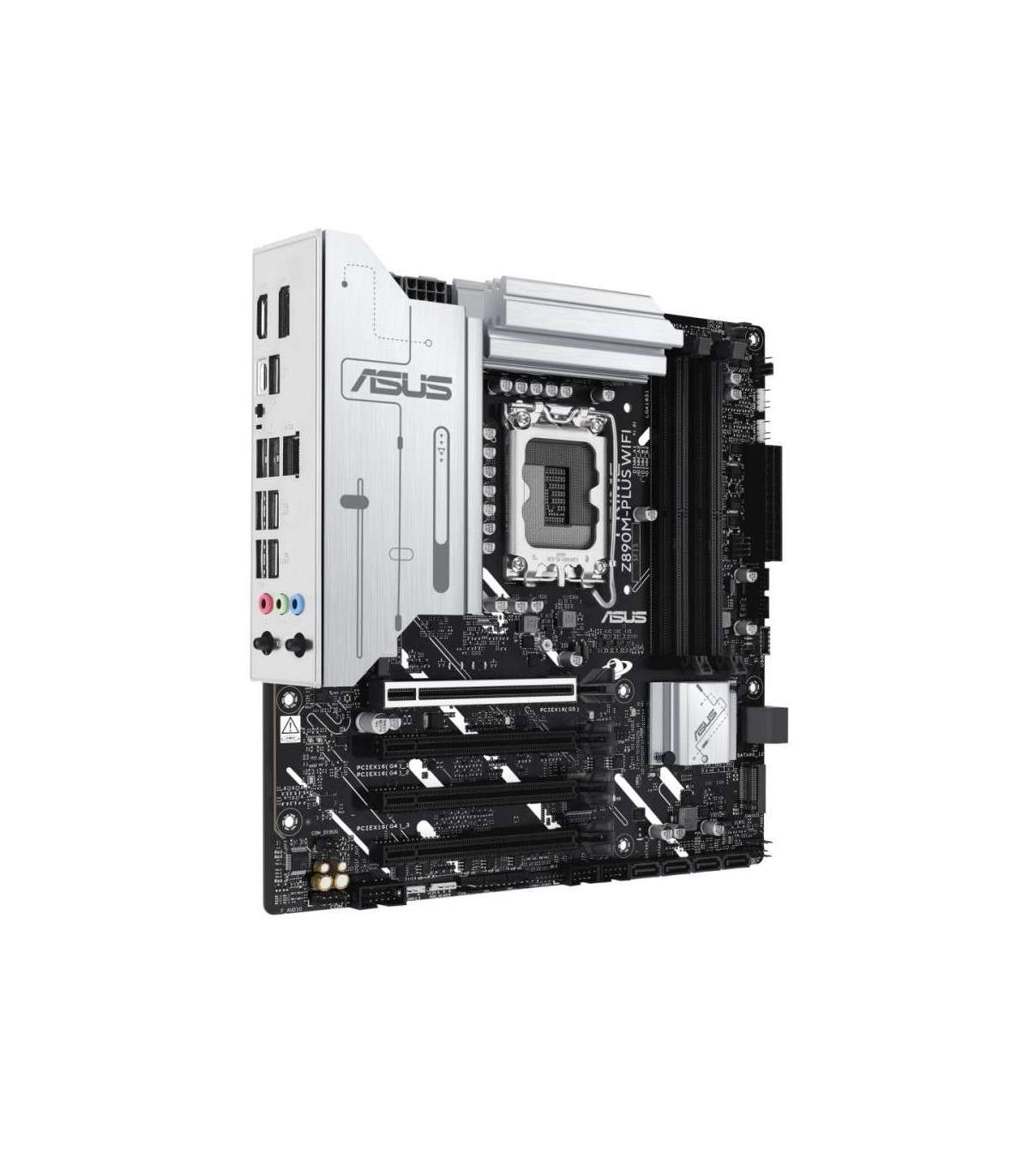

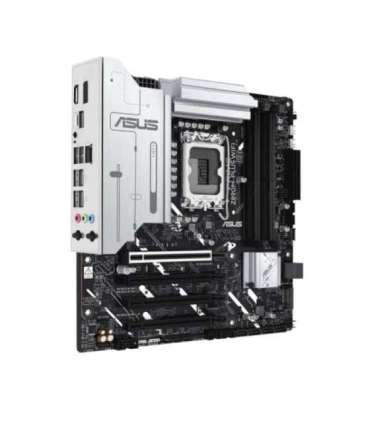

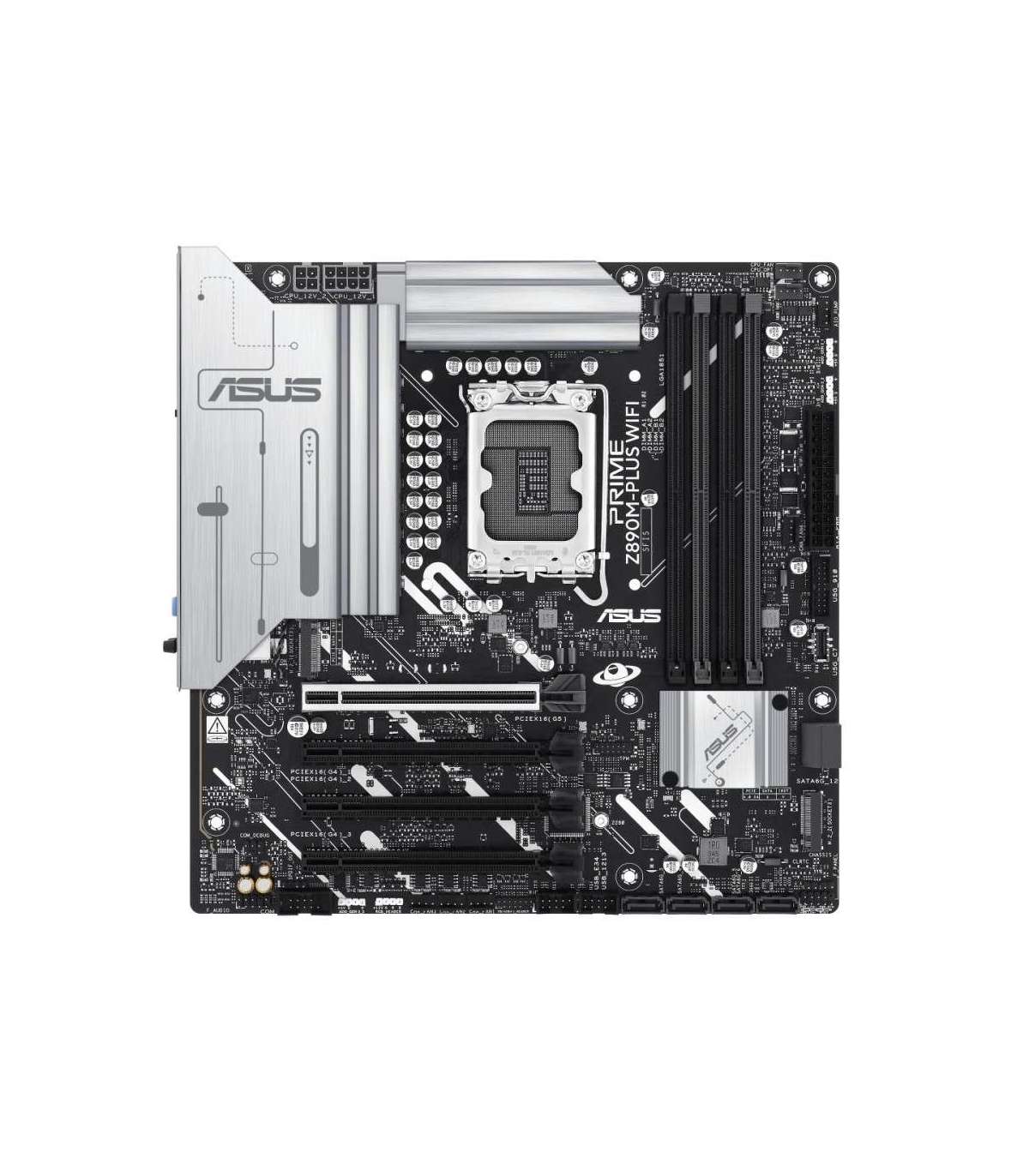

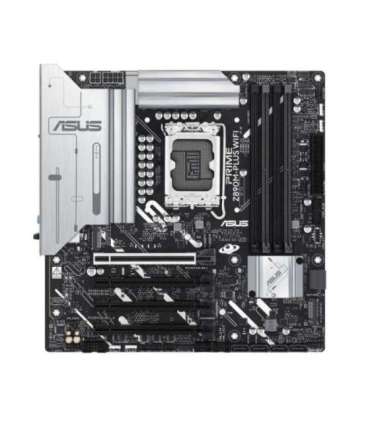

Motherboard PRIME Z890M-PLUS WIFI S 1851 4DDR5 TB4/DP mATX /90MB1J80-M0EAY0

Описание:

Prime Z890M-PLUS WIFI
ASUS PRIME Series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra processors (2 Series). Featuring a robust power design, comprehensive cooling solutions, and intelligent tuning options, the PRIME Z890M-PLUS WIFI motherboard provides users and DIY PC enthusiasts with a range of performance optimizations through intuitive software and firmware features. It's designed to be ready for advanced AI computers, offering the power and connectivity needed for demanding AI applications.

Модель:

PRIME Z890M-PLUS WIFI

Тип чипсета:

Intel Z890 Chipset

Подробная информация об интерфейсах дисков/приводов:

Intel Core Ultra Processors*
M.2_1 (M-Key) socket, type 2280 (supports PCIe 5.0 x4 mode)
Intel Z890 Chipset
M.2_2 (M-Key) socket, type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 (M-Key) socket, type 2280 (supports PCIe 4.0 x4 mode)
6 SATA 6 Gb/s ports
* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, the M.2 socket on the processor only supports RAID 0/1/5.

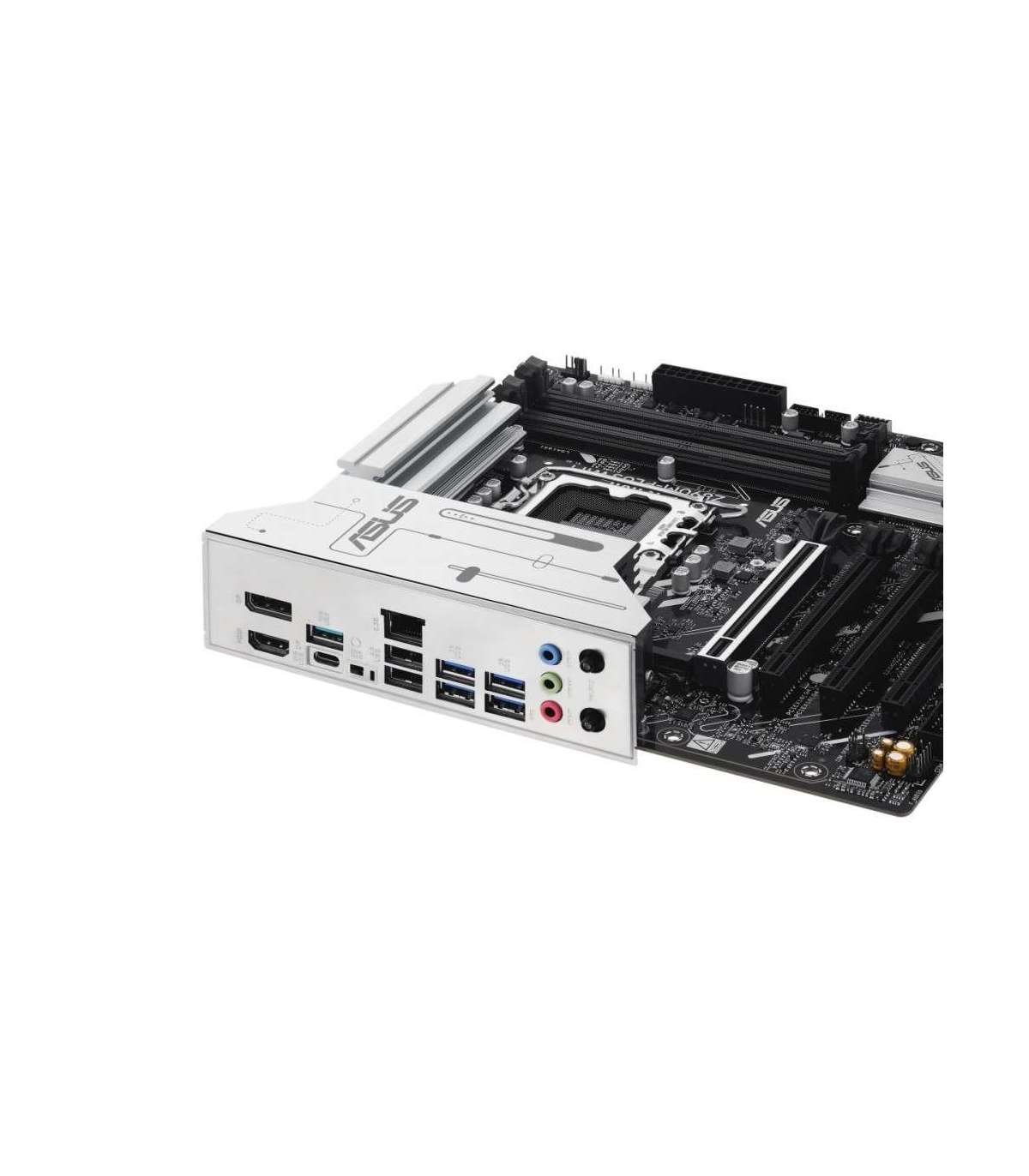

Graphics:

• 1 x DisplayPort**
• 1 x HDMI port***
• 1 x 20 Gbps USB port (USB Type-C) supports DisplayPort video output****

*Graphics specifications may vary depending on processor type. For updates, visit www.intel.com.
**Supports up to 4K@60Hz as per DisplayPort 1.4 specification.
***Supports 4K@60Hz as per HDMI 2.1 specification.
****Supports up to 4K@120Hz as per DisplayPort 1.4 specification.
***** VGA resolution support depends on processor or graphics card resolution.

Звуковая карта:

Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: jack detection, streaming, and front panel jack remapping
• Supports playback up to 24-bit/192 kHz

Audio Features

• Audio Shielding
• Premium Audio Capacitors
• Dedicated PCB Audio Layers

*7.1 Surround Sound audio output requires a chassis with an HD audio module on the front panel.

Сетевой интерфейс:

Ethernet

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard

Wireless and Bluetooth

• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6 GHz frequency bands**
• Supports the 160 MHz Wi-Fi 7 band, up to 2.9 Gbps transfer speeds.
• Bluetooth v5.4***

*Wi-Fi features may vary by operating system.
For Windows 11, Wi-Fi 7 will require version 24H2 or later for full functionality. Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
**The 6 GHz Wi-Fi frequency band and bandwidth regulations may vary by country.
***Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Специальные функции:

ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
-ProCool
- Pre-mounted I/O shield
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Основная система ввода/вывода:

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Габариты:

24.4 cm x 24.4 cm

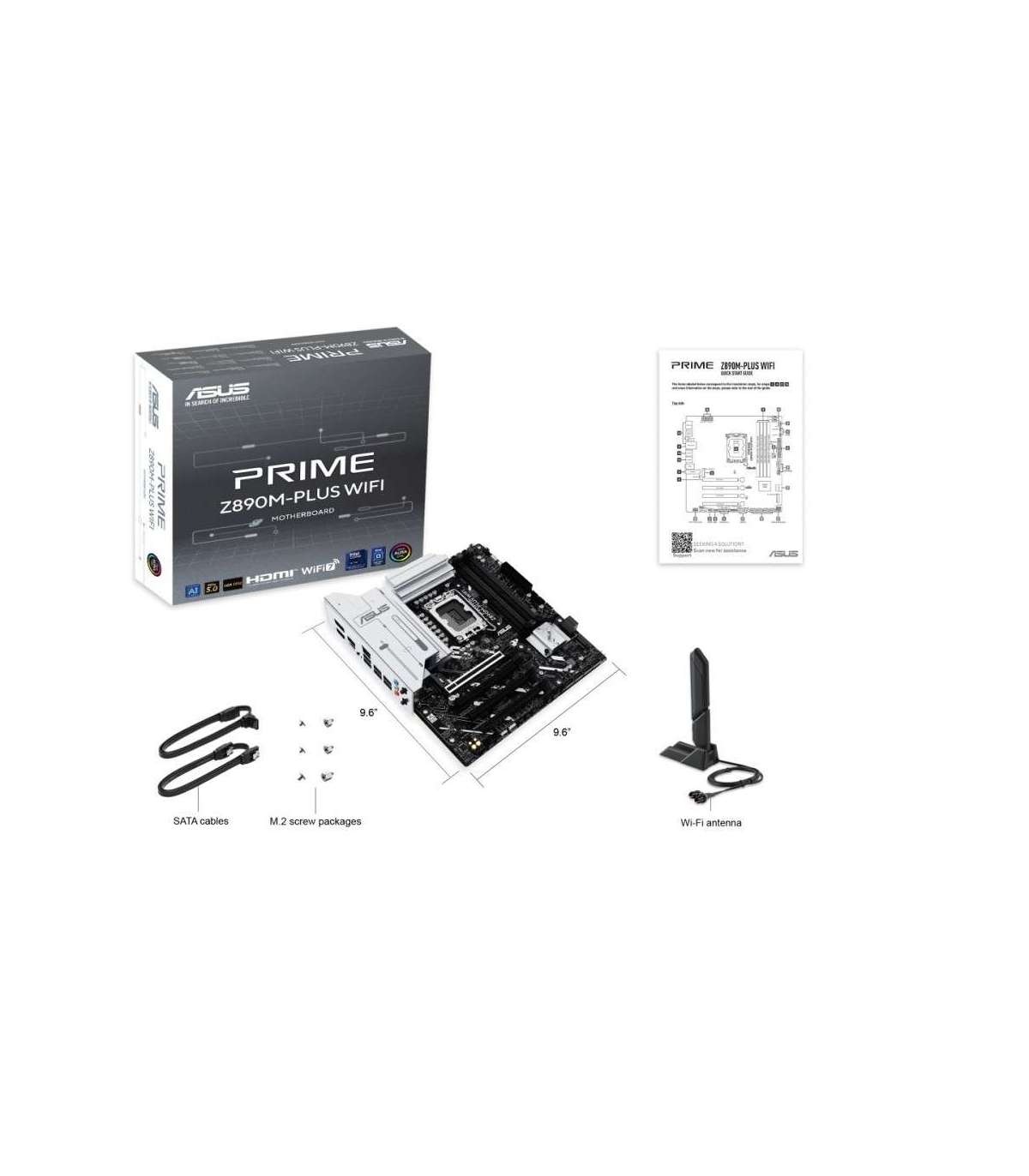

Принадлежности в комплекте поставки:

• 2 x SATA 6Gb/s cables

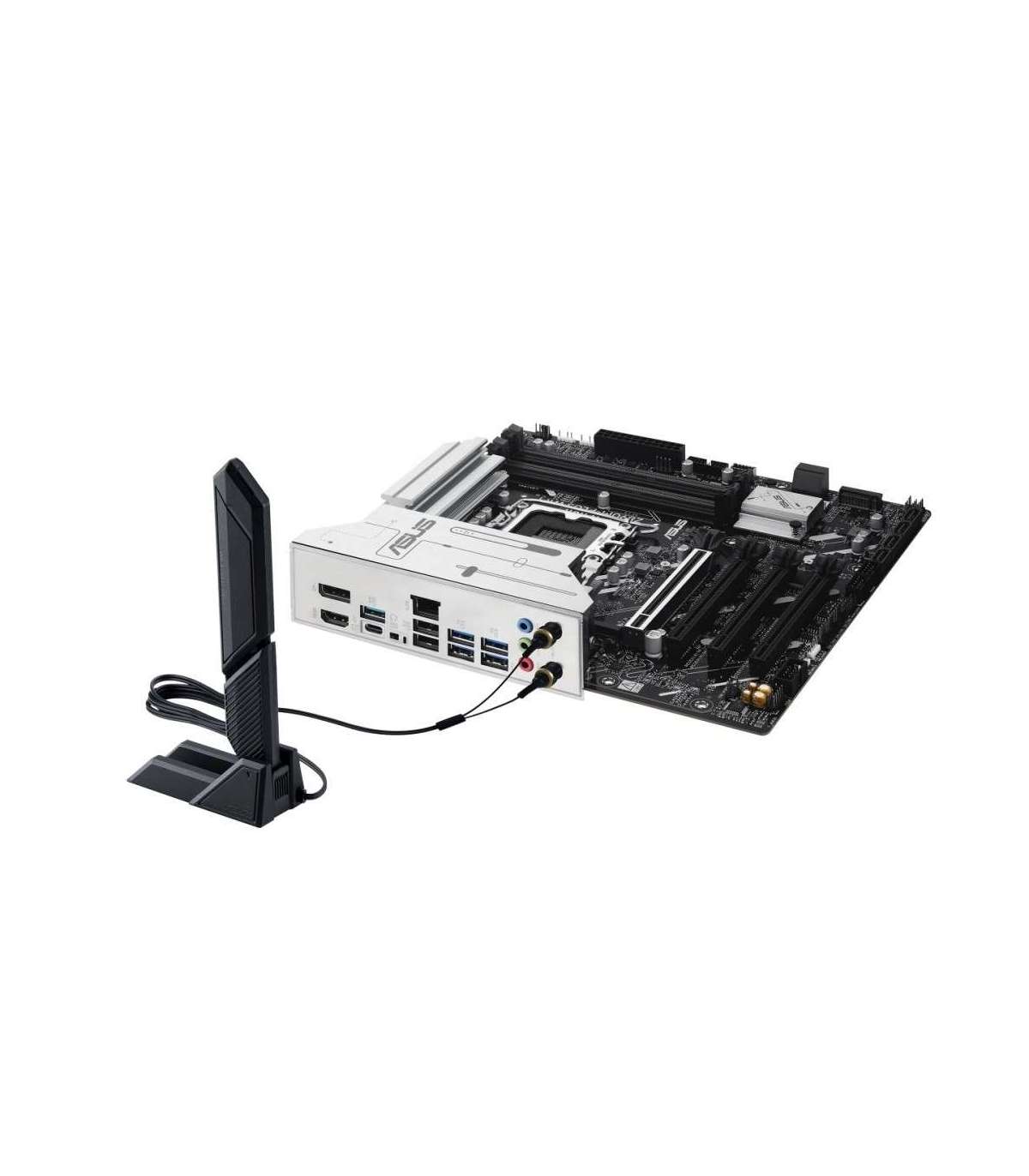

• 1 x ASUS WiFi Q-Antenna
• 3 x M.2 SSD screw packs
• 1 x Quick Start Guide

Программное обеспечение:

• ASUS Exclusive Software
• Armory Crate
• - Aura Sync
• - Fan Xpert 4 (with AI Cooling II)
• - Power Saving
• ASUS DriverHub
• ASUS GlideX
• TurboV Core
• ASUS CPU-Z
• Norton 360 for Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode
• - ASUS MyHotkey
