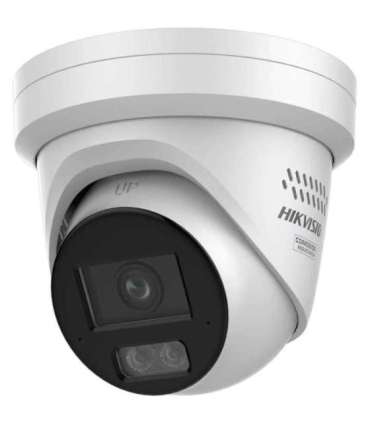

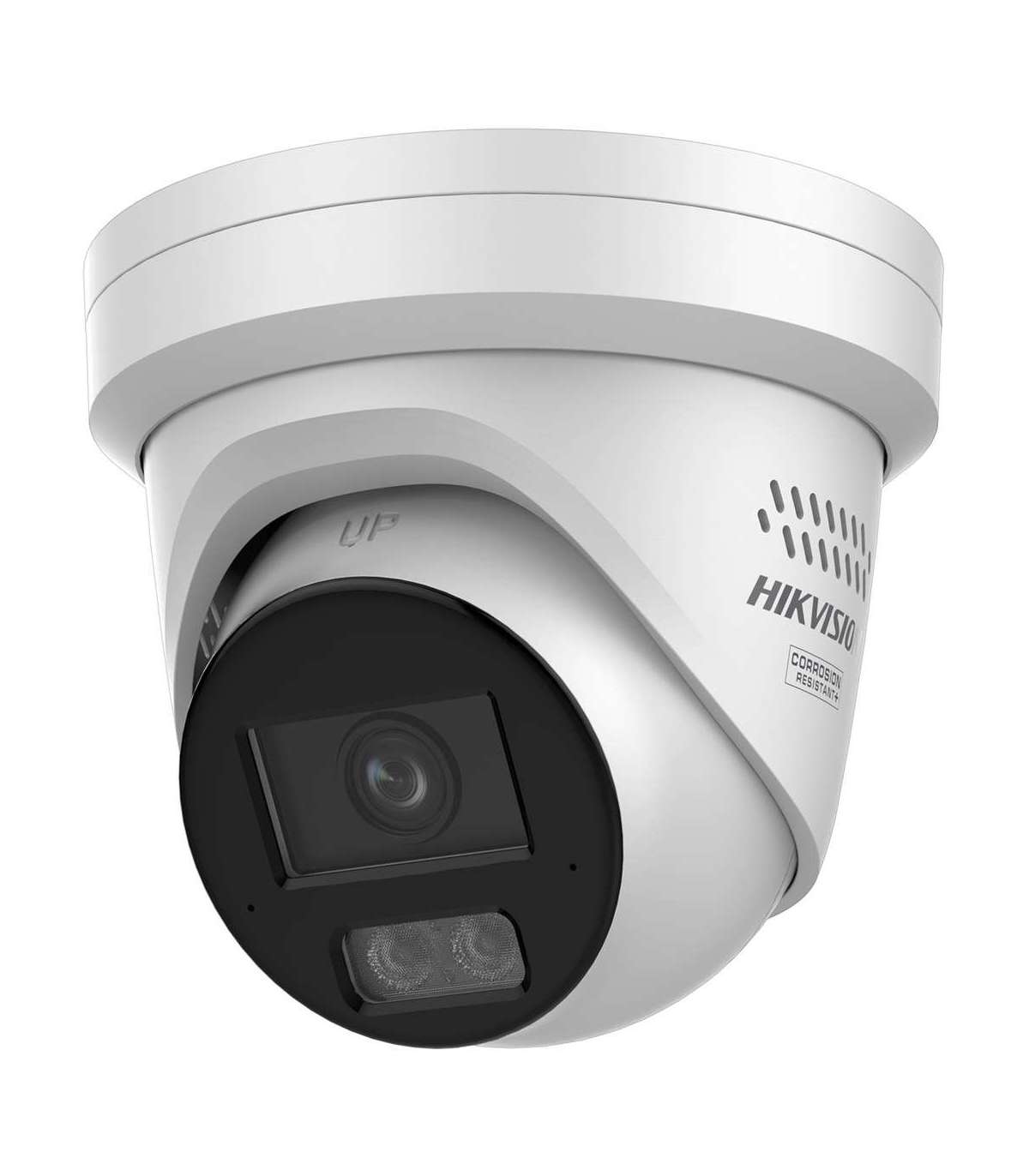

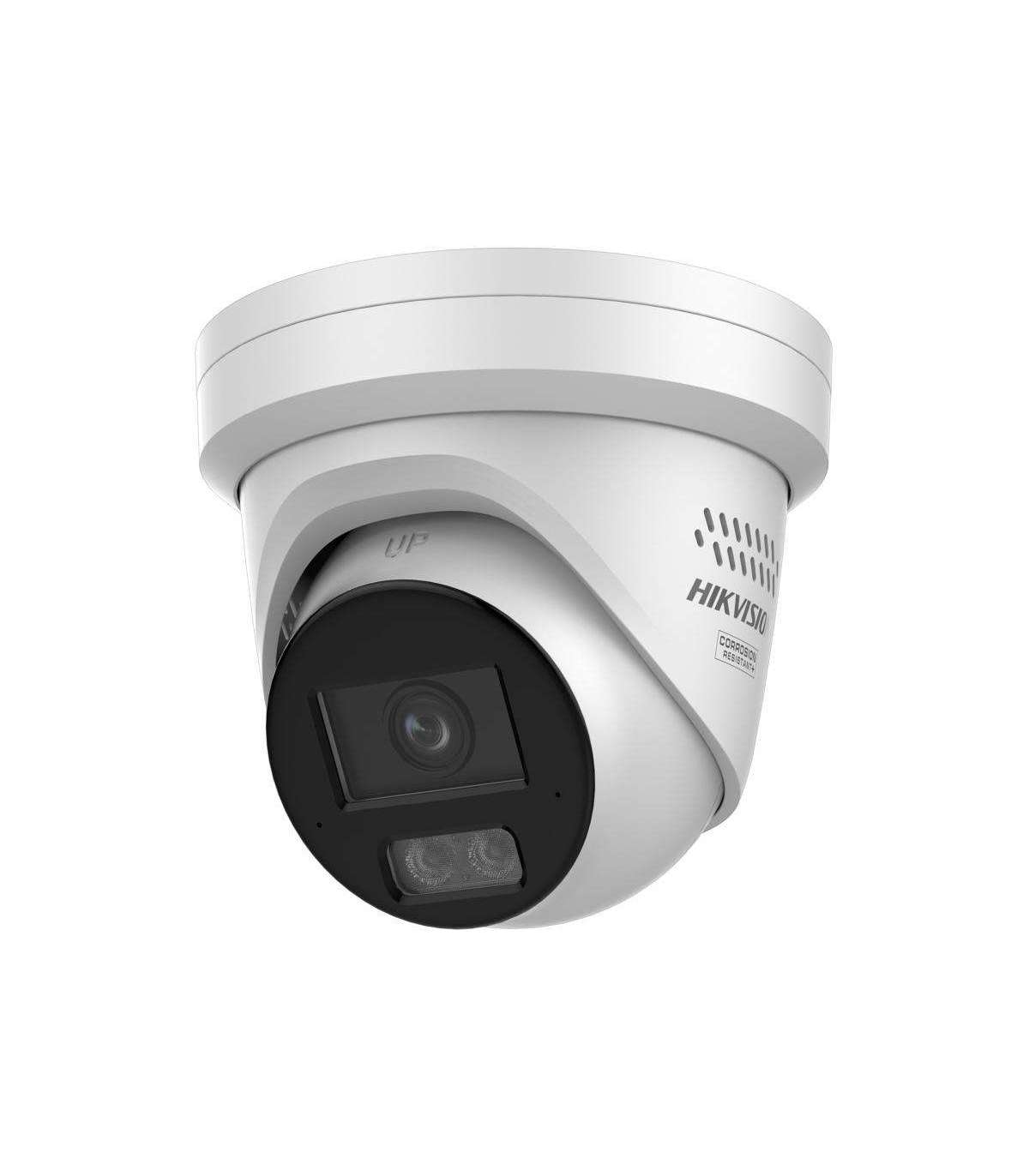

Hikvision Pro Series with ColorVu DS-2CD2347G3-LIS2UY/SL(2.8MM) security camera Turret IP security camera Indoor &

Характеристики

Weight

820 g

Height

115.4 mm

Package weight

1.2 kg

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Package width

170 mm

Package depth

170 mm

Package height

160 mm

Manual

Yes

Housing material

Metal

Power consumption (max)

15.5 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Card reader integrated

Yes

Form factor

Turret

Bluetooth

No

Built-in speaker(s)

Yes

Built-in microphone

Yes

DC output voltage

12

Video formats supported

H.264
H.264+
H.265
H.265+

Audio formats supported

AAC-LC
G.711
G.722.1
G.726
MP2L2
MP3
PCM

Maximum memory card size

512 GB

Image stabilizer

Yes

Optical sensor size

25.4 / 1.8 mm (1 / 1.8")

Supported video modes

1520p

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+

Maximum resolution

2688 x 1520 pixels

Noise reduction

Yes

Type

IP security camera

Diameter

13.8 cm

Number of cameras

1

Live view

Yes

Video streaming

Yes

Fixed focal length

2.8 mm

Tilt angle range

0 - 75°

Supported graphics resolutions

2688 x 1520

Placement supported

Indoor & outdoor

Mounting type

Ceiling

Mirror

Yes

Video recording

Yes

Signal-to-Noise Ratio (SNR)

52 dB

Built-in light

Yes

DC output current

1.29 A

Video motion detection

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

4 MP

Infra-red wavelength

850 nm

Night vision distance

30 m

LED type

IR/White

Night vision

Yes

Number of lenses

1

Cloud-managed

Yes

Lens viewing angle, vertical

57.6°

Lens viewing angle, diagonal

138.5°

Lens viewing angle, horizontal

111.1°

Pan range

0 - 360°

Progressive scan

Yes

Back Light Compensation (BLC)

Yes

Maximum aperture number

1

Angle of rotation

360°

Power consumption (Power over Ethernet (PoE))

17 W

Heartbeat

Yes

Anti-flicker

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Digital Wide Dynamic Range (DWDR)

Yes

Bit rate

32 Kbps to 8 Mbps

Management software

iVMS-4200,Hik-Connect,Hik-Central

Smart IR

Yes

Bit rate control

Constant Bit Rate (CBR), Variable Bit Rate (VBR)

Observe distance

24 m

Recognize distance

12 m

Detect distance

61 m

Identify distance

6 m

Minimum illumination

0 lx

Number of Privacy masking areas

4

Highlight Compensation (HLC)

Yes

Bit rate range

8 - 320 Kbit/s

Fixed focus

Yes

Audit log

Yes

Digest authentication

Yes

Password reset via email

Yes

User access level

Administrator, Operator, User

Number of simultaneous live view channels

6 channels

Dynamic range

130 dB

Network access storage (NAS)

Yes

Flash log

Yes

Pixel counter

Yes

Sample rates

8 - 48 kHz

Human and vehicle targets classification

Yes

Automatic Network Replenishment (ANR)

Yes
