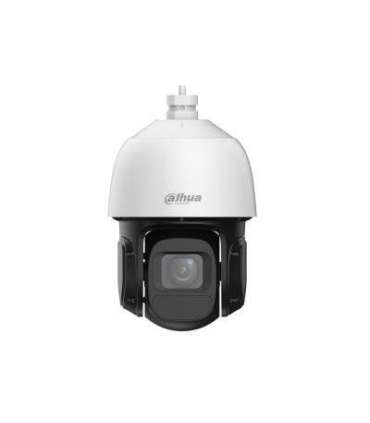

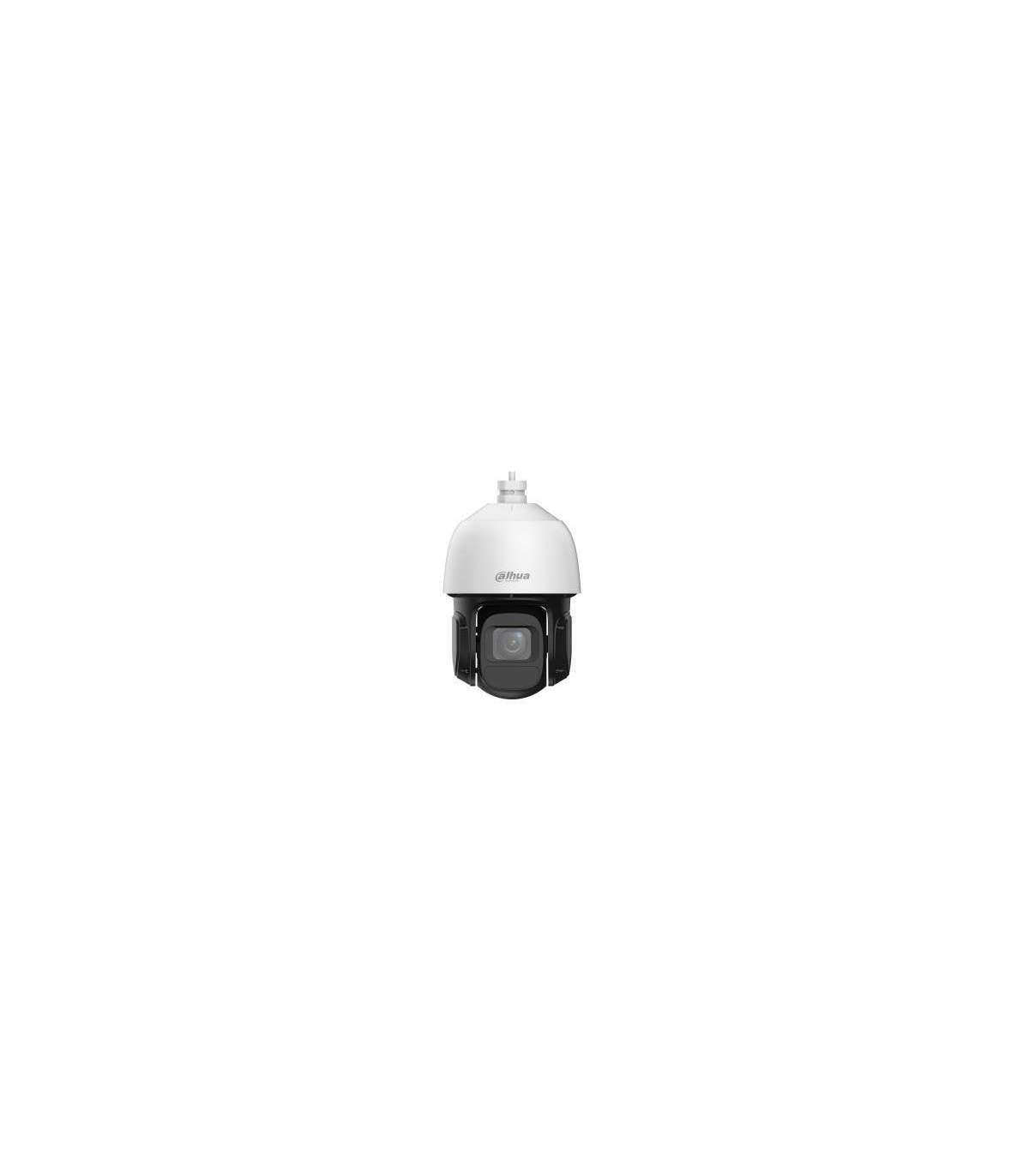

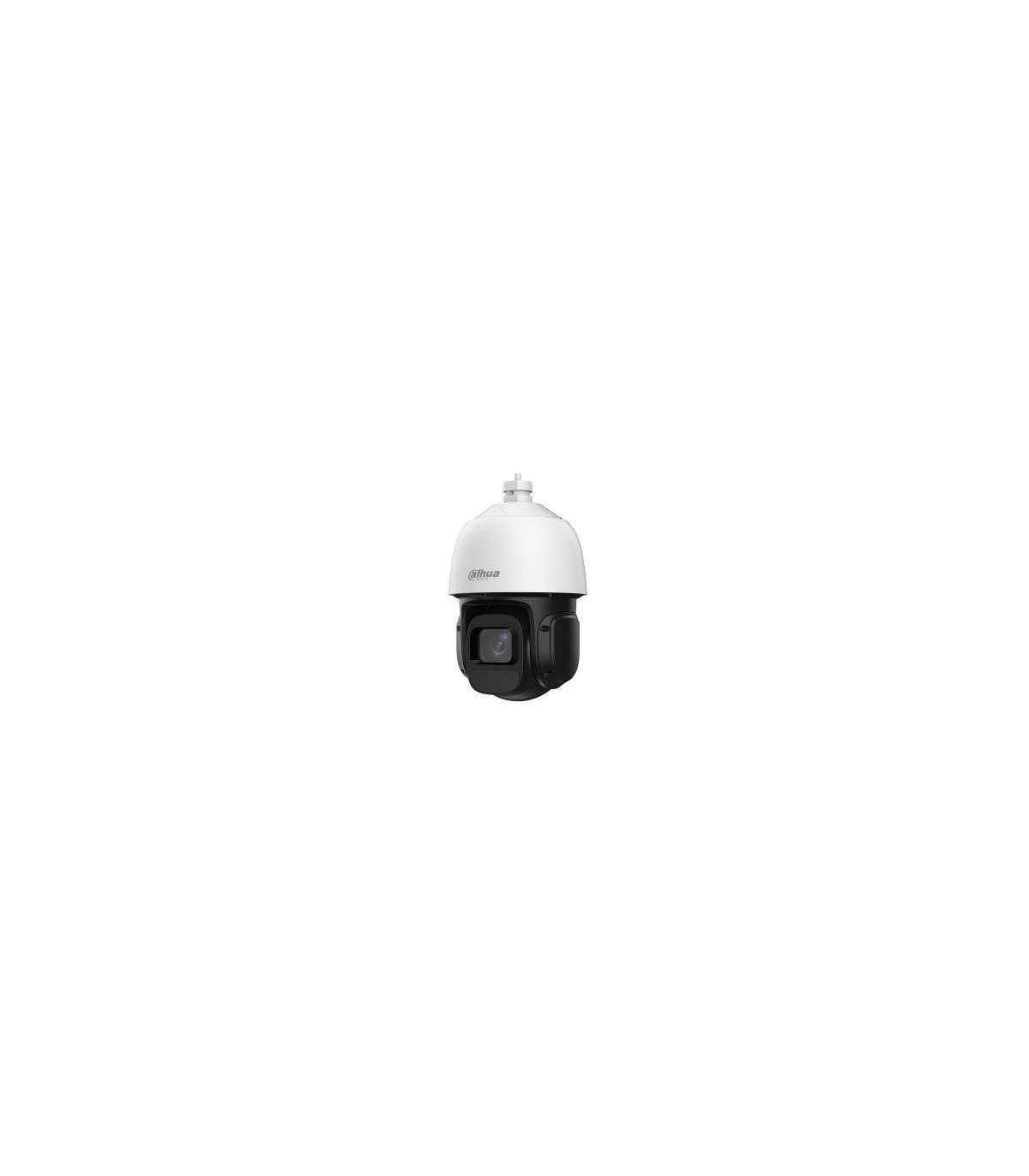

DAHUA SD3D216NB-GNY CAMERA

Характеристики

Depth

240 mm

Weight

1.5 kg

Height

240 mm

Width

151.1 mm

Package weight

2.1 kg

Product colour

White

Power source type

DC, PoE

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Certification

CE: EN55032/EN55024/EN50130-4

Power consumption (typical)

8 W

Power consumption (max)

18 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP66

Mobile operating systems supported

Android
iOS

Number of users

20 user(s)

RAM capacity

128 MB

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Card reader integrated

Yes

Form factor

Turret

Bluetooth

No

DC output voltage

12

Maximum memory card size

256 GB

Digital zoom

5x

Image stabilizer

Yes

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Auto focus

Yes

Optical zoom

16x

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.264B
H.265
H.265+
M-JPEG

Maximum resolution

1920 x 1080 pixels

Noise reduction

Yes

Type

IP security camera

Number of cameras

1

Video streaming

Yes

Tilt angle range

-15 - 90°

Supported graphics resolutions

352 x 288
640 x 480 (VGA)
704 x 576
1280 x 720 (HD 720)
1280 x 960
1920 x 1080 (HD 1080)
2304 x 1296
2560 x 1440

Placement supported

Indoor & outdoor

Mounting type

Ceiling/wall

Signal-to-Noise Ratio (SNR)

55 dB

Video motion detection

Yes

Built-in HDD

No

Frame rate

30 fps

Total megapixels

2 MP

Night vision distance

80 m

Night vision

Yes

Number of lenses

1

Pan range

0 - 360°

Progressive scan

Yes

Back Light Compensation (BLC)

Yes

Focal length range

5 - 80 mm

Maximum aperture number

3.5

Minimum aperture number

1.6

Zoom capability

Yes

Wide Dynamic Range (WDR)

Yes

Camera shutter speed

1/1 - 1/30000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

2D noise reduction, 3D noise reduction

Gain control type

Auto/Manual

Active tampering alarm

Yes

Management software

DMSS;DSS Pro

Streaming method

Multicast
Unicast

ROM capacity

128 MB

White balance

Indoor
Manual
Natural
Outdoor
Sodium lamp
Street lamp

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Number of illumination LEDs

3

Observe distance

106.6 m

Recognize distance

54 m

Detect distance

270 m

Identify distance

27 m

Minimum illumination

0.0005 lx

PTZ control

Yes

Highlight Compensation (HLC)

Yes

Preset points

Yes

Focus

Automatic / semi-automatic / manual
