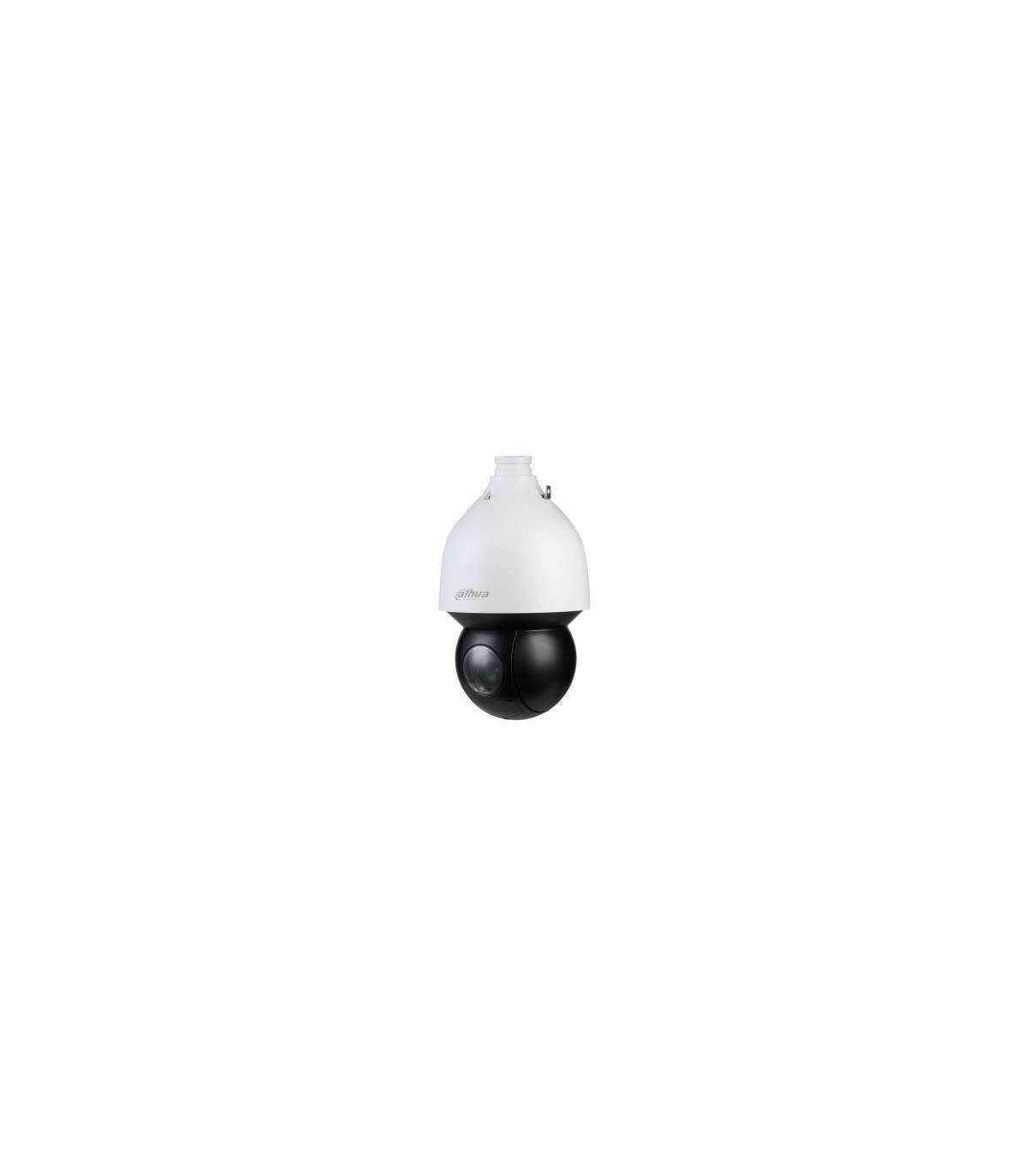

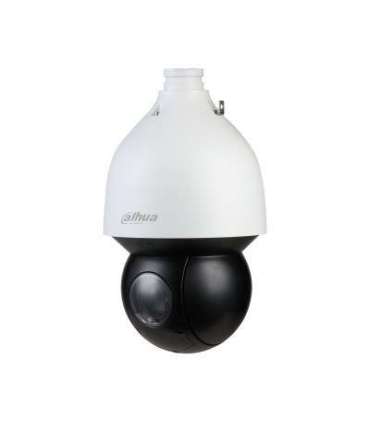

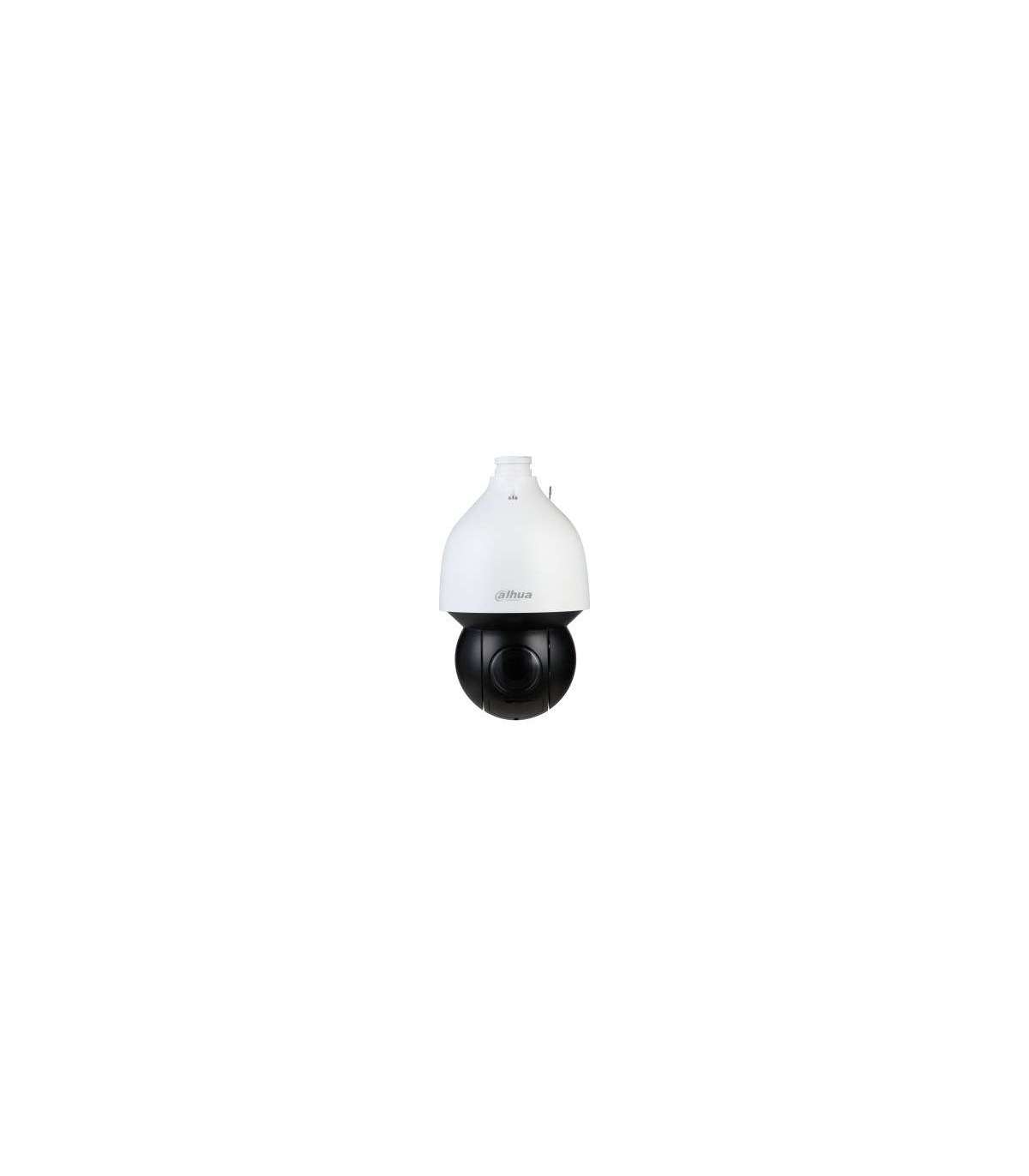

DAHUA SD5A425GA-HNR IP CAMERA

Характеристики

Weight

4.7 kg

Height

332 mm

Package weight

8 kg

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Quality of Service (QoS) support

Yes

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Certification

CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL:UL60950-1+CAN/CSA C22.2,No.60950-1

Power consumption (max)

21 W

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

DC output voltage

24V

Optical sensor size

25.4 / 1.8 mm (1 / 1.8")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.264B
H.264H
H.265
H.265+
M-JPEG

Maximum resolution

2560 x 1440 pixels

Noise reduction

Yes

Type

IP security camera

Product diameter

190 mm

Video streaming

Yes

Fixed focal length

13.5 cm

Tilt angle range

-15 - 90°

Supported graphics resolutions

352 x 240
352 x 288
640 x 480 (VGA)
704 x 480
704 x 576
1280 x 720
1920 x 960
1920 x 1080
2048 x 1536 (QXGA)
2560 x 1440

Placement supported

Outdoor

Mounting type

Ceiling

DC output current

2.5 A

Video motion detection

Yes

Total megapixels

4 MP

Night vision

Yes

Number of lenses

1

Camera pan control

Yes

Camera tilt control

Yes

Lens viewing angle, vertical

35,7 - 2°

Lens viewing angle, diagonal

66.6°–4°

Lens viewing angle, horizontal

61,6 - 3,6°

Pan range

0 - 360°

Progressive scan

Yes

Maximum aperture number

4

Angle of rotation

360°

Anti-flicker

Yes

HTTPS encryption

Yes

Wide Dynamic Range (WDR)

120 dB

Day/night mode

Yes

Camera shutter speed

1 - 1/30000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

2D NR/ 3D NR

Privacy masking

Yes

Bit rate

H.264: 96 kbps–14848 kbps; H.265: 38 kbps–8960 kbps

Closest focusing distance

5.4 m

Minimum illumination

0 lx

PoE standard

IEEE 802.3at

Highlight Compensation (HLC)

Yes

PoE+ support

Yes
