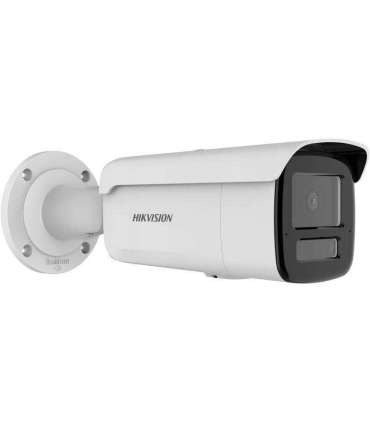

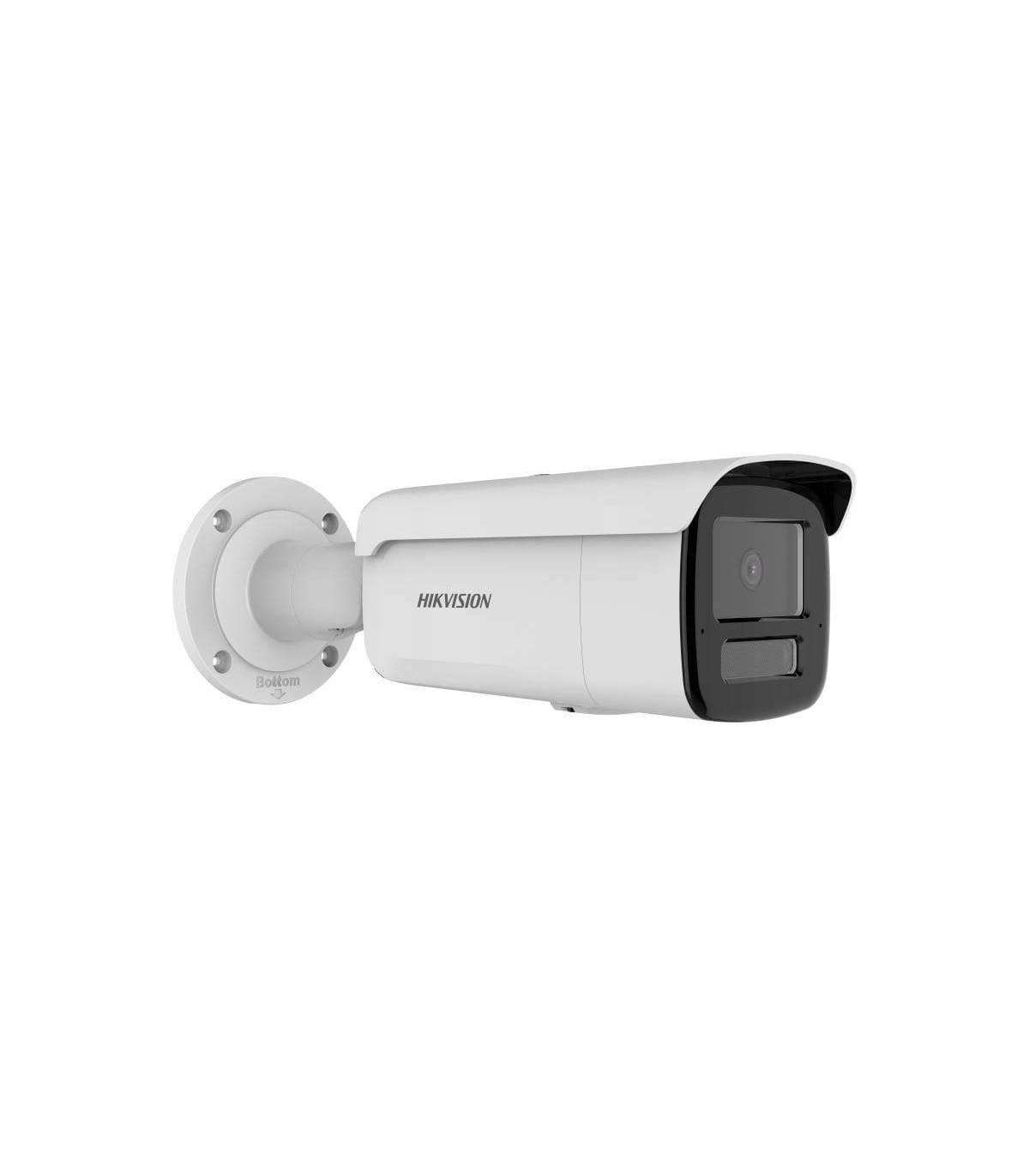

HIKVISION IP CAMERA DS-2CD2T43G2-2LI(4mm)

Характеристики

Depth

286.7 mm

Weight

1.15 kg

Height

88.7 mm

Width

93.1 mm

Package weight

1.64 kg

Product colour

White

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Ethernet LAN data rates

10,100 Mbit/s

Package width

156 mm

Package depth

155 mm

Package height

386 mm

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Sustainability certificates

REACH
WEEE

Housing material

Metal

Power over Ethernet (PoE)

Yes

Connectivity technology

Wired

International Protection (IP) code

IP67

Number of users

32 user(s)

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Password protection

Yes

Built-in microphone

Yes

Maximum memory card size

512 GB

Maximum frame rate

30 fps

Optical sensor size

25.4 / 2.9 mm (1 / 2.9")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

2688 x 1520 pixels

Type

IP security camera

Number of cameras

1

Tilt angle range

0 - 90°

Power management

DC 12 V

Mirror

Yes

Signal-to-Noise Ratio (SNR)

52 dB

Video motion detection

Yes

Total megapixels

4 MP

Infra-red wavelength

850 nm

Night vision distance

60 m

LED type

IR

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

45°

Lens viewing angle, diagonal

100°

Lens viewing angle, horizontal

84°

Pan range

0 - 360°

Progressive scan

Yes

Maximum aperture number

1.6

Angle of rotation

360°

Heartbeat

Yes

Wide Dynamic Range (WDR)

120 dB

Day/night mode

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Bit rate

32 Kbps - 8 Mbps

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Minimum illumination

0.005 lx

Observe distance (wide)

31 m

PoE standard

IEEE 802.3af

Highlight Compensation (HLC)

Yes

Identify distance (wide)

7 m

Detect distance (wide)

78.6 m

Client interoperability

ONVIF (Profile S / Profile G), ISAPI, SDK, ISUP

Behavior analysis

Intrusion detection, Line crossing detection
