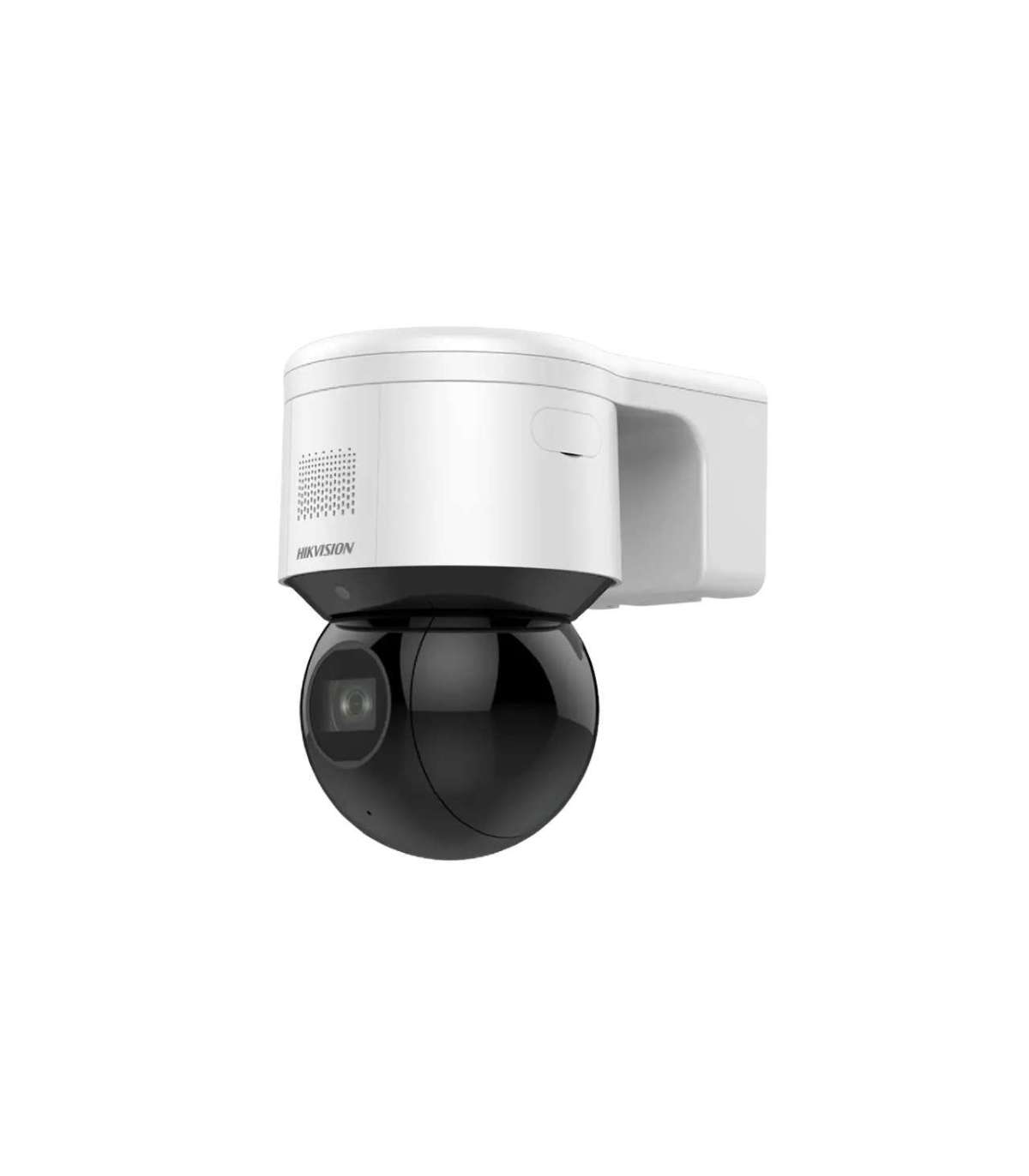

Hikvision DS-2DE3A404IWG-E security camera Spherical IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling

Характеристики

Depth

179.3 mm

Weight

1.12 kg

Height

182 mm

Width

12.5 mm

Product colour

Black
White

Power source type

DC, PoE

Security algorithms

EAP-LEAP
EAP-MD5
EAP-TLS

Operating temperature (T-T)

-30 - 65 °C

Operating relative humidity (H-H)

0 - 90%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Supported network protocols

IPv4/IPv6, HTTP, HTTPS, QoS,802.1x, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour

Browser supported

IE10-11, Chrome 57.0+, Firefox 52.0+, Safari 12+

Power consumption (max)

14 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP66

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Card reader integrated

Yes

Form factor

Spherical

Password protection

Yes

Bluetooth

No

Built-in speaker(s)

Yes

Built-in microphone

Yes

Privacy protection

Yes

DC output voltage

12

Audio formats supported

G.711 A-law
G.711 μ-law
G.722.1
G.726
MP2L2
PCM

Maximum memory card size

256 GB

Digital zoom

16x

Protection features

Waterproof

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Auto focus

Yes

Optical zoom

4x

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

2560 x 1440 pixels

Type

IP security camera

Number of cameras

1

Live view

Yes

Tilt angle range

0 - 90°

Supported graphics resolutions

352 x 240
352 x 288
640 x 480 (VGA)
704 x 480
704 x 576
1280 x 720 (HD 720)
1280 x 960
1920 x 1080 (HD 1080)
2560 x 1440

Placement supported

Indoor & outdoor

Mounting type

Ceiling

DC output current

3.33 A

Video motion detection

Yes

Alarm input/output

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

4 MP

Night vision distance

50 m

LED type

IR

Night vision

Yes

Number of lenses

1

Camera pan control

Yes

Camera tilt control

Yes

Intelligent Video Surveillance (IVS) system features

Crossing line
Face detection
Intrusion
Region entrance detection
Region exiting detection

Lens viewing angle, vertical

51.1 - 17.7°

Lens viewing angle, diagonal

115.1 - 36.3°

Lens viewing angle, horizontal

96.7 - 31.6°

Pan range

0 - 350°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness

Back Light Compensation (BLC)

Yes

Focal length range

2.8 - 12 mm

Maximum aperture number

1.5

Zoom capability

Yes

Digital watermark

Yes

HTTPS encryption

Yes

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1 - 1/30000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Privacy masking

Yes

Bit rate

32 Kbps - 16 Mbps

Active tampering alarm

Yes

Observe distance

71.4 m

Recognize distance

36 m

Detect distance

180 m

Identify distance

18 m

Minimum illumination

0 lx

Number of Privacy masking areas

24

PTZ control

Yes

PTZ modes

Preset point

Pan speed

60 °/sec

Tilt preset speed

60 °/sec

Tilt speed

50 °/sec

Pan preset speed

60 °/sec

Highlight Compensation (HLC)

Yes

B/W night vision distance

6 m

Bit rate range

16 - 160 Kbit/s

Client interoperability

iVMS-4200, HikCentral, Hik-Connect

Alarm input channels

1

Alarm output channels

1

Audit log

Yes

Digest authentication

Yes

User access level

Administrator, Operator, User

Number of simultaneous live view channels

20 channels

Dynamic range

120 dB

Focus

Motorized/Manual

Automatic Network Replenishment (ANR)

Yes

Preset programs quantity

300

Fog proof

Yes

Preset freezing function

Yes

PTZ status display

Yes

I/O ports

line in, line out

Proportional zoom

Yes

Zoom speed

2 s
