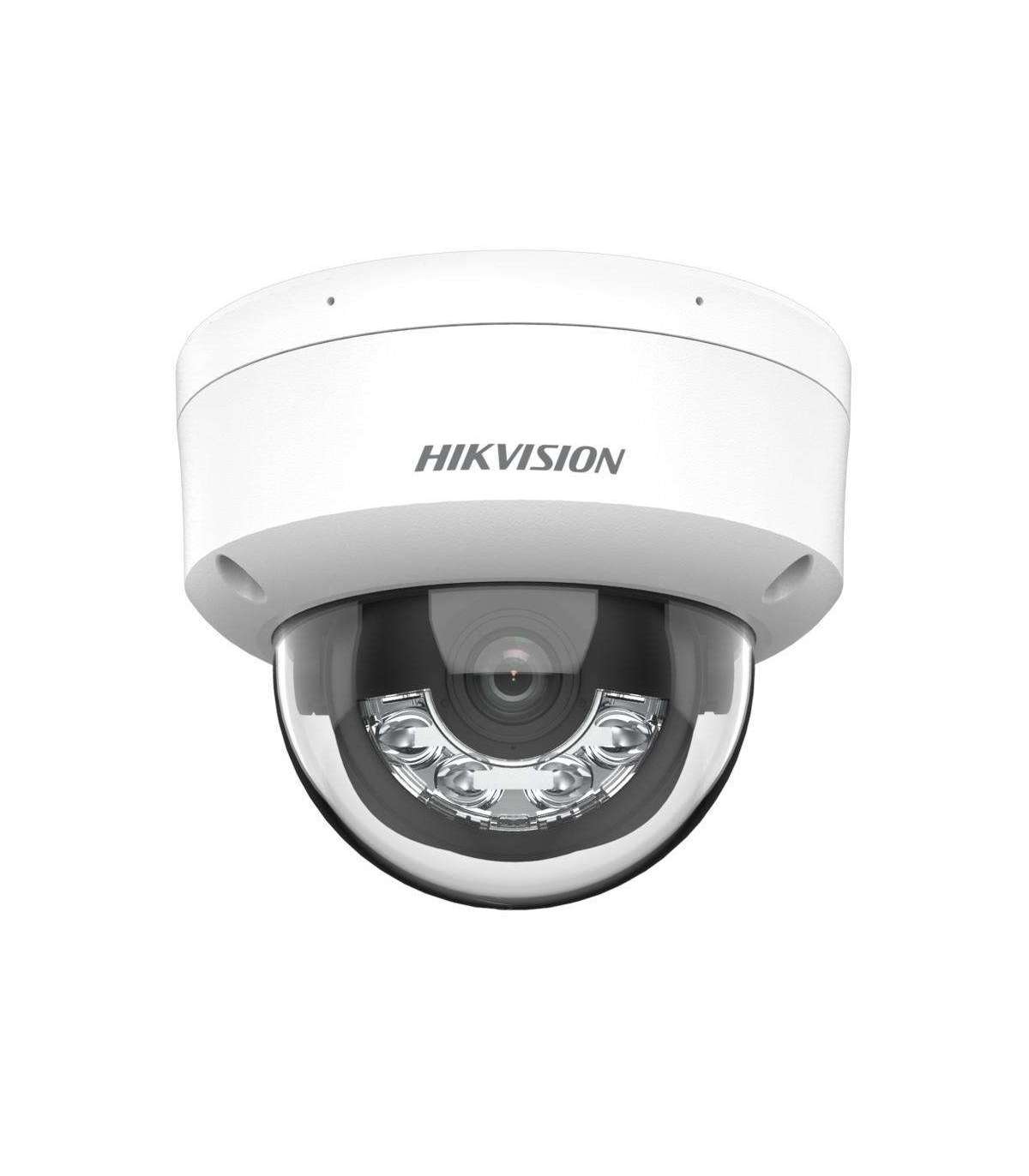

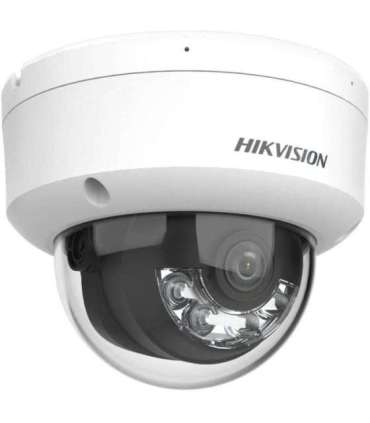

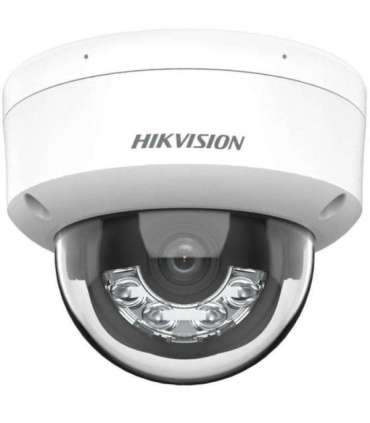

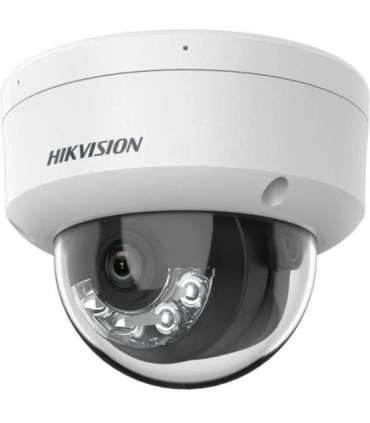

HIKVISION DS-2CD1143G2-LIU 2.8MM IP CAMERA

Характеристики

Depth

121.4 mm

Weight

550 g

Height

97.7 mm

Width

121.4 mm

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Quality of Service (QoS) support

Yes

Networking standards

IEEE 802.3af

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Housing material

Metal, Plastic

Power consumption (max)

6 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Number of users

32 user(s)

Languages support

English
Ukrainian

Form factor

Dome

Password protection

Yes

Bluetooth

No

Built-in microphone

Yes

DC output voltage

12

Optical sensor size

25.4 / 3 mm (1 / 3")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

2560 x 1440 pixels

Noise reduction

Yes

Type

IP security camera

Number of cameras

1

Video streaming

Yes

Fixed focal length

2.8 mm

Tilt angle range

0 - 75°

Supported graphics resolutions

640 x 360
640 x 480 (VGA)
1280 x 720
1920 x 1080 (HD 1080)
2560 x 1440

Placement supported

External / Internal

Mounting type

Ceiling

Mirror

Yes

DC output current

0.5 A

Video motion detection

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

25 fps

Total megapixels

4 MP

Infra-red wavelength

850 nm

Night vision distance

30 m

LED type

IR / White light LED

Night vision

Yes

Number of lenses

1

Camera pan control

Yes

Camera tilt control

Yes

Lens viewing angle, vertical

54°

Lens viewing angle, diagonal

114°

Lens viewing angle, horizontal

98°

Pan range

0 - 355°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness
White balance

Back Light Compensation (BLC)

Yes

Maximum aperture number

1.6

Power consumption (Power over Ethernet (PoE))

7.5 W

Digital watermark

Yes

Heartbeat

Yes

Number of languages

2

Wide Dynamic Range (WDR)

120 dB

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Privacy masking

Yes

Bit rate

32 Kbps - 8 Mbps

Audio codecs

G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Lens type

Fixed focal length lens

Observe distance (wide)

25 m

Highlight Compensation (HLC)

Yes

Identify distance (wide)

6 m

Recognize distance (wide)

12 m

Detect distance (wide)

63 m

Degree of protection IK

IK08
