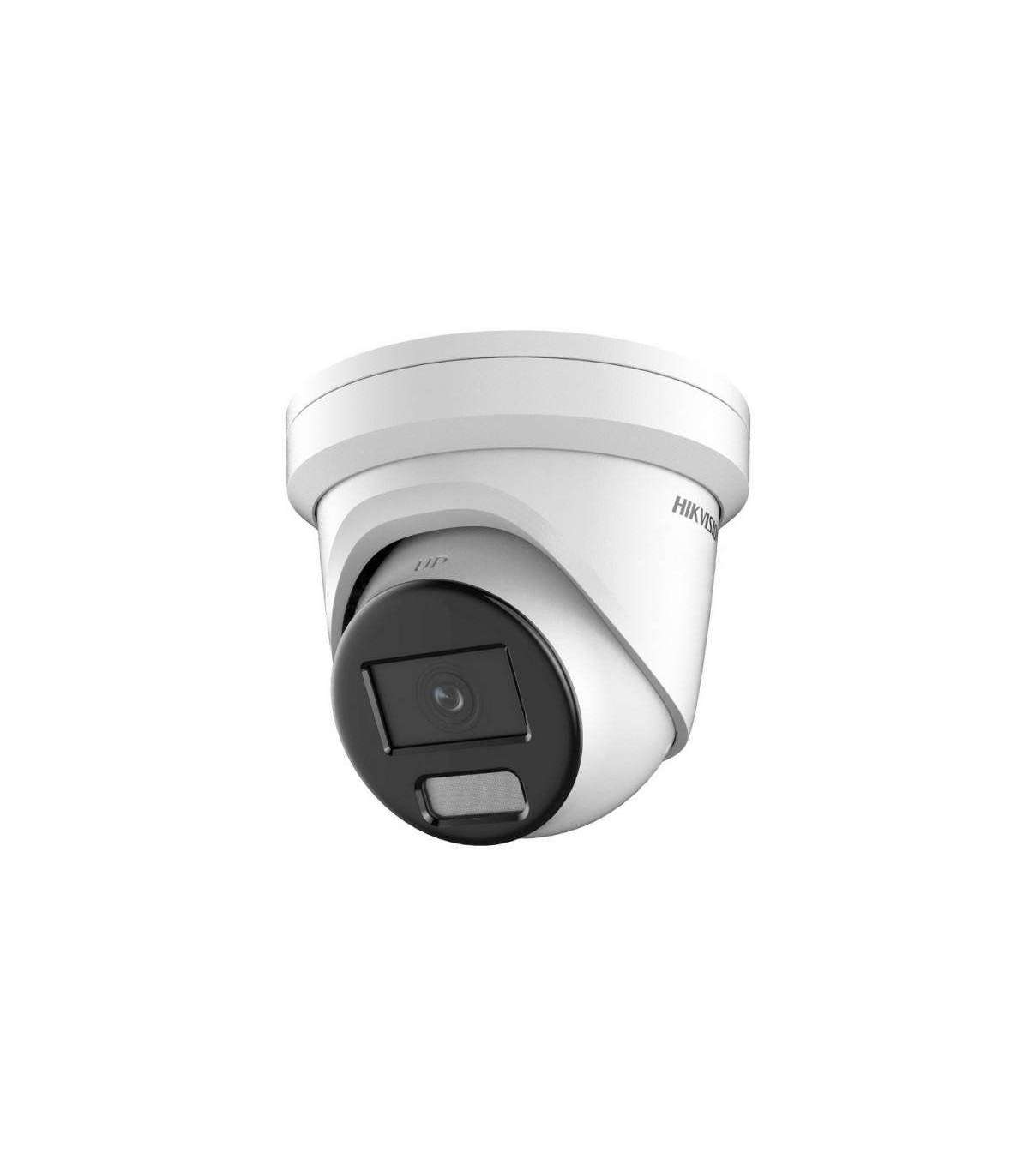

HIKVISION IP CAMERA DS-2CD2387G2-L (2.8mm) (C)

Характеристики

Weight

870 g

Height

120.1 mm

Product colour

Black
White

Power source type

DC, PoE

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Quality of Service (QoS) support

Yes

Package width

170 mm

Package depth

170 mm

Package height

150 mm

Compliance certificates

CB
UL

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Housing material

Aluminium, Plastic

Power consumption (max)

5 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Card reader integrated

Yes

Form factor

Bullet

Password protection

Yes

Bluetooth

No

Built-in microphone

Yes

Privacy protection

Yes

DC output voltage

12

Audio formats supported

AAC-LC
G.711 A-law
G.711 μ-law
G.722.1
G.726
MP2L2
MP3
PCM

Maximum memory card size

512 GB

Protection features

Water resistant

Optical sensor size

25.4 / 1.2 mm (1 / 1.2")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

3840 x 2160 pixels

Noise reduction

Yes

Type

IP security camera

Diameter

13.8 cm

Number of cameras

1

Live view

Yes

Video streaming

Yes

Fixed focal length

2.8 mm

Supported graphics resolutions

640 x 360
640 x 480 (VGA)
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2688 x 1520
3200 x 1800
3840 x 2160

Placement supported

Indoor & outdoor

Mounting type

Ceiling

Mirror

Yes

Built-in light

Yes

Video motion detection

Yes

Alarm input/output

No

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

8 MP

Night vision distance

30 m

LED type

White

Night vision

Yes

Number of lenses

2

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Exposure
Saturation
Sharpness
White balance

Back Light Compensation (BLC)

Yes

Angle of rotation

360°

Power consumption (Power over Ethernet (PoE))

6 W

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D NR

Privacy masking

Yes

Bit rate

32 Kbps to 16 Kbps

Active tampering alarm

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Detect distance

96 m

Number of Privacy masking areas

8

Highlight Compensation (HLC)

Yes

Lens mount interface

M16

Bit rate range

16 - 64 Kbit/s

Client interoperability

iVMS-4200, Hik-Connect, Hik-Central

Behavior analysis

Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Audio input channels

1.0 channels

User access level

Administrator, Operator, User

Number of simultaneous live view channels

6 channels

Dynamic range

130 dB

Network access storage (NAS)

Yes

Sample rates

8 - 48 kHz

Human and vehicle targets classification

Yes

Automatic Network Replenishment (ANR)

Yes
