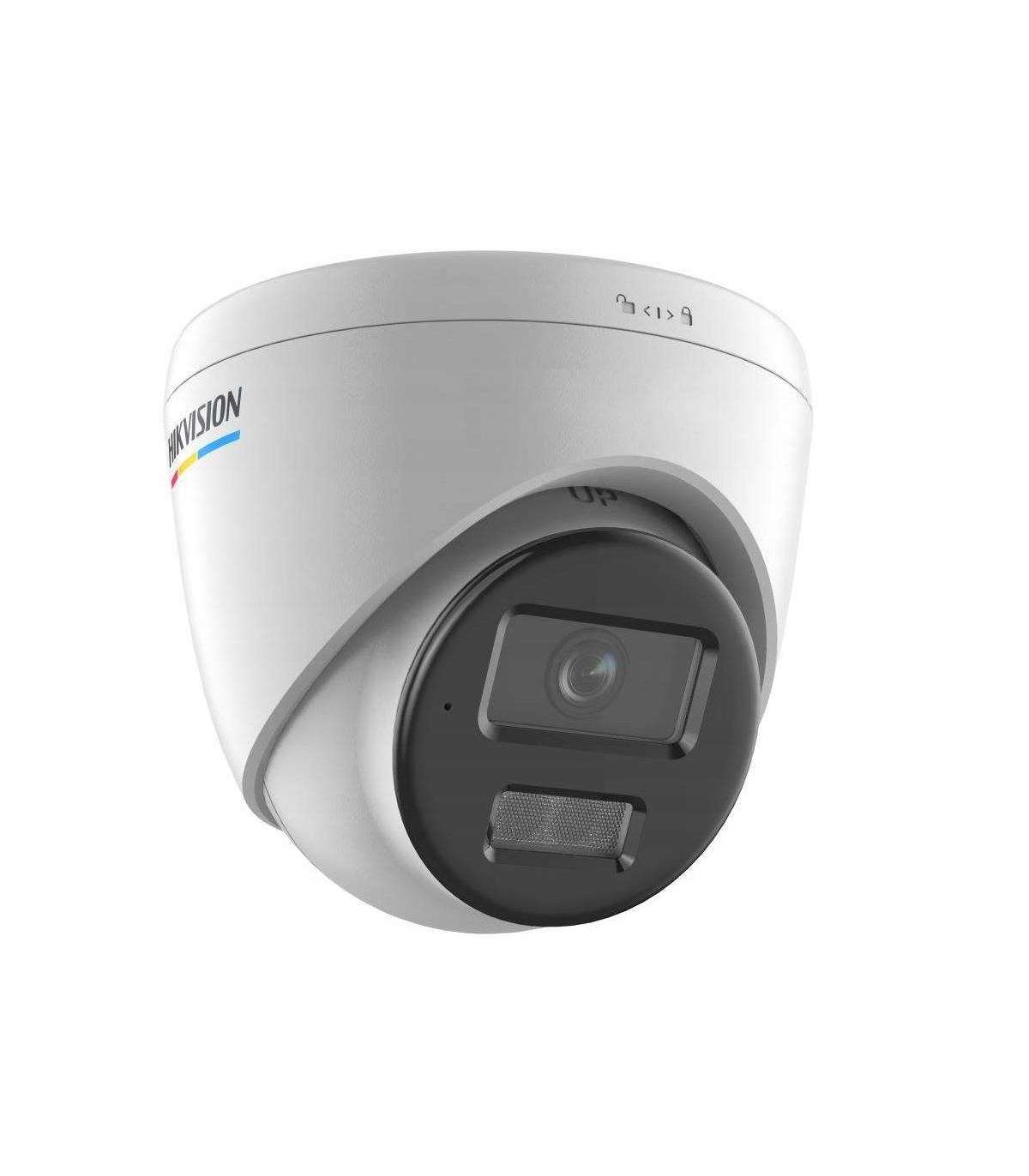

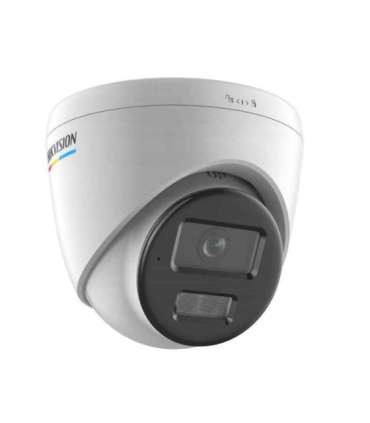

IP Camera HIKVISION DS-2CD1367G2H-LIU(2.8mm) White

Характеристики

Depth

192.7 mm

Weight

1.32 kg

Height

66.4 mm

Width

70.5 mm

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-40 - 60 °C

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Ethernet LAN (RJ-45) ports

1

Web-based management

Yes

Networking standards

IEEE 802.3af

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Housing material

Metal

Additional information

Dual illuminator, 3 illuminator modes (IR only, LED only, Smart - IR + LED), AWB, AGC, BLC, HLC, 3D DNR, WDR 120dB, ROI, MD 2.0 - motion detection with object classification, Smart Hybrid Light, Color
bitrate: 32Kbps ~ 8Mbps, video: iVMS-4200, Hik-Central Browsers: IE, Firefox, Chrome, Safari, Android or iOS apps: Hik-Connect, Hik-Partner Pro

Power consumption (typical)

3.6 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

10 Megabit Ethernet
100 Megabit Ethernet

Mobile operating systems supported

Android
iOS

RAM capacity

1024 MB

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Form factor

Bullet

Bluetooth

No

Built-in microphone

Yes

DC output voltage

12V

Built-in loudspeaker

Yes

Number of memory card slots

1

4G LTE

No

Maximum memory card size

256 GB

Optical sensor size

25.4 / 1.8 mm (1 / 1.8")

Sensor type

1/2.7" CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

1920 x 1080 pixels

Type

IP security camera

Number of cameras

1

Video streaming

Yes

Supported graphics resolutions

352 x 240
352 x 288
640 x 480 (VGA)
704 x 480
704 x 576
1280 x 720
1280 x 960
1920 x 1080 (HD 1080)
2048 x 1536 (QXGA)
2304 x 1296
2560 x 1440
2592 x 1944
2688 x 1520
3072 x 1728
3072 x 2048
3840 x 2160

Picture enhancement

D-WDR, 3D-DNR, ROI, BLC/HLC

Placement supported

External / Internal

Mounting type

Wall/ceiling

Signal-to-Noise Ratio (SNR)

56 dB

(cdm) Menu languages

PL, Eng, FR, DE and others

Alarm input/output

No

Number of sensors

1

Frame rate

25 / 30 fps

Total megapixels

8 MP

Night vision distance

30 m

LED type

IR

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

57°

Lens viewing angle, horizontal

110°

Progressive scan

Yes

Focal length range

2.8 mm

Maximum aperture number

1.6

Power consumption (Power over Ethernet (PoE))

5.4 W

Camera shutter speed

1/3 - 1/100000 s

Noise reduction technology

3D noise reduction

Web browser

Yes

Audio codecs

G.711a / G.711Mu / G.723 / G.726 / PCM

ROM capacity

128 MB

Number of illumination LEDs

1

Closest focusing distance

1.9 m

Two-way talk

Yes

Motion detection

Yes

Horizontal rotation angle

0 - 360°

People detection

Yes

Vertical rotation angle

0 - 90°

Lens type

Fixed focal length lens

Lens

Permanent

Adjustment shutter speed

Auto/Manual

Network interface

RJ-45 10/100

Audio RCA outputs

1

RCA input

1

Flip & mirror

Yes

Observe distance (wide)

35.7 m

Aperture type

Permanent
