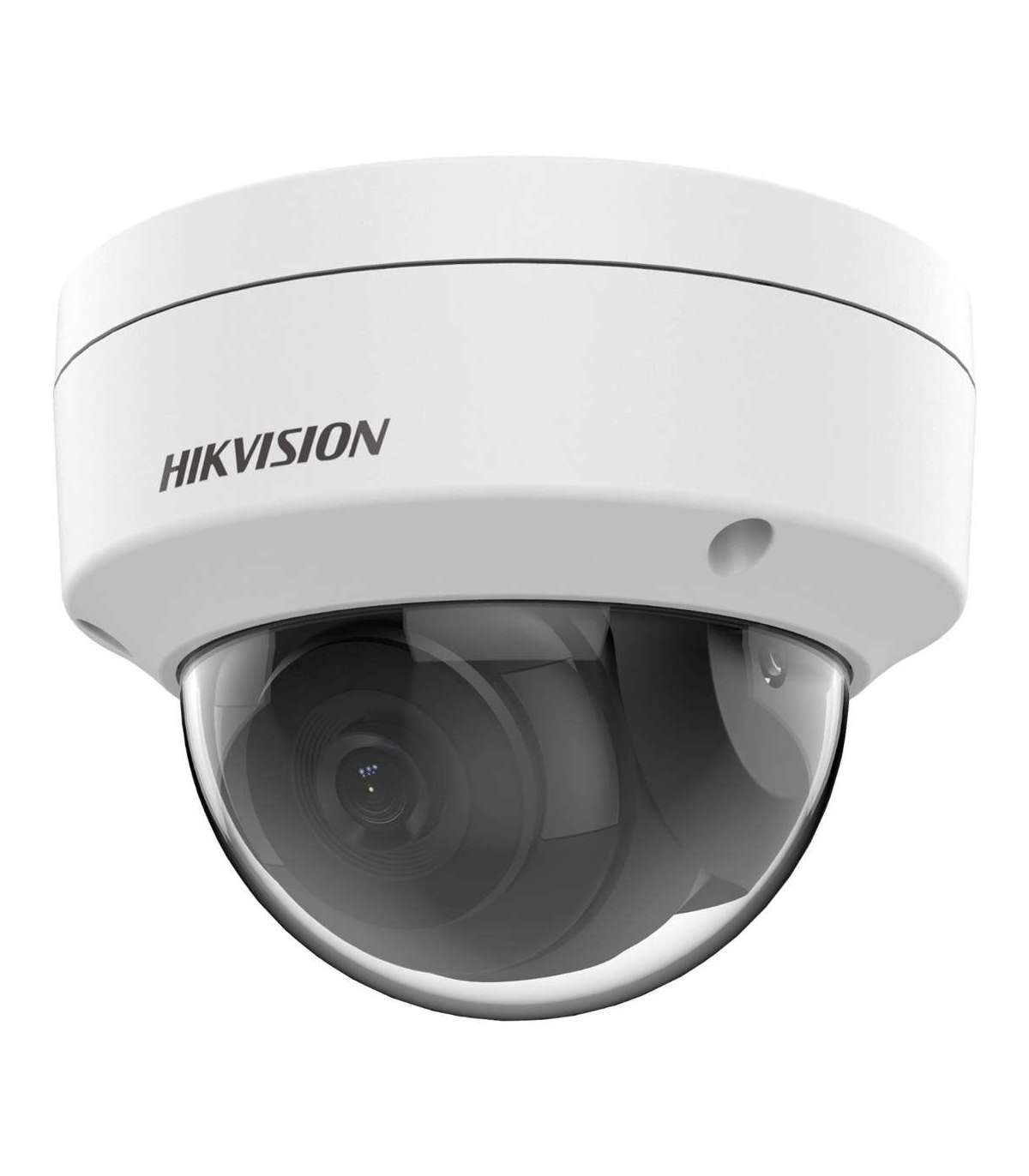

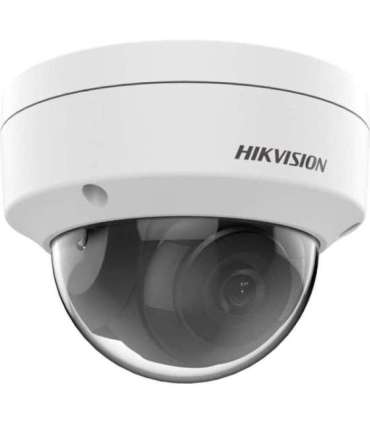

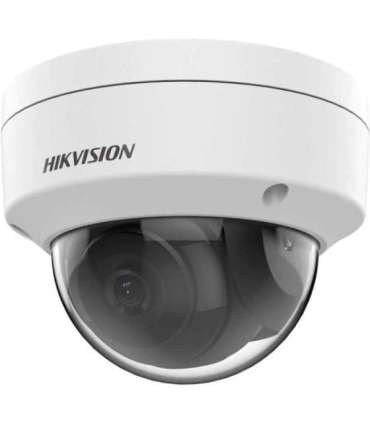

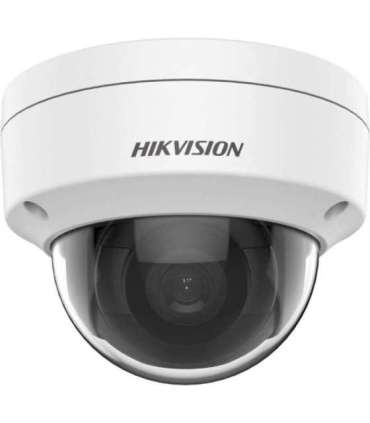

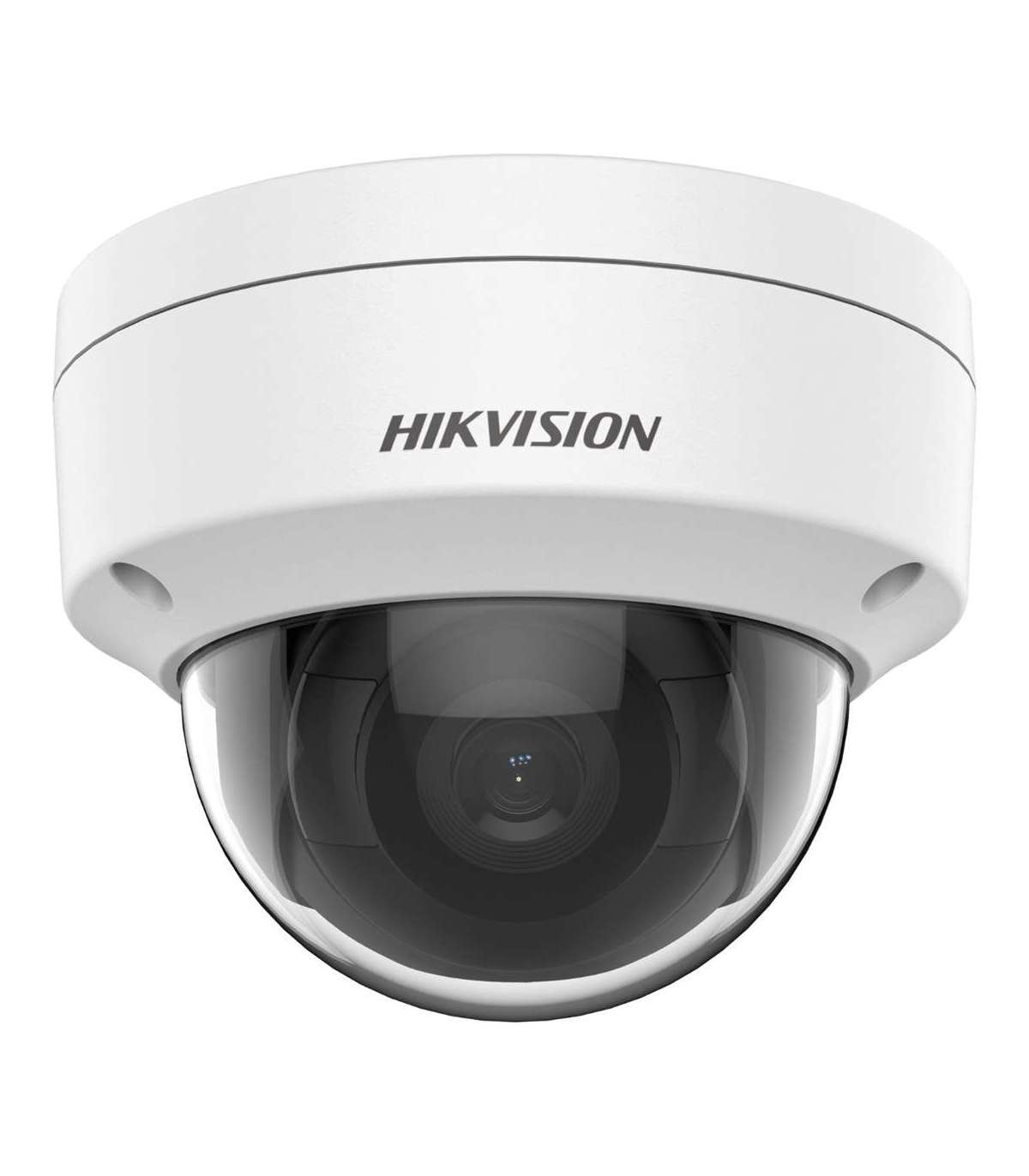

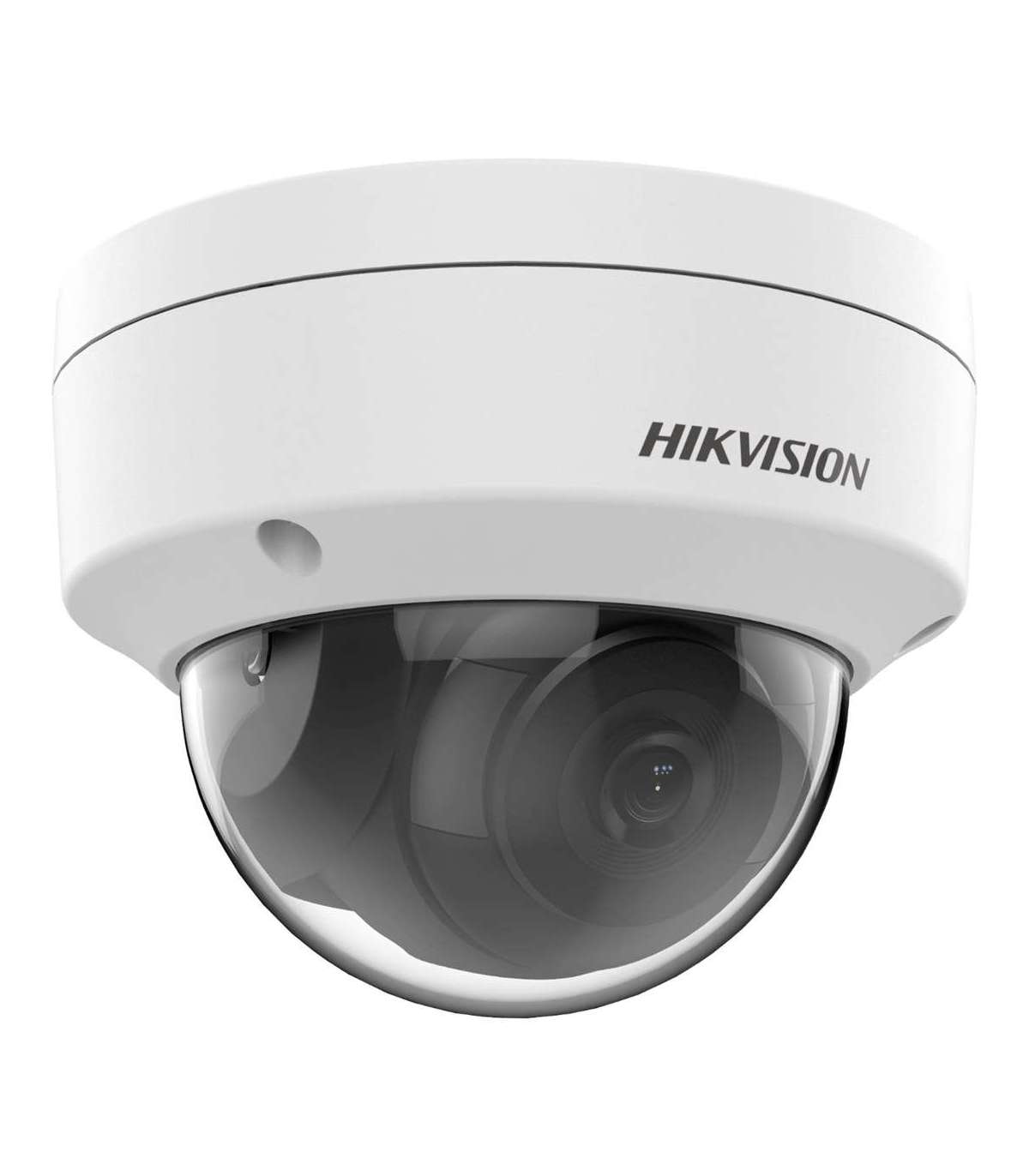

HIKVISION DS-2CD1121-I (F) (2.8MM) IP CAMERA

Характеристики

Weight

410 g

Height

82.4 mm

Package weight

610 g

Power source type

DC, PoE

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Quality of Service (QoS) support

Yes

Networking standards

IEEE 802.1x
IEEE 802.3af

Package width

134 mm

Package depth

134 mm

Package height

108 mm

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Housing material

Metal
Plastic

Power consumption (max)

5 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Languages support

English
Ukrainian

Form factor

Dome

Password protection

Yes

Bluetooth

No

DC output voltage

12

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
M-JPEG

Maximum resolution

1920 x 1080 pixels

Noise reduction

Yes

Type

IP security camera

Diameter

11 cm

Number of cameras

1

Video streaming

Yes

Fixed focal length

2.8 mm

Tilt angle range

0 - 75°

Supported graphics resolutions

320 x 240
640 x 360
640 x 480 (VGA)
1280 x 720 (HD 720)
1280 x 960
1920 x 1080 (HD 1080)

Placement supported

Outdoor

Mirror

Yes

DC output current

0.4 A

Video motion detection

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

2 MP

Infra-red wavelength

850 nm

Night vision distance

30 m

LED type

IR

Night vision

Yes

Number of lenses

1

Camera pan control

Yes

Camera tilt control

Yes

Lens viewing angle, vertical

60°

Pan range

0 - 355°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness

Back Light Compensation (BLC)

Yes

Maximum aperture number

2

Power consumption (Power over Ethernet (PoE))

6.5 W

Digital watermark

Yes

Heartbeat

Yes

Anti-flicker

Yes

Number of languages

2

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Gain control type

Auto

Privacy masking

Yes

IK code

IK10
