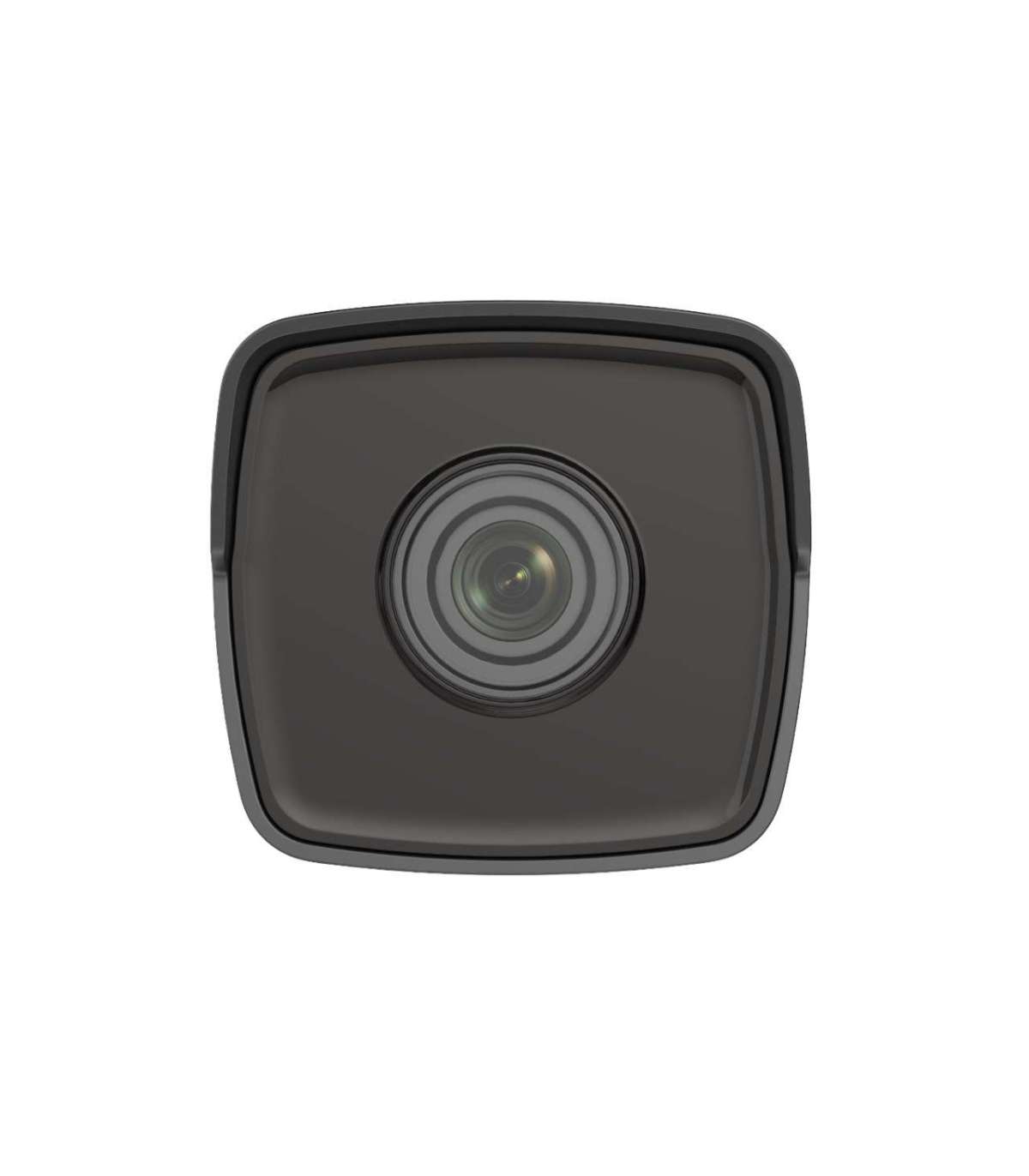

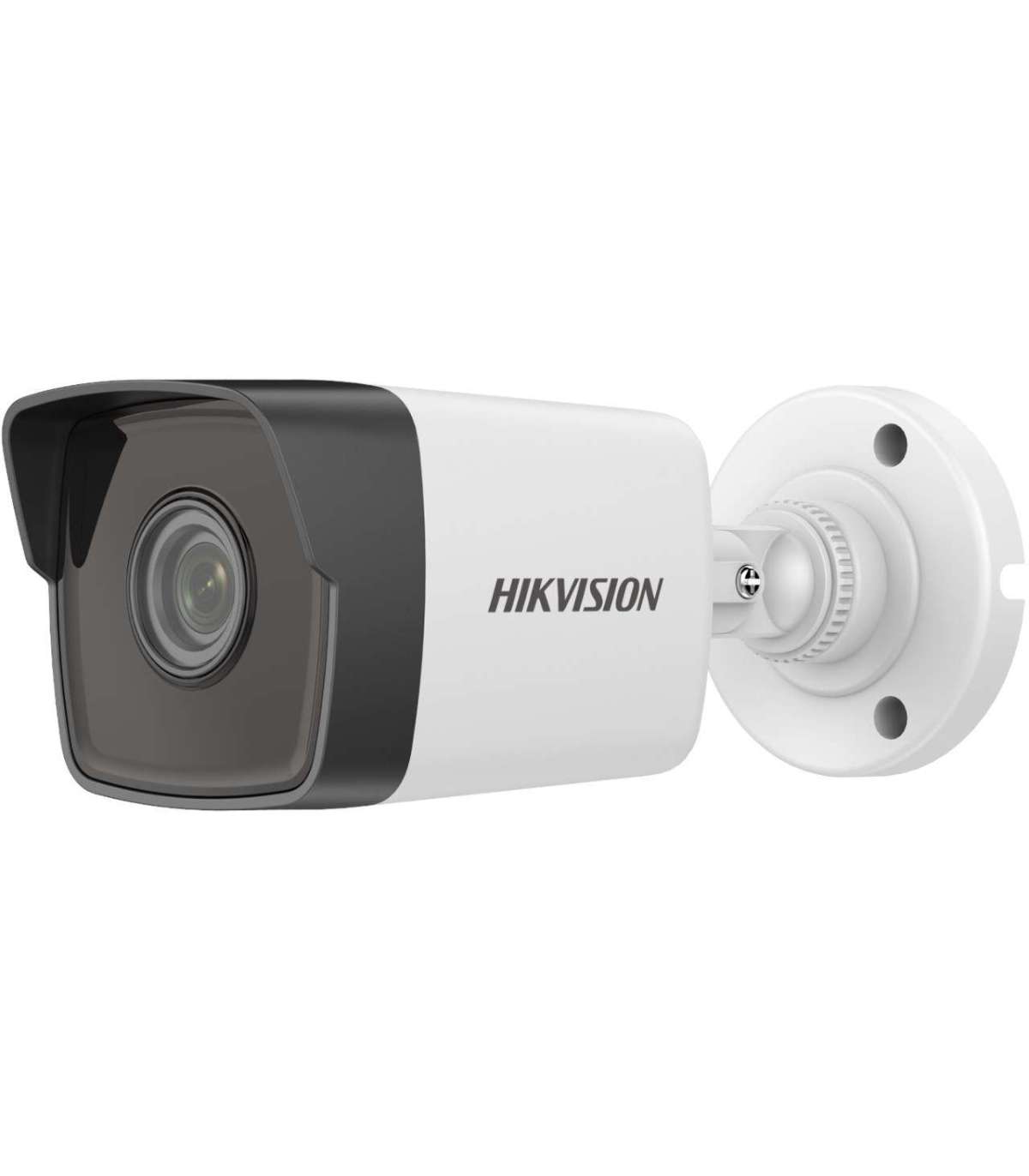

HIKVISION IP CAMERA DS-2CD1021-I (F) 2.8MM

Характеристики

Depth

66 mm

Weight

270 g

Width

69.1 mm

Package weight

510 g

Product colour

White

Power source type

DC, PoE

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Quality of Service (QoS) support

Yes

Networking standards

IEEE 802.1x
IEEE 802.3af

Housing material

Metal
Plastic

Power consumption (max)

3.5 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Form factor

Bullet

Password protection

Yes

Bluetooth

No

DC output voltage

12

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

1920 x 1080 pixels

Noise reduction

Yes

Type

IP security camera

Length

172.7 mm

Number of cameras

1

Video streaming

Yes

Fixed focal length

2.8 mm

Tilt angle range

0 - 180°

Supported graphics resolutions

640 x 360
640 x 480 (VGA)
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)

Placement supported

Outdoor

Mounting type

Ceiling/wall

Mirror

Yes

DC output current

0.3 A

Video motion detection

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

2 MP

Infra-red wavelength

850 nm

Night vision distance

30 m

LED type

IR

Night vision

Yes

Number of lenses

1

Camera pan control

Yes

Camera tilt control

Yes

Lens viewing angle, vertical

62°

Lens viewing angle, diagonal

135.5°

Pan range

0 - 360°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness

Back Light Compensation (BLC)

Yes

Maximum aperture number

2

Angle of rotation

360°

Power consumption (Power over Ethernet (PoE))

4.5 W

Digital watermark

Yes

Heartbeat

Yes

Anti-flicker

Yes

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Gain control type

Auto

Privacy masking

Yes

Bit rate

32 Kbps - 8 Mbps
