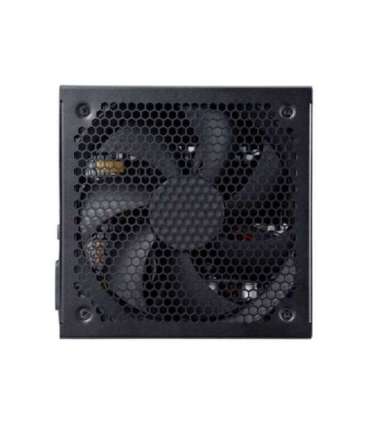

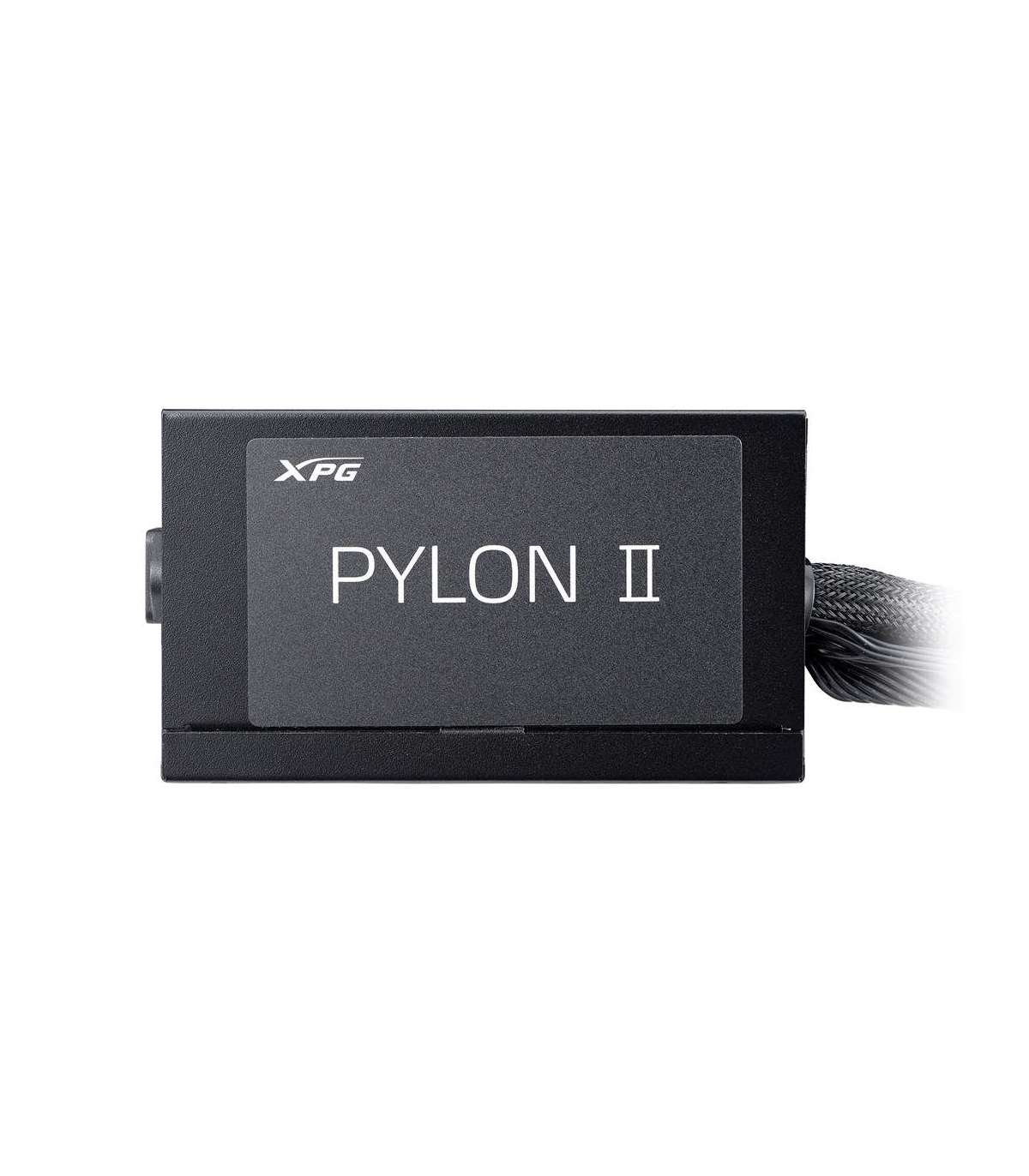

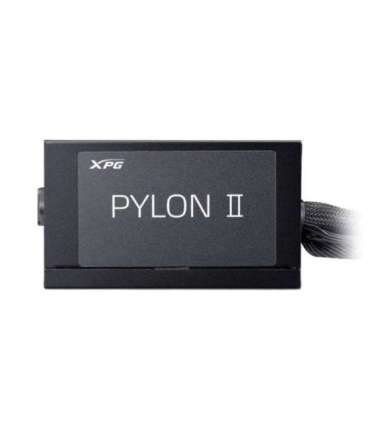

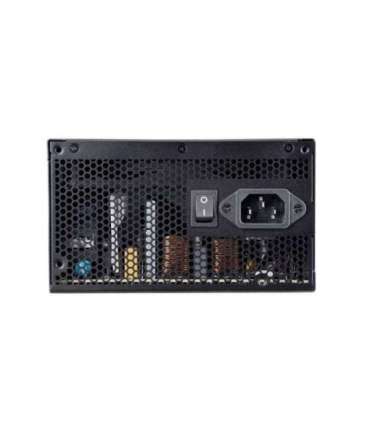

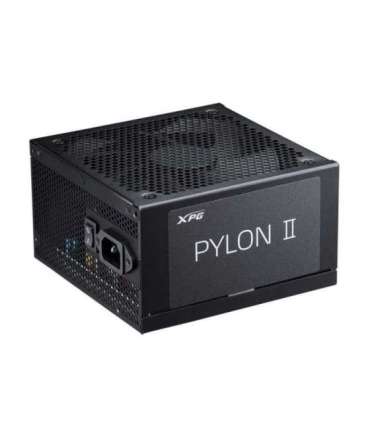

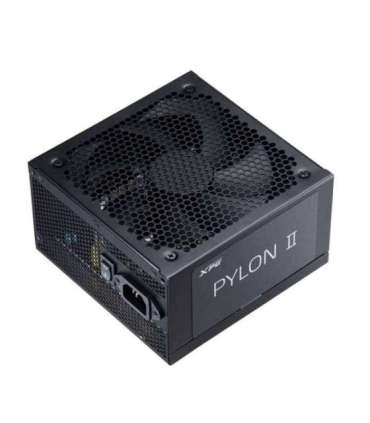

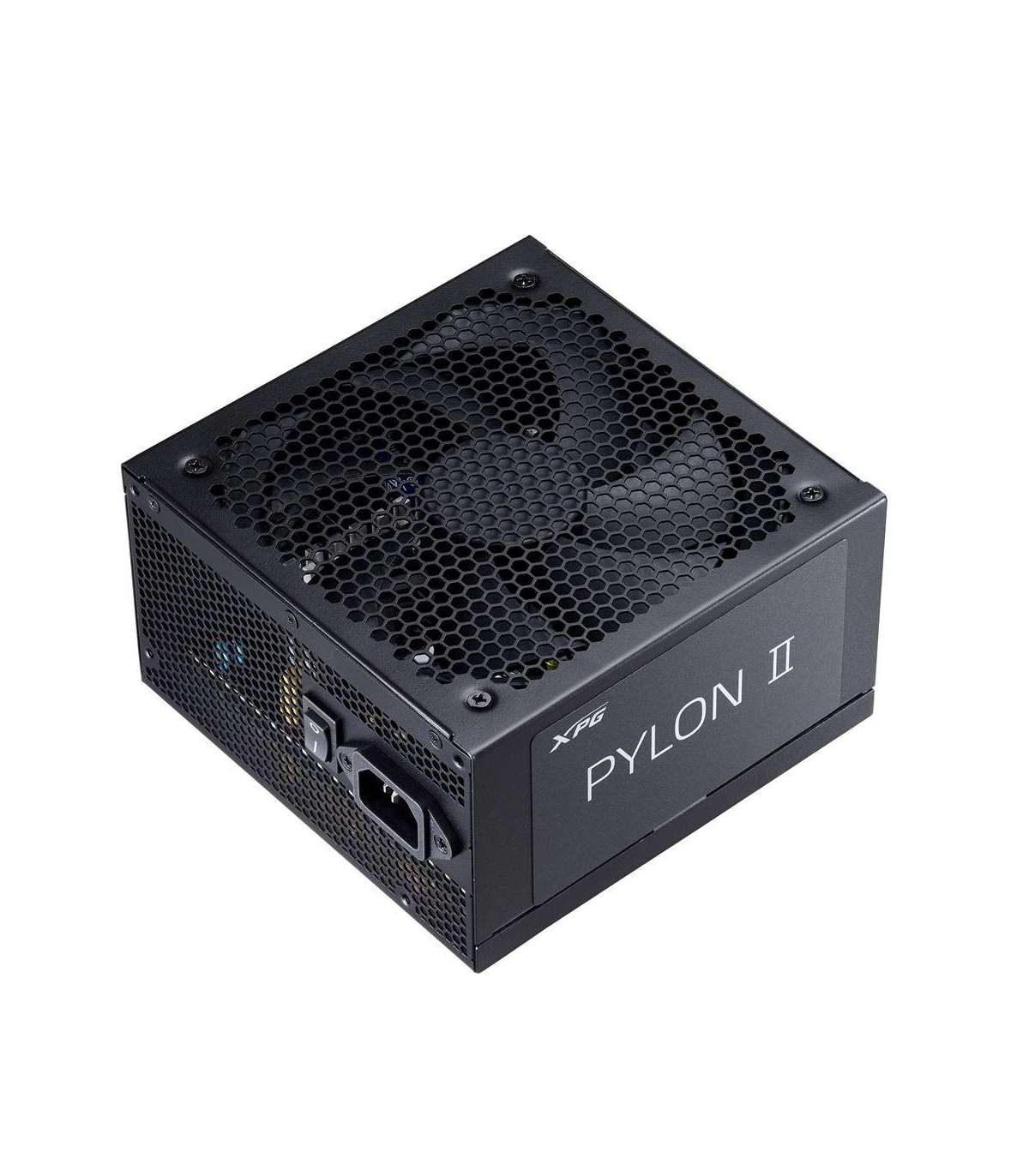

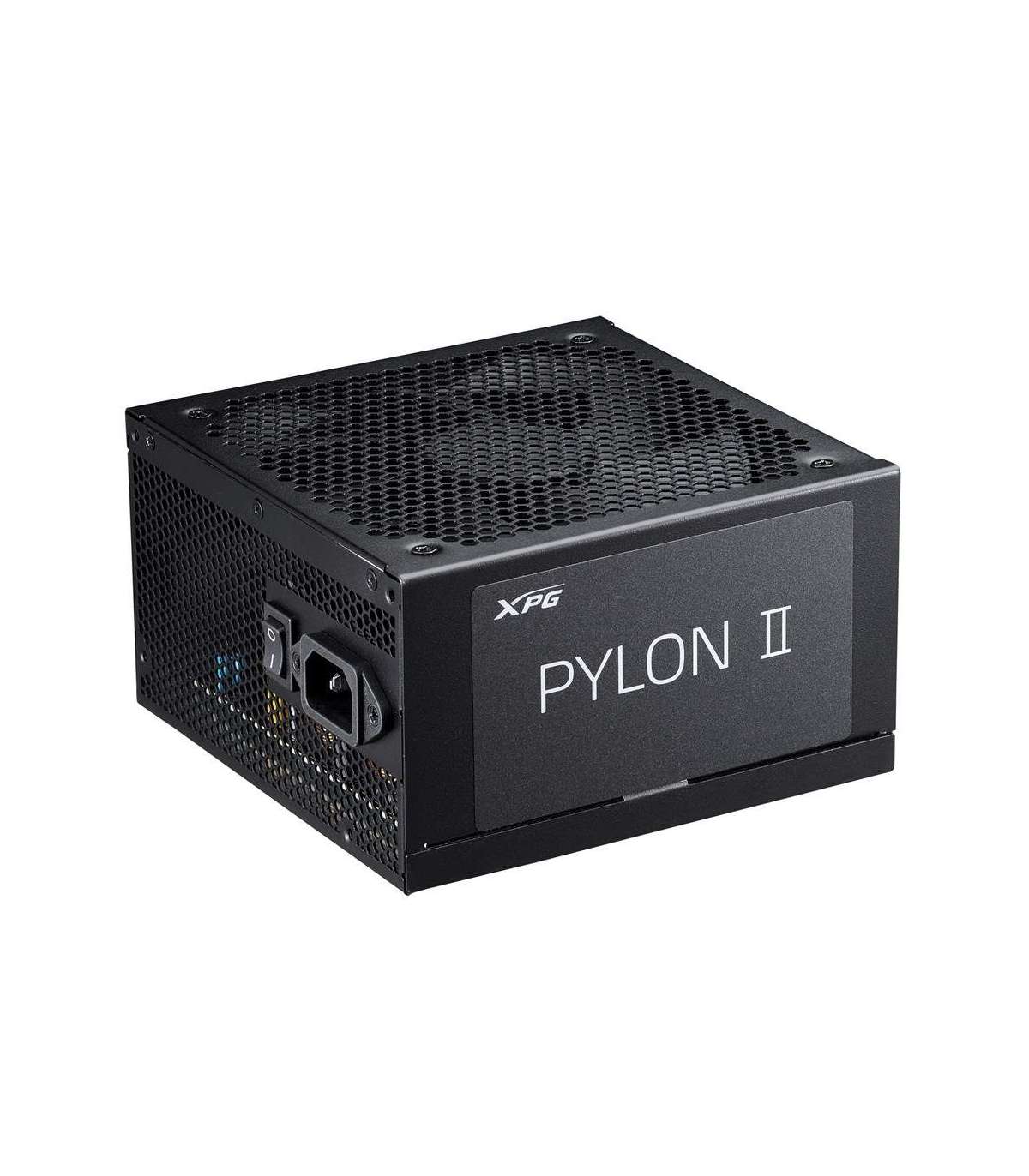

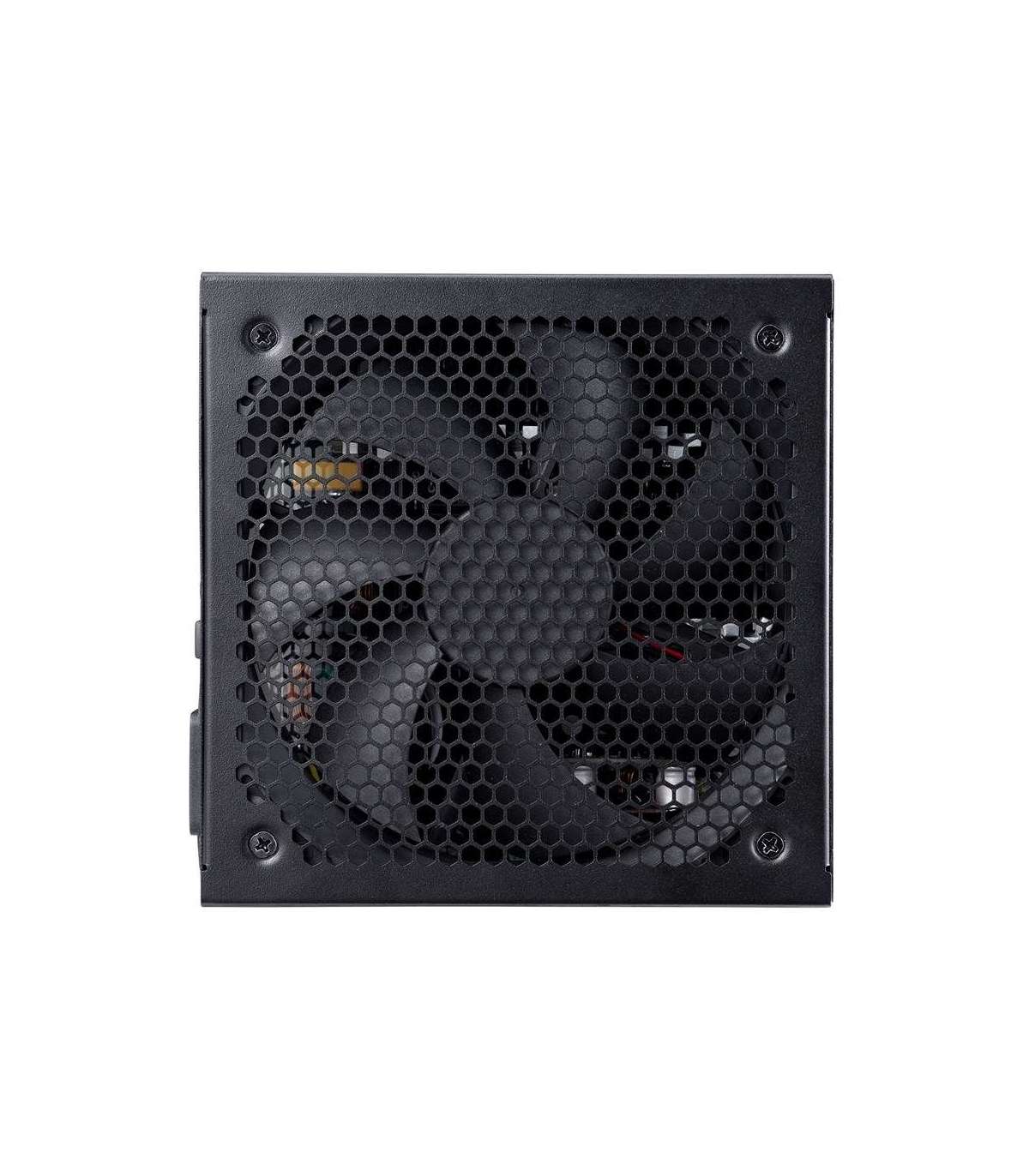

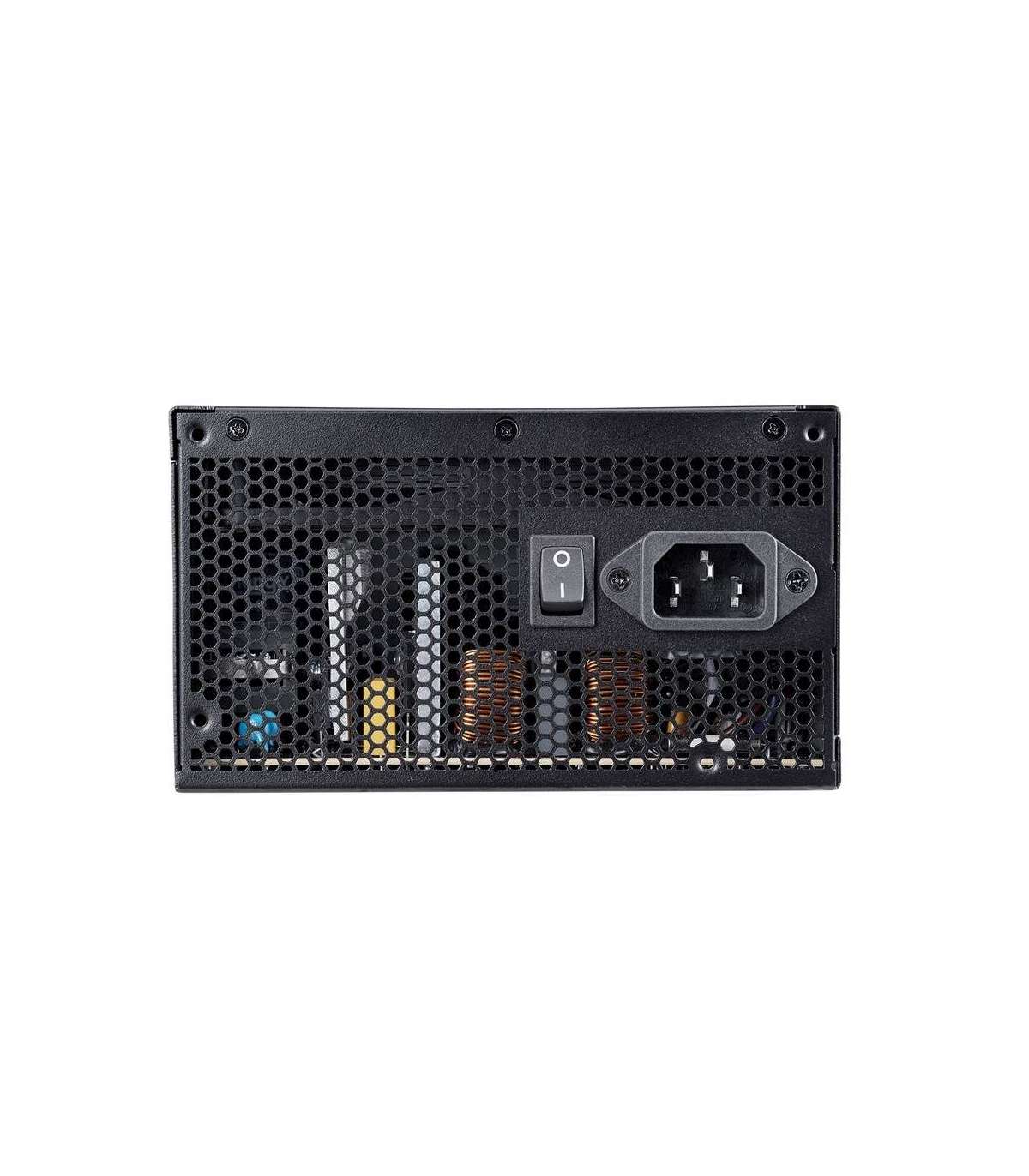

Power supply unit - XPG PYLON II 650W Black 80 Plus Bronze

Характеристики

Depth

150 mm

Weight

1.8 kg

Height

86 mm

Width

150 mm

Product colour

Black

Warnings

Avoid contact of the product with water or other liquids.
Do not open the case - risk of electric shock.
The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

Mean time between failures (MTBF)

100000 h

Hazard pictogram(s)

GHS02: Flammable
GHS07: Harmful
GHS09: Environmental hazard

ATX Power connector (24-pin)

Yes

Number of EPS power connectors (8-pin)

2

Peripheral (Molex) power connectors (4-pin)

2

Purpose

PC

Fan diameter

13.5 cm

80 PLUS certification

80 PLUS Bronze

Total power

650 W

Power protection features

NLO
OCP (overcurrent protection)
OPP (overload protection)
OTP (overheat protection)
OVP (overvoltage protection)
SCP (short circuit protection)
SIP (surge and shock protection)
UVP (undervoltage protection)

Fan speed (max)

2300 RPM

Fan location

Top

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

6

Motherboard power connector

24-pin ATX

Cabling type

Non-Modular

PCI Express power connectors (12+4 pin)

1
