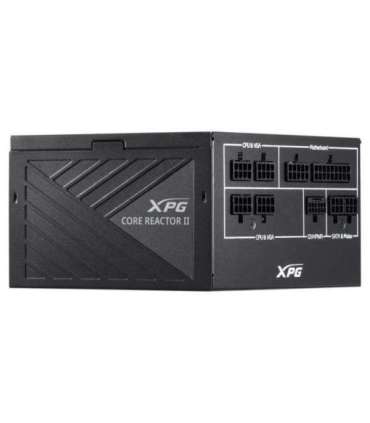

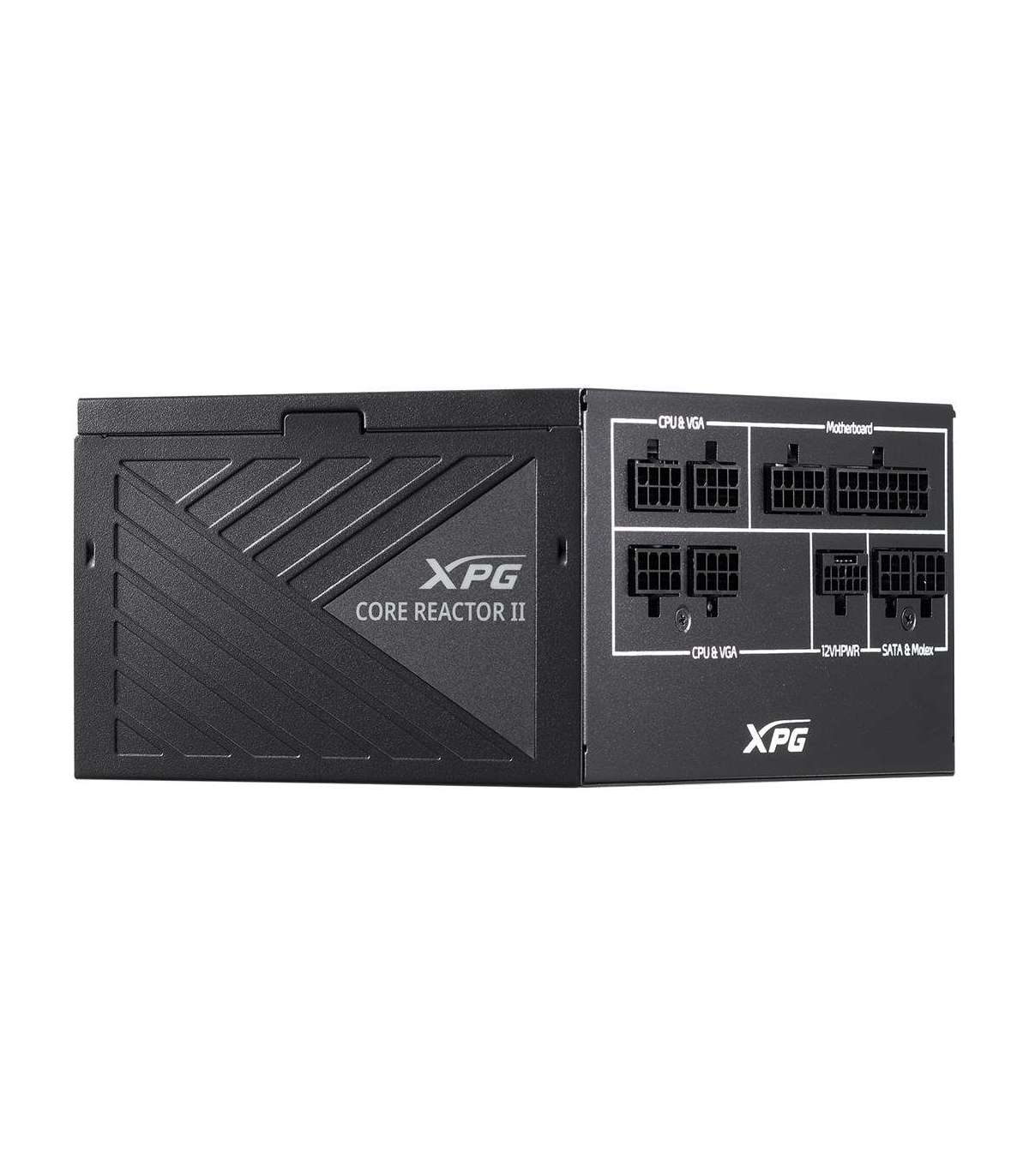

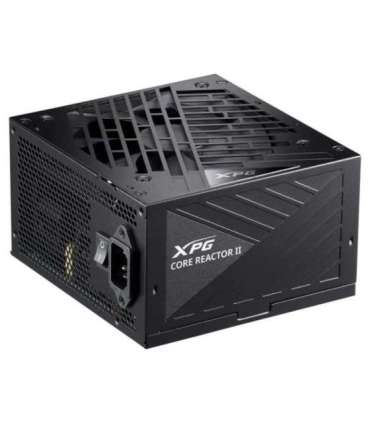

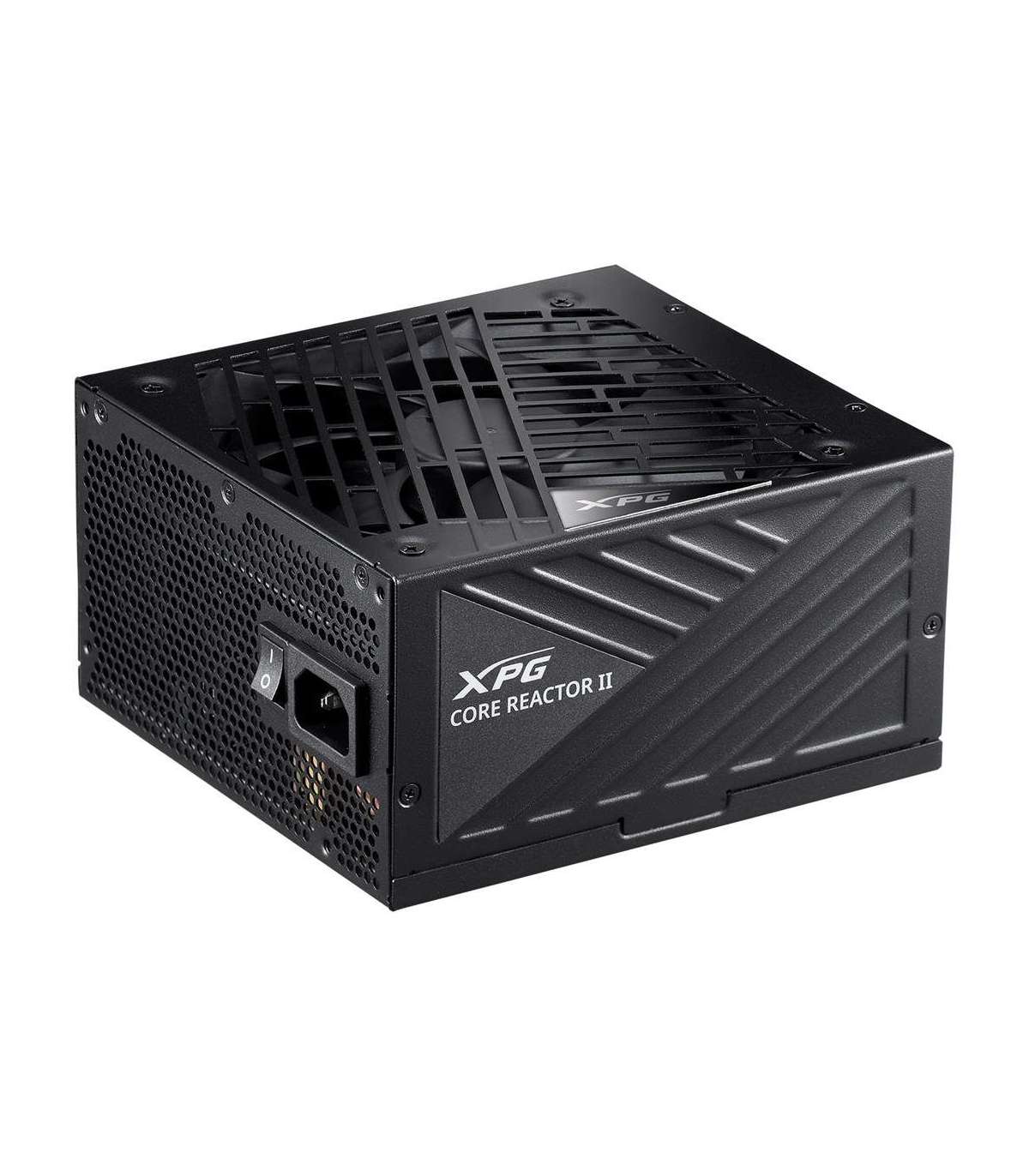

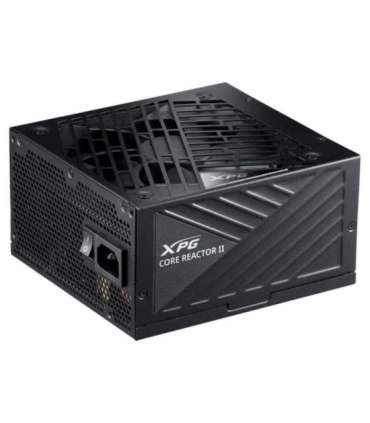

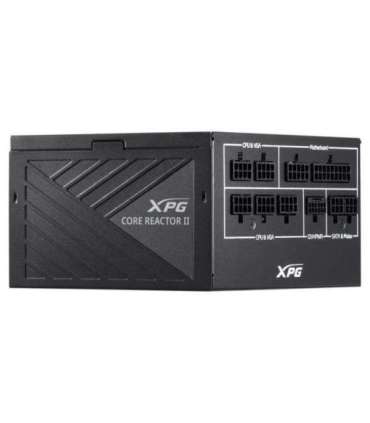

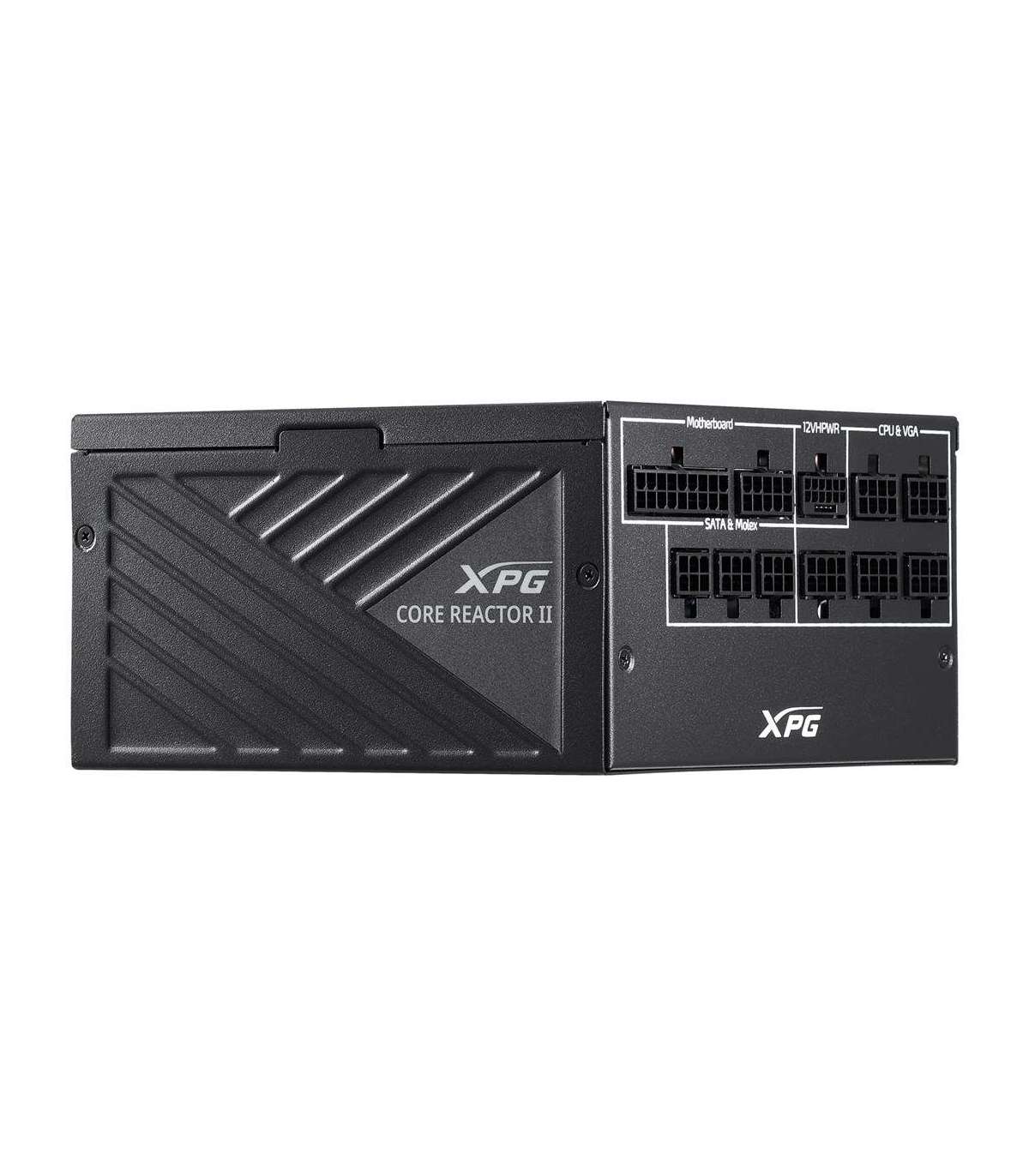

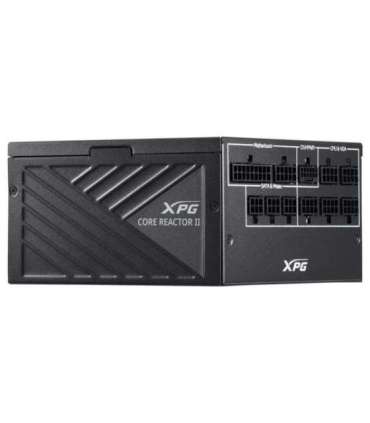

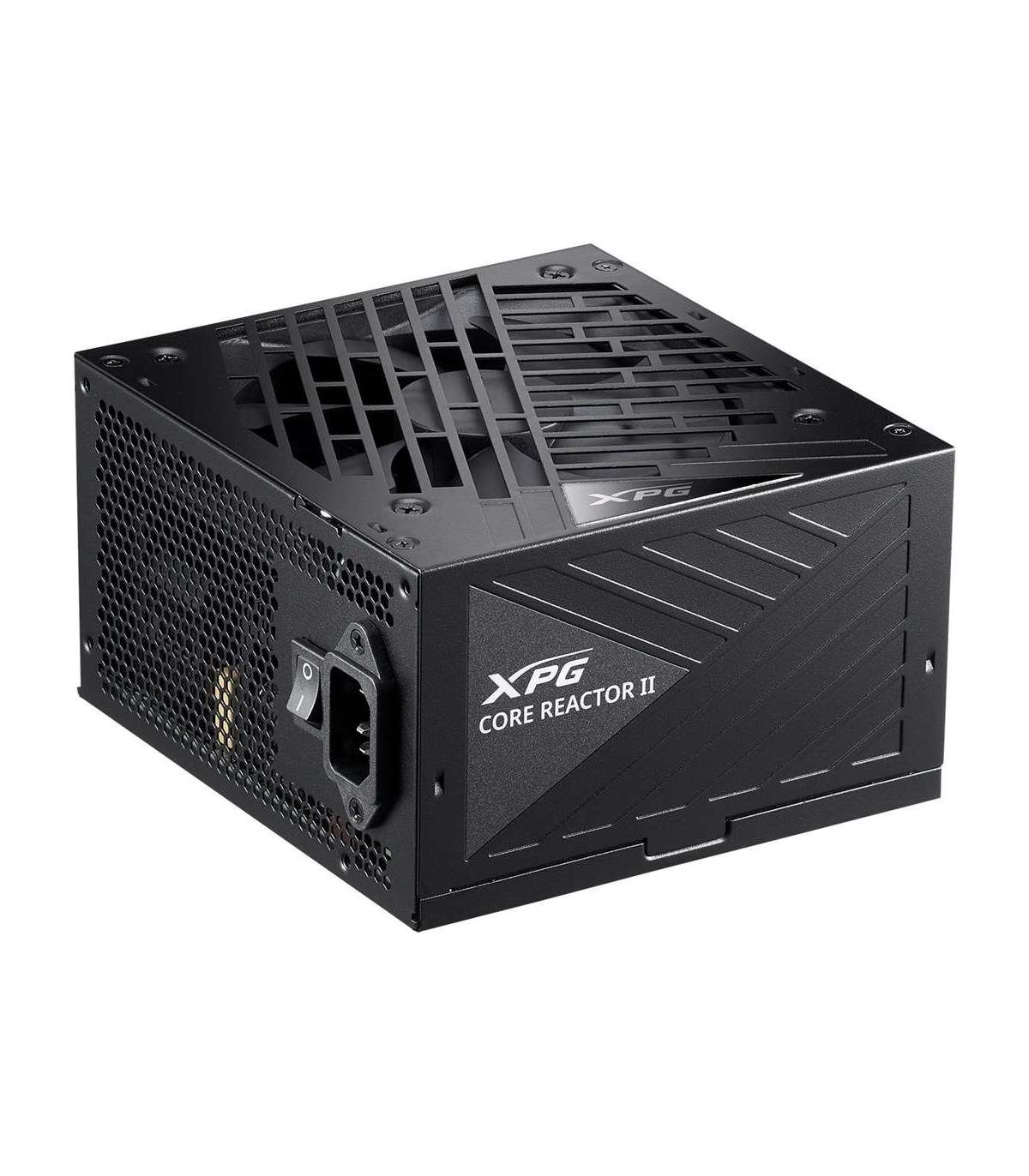

XPG COREREACTOR II 1000W Power Supply

Характеристики

Depth

150 mm

Weight

1.77 kg

Height

86 mm

Width

160 mm

Package weight

3.43 kg

Product colour

Black

Package width

210 mm

Package depth

338 mm

Package height

157 mm

Compliance certificates

BSMI
CB
CE
China Compulsory Certification (CCC)
EAC
Federal Communications Commission (FCC)
Norma Oficial Mexicana (NOM)
RCM
UKCA
cTUVus

Warnings

Avoid contact of the product with water or other liquids.
Do not open the case - risk of electric shock.
The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Input current

13 A

Mean time between failures (MTBF)

100000 h

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

3

Purpose

PC

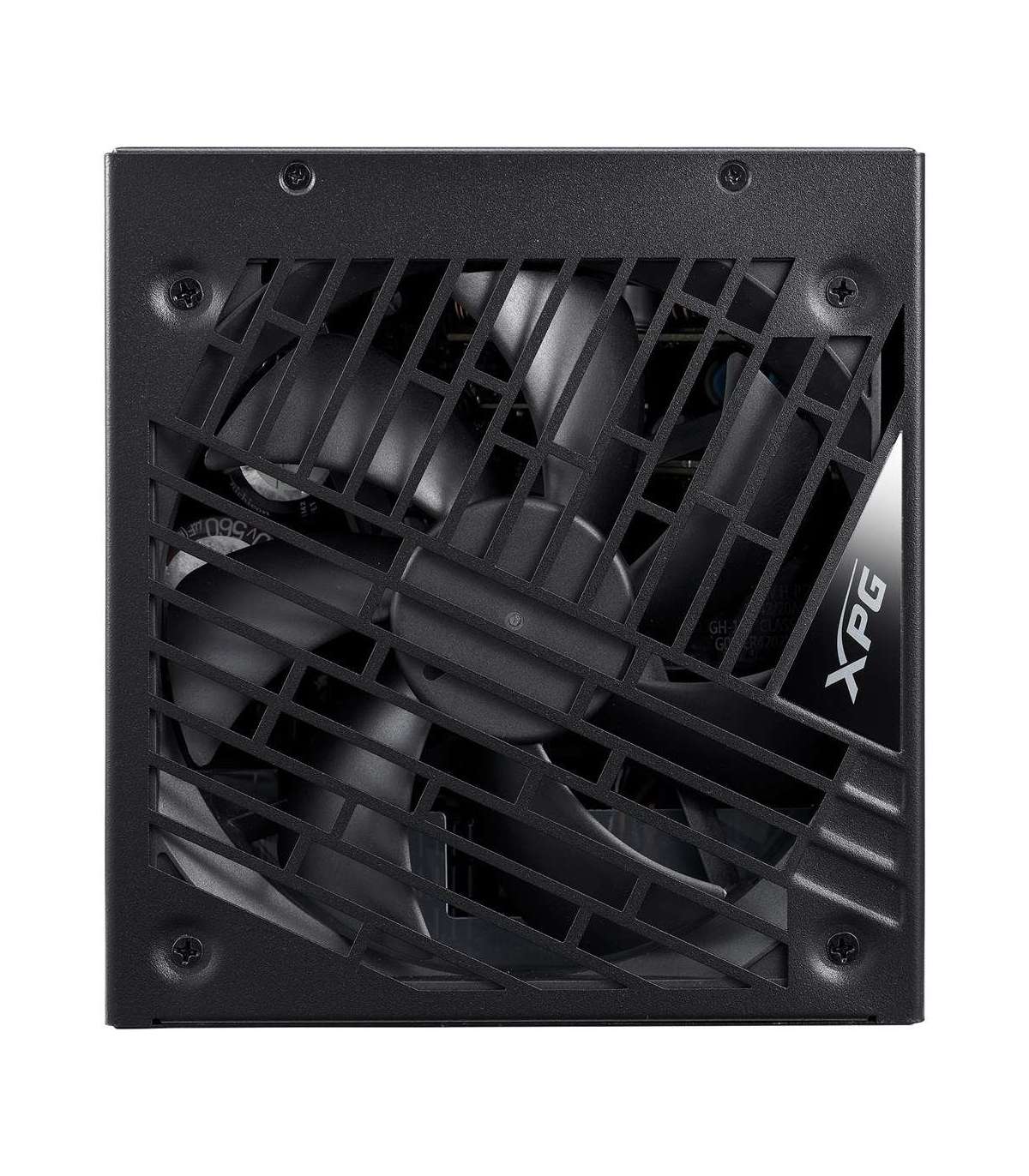

Number of fans

1 fan(s)

Fan diameter

13.5 cm

80 PLUS certification

80 PLUS Gold

Total power

1000 W

Power protection features

Over current
Overheating
Over power
Over voltage
Short circuit
Surge & inrush protection (SIP)
Under voltage

Bearing technology

FDB

Max output current (+12V)

83.5 A

Max output current (+5V)

22 A

Max output current (+3.3V)

22 A

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.3 A

ATX version

3.0

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

9

PCI Express power connectors (6+2 pin)

8

Motherboard power connector

24-pin ATX

Cabling type

Fully-Modular

Power factor

0.99

EPS version

2.92

ATX power connector (12+4 pin)

Yes
