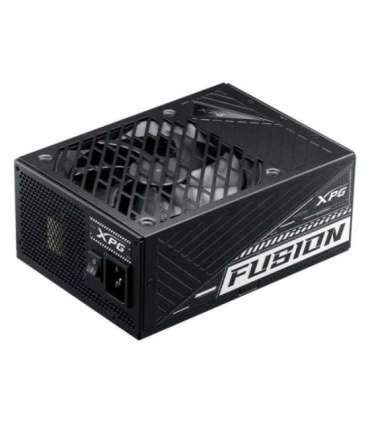

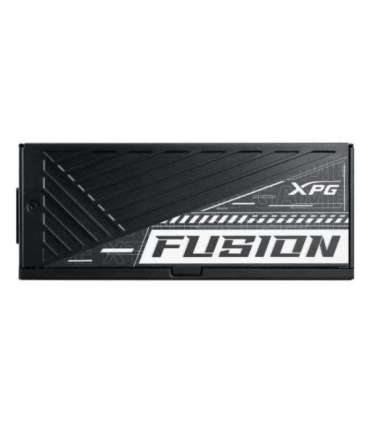

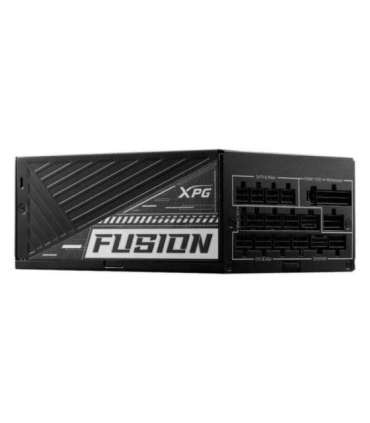

XPG FUSION 1600W Power Supply

Характеристики

Depth

210 mm

Weight

2.5 kg

Height

86 mm

Width

150 mm

Product colour

Black

Warnings

Avoid contact of the product with water or other liquids.
Do not open the case - risk of electric shock.
The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.

AC input frequency

47 - 63 Hz

AC input voltage

100 - 240 V

Package type

Box

Mean time between failures (MTBF)

125000 h

EPS power connector (8-pin)

Yes

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

4

Purpose

PC

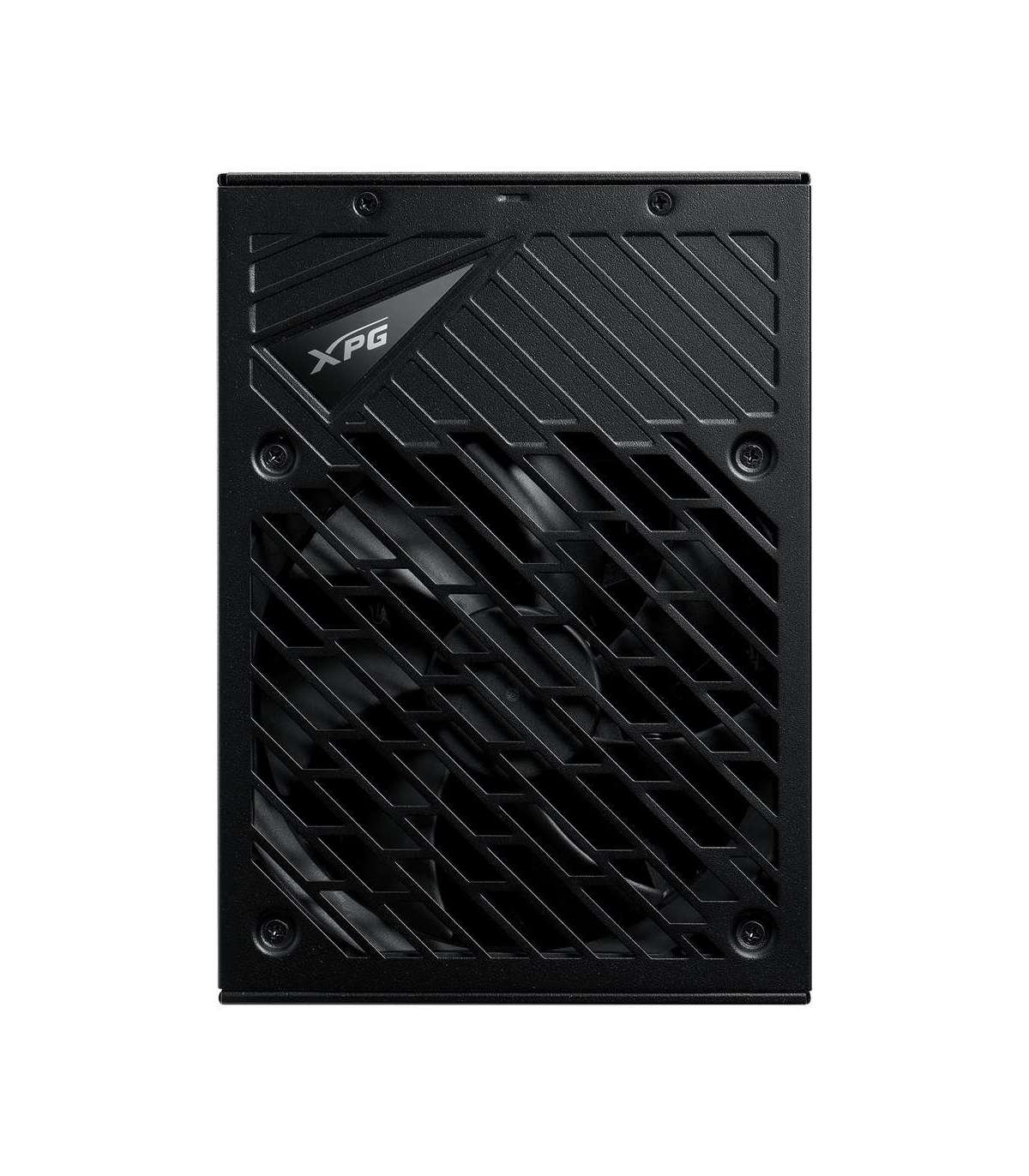

Number of fans

1 fan(s)

Fan diameter

13.5 cm

80 PLUS certification

80 PLUS Titanium

Total power

1600 W

Power protection features

Over current
Overheating
Over power
Over voltage
Short circuit
Surge & inrush protection (SIP)
Under voltage

ATX version

3.0

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

12

PCI Express power connectors (6+2 pin)

10

Motherboard power connector

20+4 pin ATX

Cabling type

Fully-Modular

Power factor

0.99

Maximum input current (@220V)

15 A

Maximum input current (@110V)

15 A

Floppy drive power connector

1

ATX power connector (12+4 pin)

Yes
