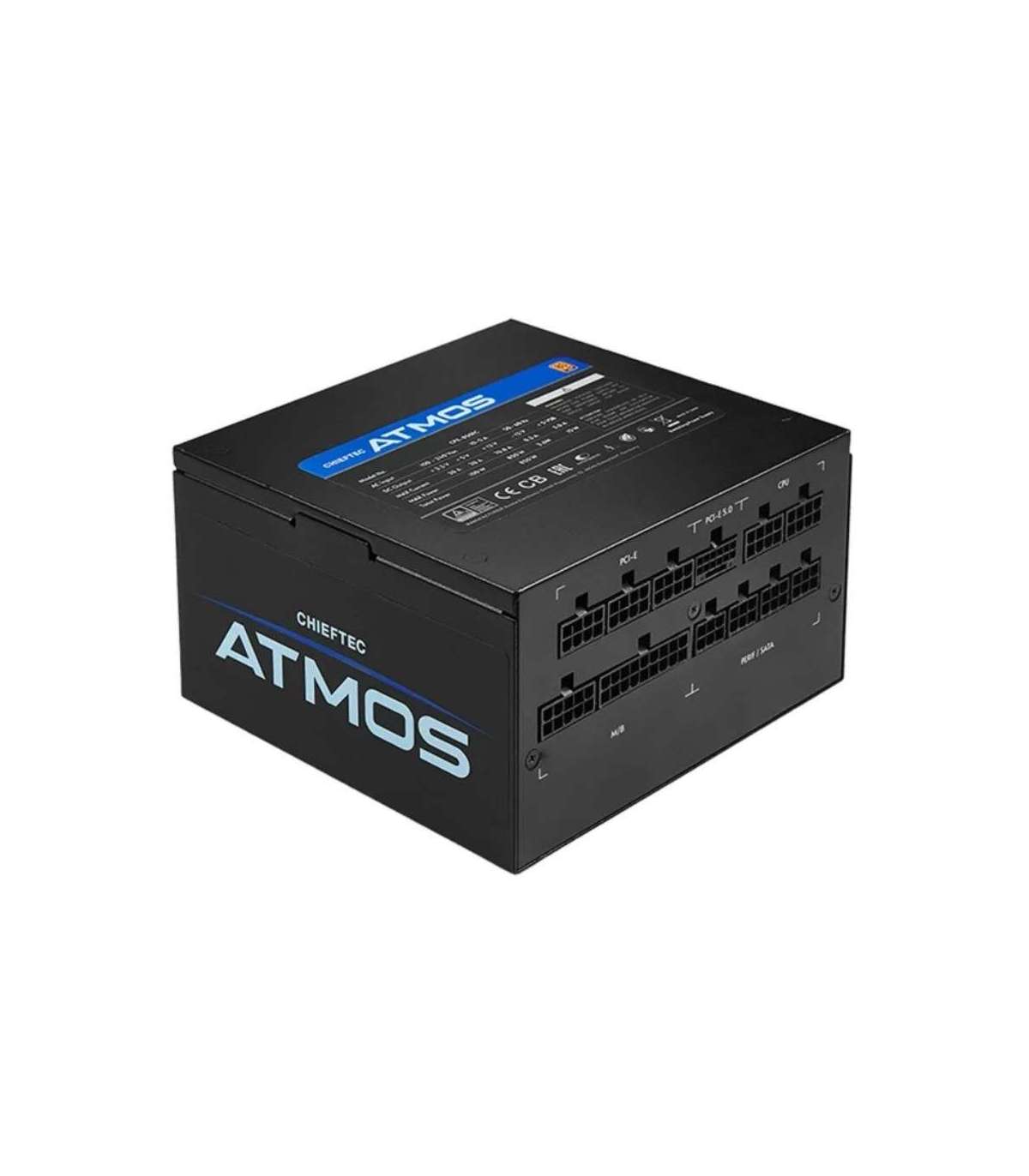

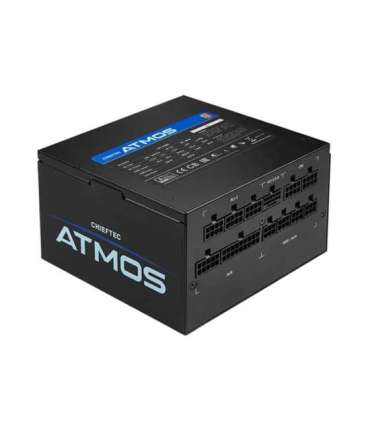

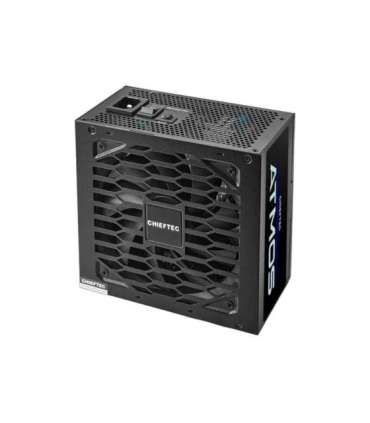

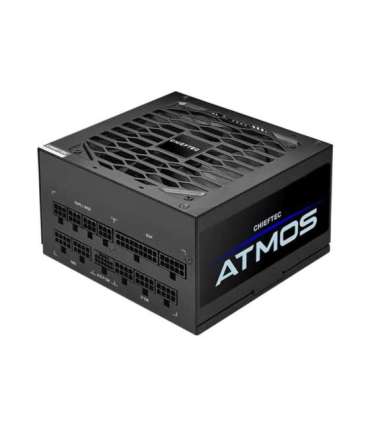

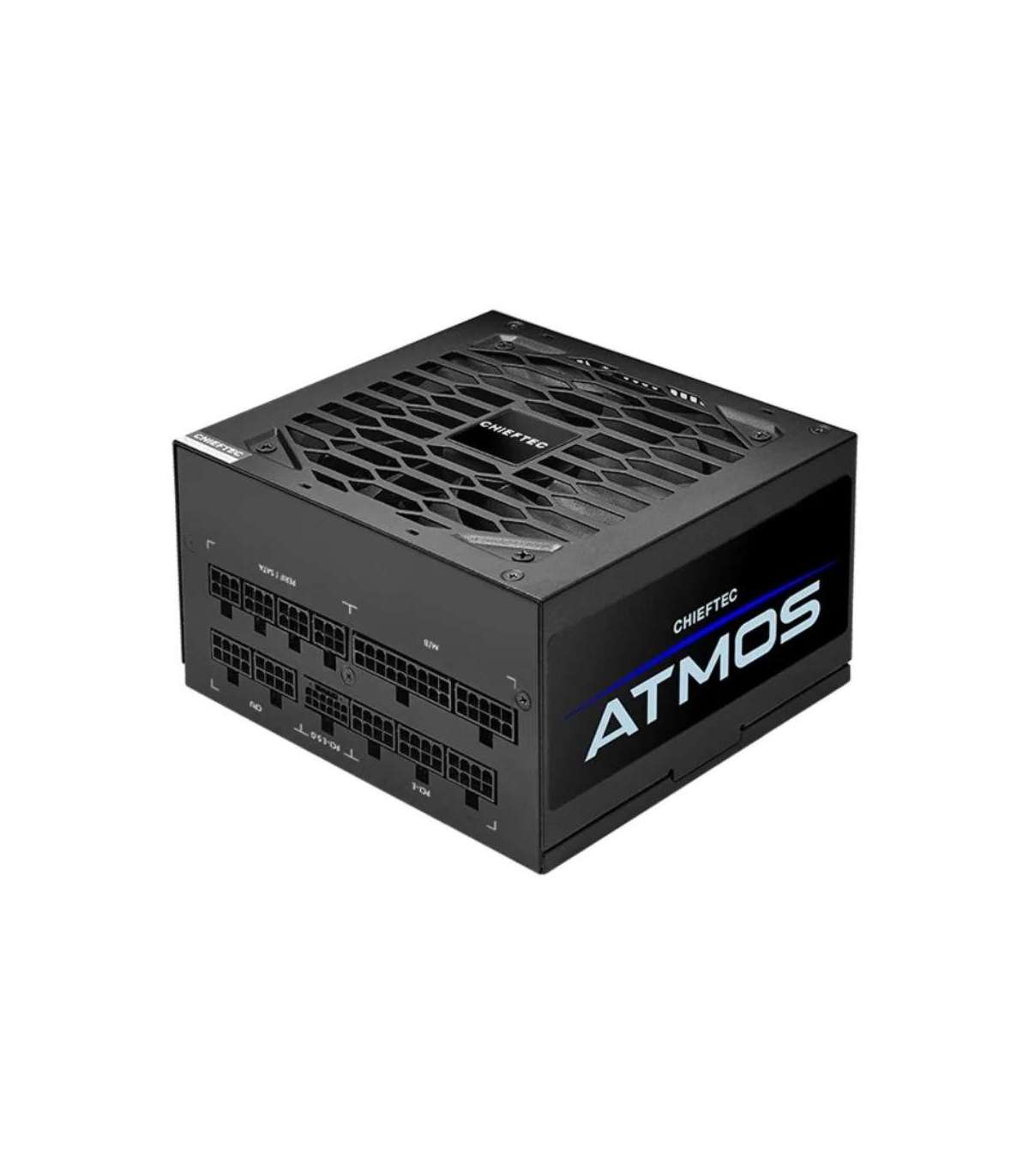

Power supply Chieftec ATMOS CPX-750FC 750W

Характеристики

Depth

140 mm

Weight

1.49 kg

Height

86 mm

Width

150 mm

Package weight

3.02 kg

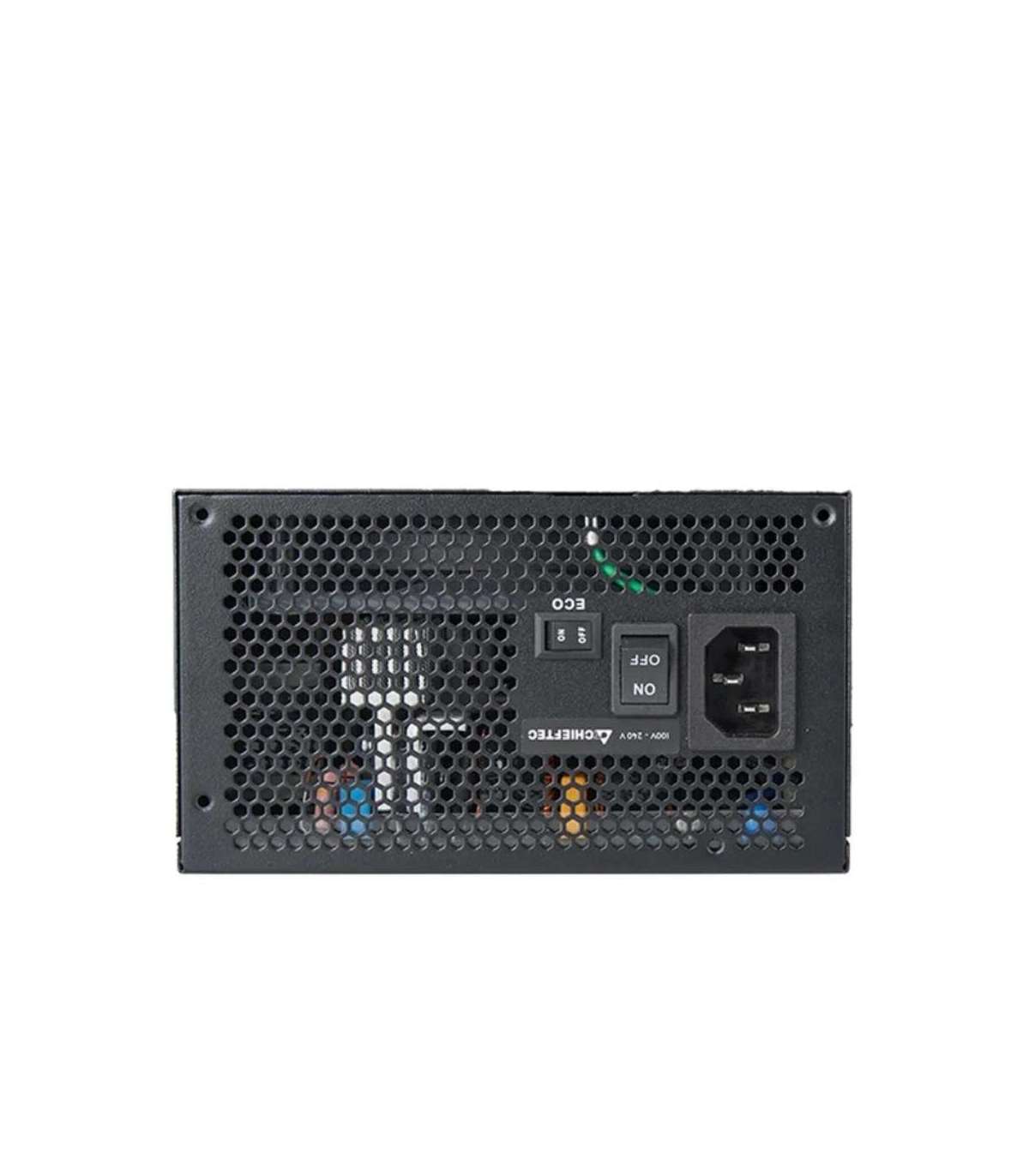

On/off switch

Yes

Product colour

Black

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

4

Number of fans

1 fan(s)

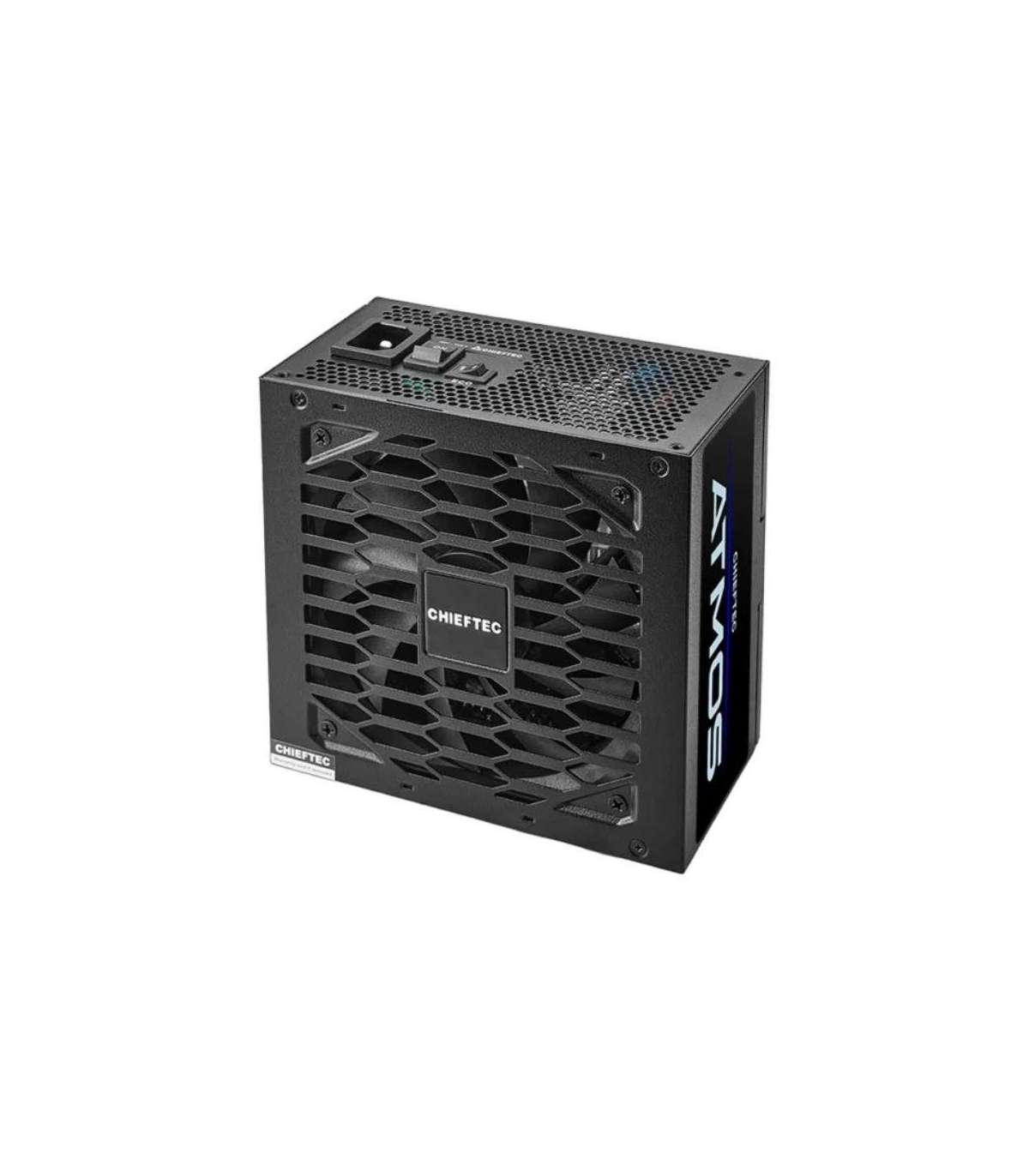

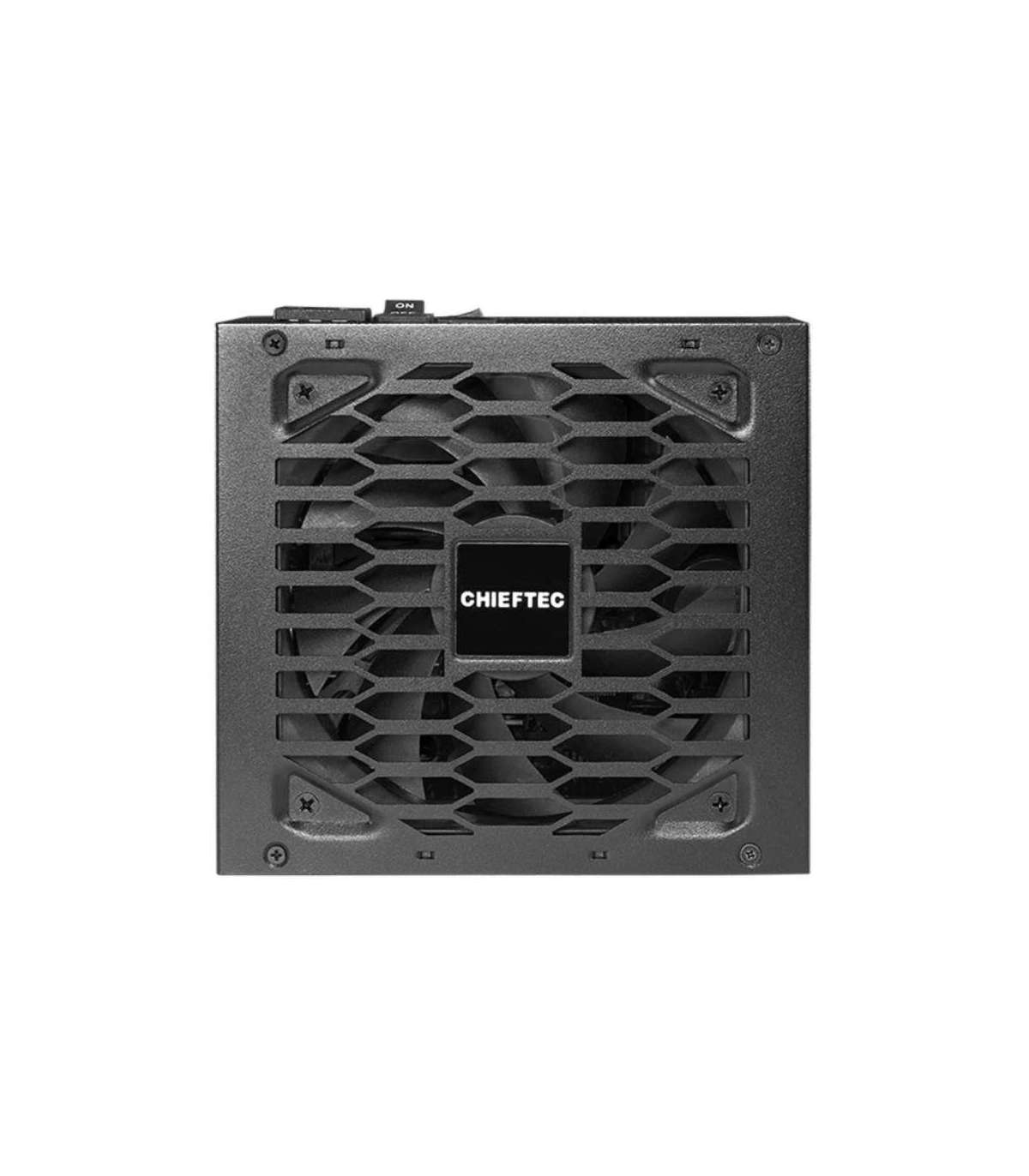

Fan diameter

12 cm

80 PLUS certification

80 PLUS Gold

Total power

750 W

Power protection features

AFC (automatic fan speed control)
OCP (overcurrent protection)
OPP (overload protection)
OTP (overheat protection)
OVP (overvoltage protection)
SCP (short circuit protection)
SIP (surge and shock protection)
UVP (undervoltage protection)

Power Factor Correction (PFC) type

Active

Fan location

Top

Max output current (+12V)

62.5 A

Max output current (+5V)

20 A

Max output current (+3.3V)

20 A

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.3 A

ATX version

3.0

Power supply unit (PSU) form factor

ATX

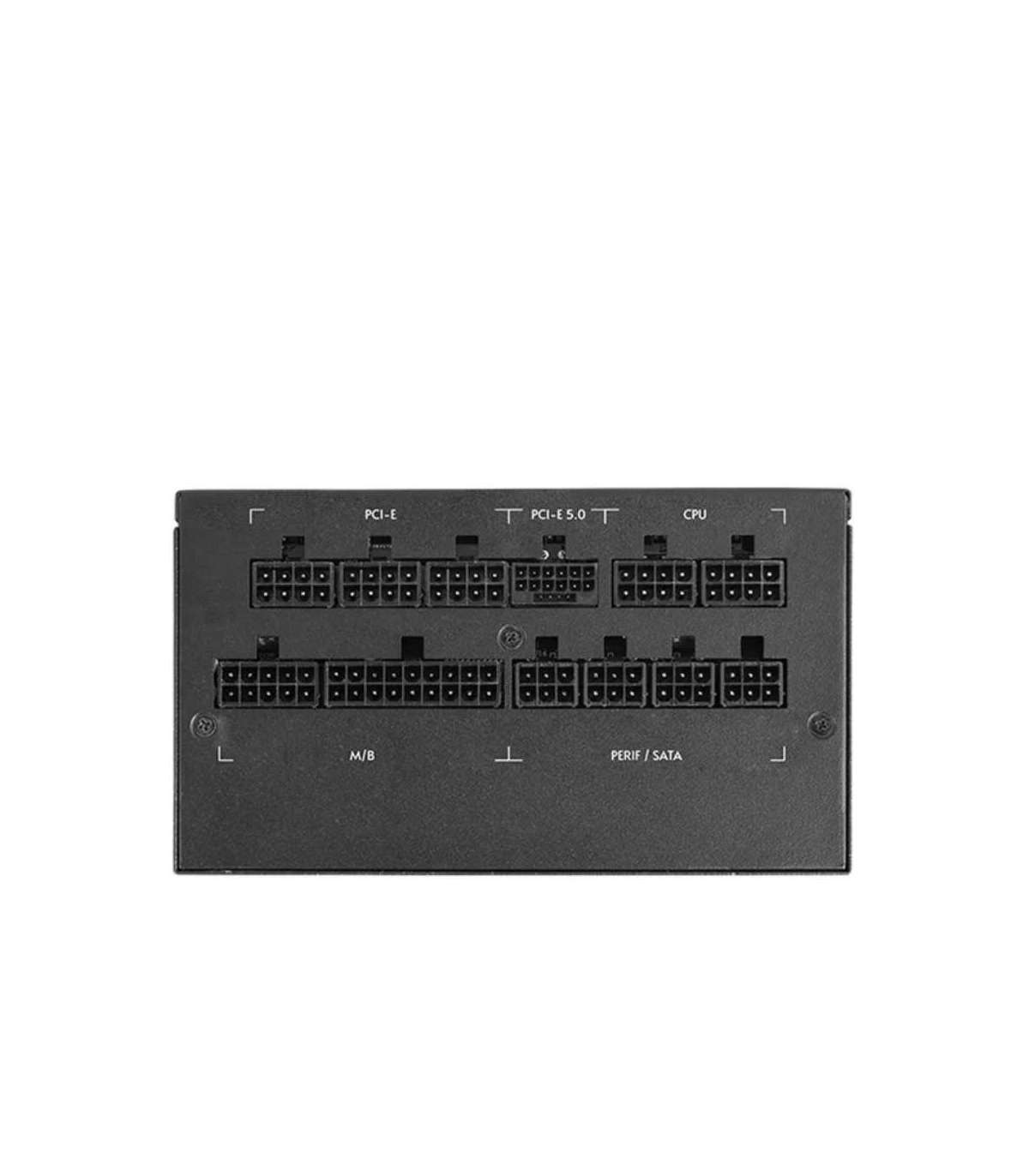

Number of SATA power connectors

9

PCI Express power connectors (6+2 pin)

4

Motherboard power connector

20+4 pin ATX

SATA power cable length

100
550

Peripheral (Molex) power cable length

100
550 mm

Motherboard power cable length

60 cm

EPS power connector (4+4 pin)

2

PCI Express power cable length

70 cm

Length of EPS power connectors (4+4 pin)

70 cm

Power connector length 16 PIN PCIe GEN5

60 cm

Power connector 16 PIN PCIe GEN5

1
