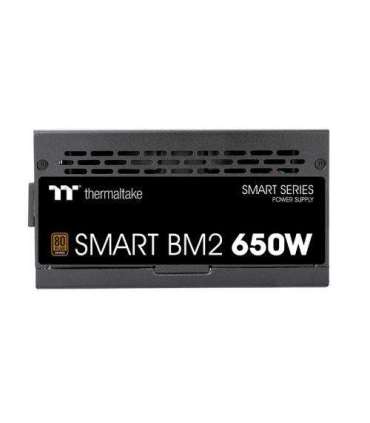

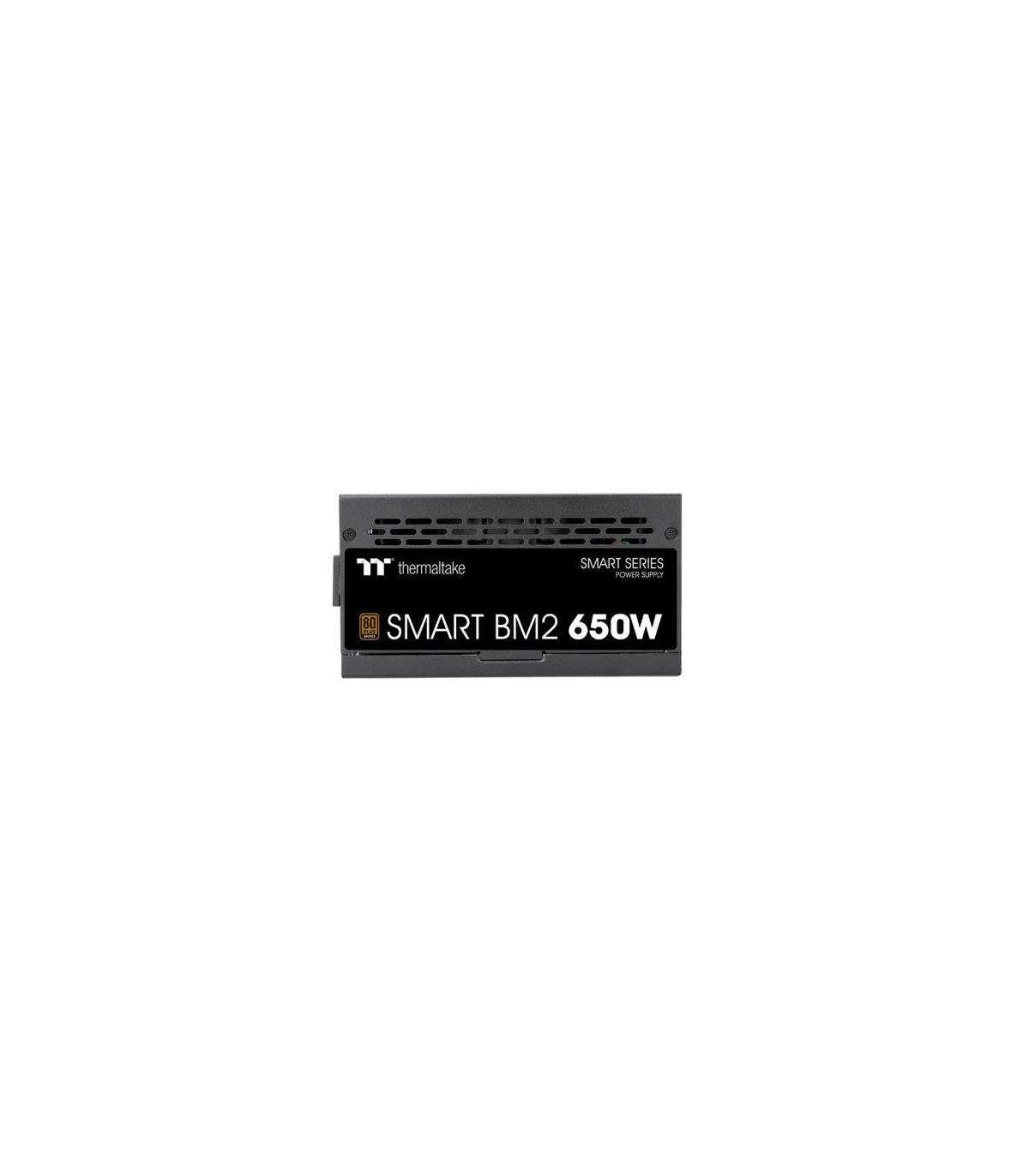

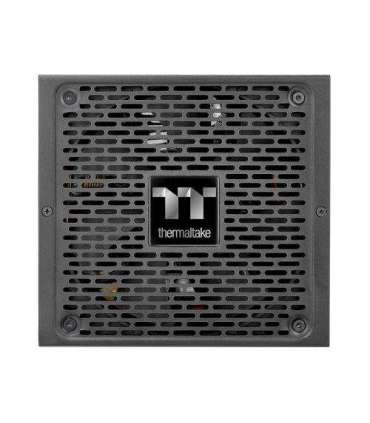

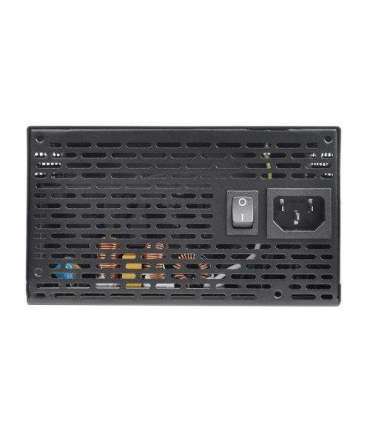

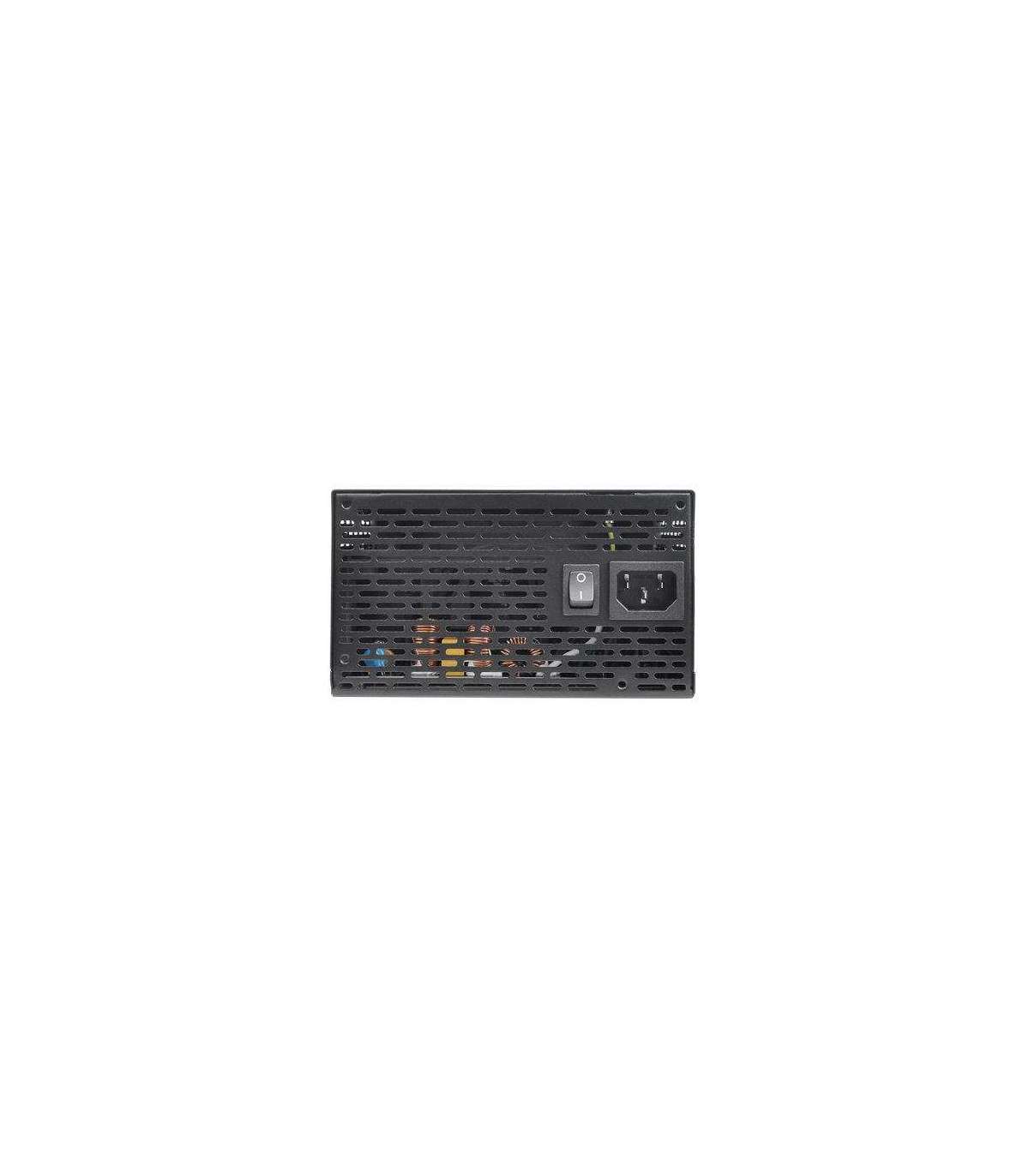

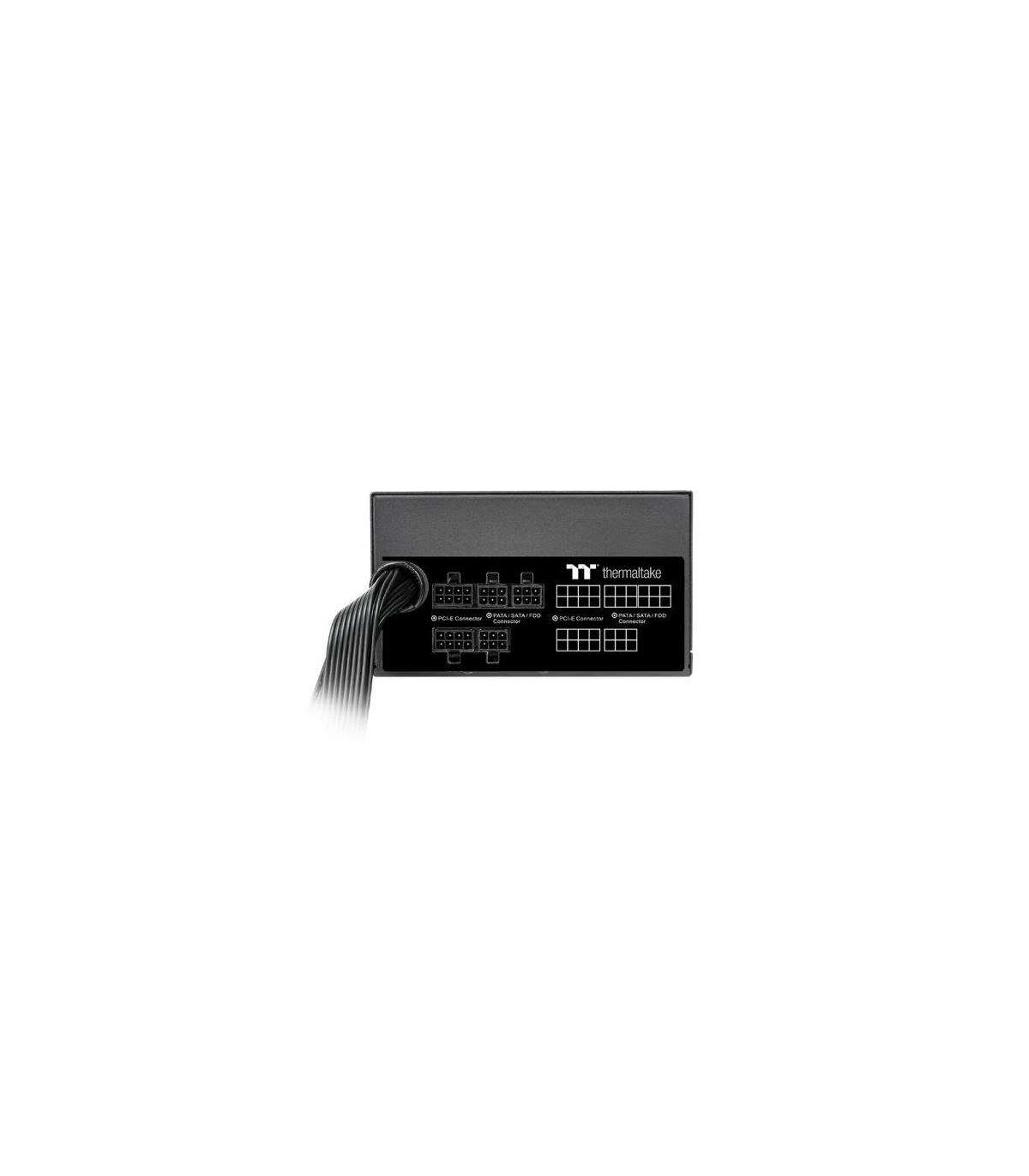

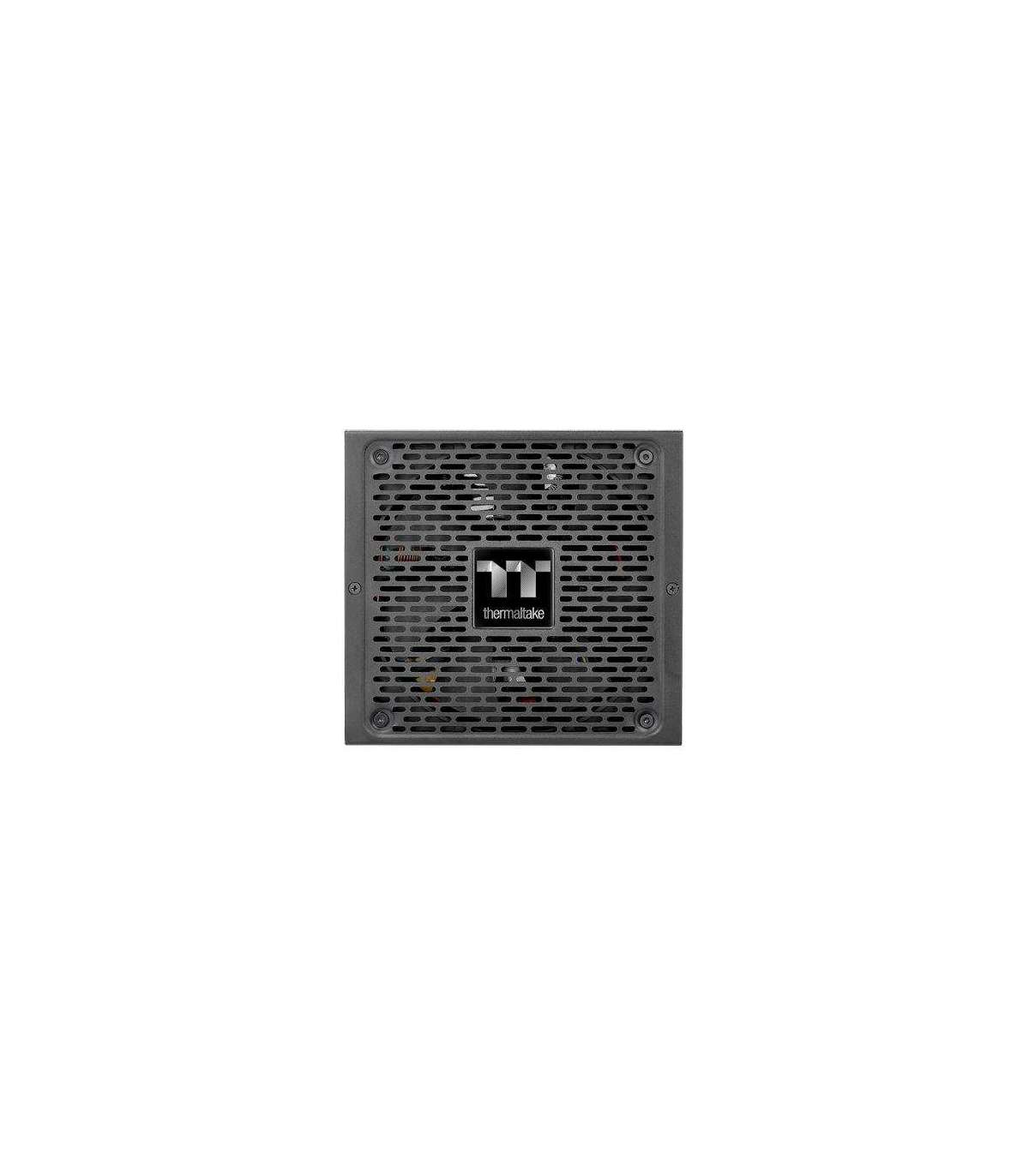

Thermaltake Smart BM2 650W - TT Premium Edition

Характеристики

Depth

160 mm

Height

86 mm

Width

150 mm

On/off switch

Yes

Product colour

Black

Storage temperature (T-T)

-20 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 90%

Storage relative humidity (H-H)

5 - 95%

Cables included

AC, CPU, PCIe, Peripheral (Molex), SATA

Certification

CE, FCC, TUV, cTUVus, EAC, BSMI, C-TICK, CCC, S-mark

AC input frequency

47 - 63 Hz

AC input voltage

100 - 240 V

Input current

10 A

Mean time between failures (MTBF)

100000 h

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

1

Purpose

PC

Number of fans

1 fan(s)

Fan diameter

14 cm

80 PLUS certification

80 PLUS Bronze

Total power

650 W

Power protection features

Over current
Over voltage

Power Factor Correction (PFC) type

Active

Fan speed

0 - 2300 RPM

Fan location

Top

Combined power (-12V)

3.6 W

Max output current (+12V)

54 A

Combined power (+3.3V)

110 W

Combined power (+5Vsb)

12.5 W

Max output current (+5V)

20 A

Max output current (+3.3V)

20 A

Combined power (+5V)

110 W

Hold time

12 ms

Combined power (+12V)

648 W

Max output current (+5Vsb)

2.5 A

Max output current (-12V)

0.3 A

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

3

PCI Express power connectors (6+2 pin)

2

Motherboard power connector

20+4 pin ATX

SATA power cable length

150
500 mm

Peripheral (Molex) power cable length

150
500 mm

CPU power cable length

60 cm

CPU power connector (4+4 pin)

Yes

Cabling type

Semi-Modular

Motherboard power cable length

60 cm

PCI Express power cable length

50 cm

Floppy drive power connector

1

Floppy disk drive cable length

15 cm
