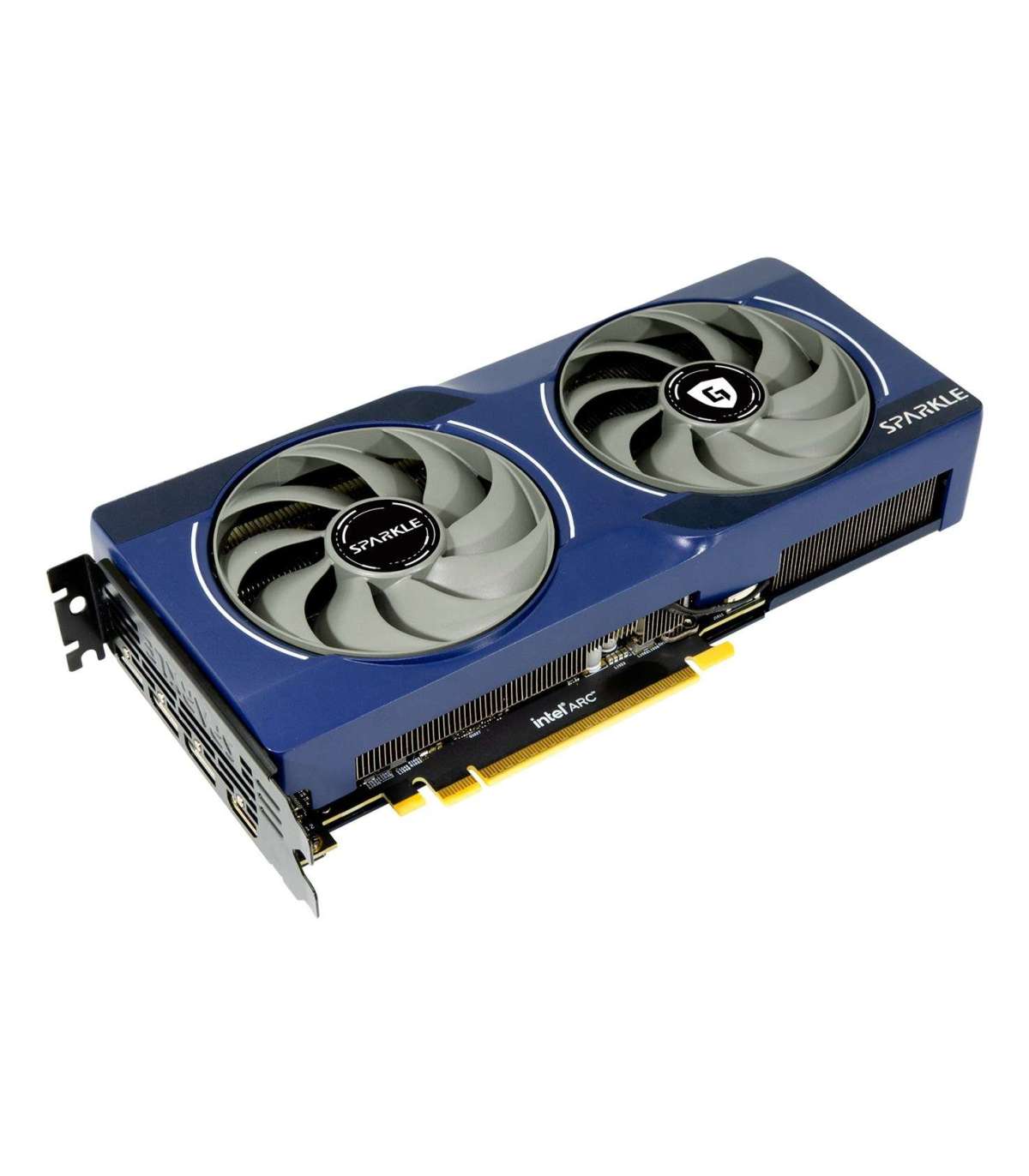

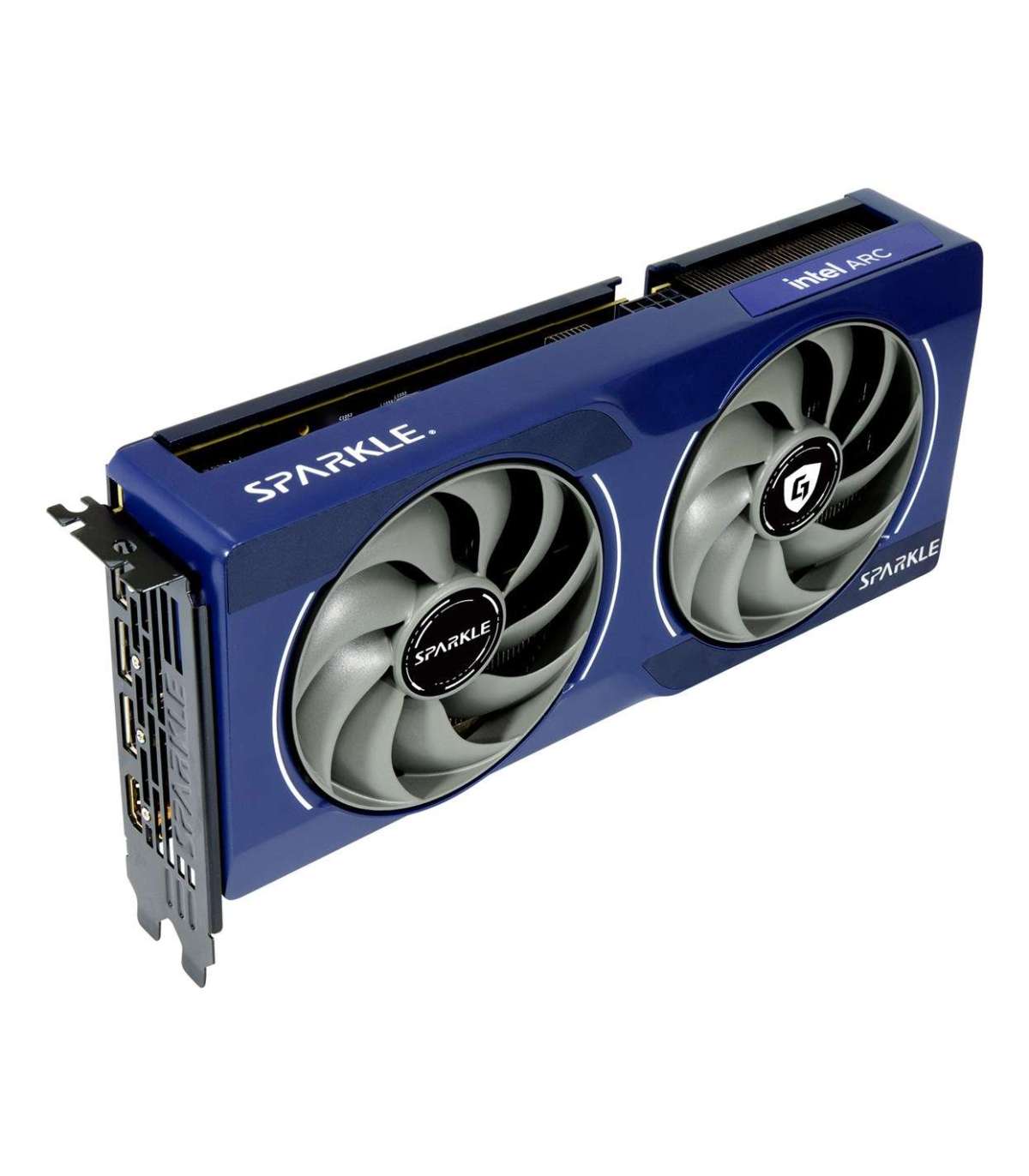

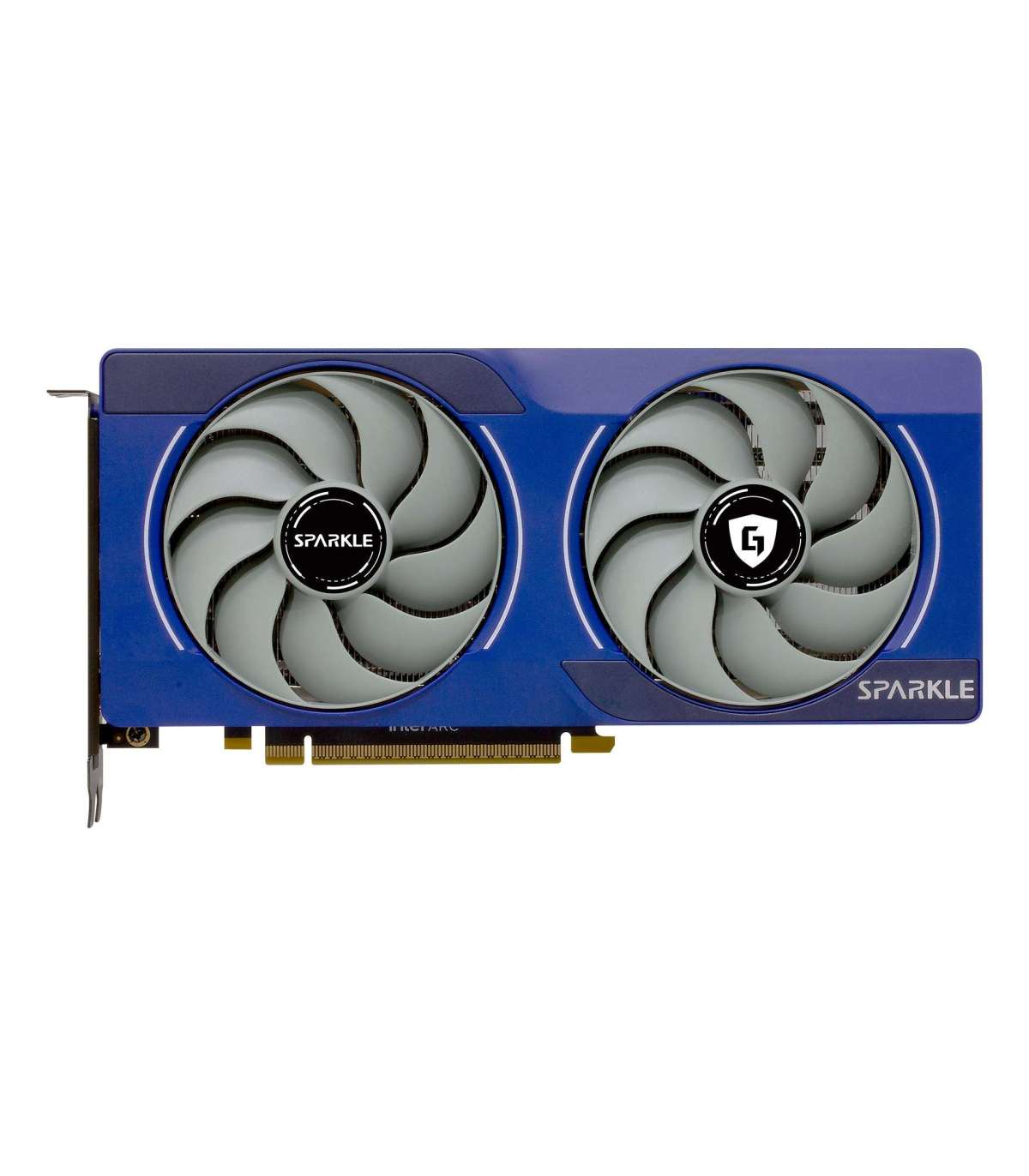

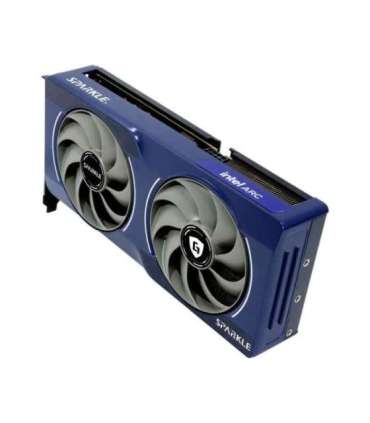

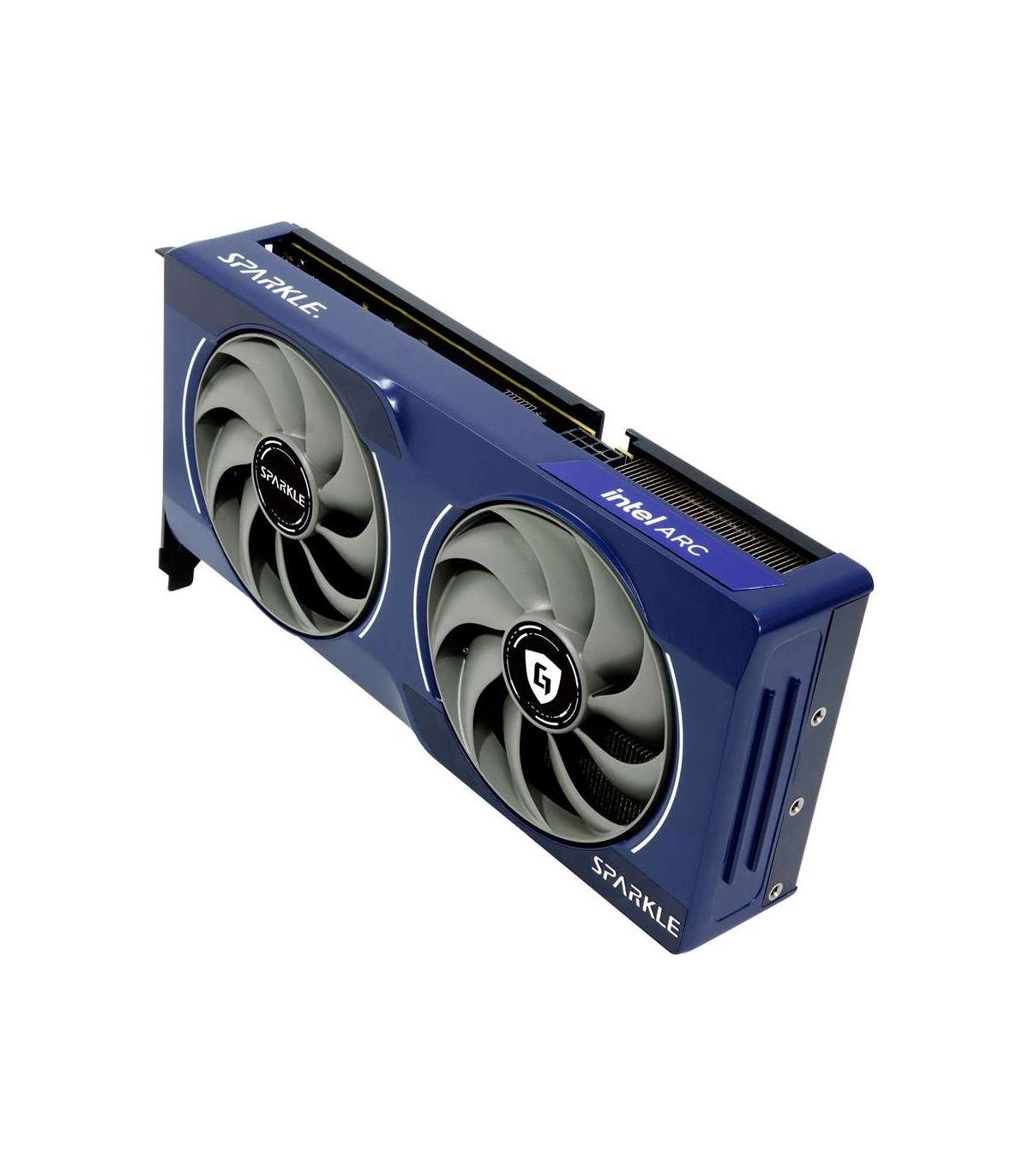

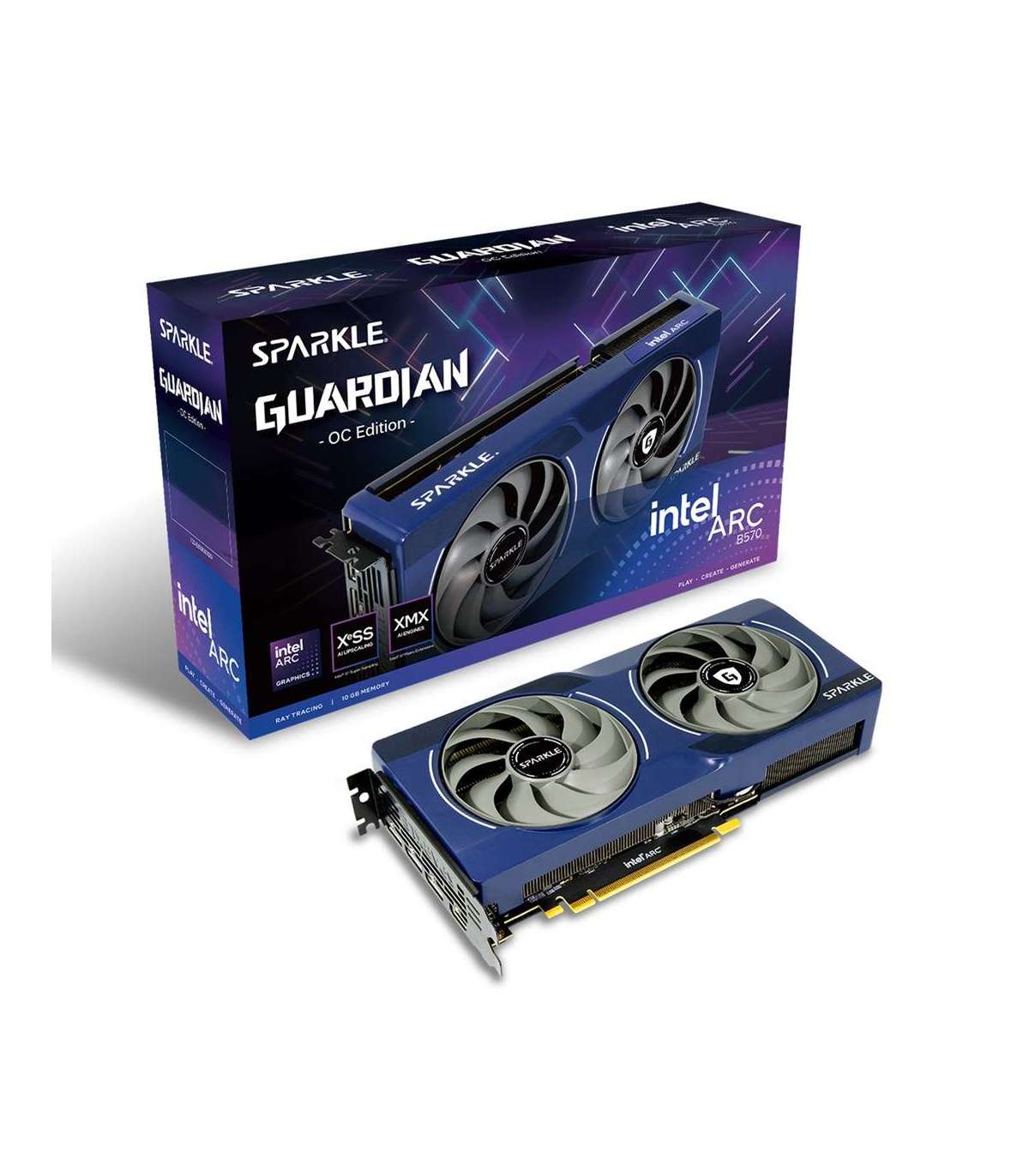

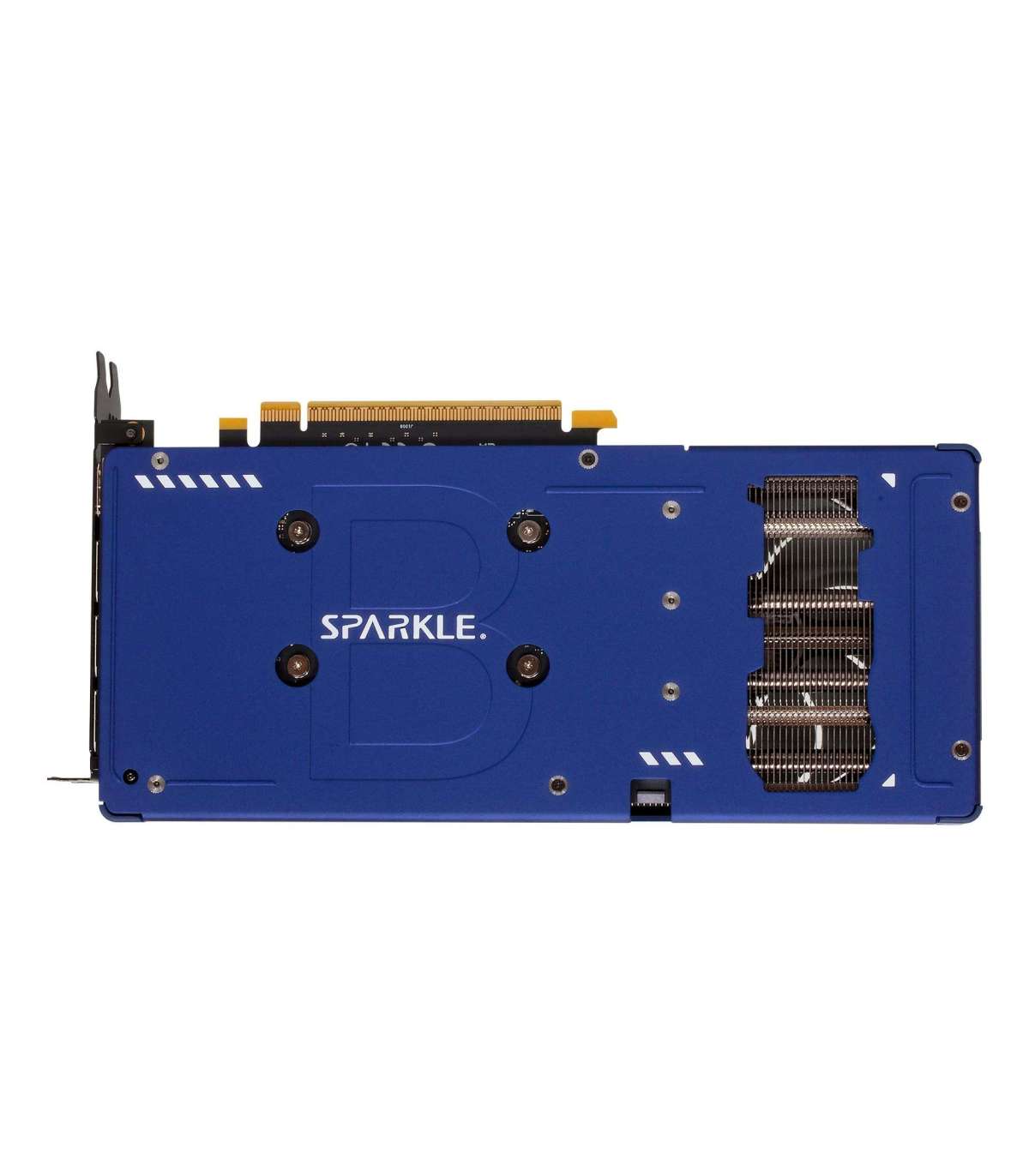

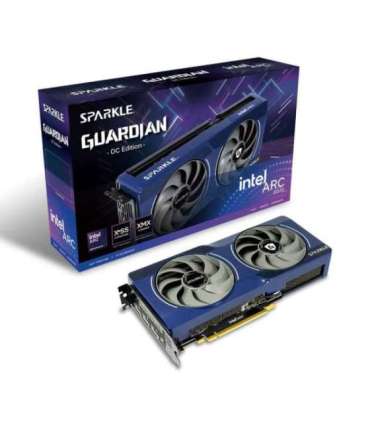

Sparkle Technology Intel Arc B570 GUARDIAN OC 10 GB GDDR6

Характеристики

Depth

44 mm

Weight

796 g

Height

105 mm

Product colour

Blue

Windows operating systems supported

Windows 10
Windows 11

Processor frequency

2500 MHz

Power consumption (typical)

150 W

Package type

Box

Power consumption (max)

170 W

Minimum RAM

8000 MB

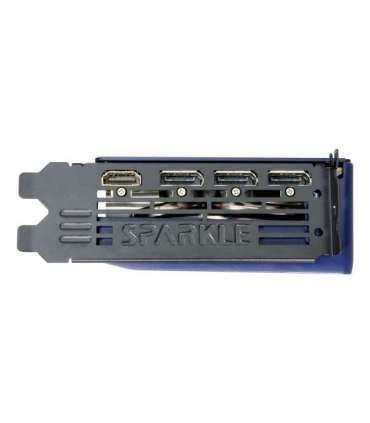

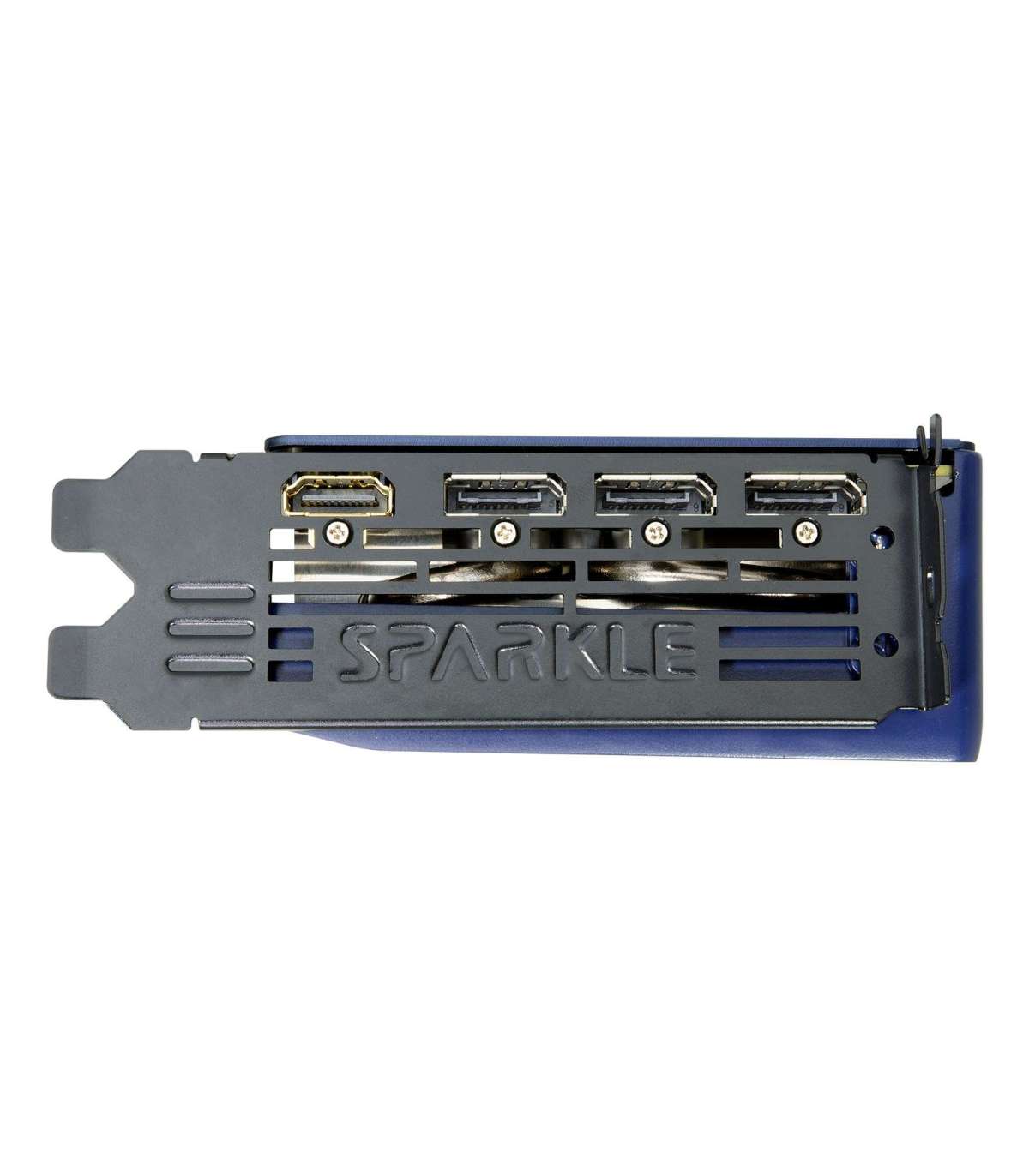

HDMI version

2.1

HDMI ports quantity

1

NPU performance up to

203 TOPs

Discrete graphics card memory

10 GB

Memory bandwidth (max)

380 GB/s

Graphics processor

Arc B570

Parallel processing technology support

Not supported

Maximum resolution

7680 x 4320 pixels

DisplayPorts quantity

3

DirectX version

12 Ultimate

Cooling type

Active

DisplayPort version

2.1

OpenCL version

3.0

Xe-cores

18

Length

242 mm

TV tuner integrated

No

Graphics processor family

Intel

CUDA

No

Maximum displays per videocard

4

Ray accelerators

18

Memory bus

160 bit

Graphics card memory type

GDDR6

Number of fans

2 fan(s)

Number of slots

2.2

Power supply location

Top

Supplementary power connectors

1x 8-pin

Minimum system power supply

600 W

Minimum system requirements

PCI-Express compliant MB with one x16 PCIe slot

OpenGL version

4.6

Intel® Xe Matrix Extensions (Intel® XMX) Engines

144

Dual Link DVI

No

Interface type

PCI Express x8 4.0

Processor boost clock speed

2660 MHz
