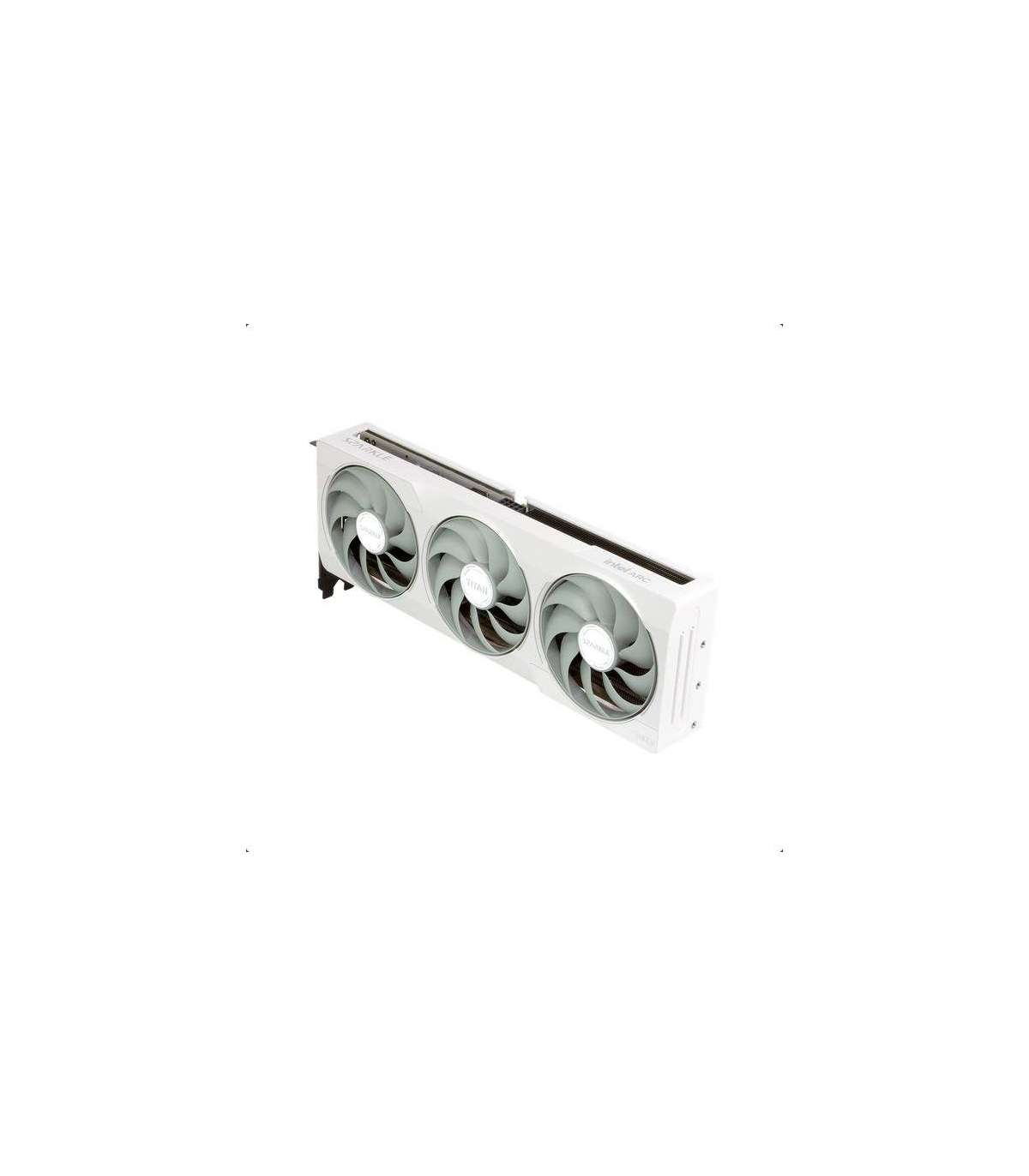

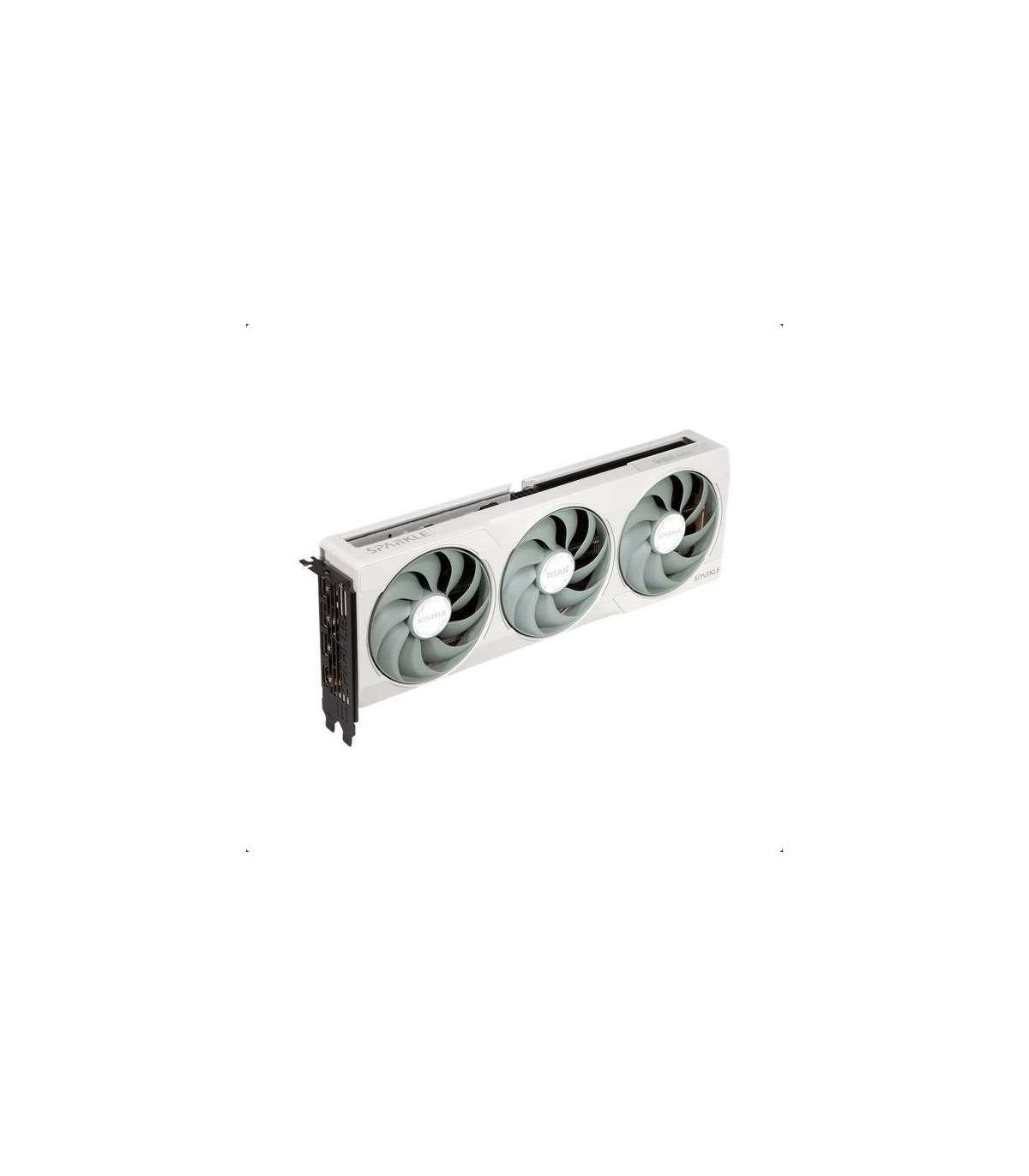

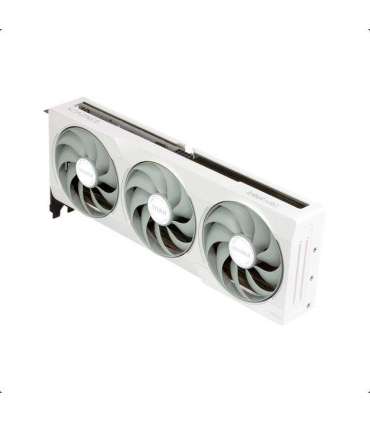

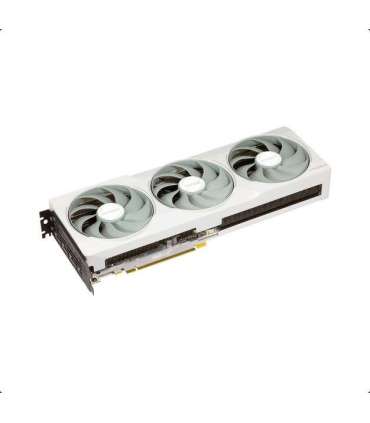

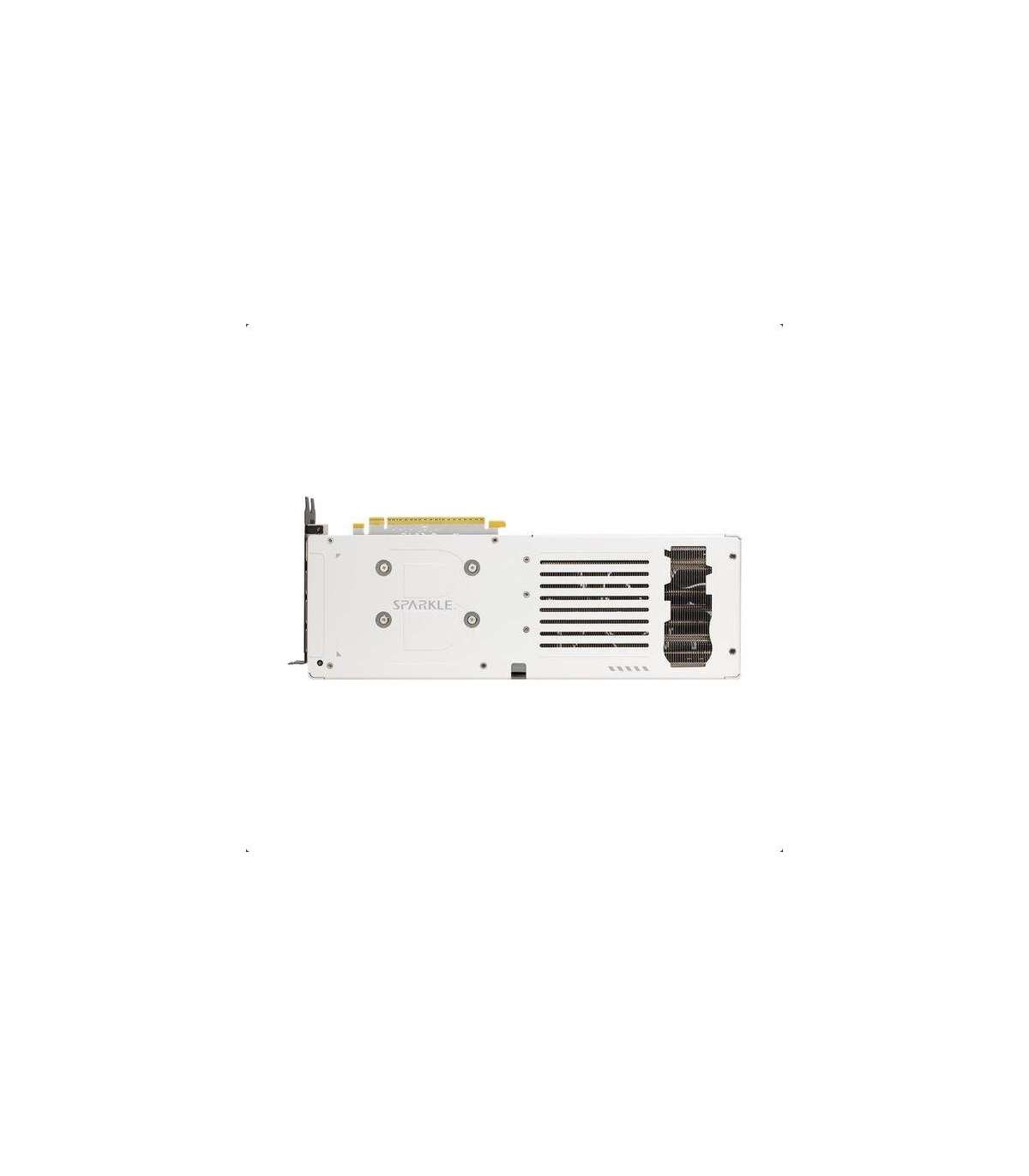

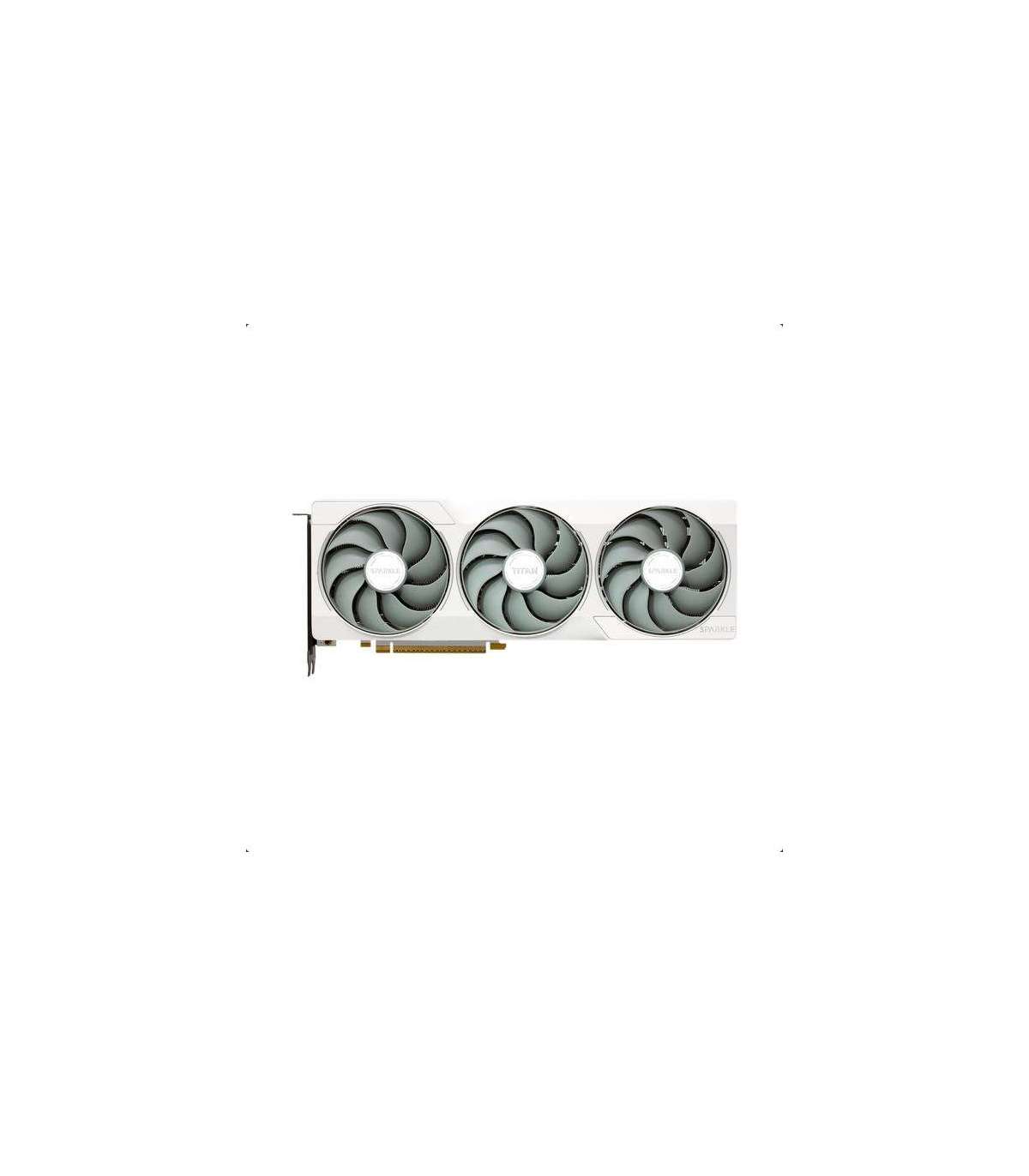

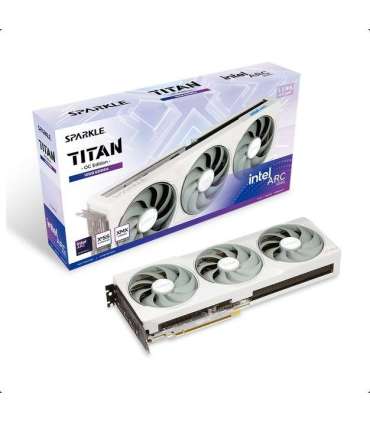

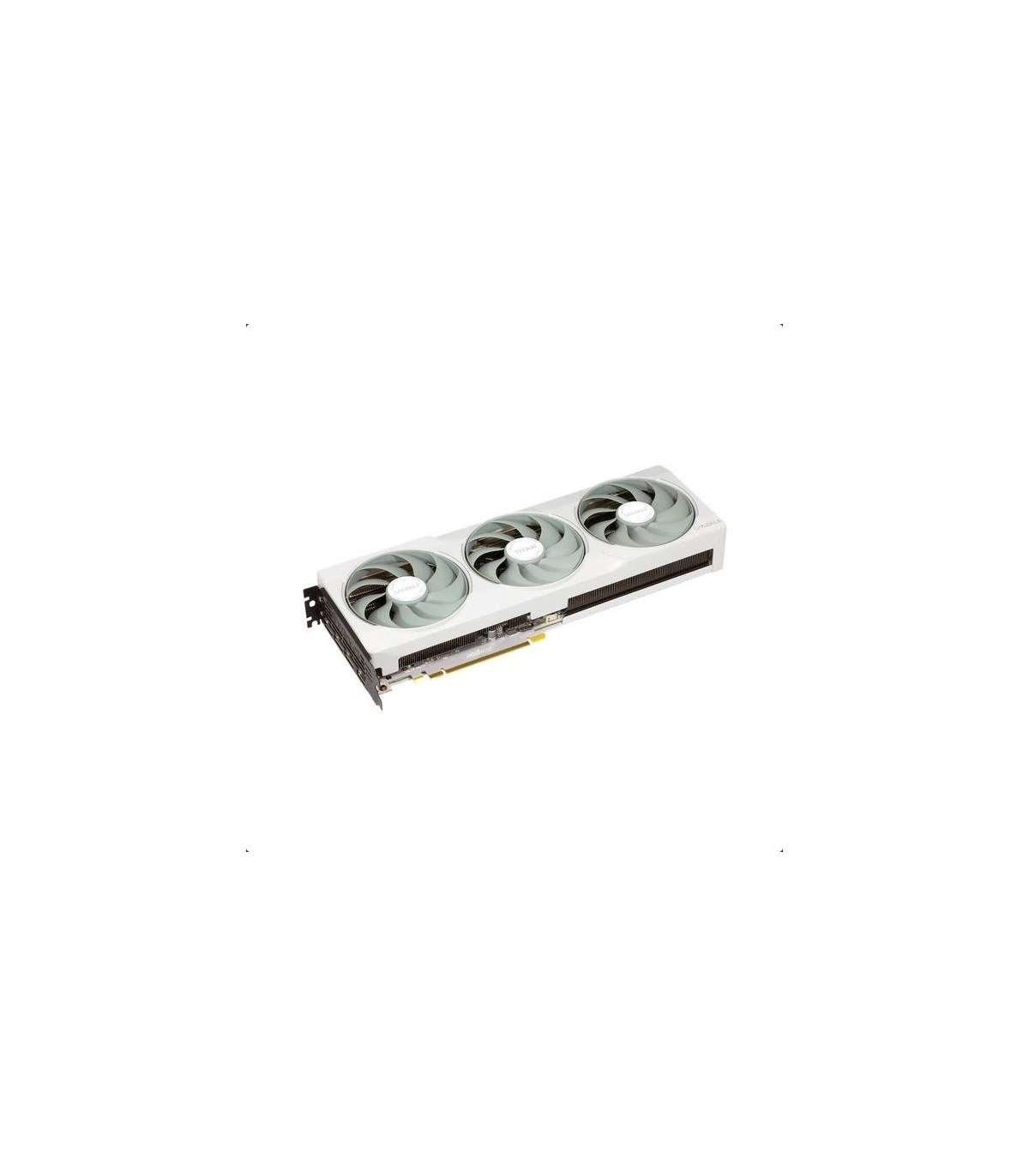

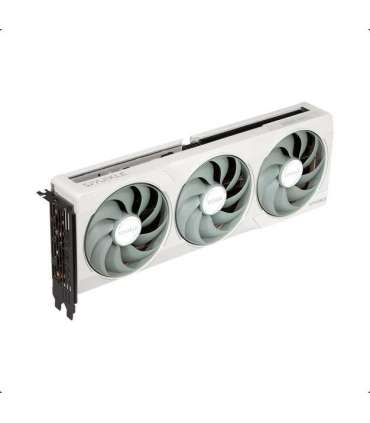

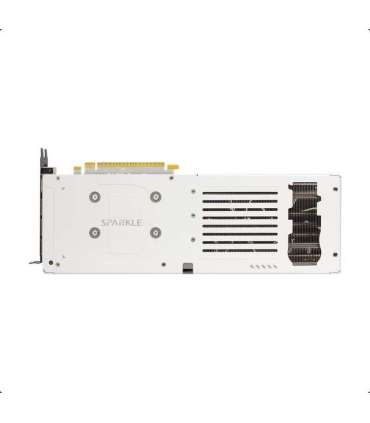

Sparkle Intel Arc B580 TITAN OC 12 GB GDDR6 Luna Edition

Характеристики

Depth

44 mm

Height

117 mm

Product colour

White

Windows operating systems supported

Windows 10
Windows 11

Processor frequency

2740 MHz

Power consumption (typical)

200 W

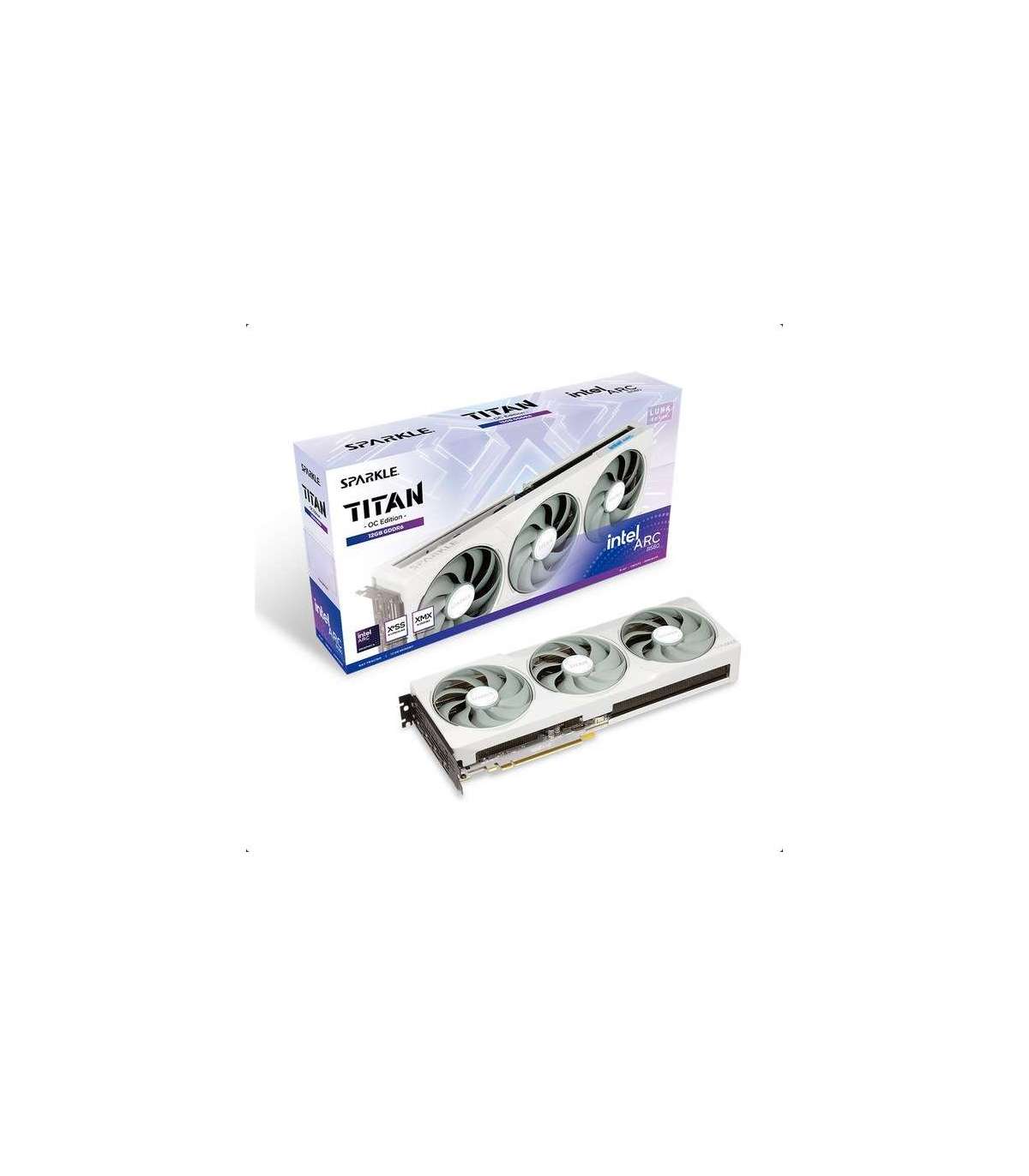

Package type

Box

Minimum RAM

8000 MB

HDMI version

2.1

HDMI ports quantity

1

NPU performance up to

233 TOPs

Discrete graphics card memory

12 GB

Memory bandwidth (max)

456 GB/s

Graphics processor

Arc B580

Parallel processing technology support

Not supported

Maximum resolution

7680 x 4320 pixels

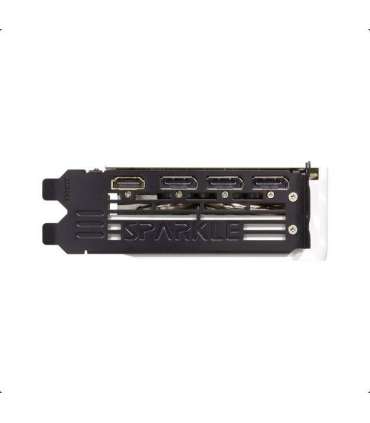

DisplayPorts quantity

3

DirectX version

12 Ultimate

Cooling type

Active

DisplayPort version

2.1

OpenCL version

3.0

Xe-cores

20

Length

315 mm

TV tuner integrated

No

Graphics processor family

Intel

CUDA

No

Maximum displays per videocard

4

Ray accelerators

20

Memory bus

192 bit

Graphics card memory type

GDDR6

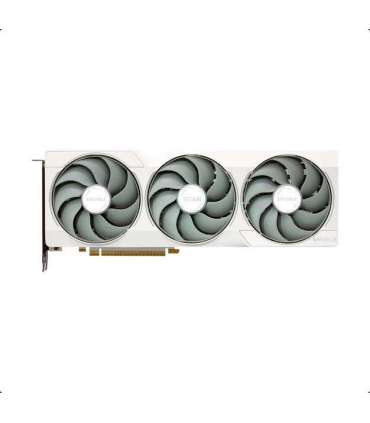

Number of fans

3 fan(s)

Number of slots

2.2

Power supply location

Top

Supplementary power connectors

1x 8-pin

Minimum system power supply

600 W

Minimum system requirements

PCI-Express compliant MB with one x16 PCIe slot

OpenGL version

4.6

Intel® Xe Matrix Extensions (Intel® XMX) Engines

160

Dual Link DVI

No

Interface type

PCI Express x8 4.0
