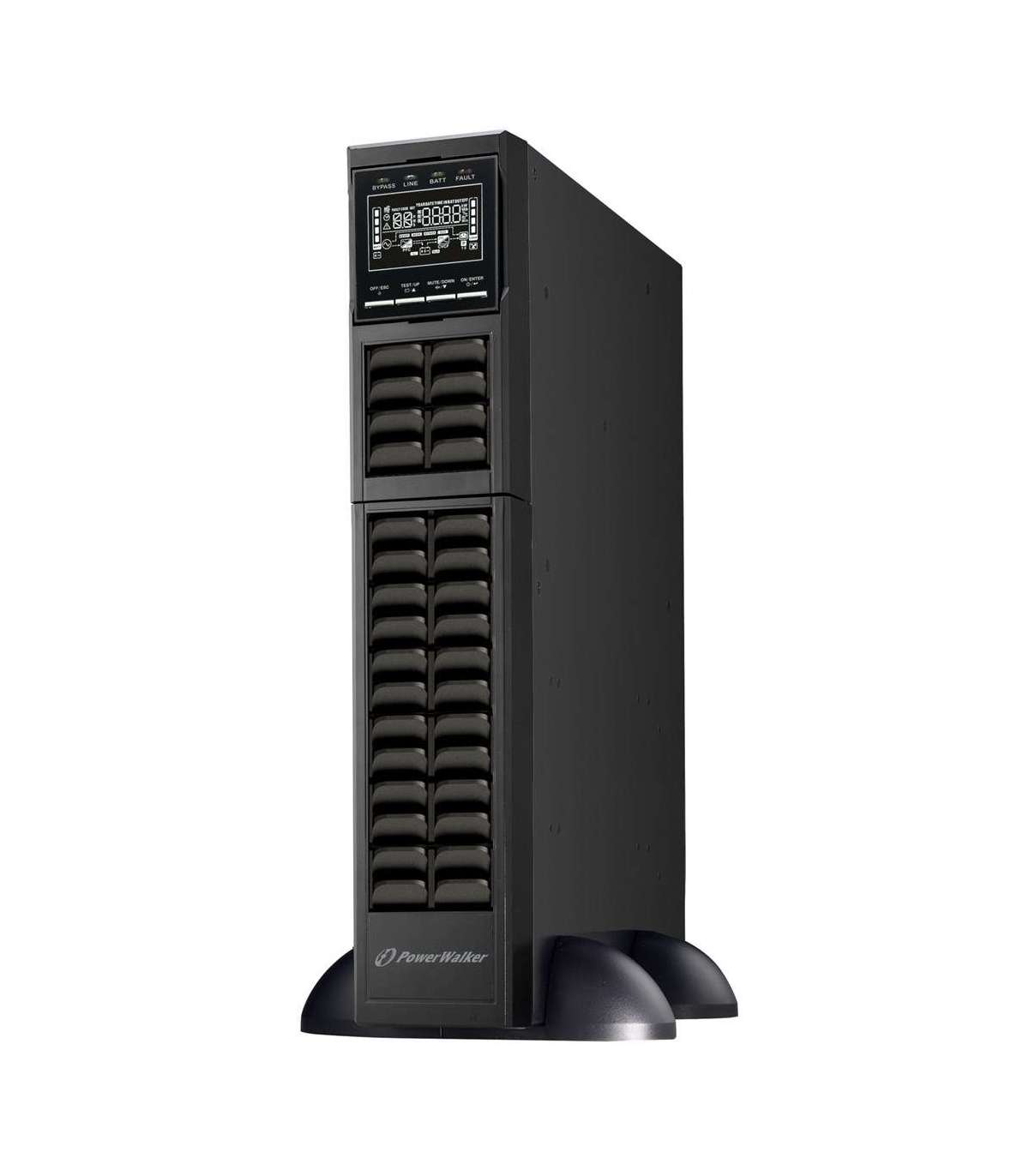

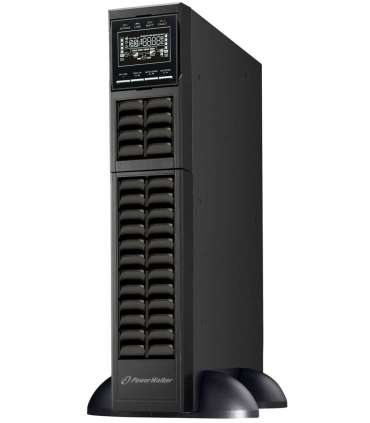

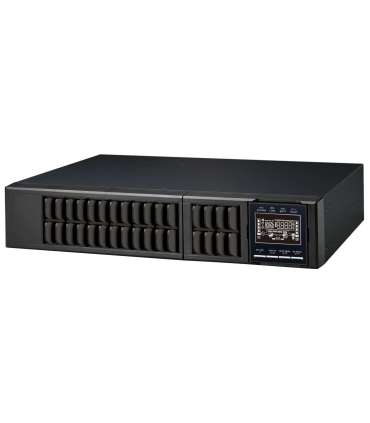

PowerWalker VFI 6000 RMG uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W

Характеристики

Depth

600 mm

Weight

18 kg

Height

88 mm

Width

438 mm

Product colour

Black

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 95%

Cables included

USB cable

USB port

Yes

Harmonized System (HS) code

85078000

Manual

Yes

Rack capacity

2U

Serial interface type

RS-232

Display type

LCD

Battery capacity

9 Ah

Form factor

Rackmount

Operating altitude

0 - 1000 m

Battery voltage

12 V

Battery recharge time

9 h

Cooling type

Active

Noise level

58 dB

Output power

6000 W

Input frequency

46/64 Hz

Charging current

4 A

Built-in fan

Yes

Power protection features

Overload

Input operation voltage (max)

300 V

Input operation voltage (min)

110 V

Output power capacity

6 kVA

Output operation voltage (min)

208 V

UPS topology

Double-conversion (Online)

Output operation voltage (max)

240 V

Waveform

Pure sine

Output voltage regulation

-1 - 1%

Serial interface

Yes

Output power factor

1

Output frequency regulation

-0.1 - 0.1 Hz

Output voltage Total Harmonic Distortion (THD)

1.5%

Emergency Power Off (EPO) connector

Yes

Crest factor

3:1

Input power factor

0.99

Input current Total Harmonic Distortion (THD)

4%

Overload capacity (10 seconds)

130%

Overload capacity (1 minute)

130%

Efficiency (Line Mode)

94%

Overload capacity (10 minutes)

110%

Efficiency (Battery mode)

91%

Battery width

43.8 cm

Battery depth

58 cm

Battery height

13.3 cm
