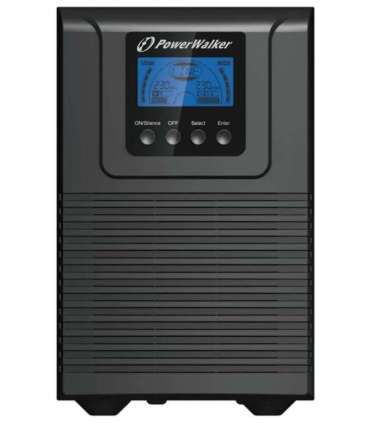

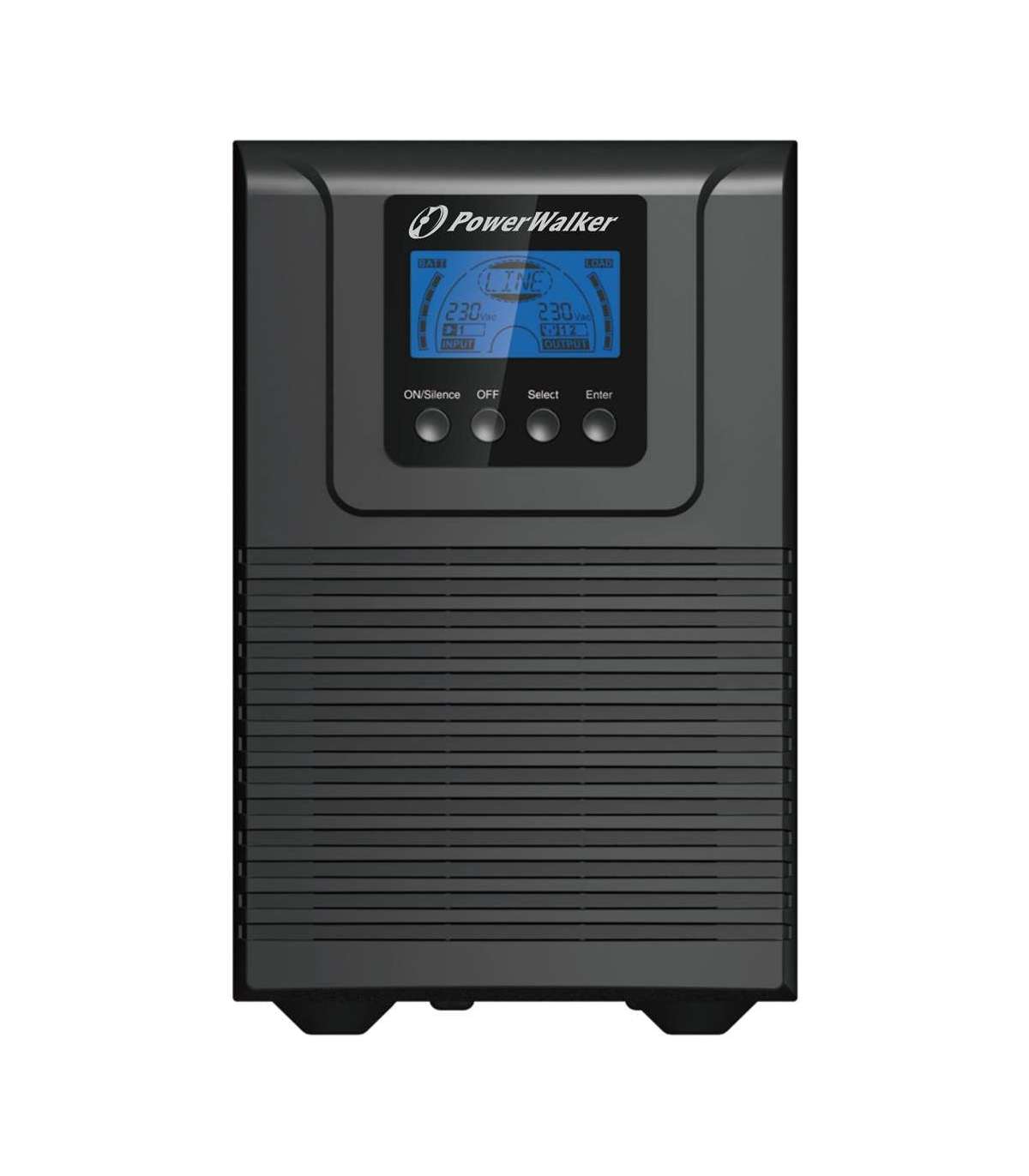

PowerWalker VFI 1000 TGB Double-conversion (Online) 1 kVA 900 W 4 AC outlet(s)

Характеристики

Depth

356 mm

Weight

9.3 kg

Height

229 mm

Width

144 mm

Product colour

Black

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 95%

Cables included

Input power cable, USB cable

Package width

240 mm

Package height

330 mm

USB port

Yes

Manual

Yes

RS-232 ports

1

Battery capacity

9 Ah

Battery voltage

12 V

Battery recharge time

4 h

Noise level

45 dB

Number of batteries supported

2

Efficiency

89%

Output power

900 W

Input frequency

40 - 70 Hz

Power plug

C14 coupler

Power factor

0.9

AC outlets quantity

4 AC outlet(s)

Input operation voltage (max)

300 V

Input operation voltage (min)

176 V

Output power capacity

1 kVA

Output operation voltage (min)

220 V

UPS topology

Double-conversion (Online)

Output operation voltage (max)

240 V

Waveform

Sine

AC outlet types

C13 coupler

Emergency Power Off (EPO)

Yes

Typical backup time at half load

10.5 min

Typical backup time at full load

3.7 min

Output voltage regulation

2%

Output voltage Total Harmonic Distortion (THD)

5%

Emergency Power Off (EPO) connector

Yes

Crest factor

3:1

Input current Total Harmonic Distortion (THD)

5%
