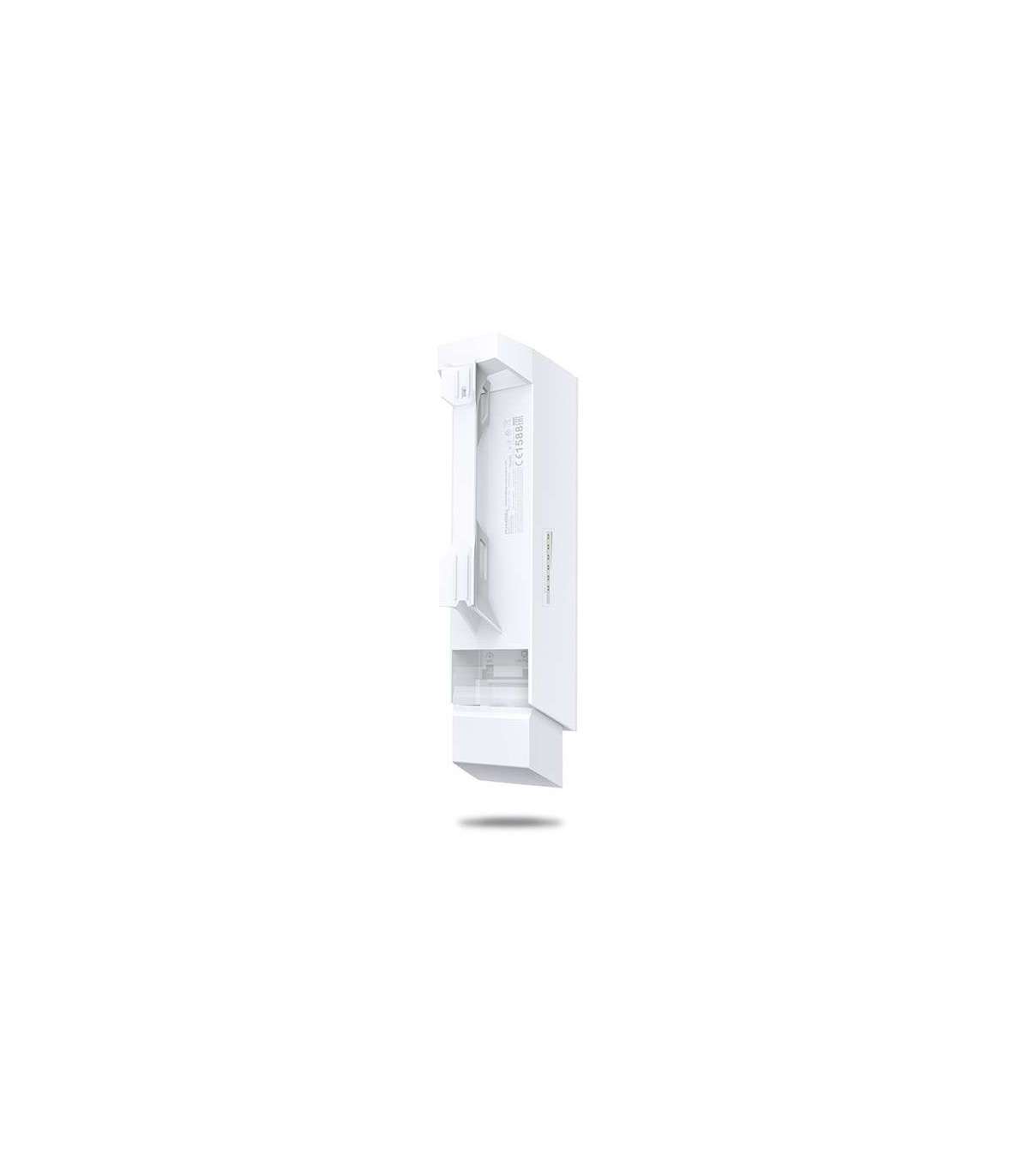

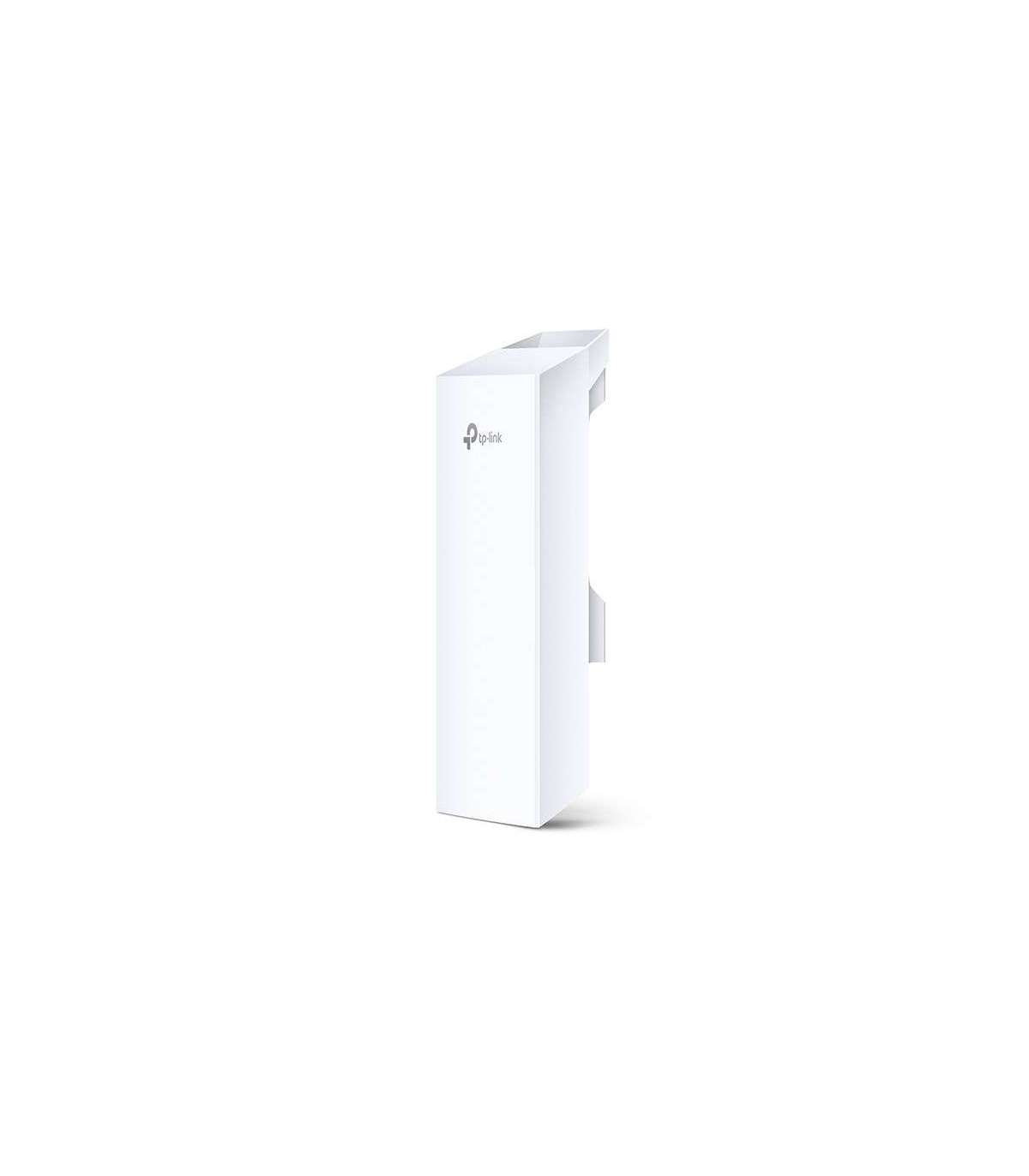

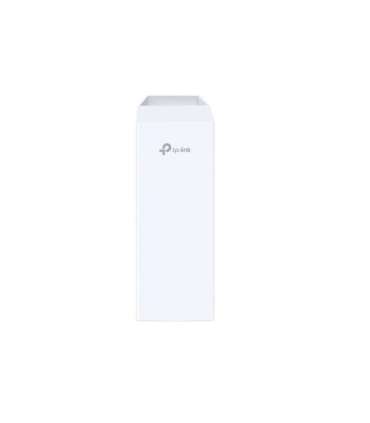

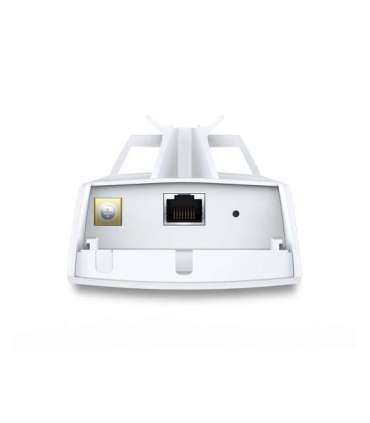

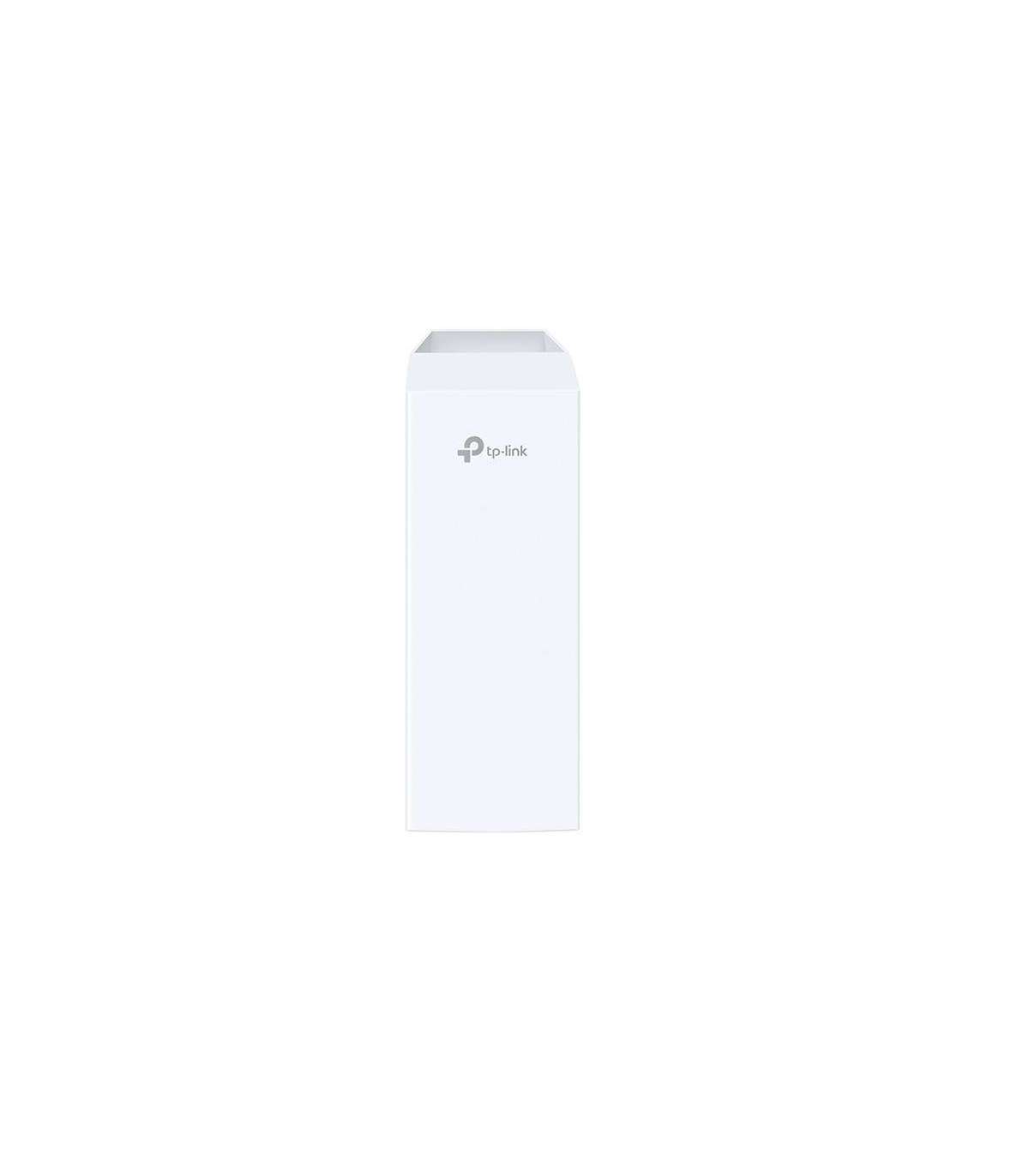

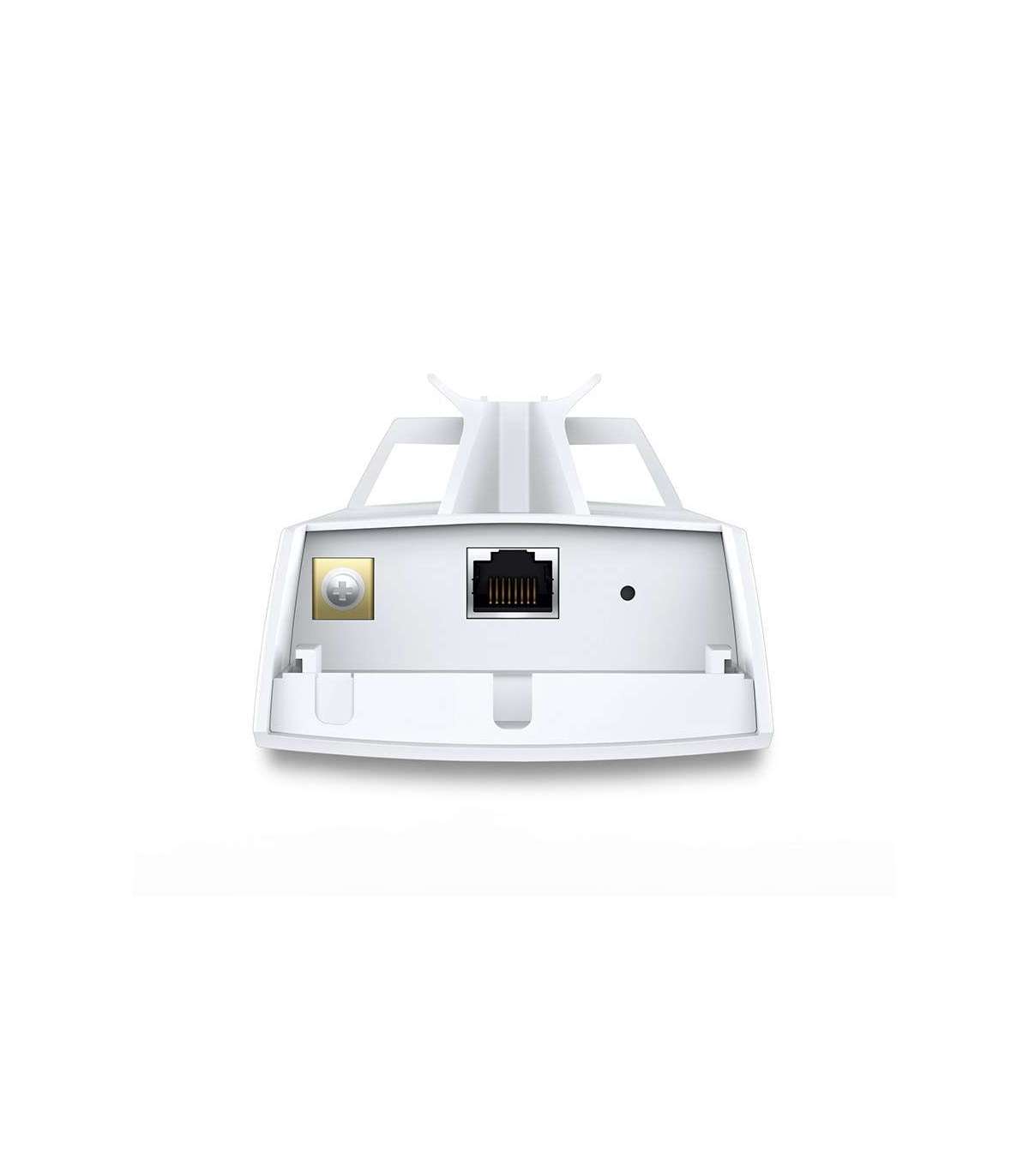

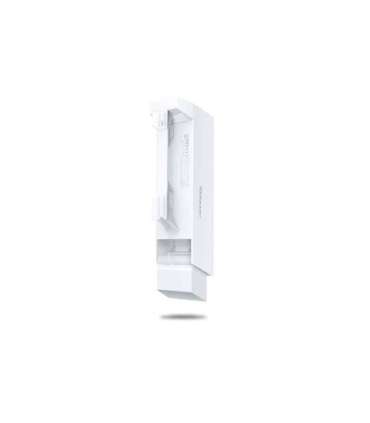

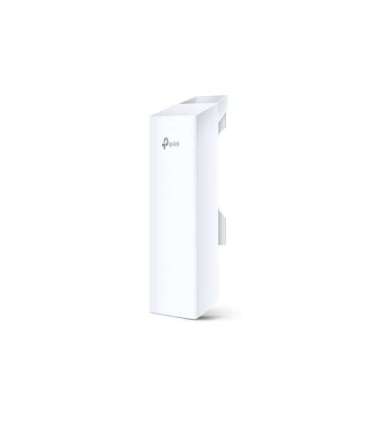

TP-LINK 5GHz 300Mbps 13dBi Outdoor CPE

Характеристики

Depth

79 mm

Height

60.3 mm

Width

224.4 mm

Package weight

720 g

Product colour

White

Security algorithms

64-bit WEP
128-bit WEP
152-bit WEP
TKIP
WPA
WPA-PSK
WPA2
WPA2-PSK

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

-30 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 95%

Reset button

Yes

Cables included

AC

Ethernet LAN (RJ-45) ports

1

Antennas quantity

1

Built-in processor

Yes

LED indicators

Yes

IP address filtering

Yes

MAC address filtering

Yes

Web-based management

Yes

Ethernet LAN data rates

100

Cabling technology

10/100Base-T(X)

Networking standards

IEEE 802.11a
IEEE 802.11n

Package width

270 mm

Package depth

132 mm

Package height

106 mm

Certification

- FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
- RoHS

Processor frequency

560 MHz

Housing material

Plastic

Antenna type

Internal

Bandwidth

5 GHz

Antenna gain level (max)

13 dBi

Management protocols

TDMA

Power over Ethernet (PoE)

Yes

Internal memory

64 MB

Power consumption (typical)

13 W

Input current

0.8 A

Frequency band

5.15 - 5.85 GHz

Flash memory

8 MB

Antenna direction type

Omni-directional

Processor model

Qualcomm Atheros

Maximum data transfer rate

300 Mbit/s

International Protection (IP) code

IP5X

2.4 GHz

No

5 GHz

Yes

Placement

Pole

Antenna features

Integrated antenna

Input voltage

100 - 240 V

Maximum outdoor range

15000 m

Automatic channel selection

Yes

Processor architecture

MIPS 74Kc

WAN connection

Ethernet (RJ-45)

Compatible operating systems

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Input frequency

50/60 Hz

Automatic channel scanning

Yes

Management platform

Pharos Control

Throughput data rate

300 Mbit/s
