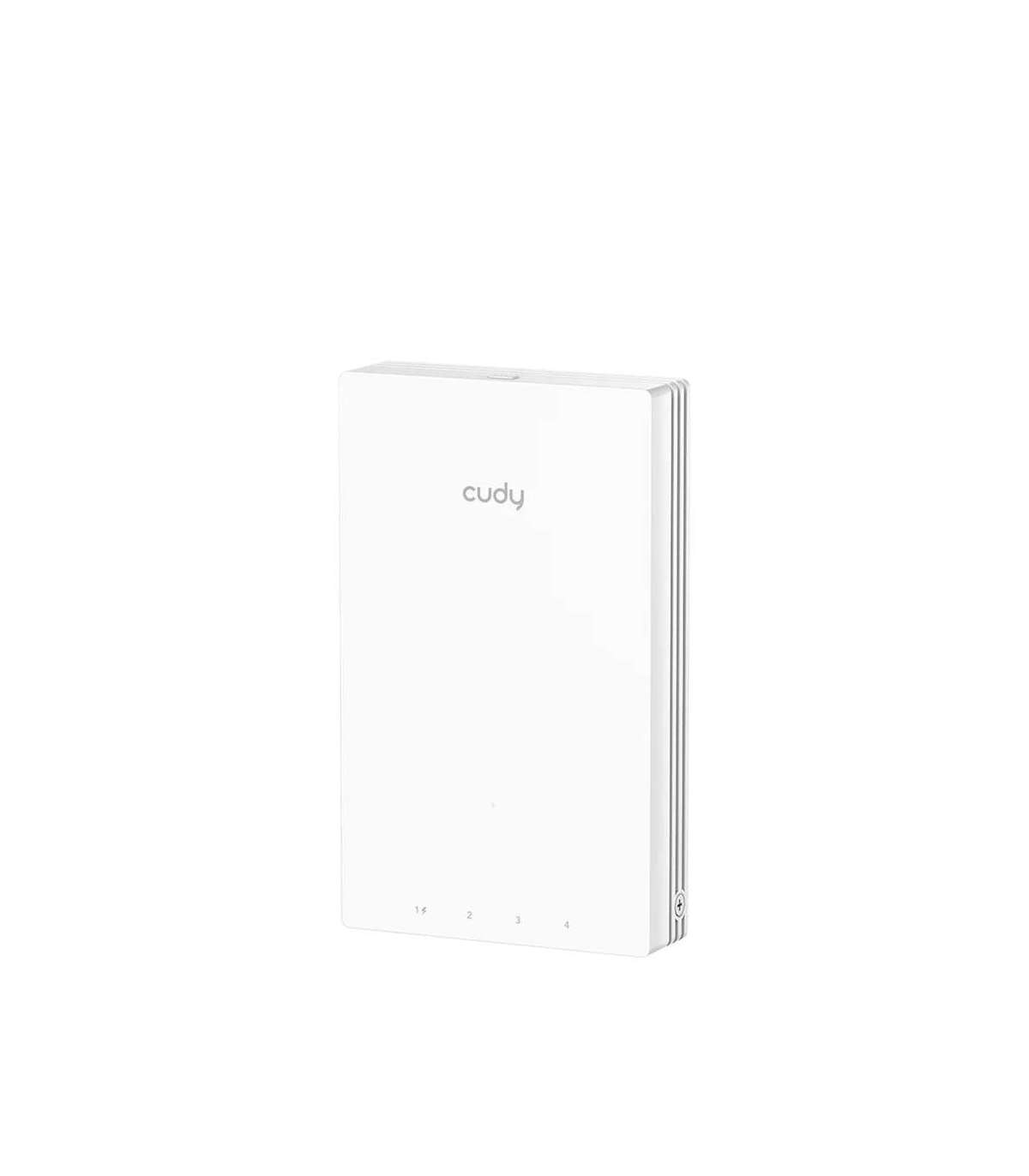

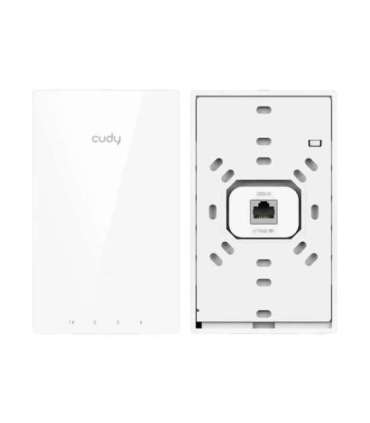

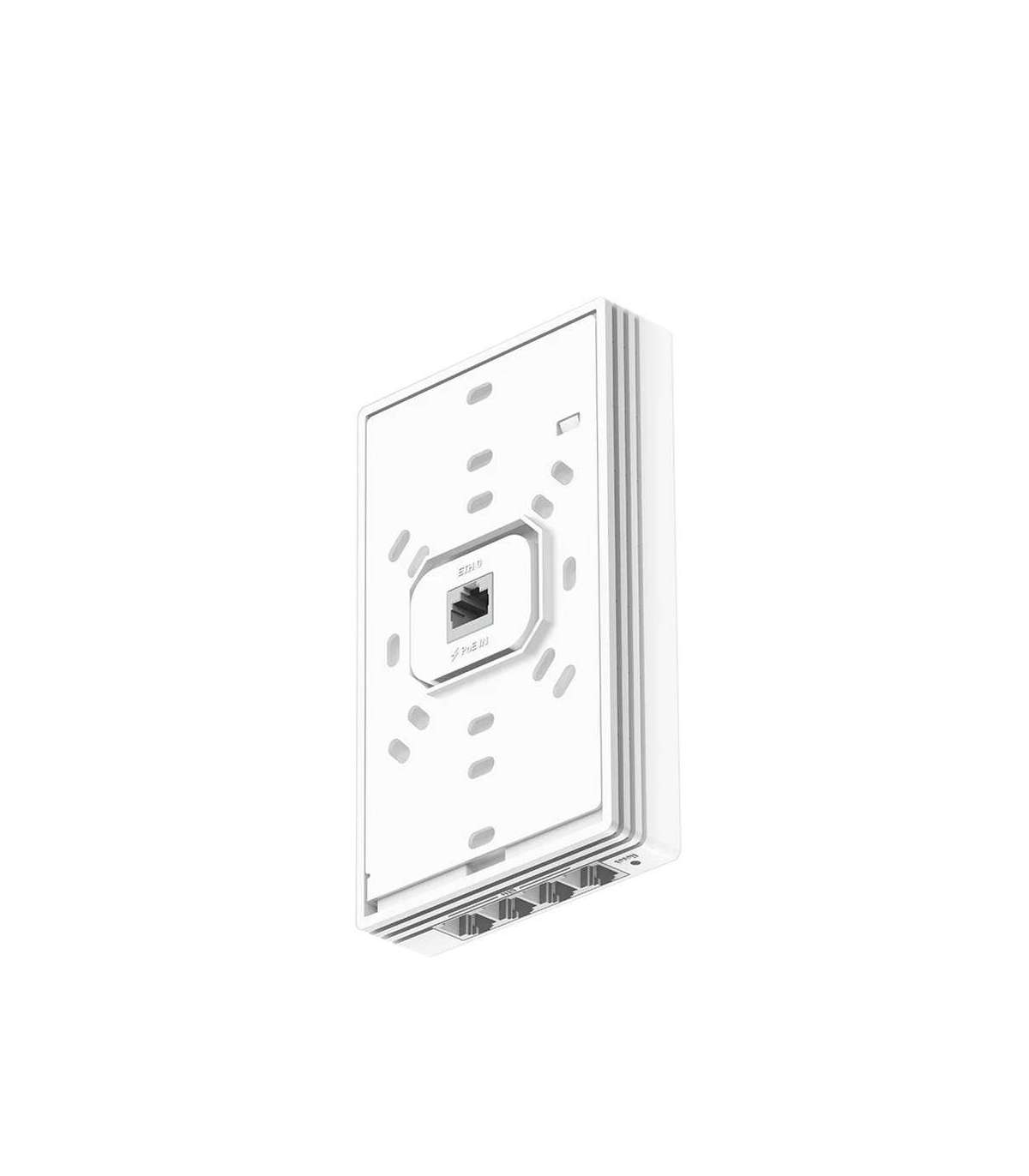

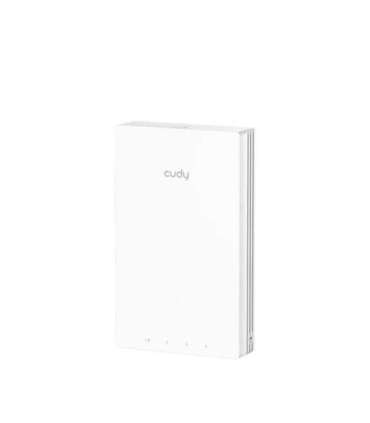

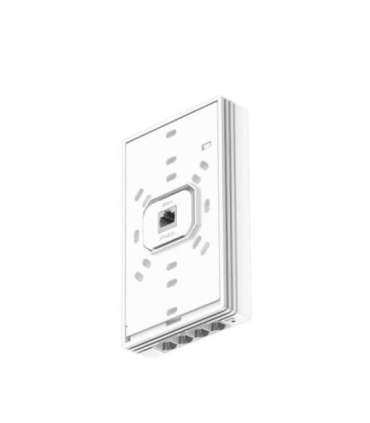

CUDY AP1300 WALL Access Point

Характеристики

Depth

27.6 mm

Weight

261,2 g

Height

143 mm

Width

86 mm

Product colour

White

Output voltage

48 V

Security algorithms

WPA
WPA2
WPA3

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 95%

Reset button

Yes

Ethernet LAN interface type

Gigabit Ethernet

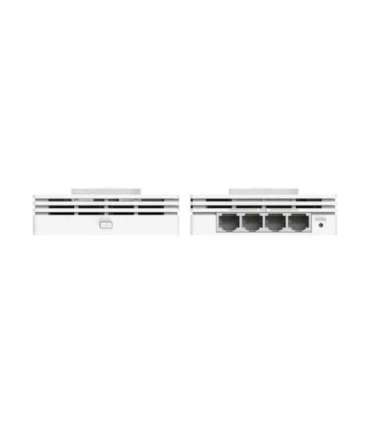

Ethernet LAN (RJ-45) ports

5

Antennas quantity

2

Built-in processor

Yes

Processor frequency

880 MHz

Antenna type

Internal

Quick start guide

Yes

Power over Ethernet (PoE)

Yes

Internal memory

128 MB

MIMO

Yes

Flash memory

16 MB

Power consumption (max)

12 W

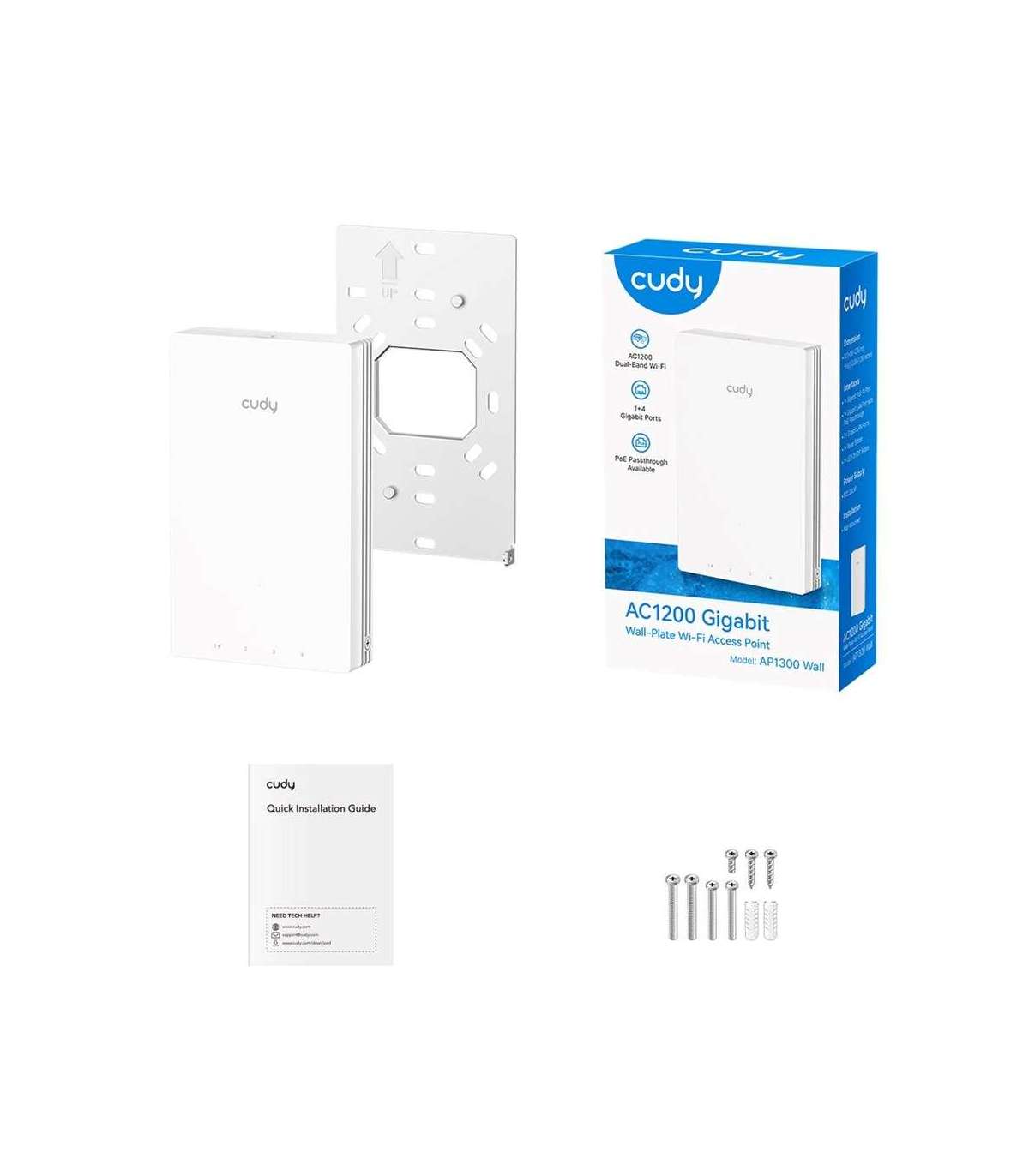

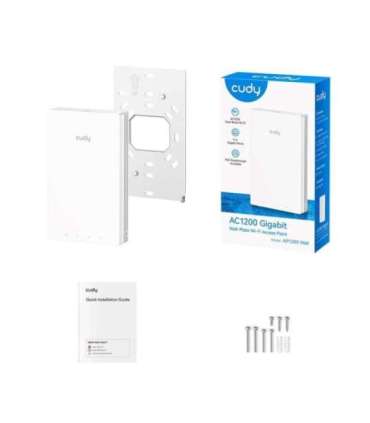

Mounting kit

Yes

2.4 GHz

Yes

5 GHz

Yes

Placement

Wall

MIMO type

Multi User MIMO

Maximum data transfer rate (5 GHz)

867 Mbit/s

Maximum data transfer rate (2.4 GHz)

300 Mbit/s

Maximum outdoor range

80 m

Regulatory Approvals

CE, FCC

Channel bandwidth

80 MHz

Service Set Identifier (SSID) features

Multiple SSIDs

PoE standard

IEEE 802.3af/at
