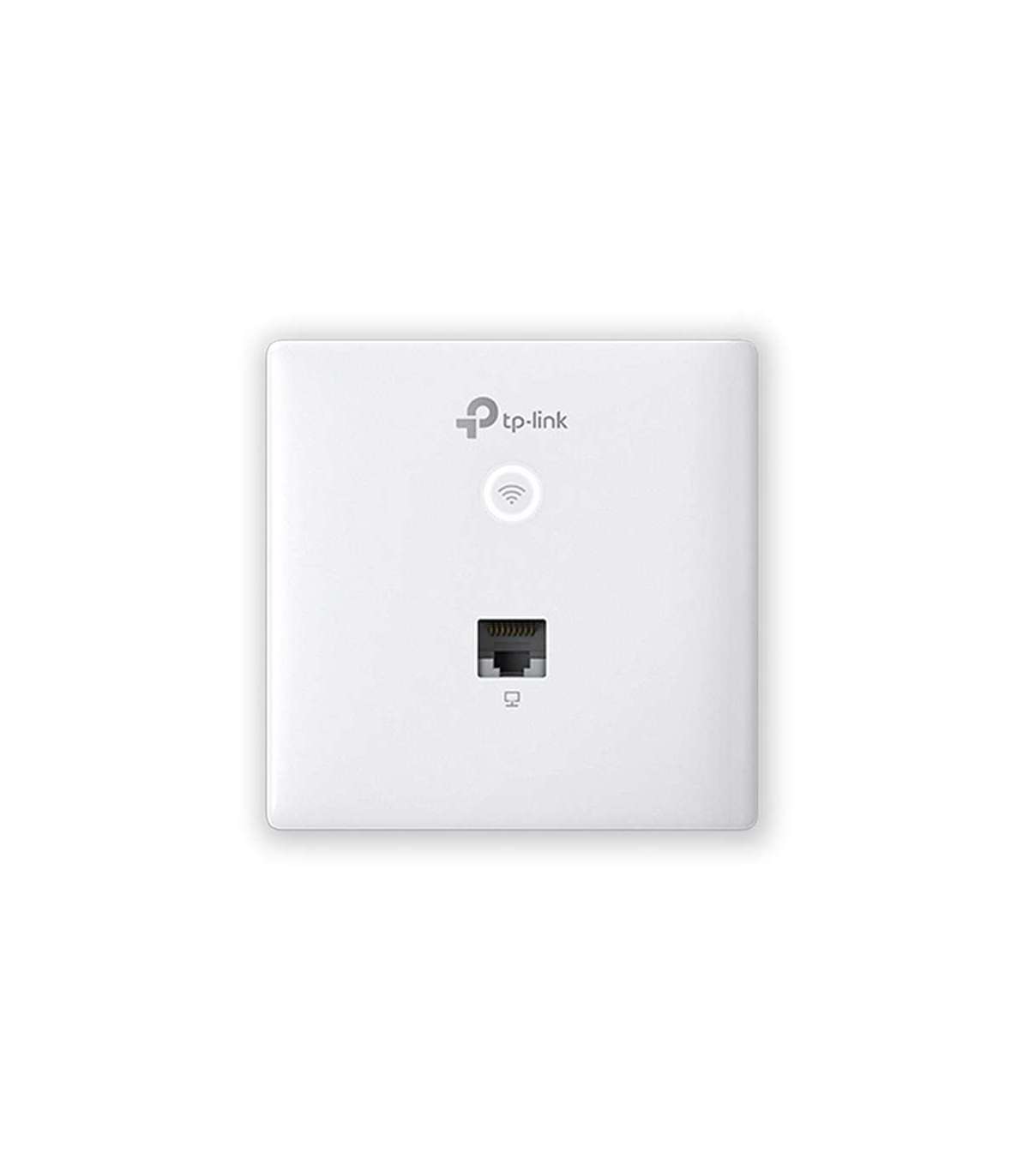

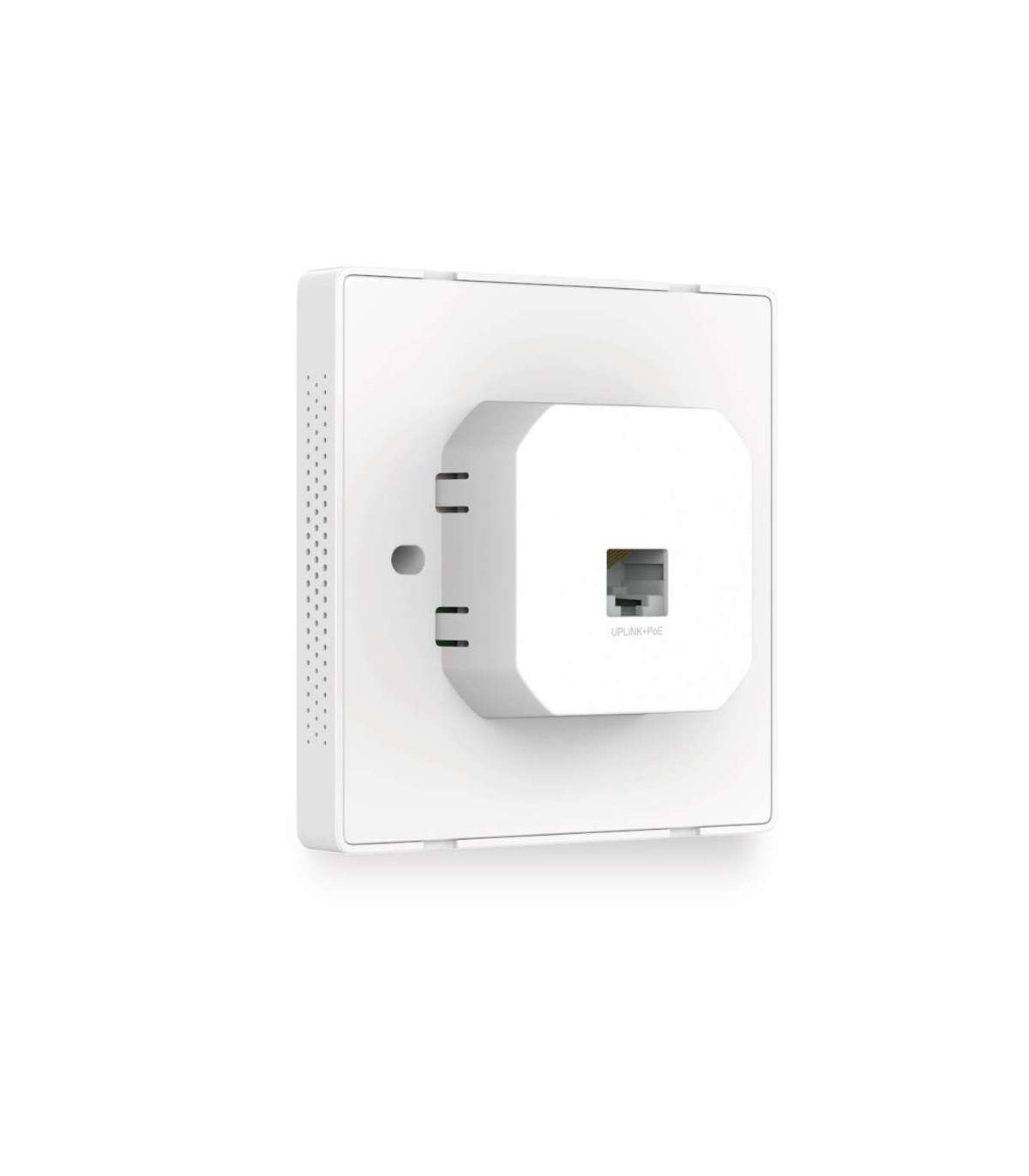

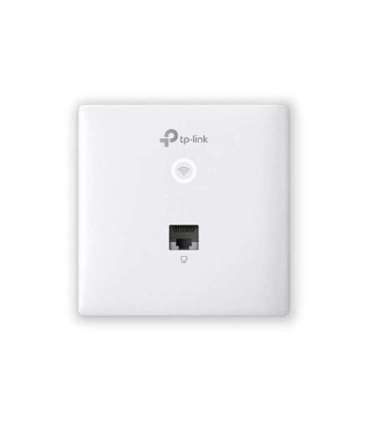

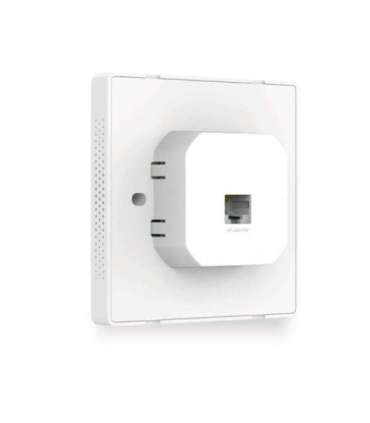

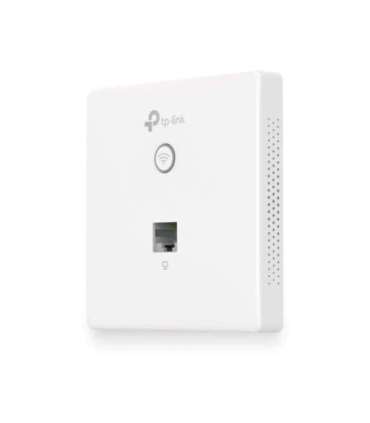

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point

Характеристики

Depth

86.8 mm

Height

30.2 mm

Width

86.8 mm

Package weight

210 g

Quantity per pack

2 pc(s)

Product colour

White

Security algorithms

64-bit WEP
128-bit WEP
152-bit WEP
SNMP
SNMPv2
WPA
WPA-PSK
WPA2-Enterprise
WPA2-PSK

Access Control List (ACL)

Yes

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Reset button

Yes

Ethernet LAN (RJ-45) ports

1

Antennas quantity

2

LED indicators

Operation

MAC address filtering

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Ethernet LAN data rates

10
100 Mbit/s
1000 Mbit/s

Cabling technology

10/100/1000Base-T(X)

Networking standards

IEEE 802.3af
IEEE 802.3at
IEEE 802.11ac
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Package width

118 mm

Package depth

130 mm

Package height

47 mm

Compliance certificates

CE
RoHS

Harmonized System (HS) code

85176990

Warnings

Avoid direct contact with water.
Do not expose to prolonged moisture.
Electronic products should be recycled at specialist electronic waste collection facilities.

Sustainability compliance

Yes

Antenna type

Internal

Quick start guide

Yes

Wi-Fi Multimedia (WMM)/(WME)

Yes

Antenna gain level (max)

3.6 dBi

Power over Ethernet (PoE)

Yes

MIMO

Yes

Power consumption (typical)

9 W

Frequency band

2.4 - 5 GHz

Power consumption (max)

25.5 W

BeamForming

Yes

Maximum data transfer rate

1167 Mbit/s

Mounting kit

Yes

2.4 GHz

Yes

5 GHz

Yes

Placement

Wall

Antenna features

Integrated antenna

Virtual LAN features

Port-based VLAN
VLAN mapping

MIMO type

Multi User MIMO

Maximum data transfer rate (5 GHz)

867 Mbit/s

6 GHz

No

Maximum data transfer rate (2.4 GHz)

300 Mbit/s

VLAN support

Yes

Syslog

Yes

Automatic channel selection

Yes

Number of SSID supported

16

Service Set Identifier (SSID) features

Multiple SSIDs

WAN connection

Ethernet (RJ-45)

Band steering

Yes

Transmitting power (CE)

20 - 23 dBm

Rate limiting

Yes

Automatic channel scanning

Yes
