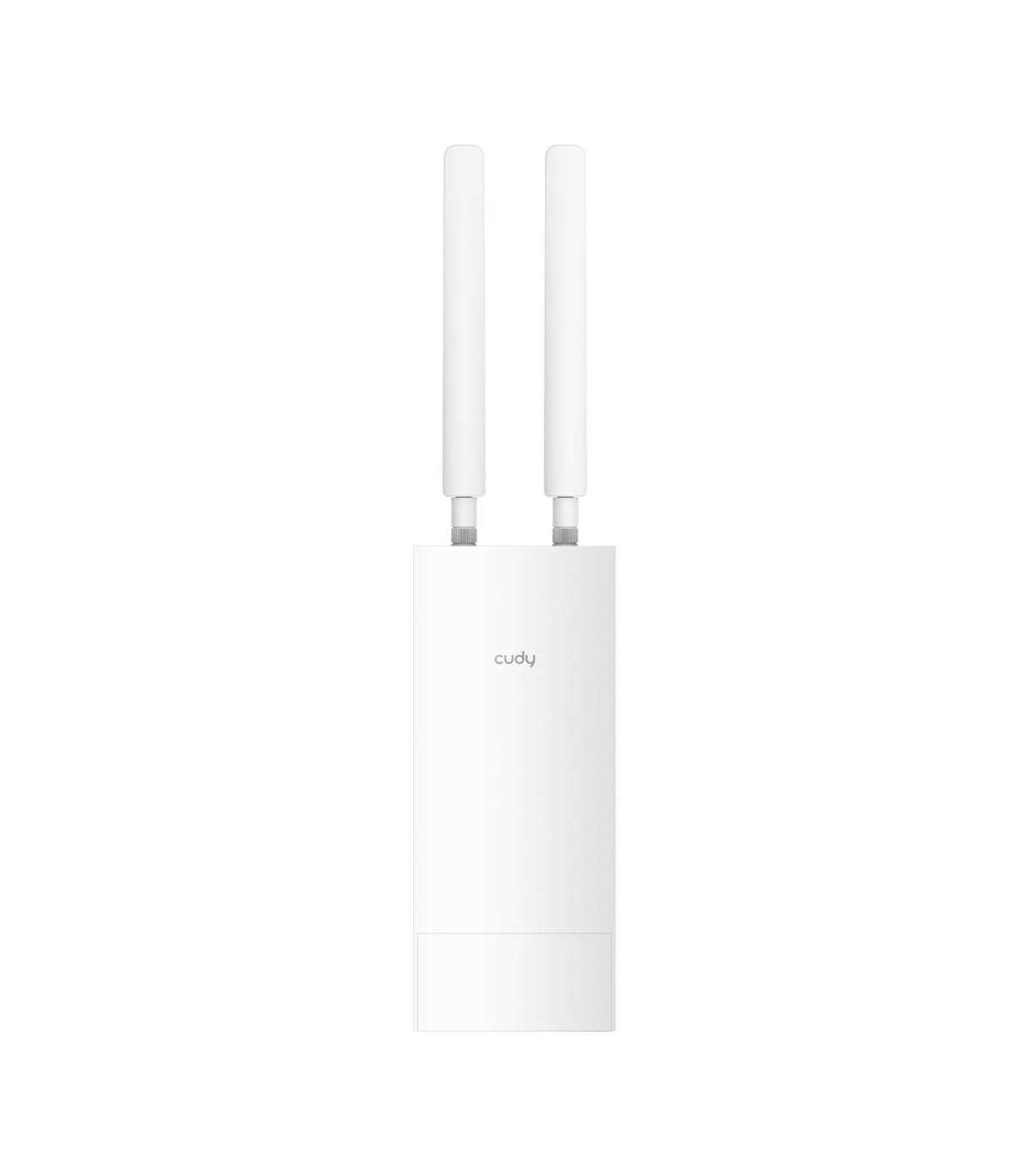

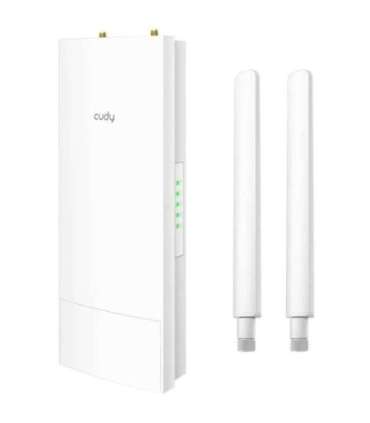

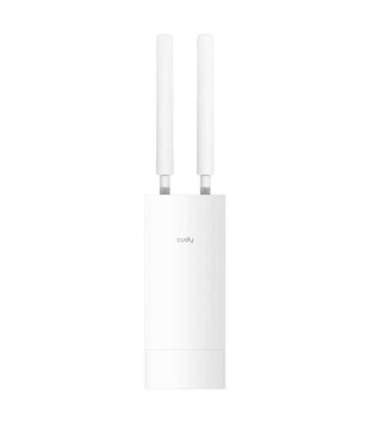

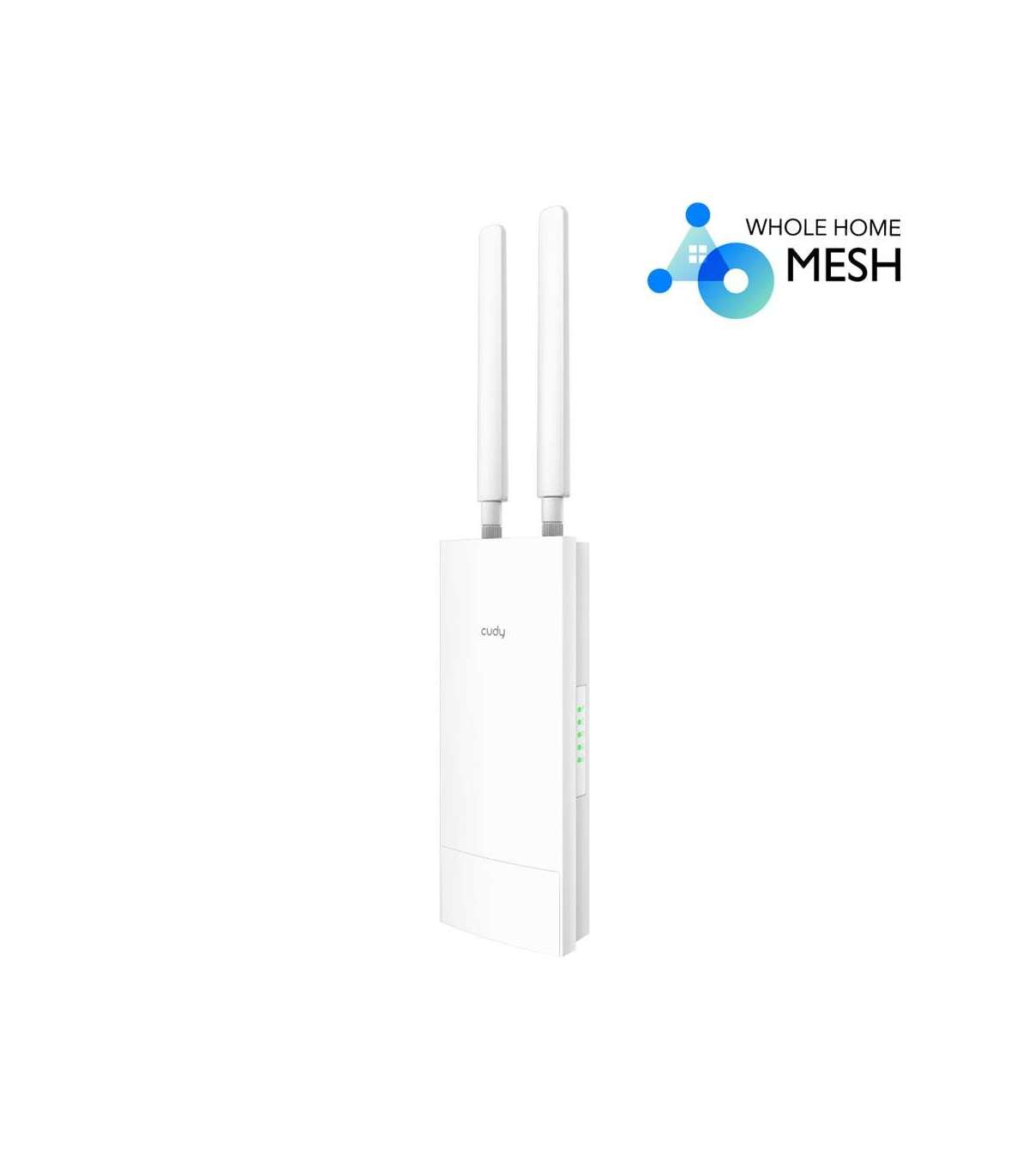

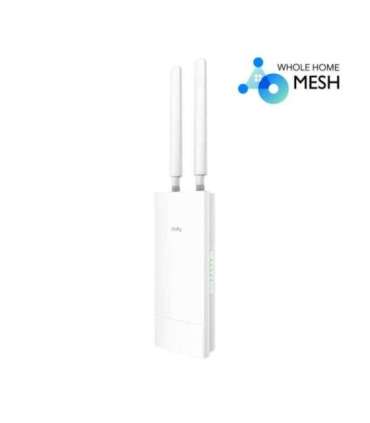

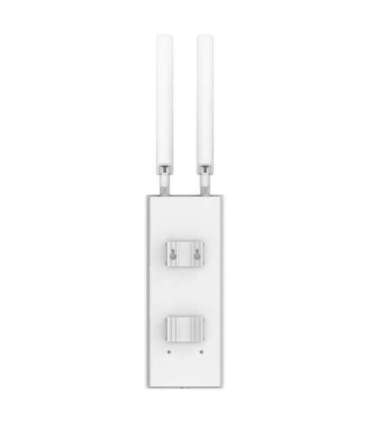

Cudy AP1300 Outdoor 867 Mbit/s White Power over Ethernet (PoE)

Характеристики

Depth

53.7 mm

Height

240 mm

Width

100 mm

Product colour

White

Output voltage

24 - 57 V

Security algorithms

WPA-PSK
WPA2-PSK

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Reset button

Yes

WPS push button

Yes

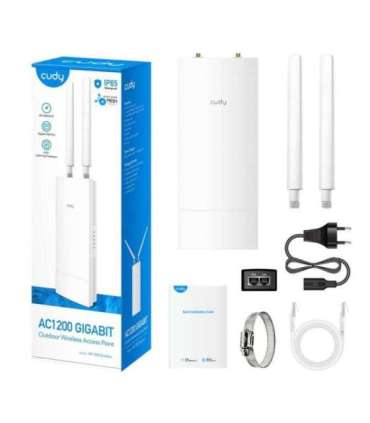

Cables included

LAN (RJ-45)

Ethernet LAN (RJ-45) ports

1

Antennas quantity

2

Built-in processor

Yes

MAC address filtering

Yes

Quality of Service (QoS) support

Yes

Ethernet LAN data rates

100 Mbit/s
1000

Networking standards

IEEE 802.3af
IEEE 802.3at
IEEE 802.11a
IEEE 802.11ac
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Warnings

Avoid direct contact with water.
Do not expose to prolonged moisture.
Electronic products should be recycled at specialist electronic waste collection facilities.

Antenna included

Yes

Processor frequency

880 MHz

Antenna type

External

Quick start guide

Yes

Wi-Fi Multimedia (WMM)/(WME)

Yes

Power over Ethernet (PoE)

Yes

Internal memory

128 MB

MIMO

Yes

Flash memory

16 MB

Operating modes

Wireless Access Point, Wireless Router, Wireless Extender, WISP

BeamForming

Yes

Maximum data transfer rate

867 Mbit/s

International Protection (IP) code

IP65

Mounting kit

Yes

2.4 GHz

Yes

5 GHz

Yes

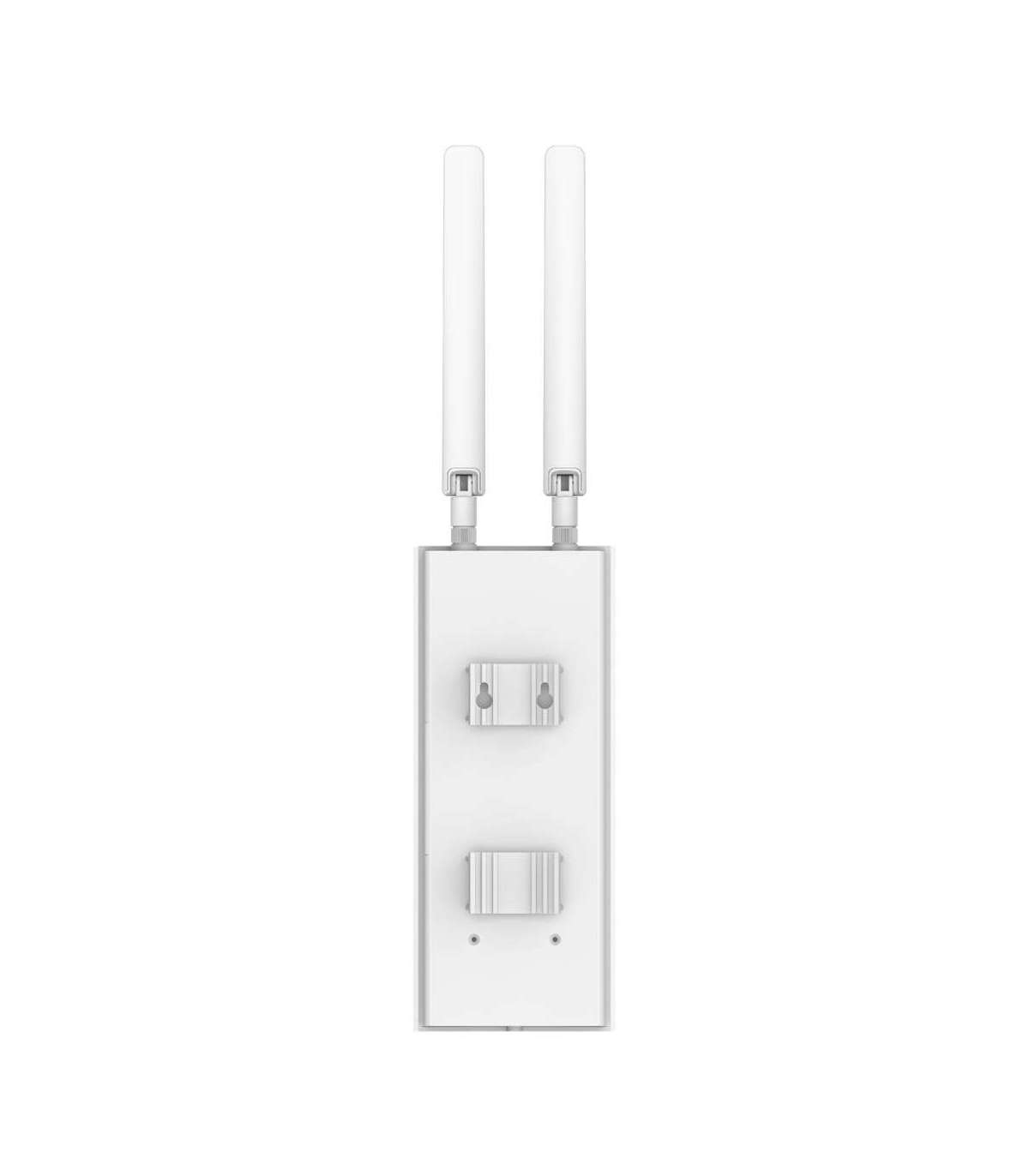

Placement

Pole, Wall

PoE adapter included

Yes

Antenna features

Detachable antenna

Fast roaming

Yes

MIMO type

Multi User MIMO

Maximum data transfer rate (5 GHz)

867 Mbit/s

6 GHz

No

Maximum data transfer rate (2.4 GHz)

300 Mbit/s

Power over Ethernet (PoE) type supported

Active PoE
Passive PoE

Maximum outdoor range

170 m

Channel bandwidth

80 MHz

Service Set Identifier (SSID) features

Multiple SSIDs

Compatible operating systems

Microso� Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Band steering

Yes

Wireless isolation

Yes

Rate limiting

Yes

Fit AP mode features

Mesh networking

Chipset

MT7621DA+MT7613B+MT7603E

Antenna height

19.8 cm

Antenna depth

1.55 cm

Antenna width

2.16 cm
