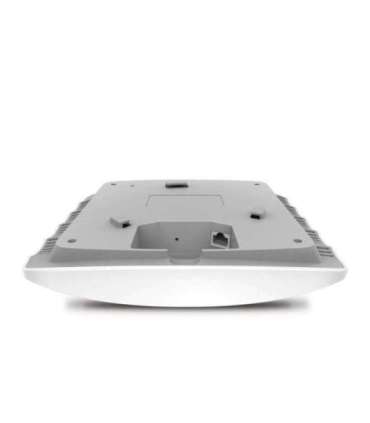

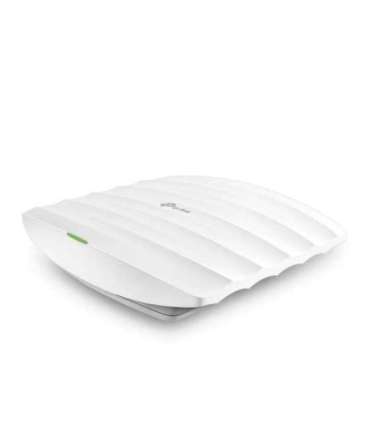

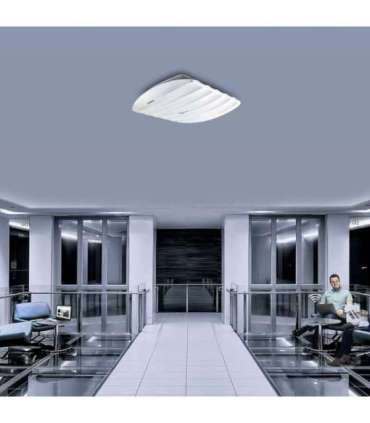

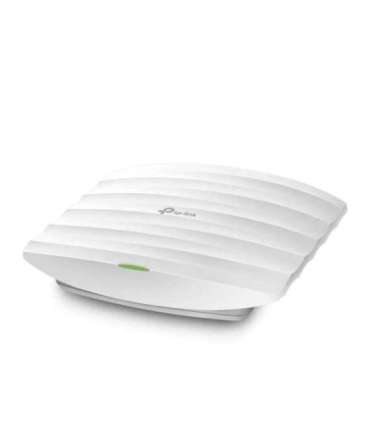

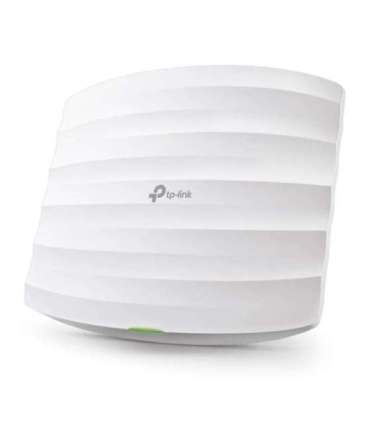

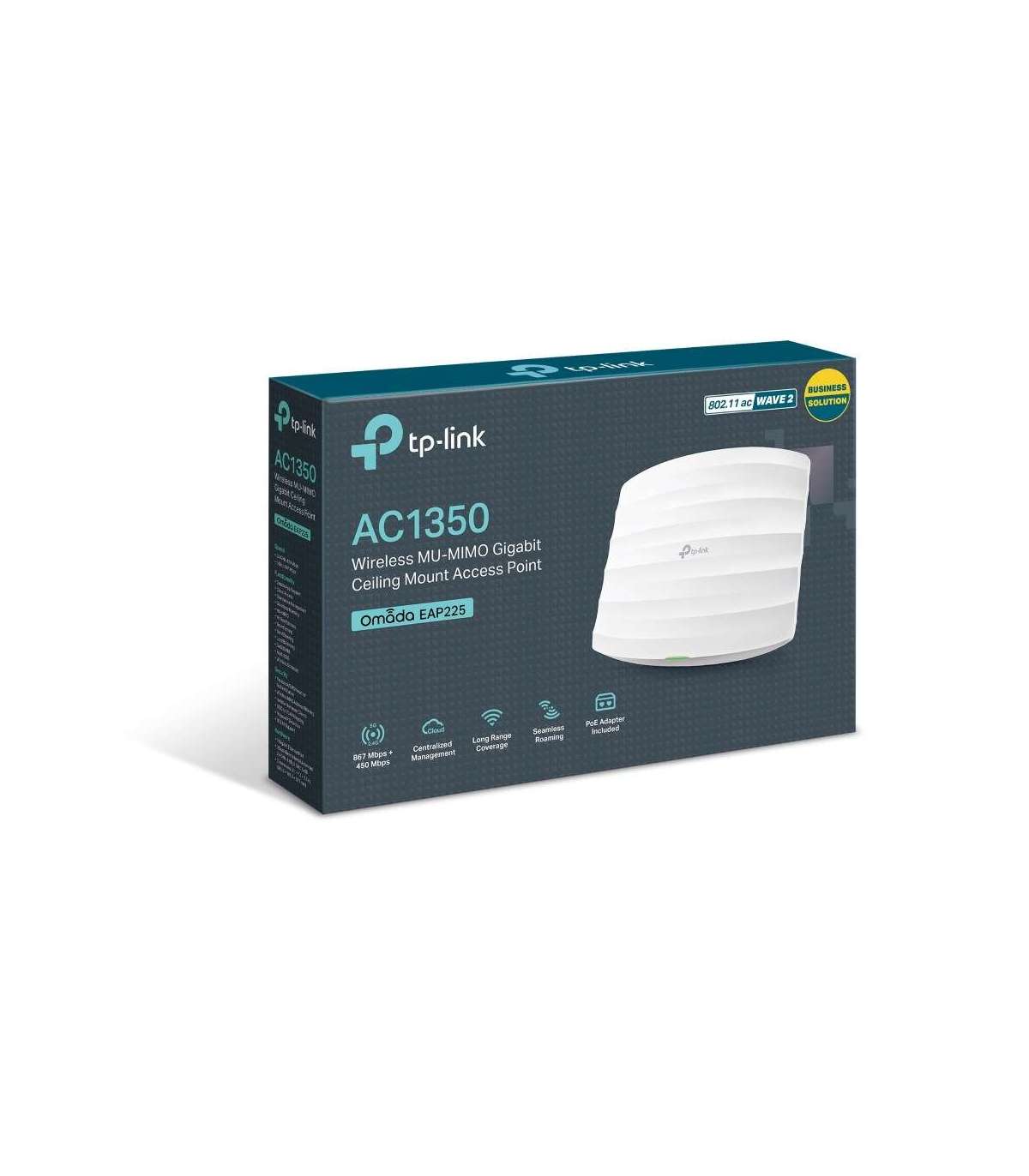

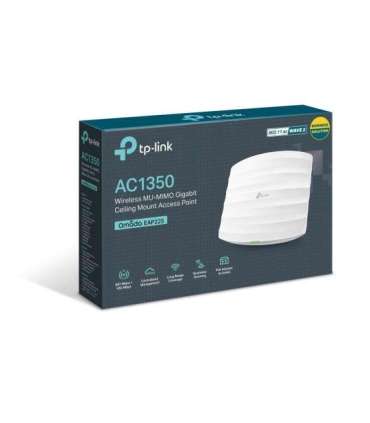

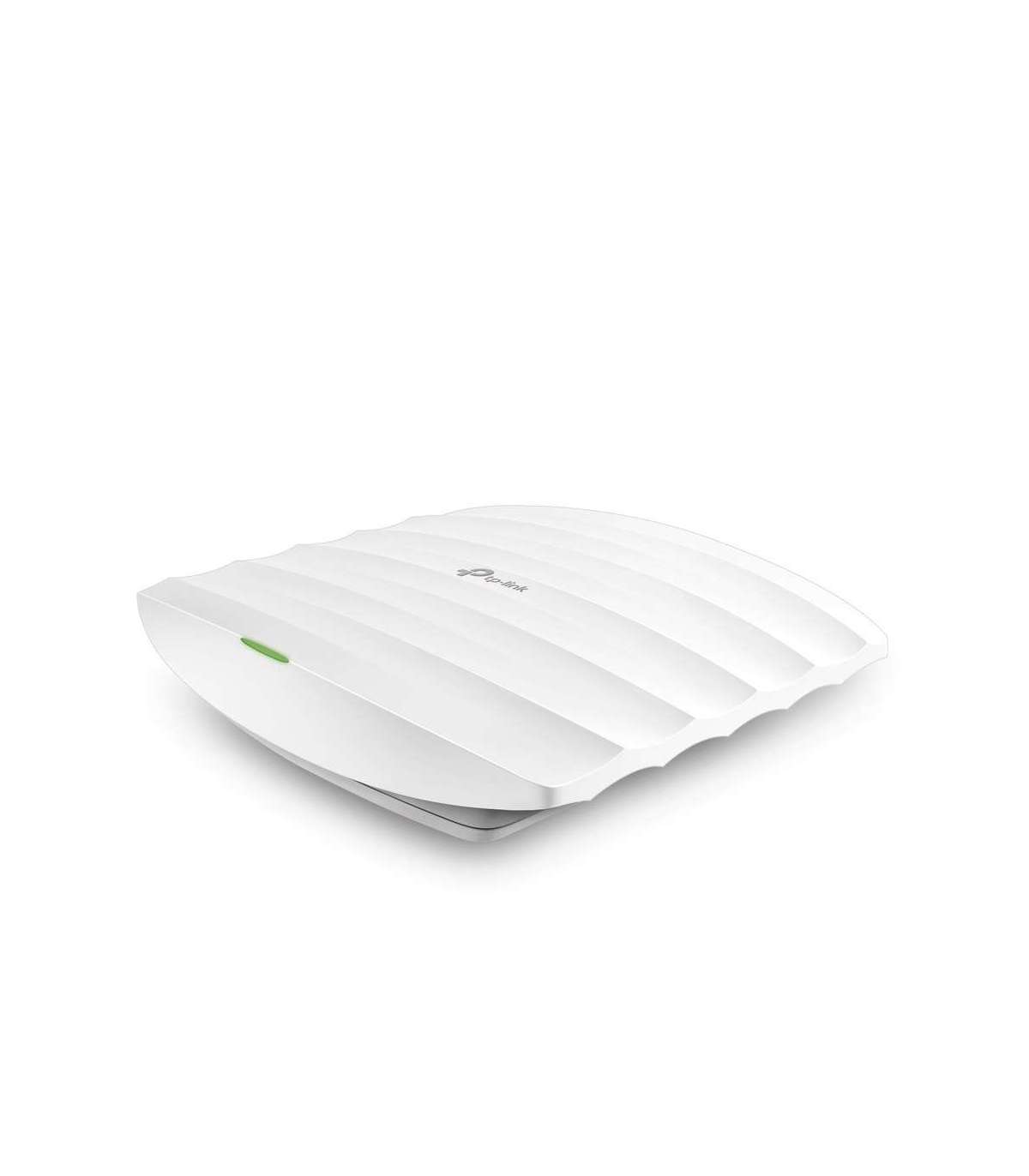

TP-Link Omada EAP225 wireless access point 1350 Mbit/s White Power over Ethernet (PoE)

Характеристики

Depth

181.5 mm

Height

37.1 mm

Width

205.5 mm

Package weight

910 g

Quantity per pack

1 pc(s)

On/off switch

Yes

Product colour

White

Output voltage

12 V

Output current

1.5 A

Security algorithms

64-bit WEP
128-bit WEP
152-bit WEP
SSID
WPA
WPA-PSK
WPA2
WPA2-PSK

Access Control List (ACL)

Yes

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Reset button

Yes

AC adapter included

Yes

Ethernet LAN (RJ-45) ports

1

Antennas quantity

5

SIM card slot

No

LED indicators

Power
WLAN

MAC address filtering

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Ethernet LAN data rates

10
100 Mbit/s
1000

Cabling technology

10/100/1000Base-T(X)

Networking standards

IEEE 802.3af
IEEE 802.11a
IEEE 802.11ac
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Package width

228 mm

Package depth

340 mm

Package height

65 mm

Compliance certificates

CE
Federal Communications Commission (FCC)
RoHS

DC-in jack

Yes

Harmonized System (HS) code

85176990

Warnings

Avoid direct contact with water.
Do not expose to prolonged moisture.
Electronic products should be recycled at specialist electronic waste collection facilities.

Sustainability compliance

Yes

Antenna type

Internal

Quick start guide

Yes

Wi-Fi Multimedia (WMM)/(WME)

Yes

Antenna gain level (max)

5 dBi

Power over Ethernet (PoE)

Yes

MIMO

Yes

Power consumption (typical)

10.15 W

Package type

Box

BeamForming

Yes

Antenna direction type

Omni-directional

Maximum data transfer rate

1350 Mbit/s

Mounting kit

Yes

2.4 GHz

Yes

5 GHz

Yes

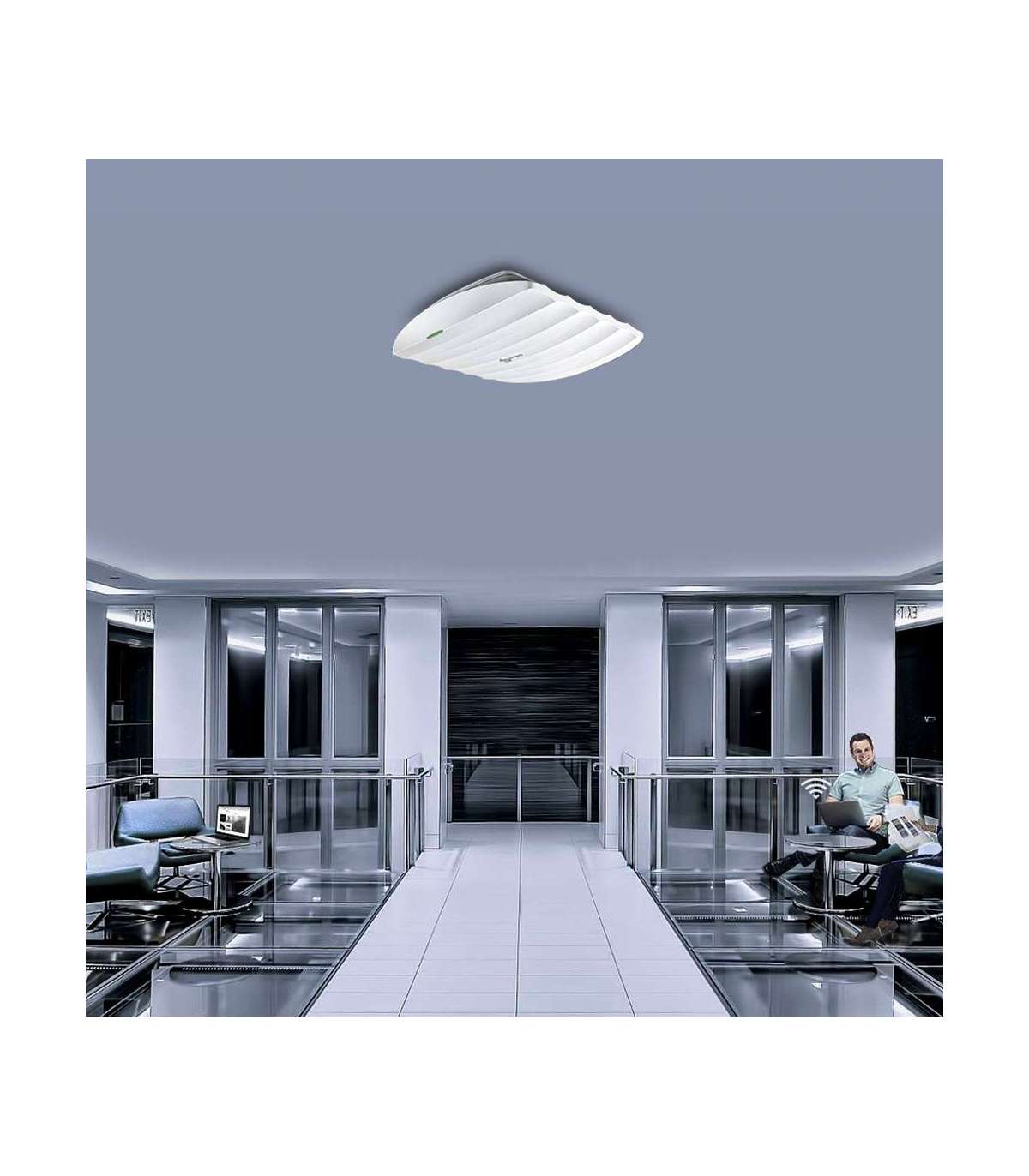

Placement

Ceiling, Wall

PoE adapter included

Yes

Antenna features

Integrated antenna

Virtual LAN features

VLAN mapping

MIMO type

Multi User MIMO

Maximum data transfer rate (5 GHz)

867 Mbit/s

6 GHz

No

Maximum data transfer rate (2.4 GHz)

450 Mbit/s

VLAN support

Yes

Power over Ethernet (PoE) type supported

Passive PoE

Syslog

Yes

Number of SSID supported

16

Service Set Identifier (SSID) features

Multiple SSIDs

Cable lock slot type

Kensington

Cable lock slot

Yes

Band steering

Yes

Transmitting power (FCC)

24 dBm

Transmitting power (CE)

23 dBm

Rate limiting

Yes

Airtime Fairness (ATF)

Yes
