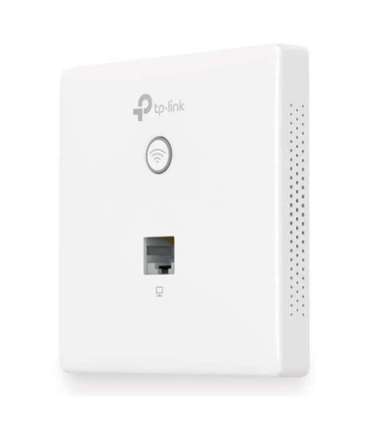

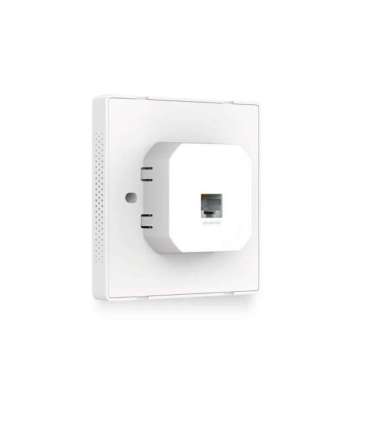

TP-Link 300Mbps Wireless N Wall-Plate Access Point

Характеристики

Depth

86.8 mm

Height

30.2 mm

Width

86.8 mm

Package weight

190 g

Product colour

White

Security algorithms

802.1x RADIUS
HTTPS
WPA
WPA-PSK
WPA2
WPA2-PSK

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Reset button

Yes

Ethernet LAN (RJ-45) ports

2

Antennas quantity

2

LED indicators

Yes

MAC address filtering

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Ethernet LAN data rates

10
100 Mbit/s

Cabling technology

10/100Base-T(X)

Networking standards

IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Package width

130 mm

Package depth

118 mm

Package height

47 mm

Harmonized System (HS) code

85176990

Certification

CE, RoHS

Antenna type

Internal

Wi-Fi Multimedia (WMM)/(WME)

Yes

Antenna gain level (max)

1.8 dBi

Management protocols

SNMP, Telnet

Power over Ethernet (PoE)

Yes

Power consumption (typical)

2.8 W

Internal

No

Maximum data transfer rate

300 Mbit/s

2.4 GHz

Yes

5 GHz

No

Placement

Wall

6 GHz

No

Maximum data transfer rate (2.4 GHz)

300 Mbit/s

Syslog

Yes

Transmitting power

15 dBmW

Automatic channel selection

Yes

Number of SSID supported

8

WAN connection

Ethernet (RJ-45)

Cable lock slot

No

Wireless isolation

Yes

Rate limiting

Yes
