The motion sensor and a sound wall pir mic MCE18

Описание:

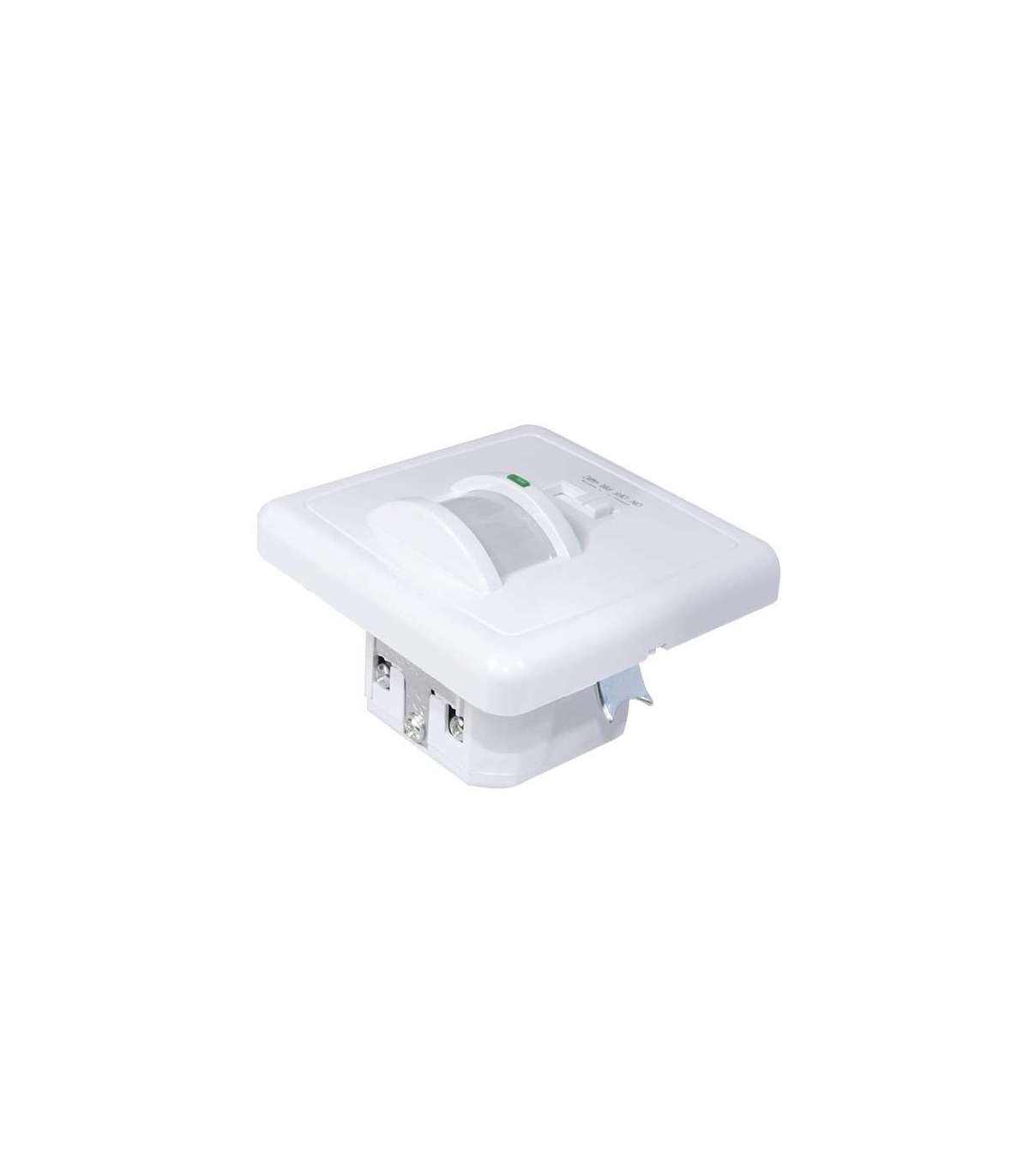

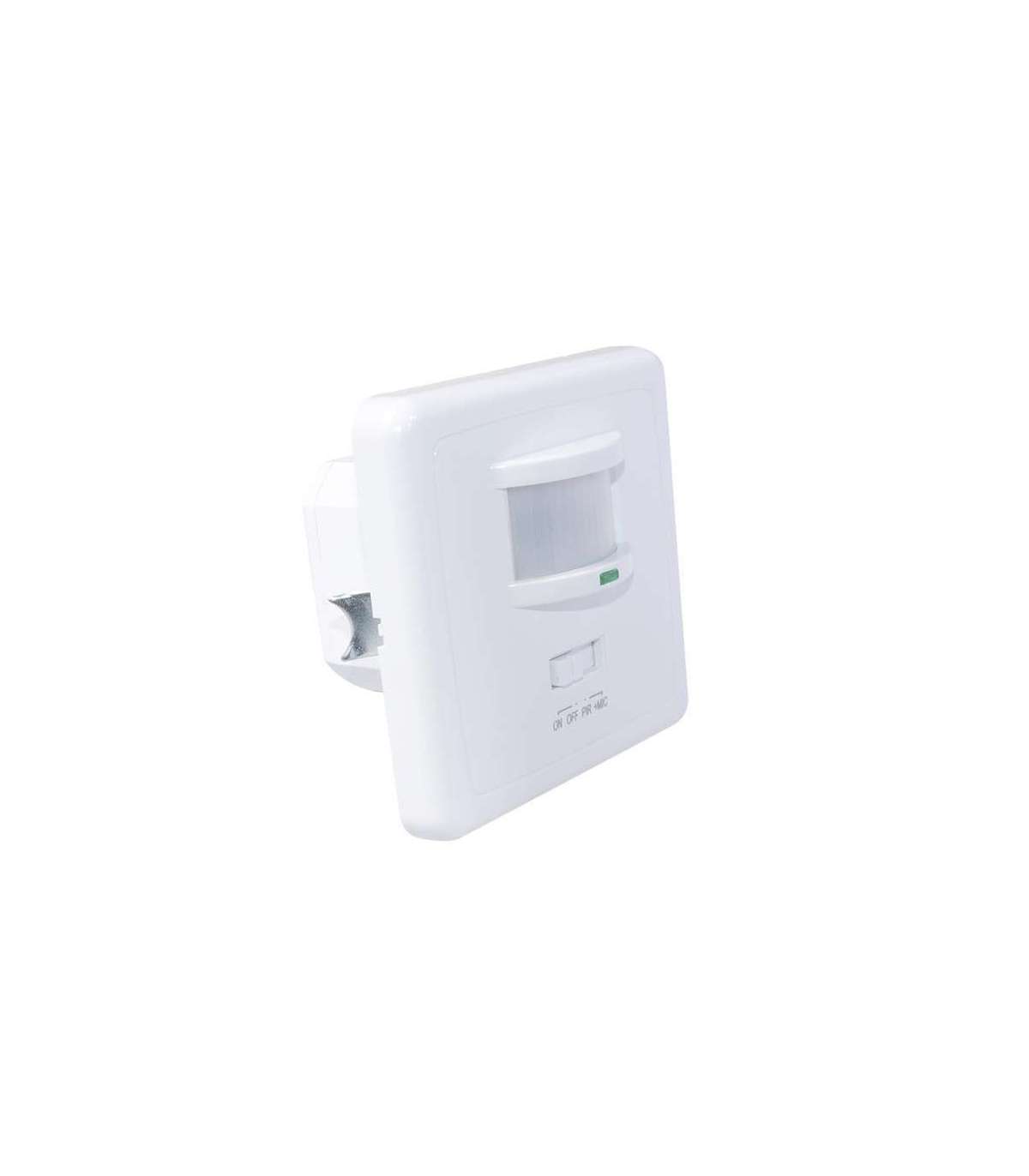

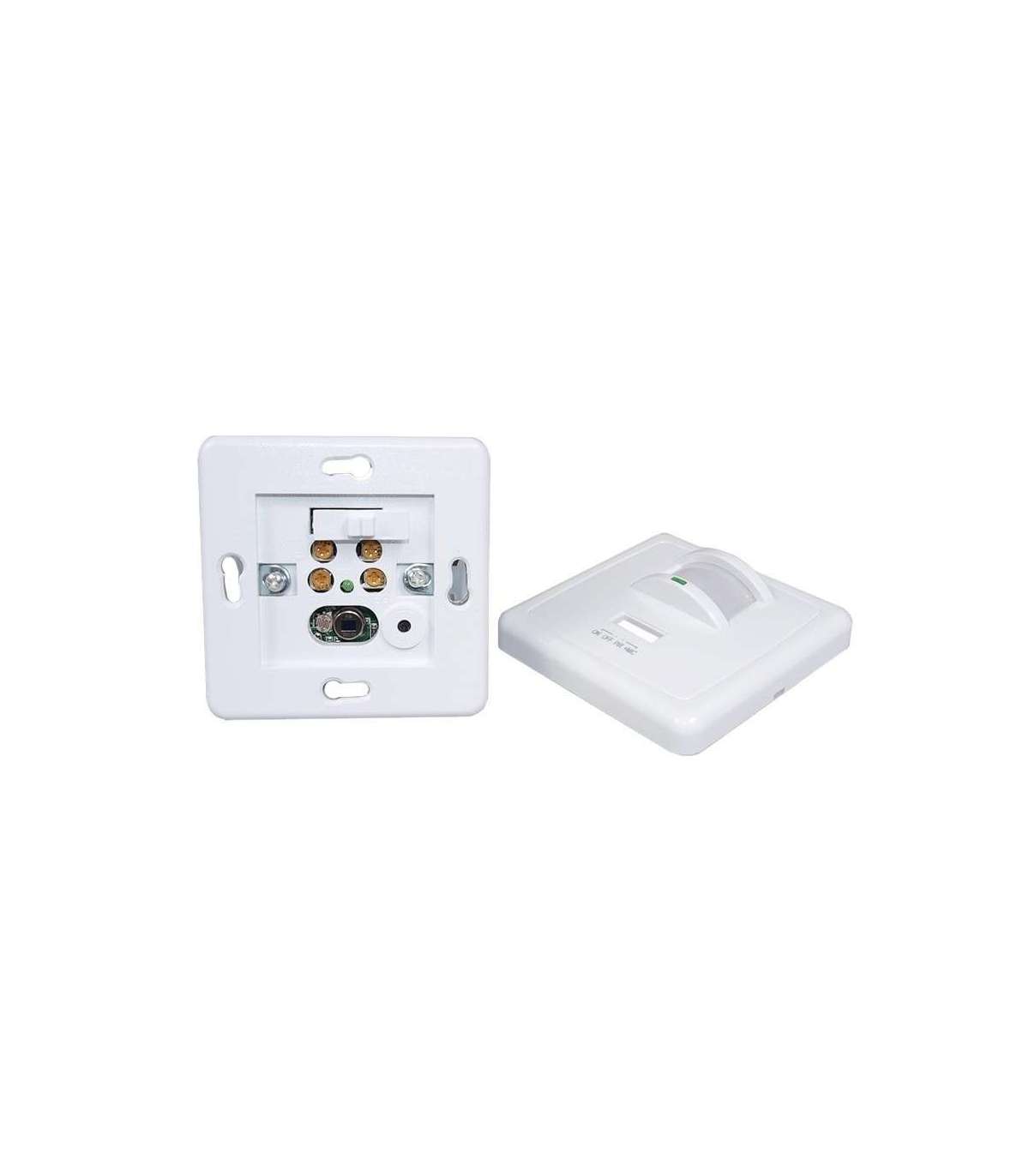

The motion sensor and sound wall pir mic Maclean Energy MCE18

The principle of operation of sensor with PIR motion detector and the sound detector in the form of a microphone.

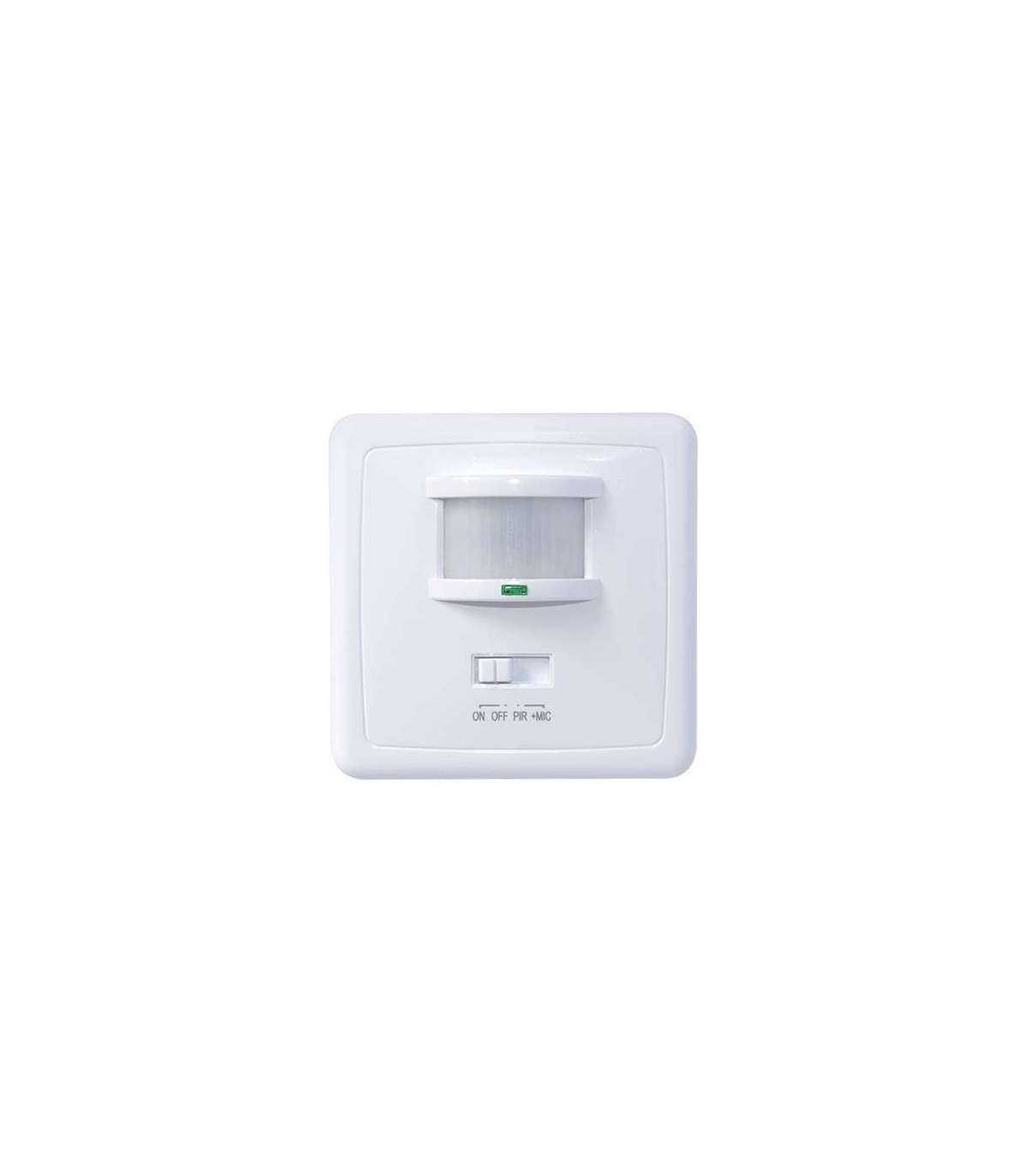

The switch can operate in three modes:

• Working with motion sensor - adjustable knob
• Working with motion sensor and sensor of sound (microphone) adjustable knob
• Enable / Disable, like an ordinary wall switch

The sensor allows the user to configure a wide range of activities:

• Length control operation after detection, adjustable by turning TIME
• Tenderness motion sensor knob SENS
• Tenderness sensor sound by turning the MIC
• Adjustable operating mode, dependent on ambient light by turning LUX

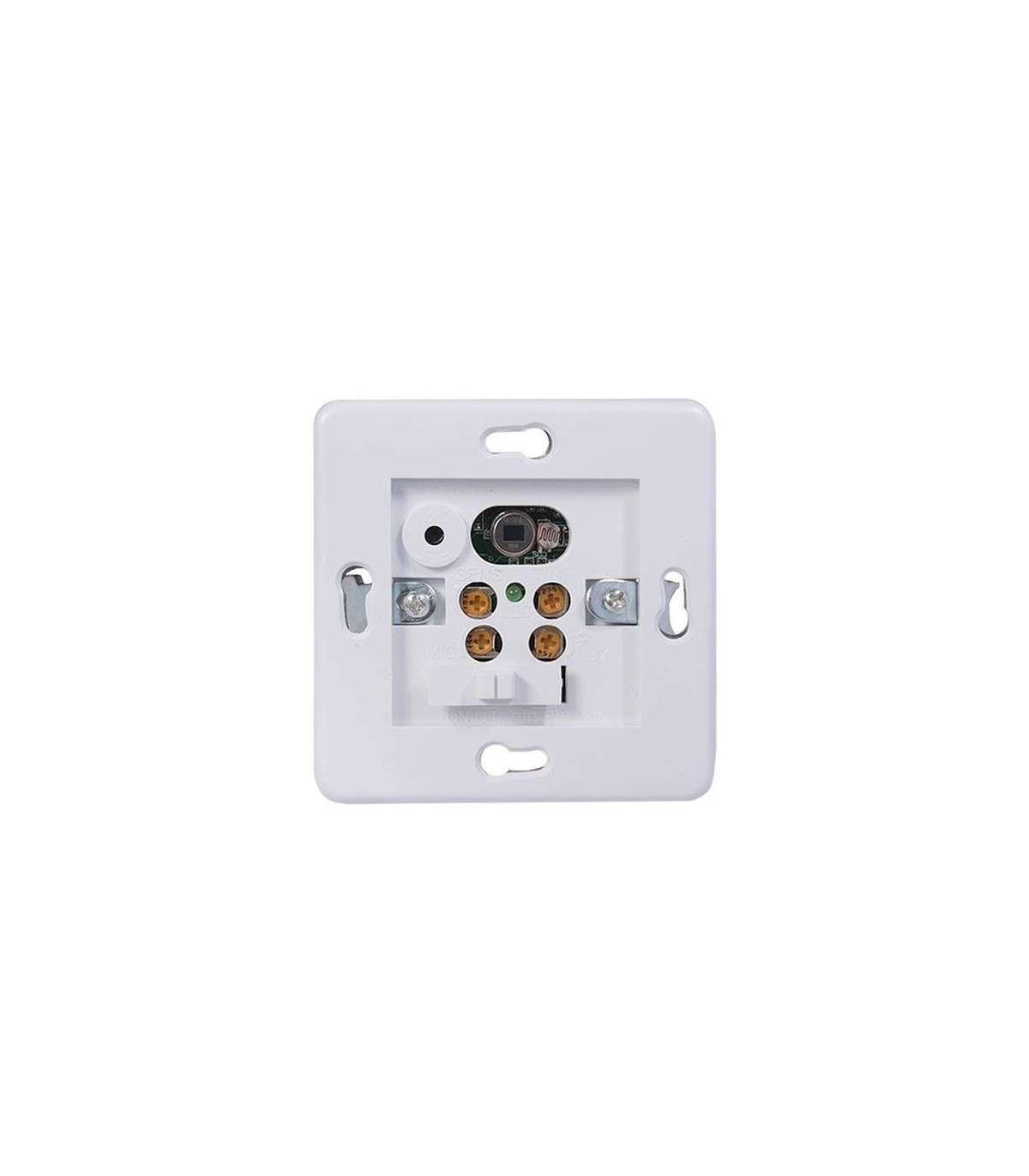

The location of the knobs in the front panel prevents accidental changing of settings

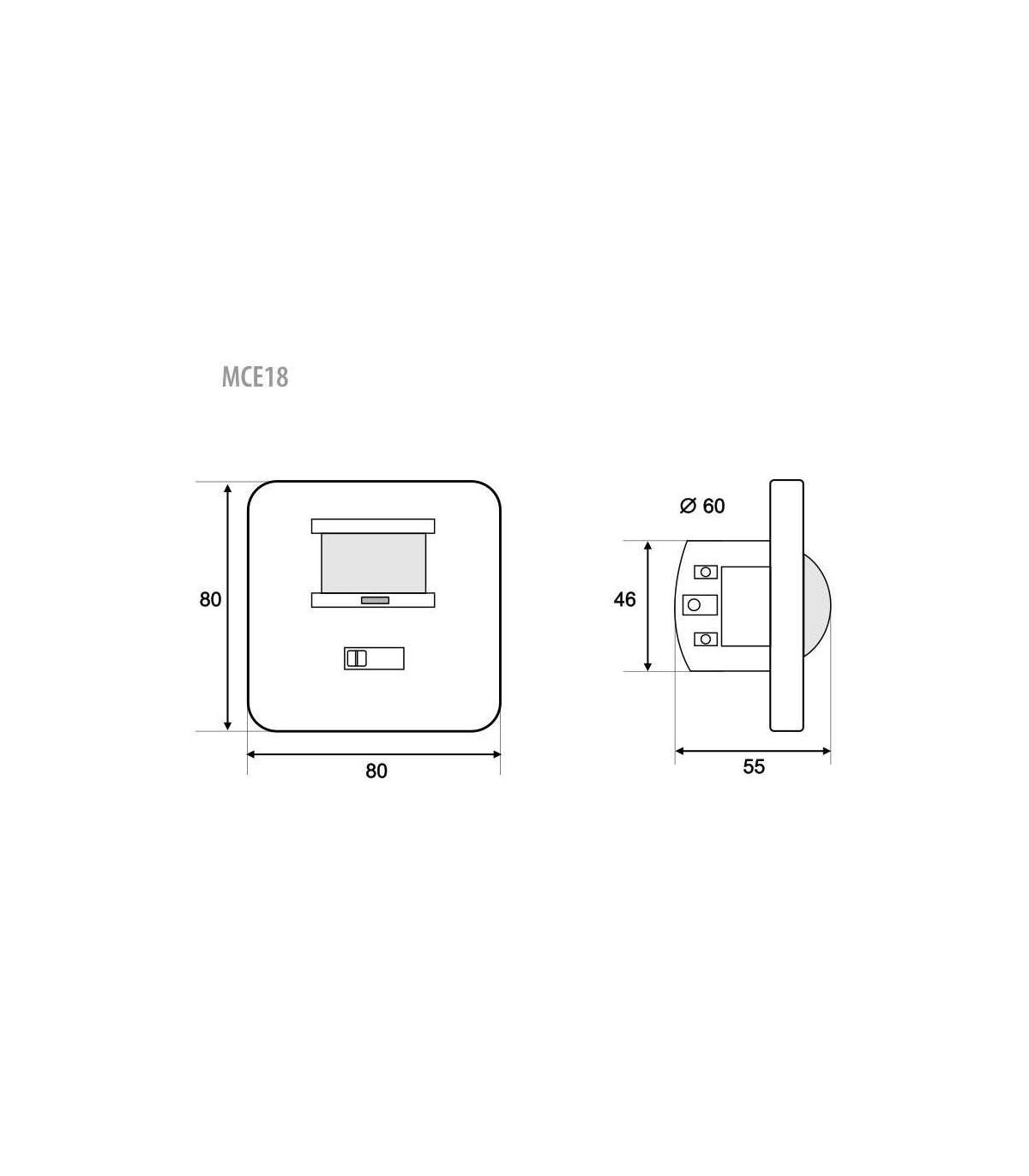

The device can be installed in forests wall fi 60 in place of the usual switch.

Environment requirements:

• Resistance class: IP20 - for indoor use
• Protection class: II
• Operating Temperature: -20 ° C to + 40 ° C

Остальные параметры:

• Input voltage: 230V / 50Hz
• The maximum power of the bulb: 500W
• Adjust the light sensitivity: 3-2000Lux
• The operating angle sensor 160 °
• Sensitivity mikrofonuu 30 to 90 dB
• Battery life: from 10 seconds to 7 minutes
• Material: ABS plastic in white
• Installation height from 1 m to 1.8 m
• For use only with incandescent bulbs
