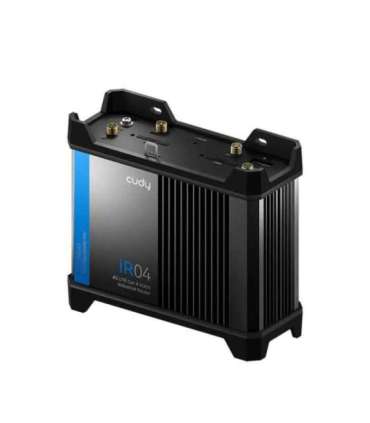

CUDY IR04_EU Router

Характеристики

Depth

114 mm

Weight

462 g

Height

50,6 mm

Width

129 mm

Power source type

DC

Output voltage

12 V

Output current

1 A

Storage temperature (T-T)

-40 - 75 °C

Operating temperature (T-T)

-40 - 75 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Reset button

Yes

Ethernet LAN

Yes

Ethernet LAN interface type

Fast Ethernet

Cables included

LAN (RJ-45)

Quick installation guide

Yes

Wi-Fi band

2.4 GHz

Top Wi-Fi standard

Wi-Fi 4 (802.11n)

Ethernet LAN (RJ-45) ports

4

Antennas quantity

2

Antenna design

Internal

Processor cores

1

Built-in processor

Yes

LED indicators

Power

Ethernet LAN data rates

10
100

Compliance certificates

CE
Federal Communications Commission (FCC)

DC-in jack

Yes

Processor frequency

580 MHz

Housing material

Aluminium alloy

Antenna type

2x2

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Internal memory

128 MB

MIMO

Yes

Flash memory

16 MB

4G standard

LTE-TDD & LTE-FDD

Mobile network generation

4G

3G standards

WCDMA

USB 2.0 connectors

1
