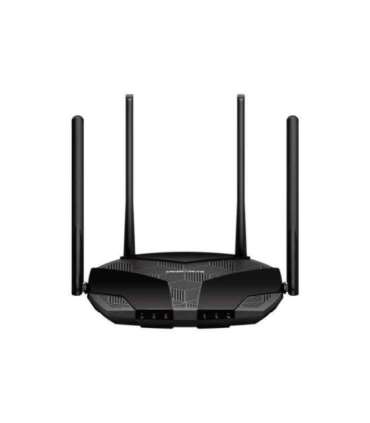

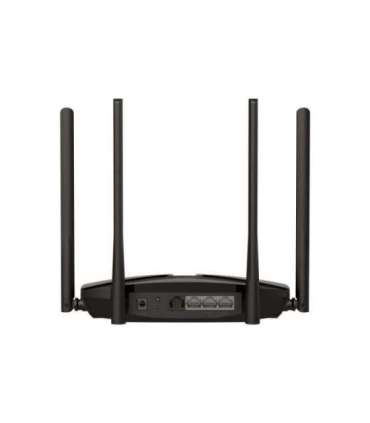

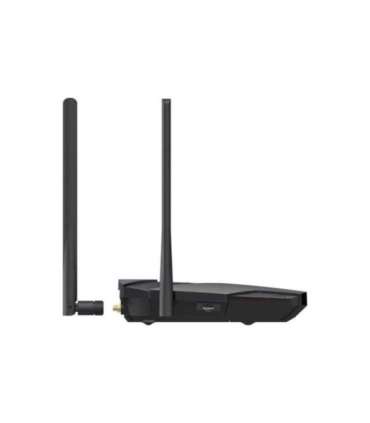

Mercusys MB235-4G router

Характеристики

Depth

171.9 mm

Height

41.7 mm

Width

209 mm

Product colour

Black

Output voltage

12 V

Output current

1 A

Security algorithms

WPA-PSK
WPA2-PSK
WPA3-SAE

Firewall

Yes

DMZ support

Yes

Storage temperature (T-T)

-40 - 60 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Reset button

Yes

WPS push button

Yes

Ethernet LAN

Yes

Dynamic DNS (DDNS)

Yes

Quick installation guide

Yes

Wi-Fi standards

802.11a
802.11ac
802.11b
802.11g
Wi-Fi 4 (802.11n)

Wi-Fi band

2,4 GHz, 5 GHz

DHCP server

Yes

Universal Plug and Play (UPnP)

Yes

Ethernet LAN (RJ-45) ports

4

Antenna design

External

SIM card slot

Yes

Ethernet WAN

Yes

Ethernet LAN data rates

10
100 Mbit/s
1000

WAN connection type

RJ-45

Warnings

Do not dismantle the unit yourself, there is a risk of electric shock.
Do not expose the device to extreme temperatures.
Do not expose the device to water or moisture.

Indication light

Yes

Port-based Network Access Control (PNAC)

Yes

4G bands supported

700
800
850
900
1800
2100
2300
2600 MHz

UMTS bands supported

850
900
2100 MHz

4G standard

LTE-TDD & LTE-FDD

3G standards

HSPA+
UMTS

SIM card type

NanoSIM

Power supply included

Yes

VoIP protocols

IPv4, IPv6
