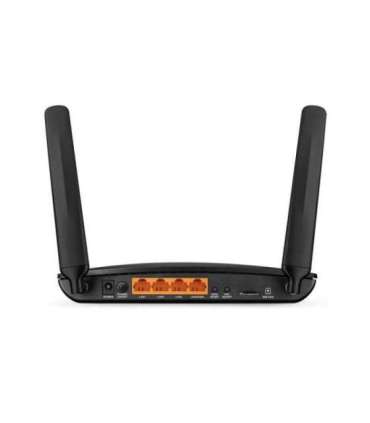

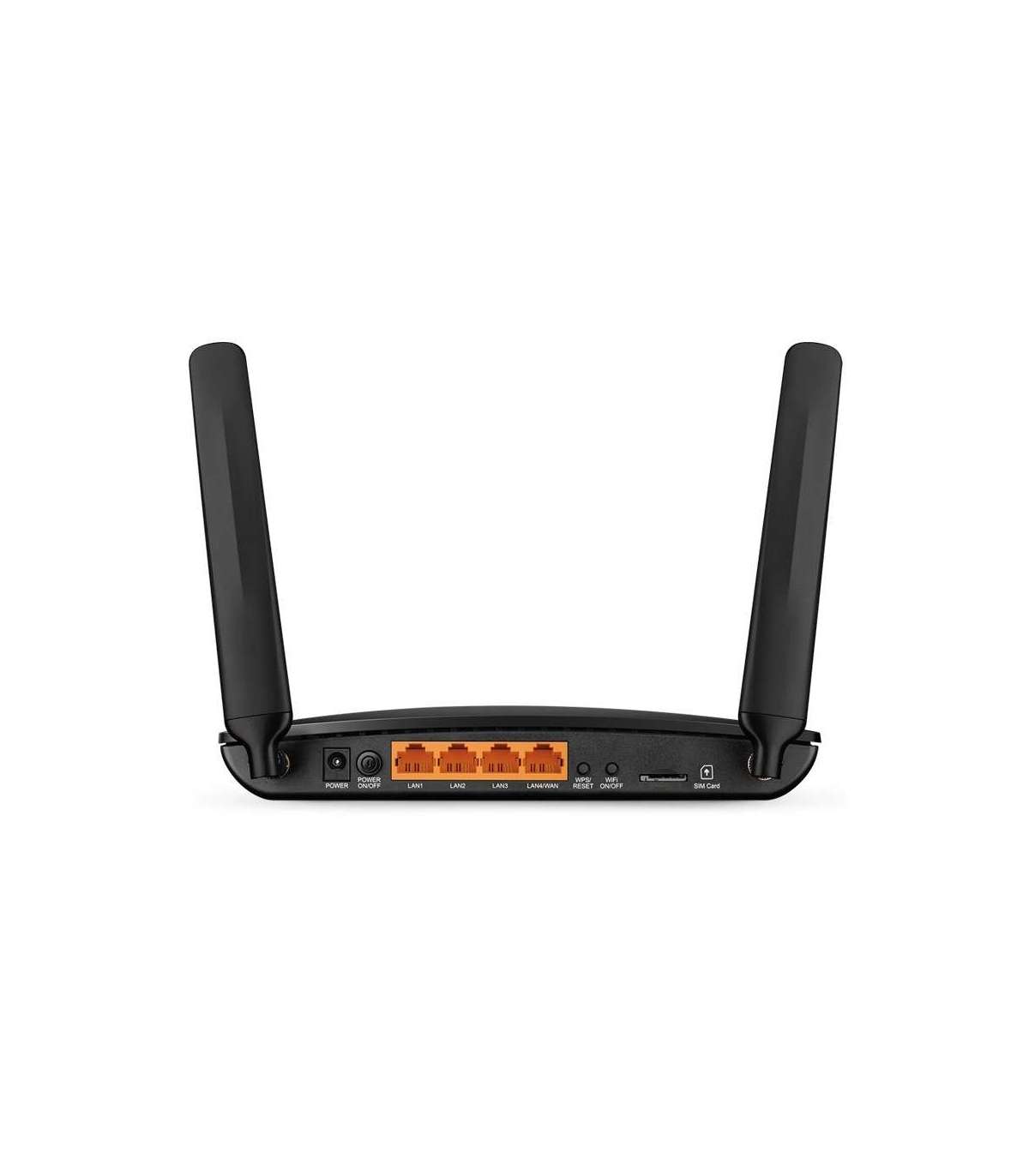

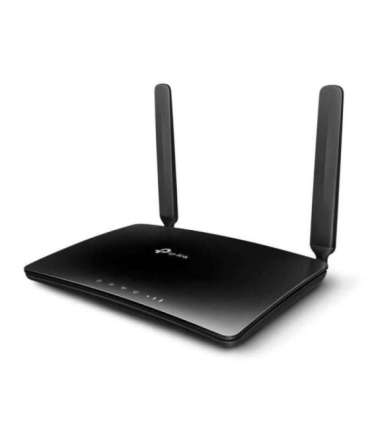

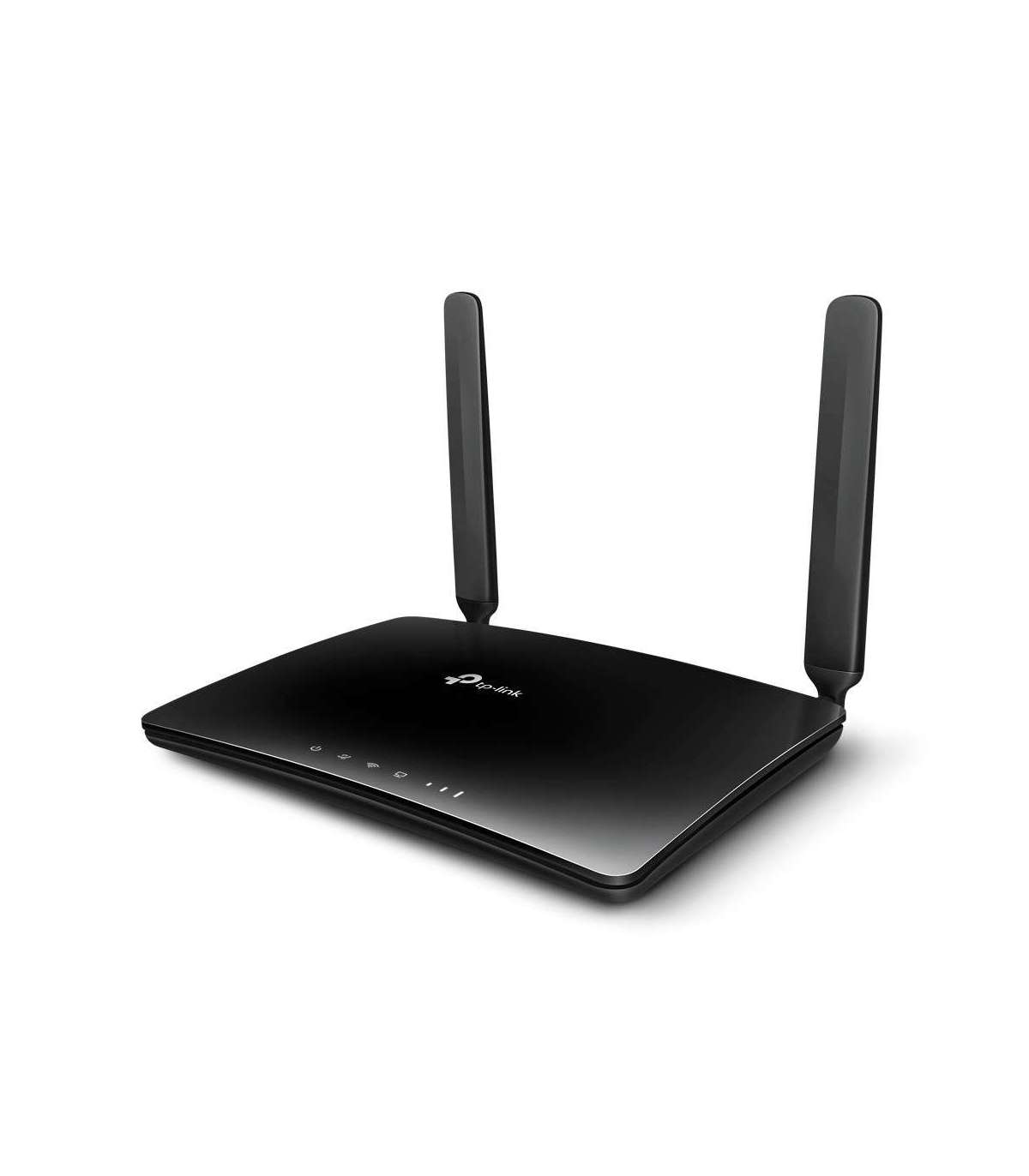

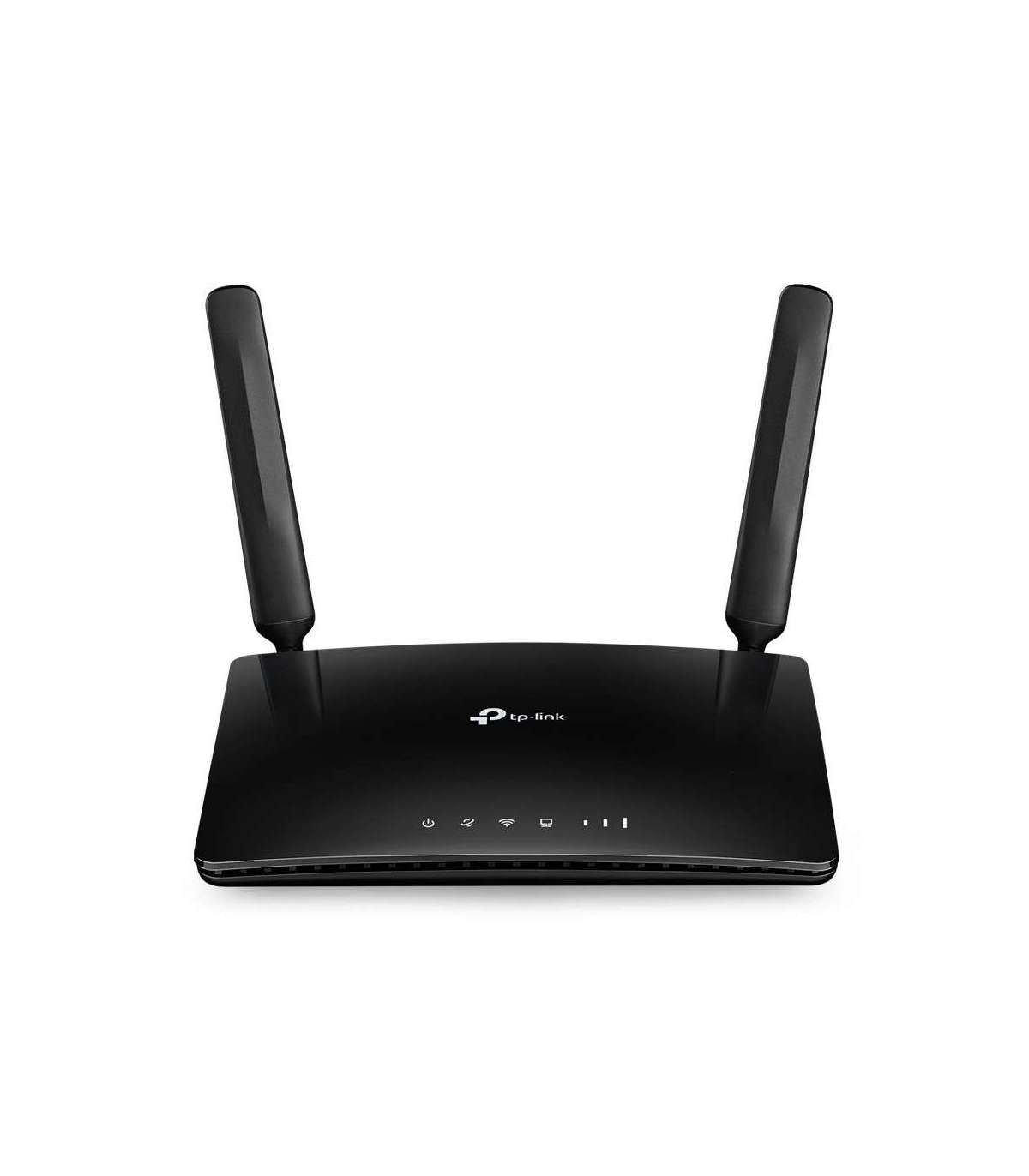

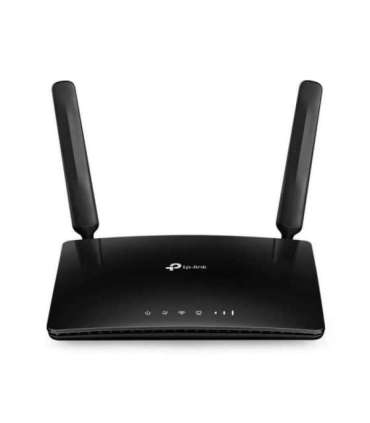

TP-Link Archer AC1200 Wireless Dual Band 4G LTE Router

Характеристики

Product type

Tabletop router

Depth

124.5 mm

Height

33.5 mm

Width

174 mm

Package weight

670 g

On/off switch

Yes

Product colour

Black

Power source type

DC

Output voltage

12 V

Output current

1.5 A

Security algorithms

64-bit WEP
128-bit WEP
WPA
WPA-PSK
WPA2
WPA2-PSK

Firewall

Yes

DMZ support

Yes

Access Control List (ACL)

Yes

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Reset button

Yes

WPS push button

Yes

VPN server

PPTP VPN, IPSec VPN , OpenVPN

Ethernet LAN

Yes

Ethernet LAN interface type

Fast Ethernet

Dynamic DNS (DDNS)

Yes

Port forwarding

Yes

AC adapter included

Yes

Cables included

LAN (RJ-45)

Quick installation guide

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)

WLAN data transfer rate (first band)

450 Mbit/s

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

WLAN data transfer rate (second band)

867 Mbit/s

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

WLAN data transfer rate (max)

867 Mbit/s

DHCP client

Yes

DHCP server

Yes

Universal Plug and Play (UPnP)

Yes

Ethernet LAN (RJ-45) ports

3

Antennas quantity

2

Antenna design

Internal & external

DSL WAN

No

SIM card slot

Yes

3G/4G USB modem compatibility

No

Ethernet WAN

Yes

3G

Yes

4G

Yes

LED indicators

LAN, Power, Status, WLAN

Firewall security

DoS, SPI Firewall, IP and MAC Address Binding

Stateful Packet Inspection (SPI)

Yes

DoS attack prevention

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Ethernet LAN data rates

10
100 Mbit/s

VPN Passthrough

Yes

Cabling technology

10/100Base-T(X)

Networking standards

IEEE 802.11a
IEEE 802.11ac
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Windows operating systems supported

Windows 7
Windows 8
Windows 8.1
Windows 10
Windows 98SE
Windows 2000
Windows NT
Windows Vista
Windows XP Home
Windows XP Home x64
Windows XP Professional
Windows XP Professional x64

Linux operating systems supported

Yes

Mac operating systems supported

MacOS

Package width

307 mm

Package depth

223 mm

Package height

70 mm

Supported network protocols

IPv4, IPv6

USB port

No

Memory card slot(s)

No

DC-in jack

Yes

WAN connection type

RJ-45

Harmonized System (HS) code

85176990

Warnings

Do not dismantle the unit yourself, there is a risk of electric shock.
Do not expose the device to extreme temperatures.
Do not expose the device to water or moisture.

Guest access

Yes

VPN support

PPTP, L2TP, IPSec

Wall mountable

Yes

Detachable antenna(s)

Yes

Mac compatibility

Yes

Receiver sensitivity

5GHz: 11a 54M: -74dBm
11ac HT20: -67dBm
11ac HT40: -64dBm
11ac HT80 : -60dBm
11n HT20: -71dBm
11n HT40: -70dBm
2.4G: 11g 54M: -76dBm
11n HT20: -73dBm
11n HT40: -67dBm

Package type

Box

VPN tunnels quantity

10

4G bands supported

800
900
1800
2100
2600 MHz

4G standard

LTE

Mobile network generation

4G

3G standards

DC-HSPA+
HSPA
HSPA+
UMTS

2G standards

Edge
GPRS
GSM

SIM card type

MicroSIM

GSM bands supported

850
900
1800
1900 MHz

3G bands supported

900
2100 MHz
