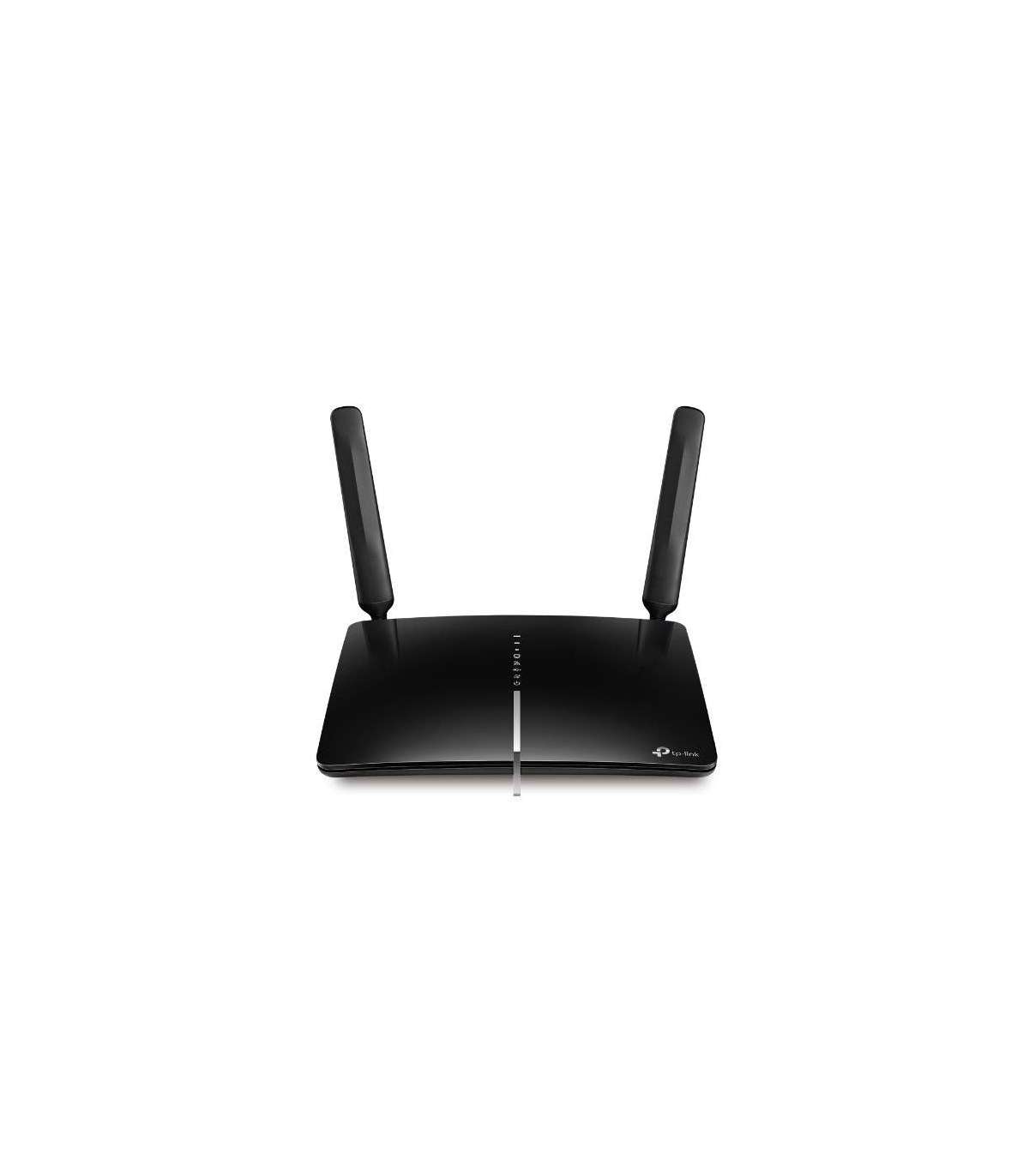

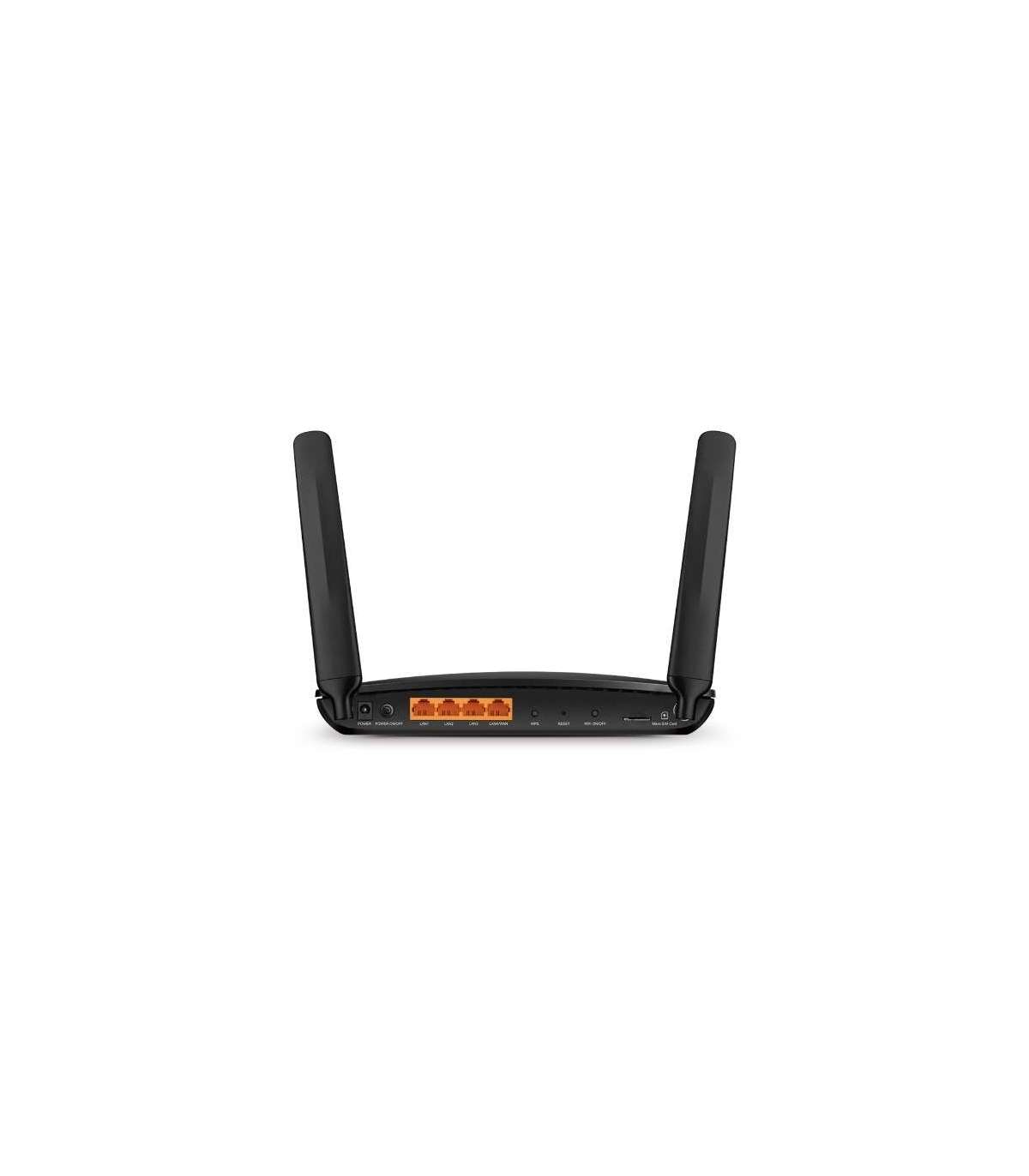

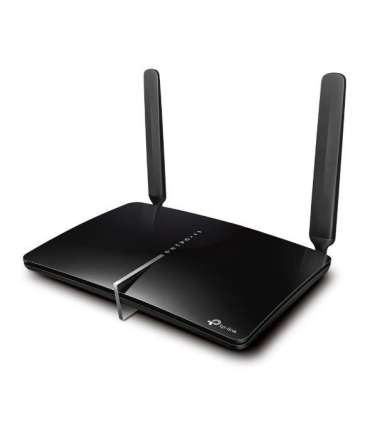

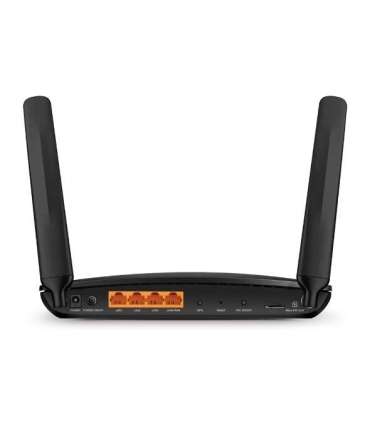

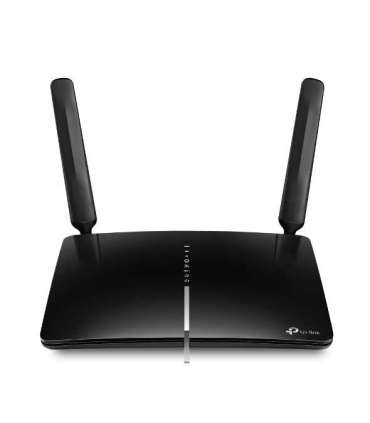

TP-LINK 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router

Характеристики

Product type

Tabletop router

Depth

160 mm

Height

37 mm

Width

229 mm

Product colour

Black

Power source type

AC, DC

Output voltage

12 V

Output current

1.5 A

Parental control

Yes

Security algorithms

64-bit WEP
128-bit WEP
WPA
WPA-PSK
WPA2
WPA2-PSK

URL filtering

Yes

Firewall

Yes

DMZ support

Yes

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Reset button

Yes

WPS push button

Yes

Ethernet LAN

Yes

Port triggering

Yes

Ethernet LAN interface type

Gigabit Ethernet

Dynamic DNS (DDNS)

Yes

Port forwarding

Yes

AC adapter included

Yes

Cables included

LAN (RJ-45)

Quick installation guide

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)

WLAN data transfer rate (first band)

867 Mbit/s

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

WLAN data transfer rate (second band)

300 Mbit/s

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

WLAN data transfer rate (max)

867 Mbit/s

DHCP client

Yes

DHCP server

Yes

Universal Plug and Play (UPnP)

Yes

Ethernet LAN (RJ-45) ports

4

Antennas quantity

2

Antenna design

External

DSL WAN

No

SIM card slot

Yes

3G/4G USB modem compatibility

No

Ethernet WAN

Yes

3G

Yes

4G

Yes

LED indicators

LAN, Power, WLAN

Firewall security

Domain Filter, IP, MAC Address Binding

Stateful Packet Inspection (SPI)

Yes

Filtering

Yes

DoS attack prevention

Yes

Quality of Service (QoS) support

Yes

Number of guest networks (2.4 GHz)

1

Ethernet LAN data rates

10
100 Mbit/s
1000

Networking standards

IEEE 802.11a
IEEE 802.11ac
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Windows operating systems supported

Yes

Linux operating systems supported

Yes

Mac operating systems supported

Yes

Package width

307 mm

Package depth

223 mm

Package height

70 mm

Supported network protocols

IPv4, IPv6

USB port

No

Memory card slot(s)

No

DC-in jack

Yes

WAN connection type

RJ-45

Harmonized System (HS) code

85176990

Warnings

Do not dismantle the unit yourself, there is a risk of electric shock.
Do not expose the device to extreme temperatures.
Do not expose the device to water or moisture.

Number of guest networks (5 GHz)

1

Guest access

Yes

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

VPN support

PPTP VPN, IPSec VPN , OpenVPN

5G

No

Wall mountable

No

Wi-Fi Multimedia (WMM)/(WME)

Yes

Detachable antenna(s)

Yes

Number of products included

1 pc(s)

Receiver sensitivity

5 GHz: 11a 54M: -74 dBm
11ac HT20: -66 dBm
11ac HT40: -63 dBm
11ac HT80 : -59 dBm
11n HT20: -73 dBm
11n HT40: -70 dBm
2.4 GHz: 11g 54M: -74 dBm
11n HT20: -72 dBm
11n HT40: -69 dBm

Package type

Box

4G bands supported

700
800
850
900
1800
2100
2300
2500
2600 MHz

4G standard

LTE

Mobile network generation

4G

3G standards

HSPA
HSPA+
UMTS

SIM card type

MicroSIM

Dual SIM support

No

Routing protocols

IP

3G bands supported

850
900
2100 MHz
