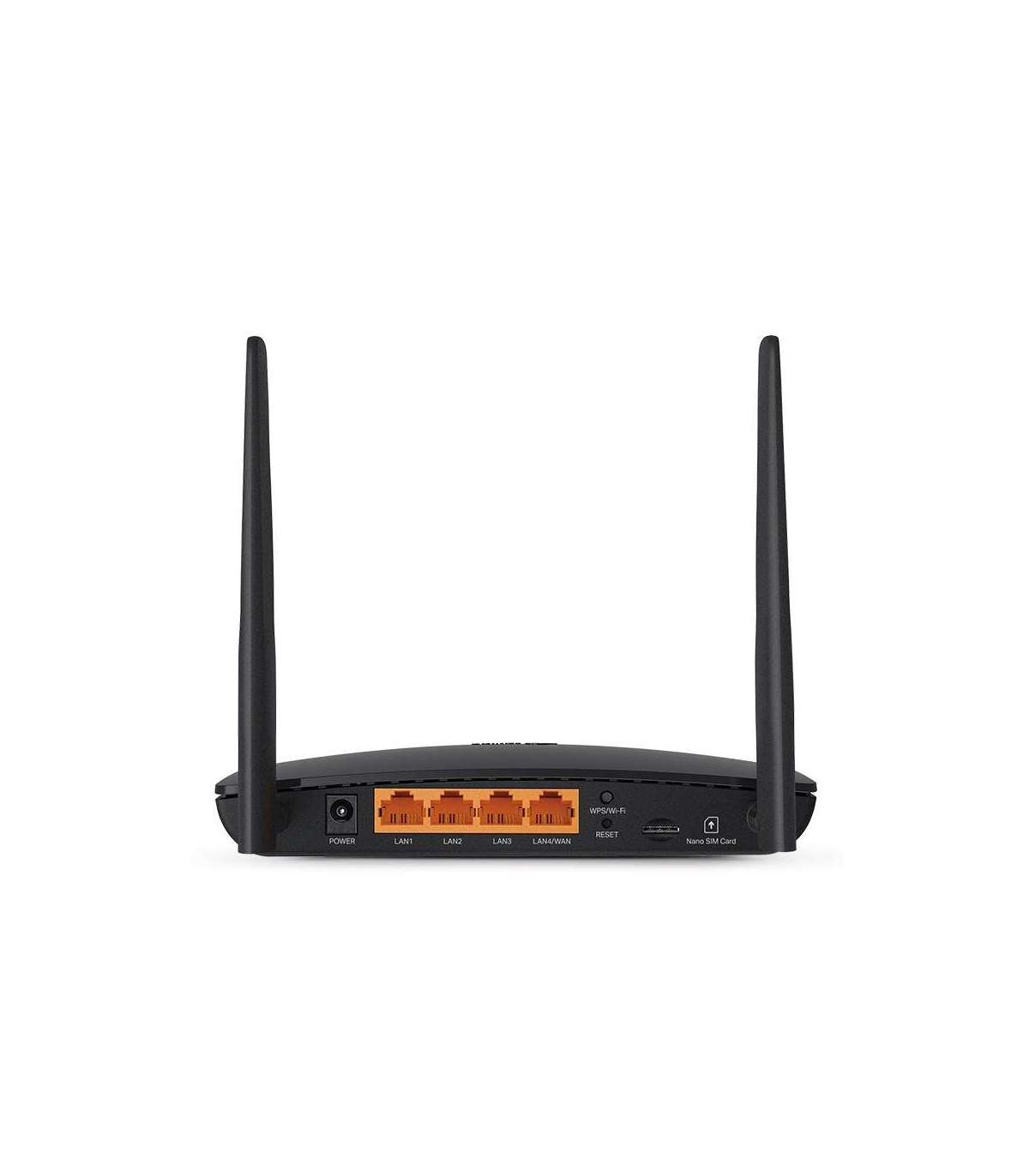

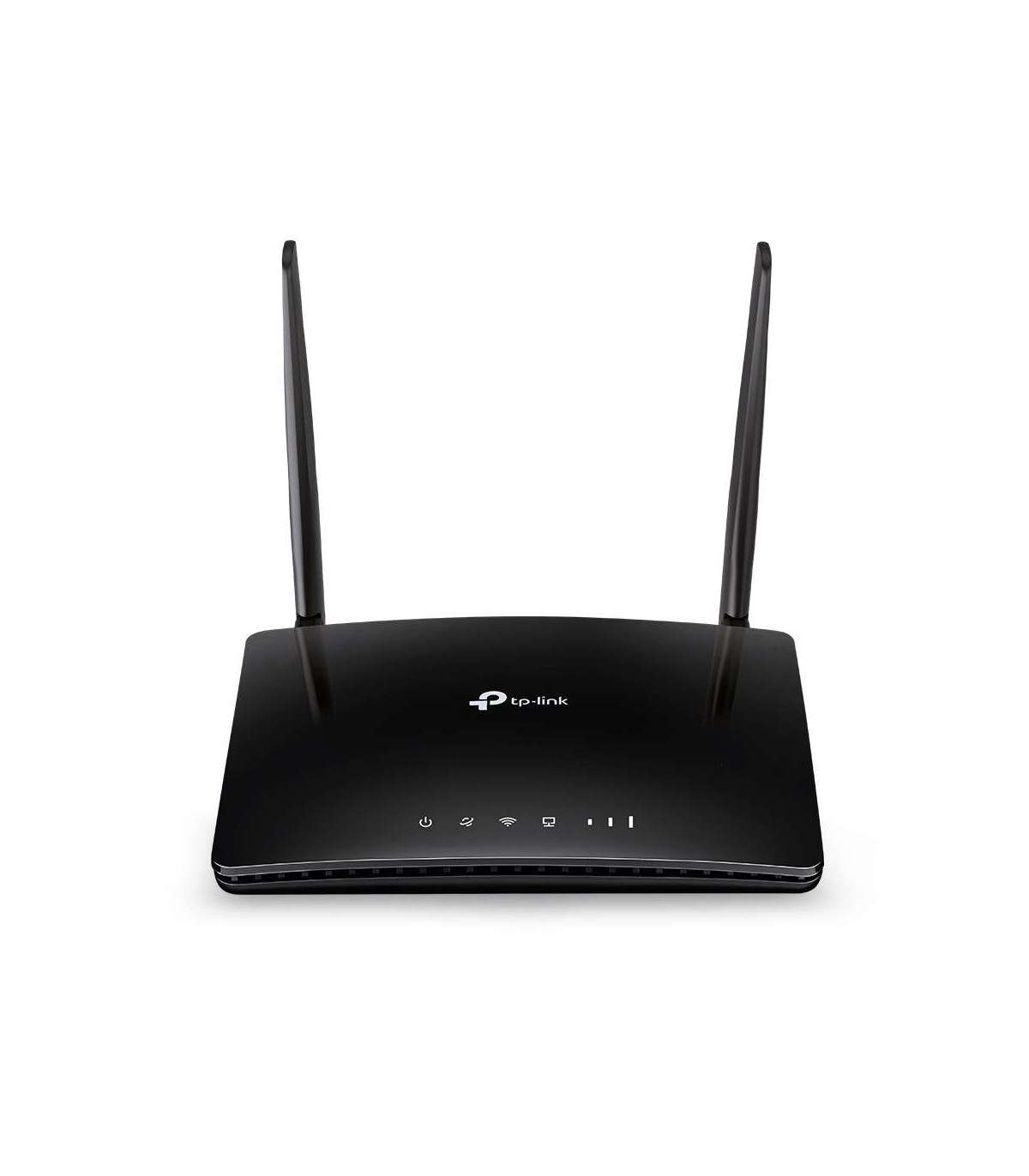

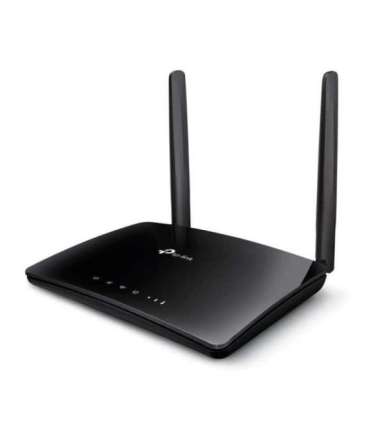

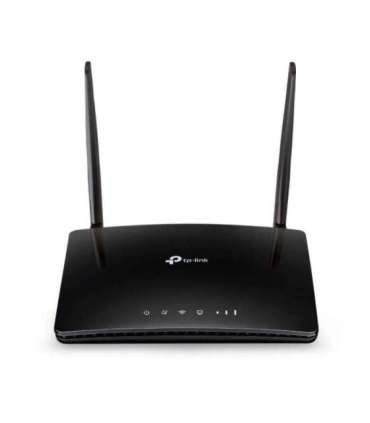

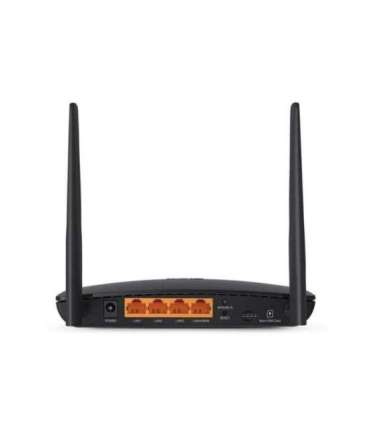

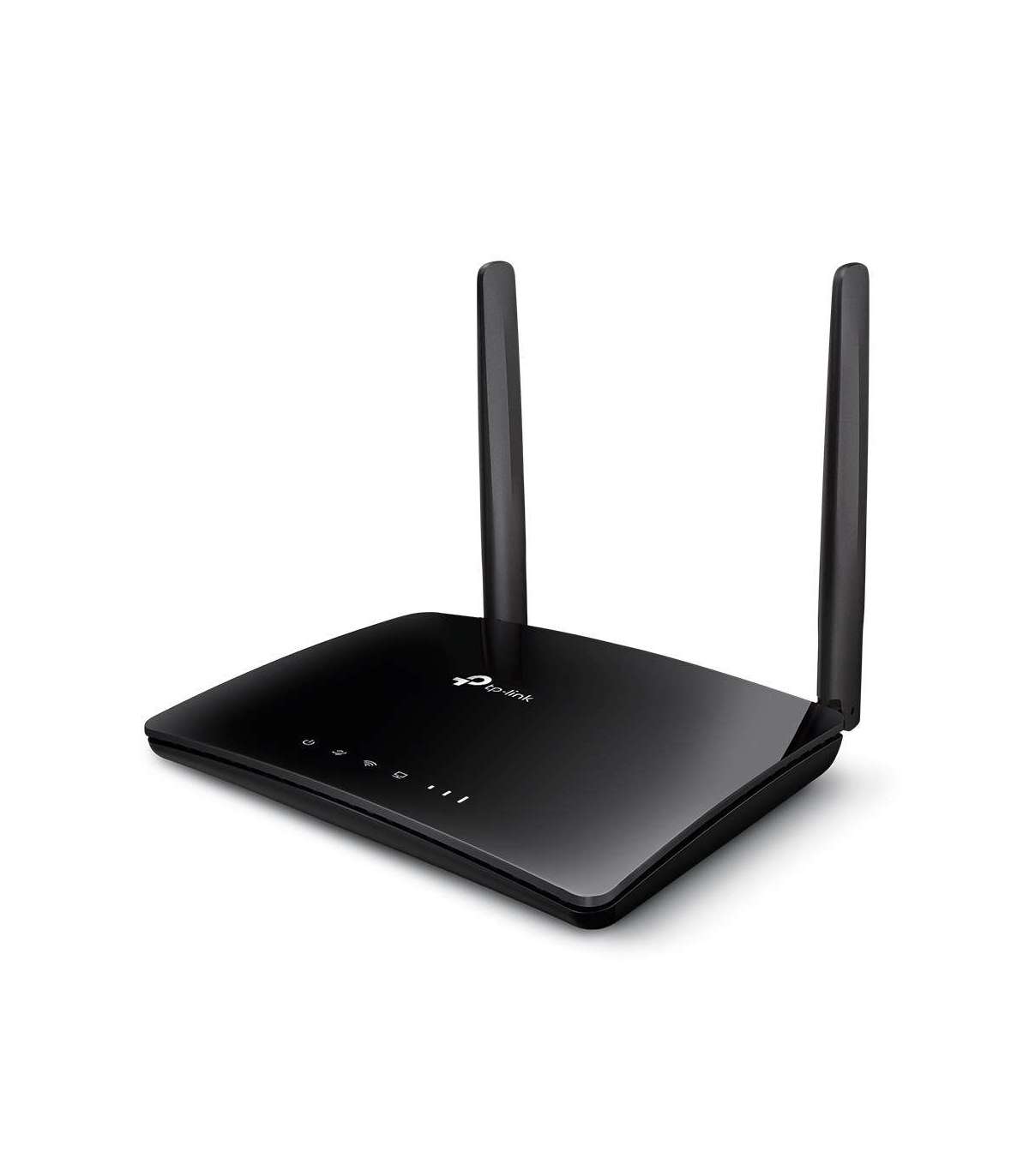

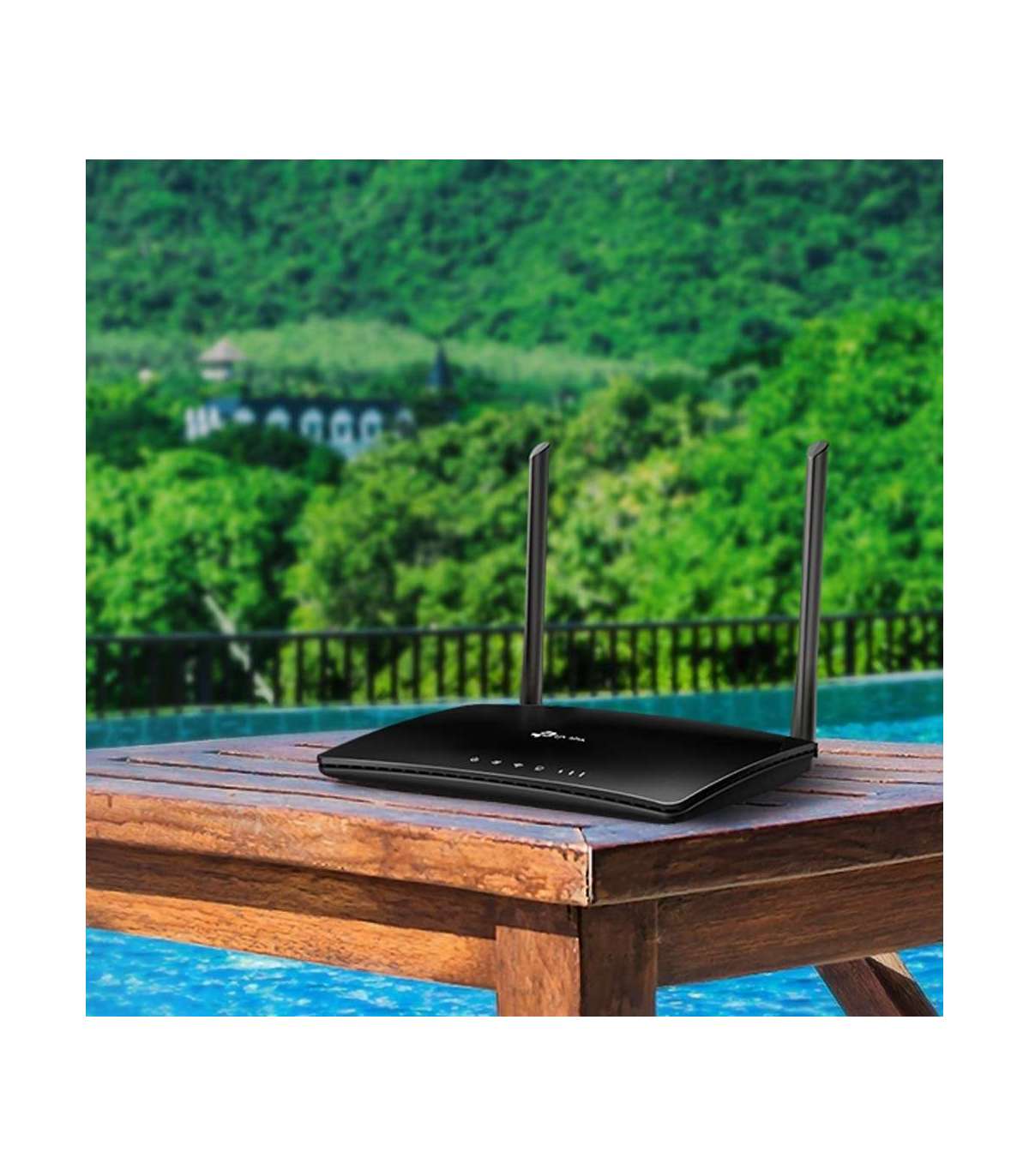

TP-Link Archer MR202 wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz) 4G Black

Характеристики

Product type

Tabletop router

Depth

124.5 mm

Height

33.5 mm

Width

174 mm

Product colour

Black

Power source type

DC

Output voltage

12 V

Output current

1 A

Security algorithms

64-bit WEP
128-bit WEP
WPA
WPA-PSK
WPA2
WPA2-PSK

Firewall

Yes

DMZ support

Yes

Storage temperature (T-T)

-40 - 60 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Reset button

Yes

Ethernet LAN

Yes

Port triggering

Yes

Ethernet LAN interface type

Fast Ethernet

Dynamic DNS (DDNS)

Yes

Port forwarding

Yes

AC adapter included

Yes

Cables included

LAN (RJ-45)

Quick installation guide

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)

WLAN data transfer rate (first band)

300 Mbit/s

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

WLAN data transfer rate (second band)

433 Mbit/s

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

WLAN data transfer rate (max)

733 Mbit/s

DHCP client

Yes

DHCP server

Yes

Universal Plug and Play (UPnP)

Yes

Ethernet LAN (RJ-45) ports

3

Antennas quantity

2

Antenna design

External

DSL WAN

No

SIM card slot

Yes

3G/4G USB modem compatibility

No

Ethernet WAN

Yes

3G

Yes

4G

Yes

LED indicators

LAN, Power, WAN, WLAN

Firewall security

IP and MAC Address Binding

Stateful Packet Inspection (SPI)

Yes

DoS attack prevention

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Ethernet LAN data rates

10
100 Mbit/s

Cabling technology

10/100Base-T(X)

Networking standards

IEEE 802.11a
IEEE 802.11ac
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Windows operating systems supported

Windows 7
Windows 8
Windows 8.1
Windows 10
Windows 98SE
Windows 2000
Windows NT
Windows Vista
Windows XP

Linux operating systems supported

Yes

Mac operating systems supported

Yes

Supported network protocols

IPv4, IPv6

USB port

No

Memory card slot(s)

No

DC-in jack

Yes

WAN connection type

RJ-45

Warnings

Do not dismantle the unit yourself, there is a risk of electric shock.
Do not expose the device to extreme temperatures.
Do not expose the device to water or moisture.

Guest access

Yes

VPN support

PPTP VPN, OpenVPN

Plug and Play

Yes

Browser supported

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0

Receiver sensitivity

5 GHz: 11a 54M: -78 dBm 11ac VHT20: -92 dBm 11ac VHT20: -72 dBm 11ac VHT40: -90 dBm 11ac VHT40: -67 dBm 11ac VHT80: -87 dBm 11ac VHT80: -64 dBm 2,4 GHz: 11g 54M: -74 dBm 11n HT20: -91 dBm 11n HT20: -72 dBm 11n HT40: -88 dBm 11n HT40: -69 dBm

Static IP

Yes

Point-to-point protocol over Ethernet (PPPoE)

Yes

Dynamic IP

Yes

4G bands supported

700
800
850
900
1800
2100
2300
2500
2600 MHz

UMTS bands supported

850
900
2100 MHz

4G standard

LTE-TDD & LTE-FDD

Mobile network generation

4G

3G standards

HSPA
UMTS

Number of Ethernet LAN/WAN ports

1
