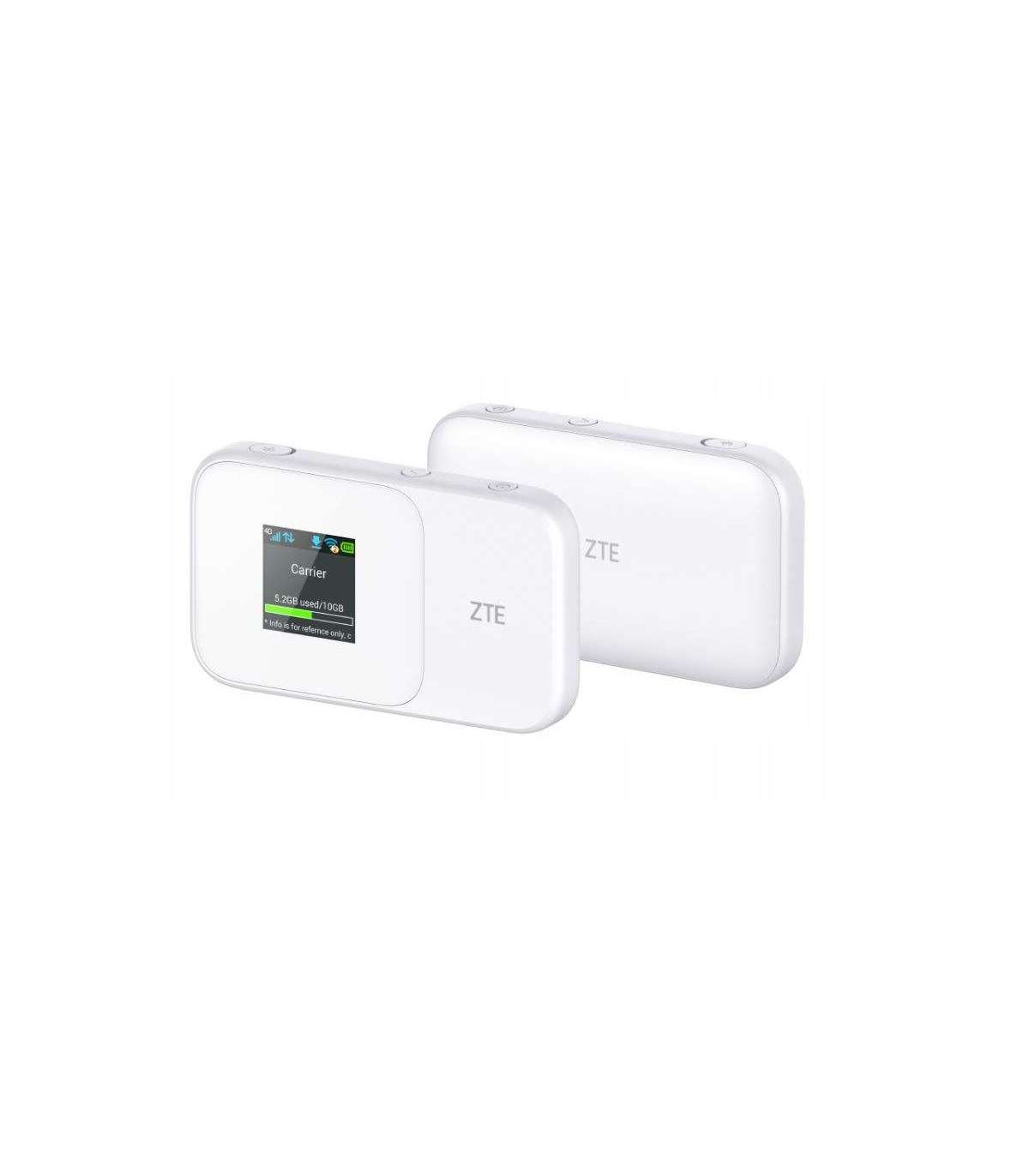

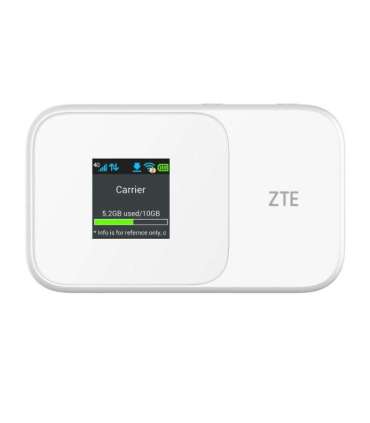

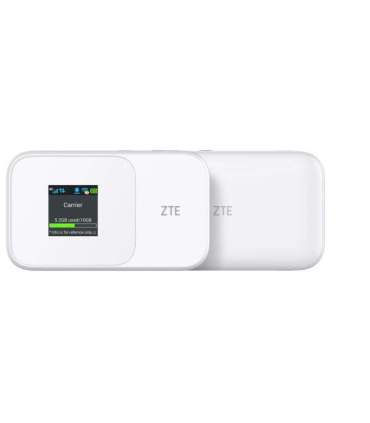

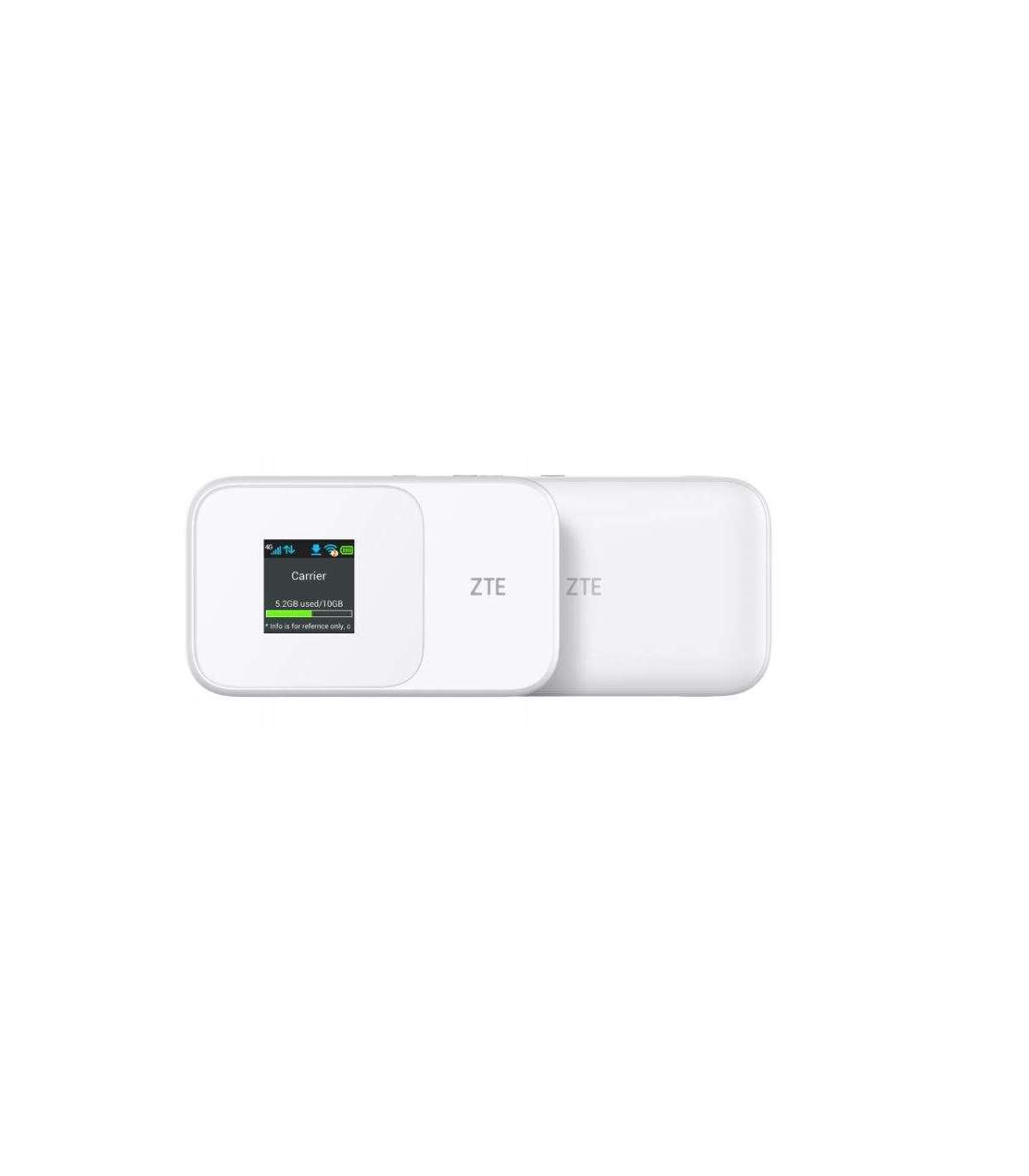

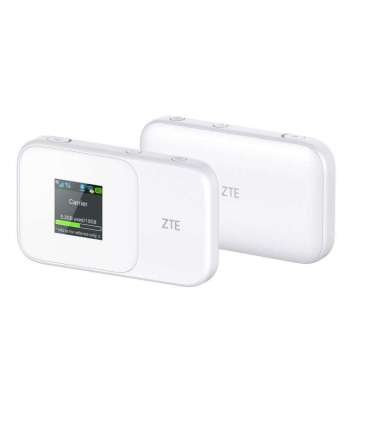

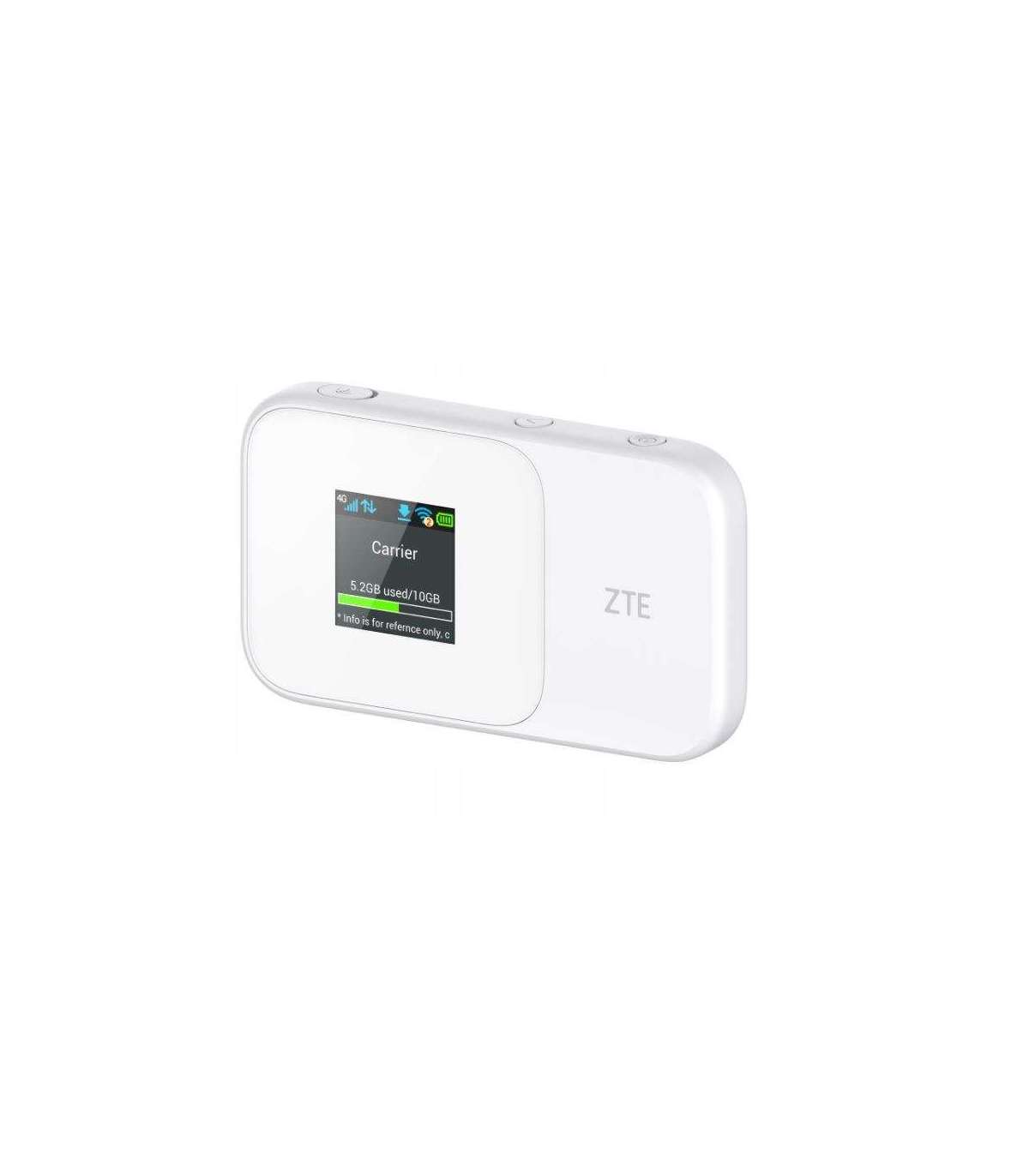

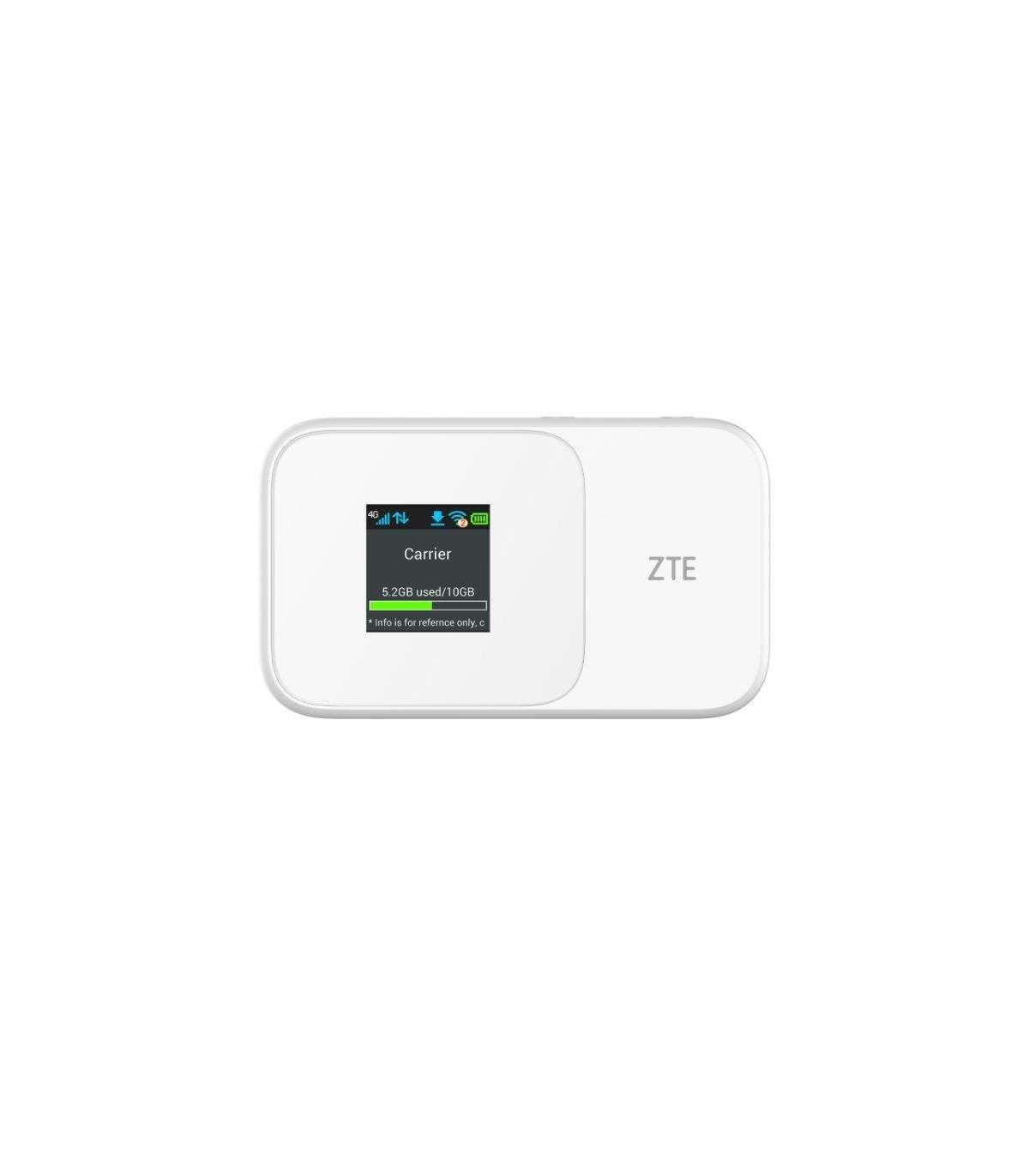

ZTE MF986D SIM LTE kat.12

Характеристики

Product type

Tabletop router

Depth

14 mm

Weight

150 g

Height

107 mm

Width

63 mm

Product colour

White

Security algorithms

WMM
WPA-PSK
WPA2-PSK
WPA3-SAE

Firewall

Yes

Reset button

Yes

WPS push button

Yes

Ethernet LAN

No

Ethernet LAN interface type

Gigabit Ethernet

Cables included

LAN (RJ-45)

Wi-Fi standards

802.11a
802.11ac
802.11ac 2.4
802.11g
802.11n
IEEE 802.3
IEEE 802.3u

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Top Wi-Fi standard

Wi-Fi 5 (802.11aс)

DHCP server

Yes

Universal Plug and Play (UPnP)

Yes

Antenna design

Internal

SIM card slot

Yes

Ethernet WAN

Yes

LED indicators

Yes

IP address filtering

Yes

MAC address filtering

Yes

Ethernet LAN data rates

10
100 Mbit/s
1000

VPN Passthrough

Yes

Networking standards

IEEE 802.3
IEEE 802.3u

Windows operating systems supported

Yes

Mac operating systems supported

Yes

WAN connection type

RJ-45

Warnings

Do not dismantle the unit yourself, there is a risk of electric shock.
Do not expose the device to extreme temperatures.
Do not expose the device to water or moisture.

Additional information

1 x USB Type-C 3.0, 1 x SIM (Nano SIM 4FF), 2x TS-9 external antenna connectors Battery: 3000 mAh, replaceable, Platform: Qualcomm Snapdragon X12 + QCA6174A

Browser supported

Microsoft Internet Explorer 9.0+, Microsoft Edge 14.0, Firefox 60.0, Chrome 60.0, Safari 10.0, Opera 51.2

SSID-based VLAN assignment

Yes

4G standard

LTE Cat. 12/13 DL up to 600 Mbps, UL up to 150 Mbps FDD 1,2,3,4,5,26,7,8,20（12/17）,28,32 TDD 38,40,41,42,43 Support 3CA for download, 2CA for upload UMTS 1/2/4/5/8 GSM 850/900/1800/1900 MHz UMTS 1/2/4

Mobile network generation

5G

Interface

LCD 1,44” 128x128 pix

SIM card type

NanoSIM

Short Message Service (SMS)

Yes

Auto MDI/MDI-X

Yes

Power adapter included

Yes

Set contents

Router, battery, 5V 2A charger, USB C cable, user manual, ErP declaration, warranty card

Replaceable battery

Yes

Functions

Firewall, port forwarding, IP/MAC/port/URL filter

Connectors

TS-9 external antenna connectors
