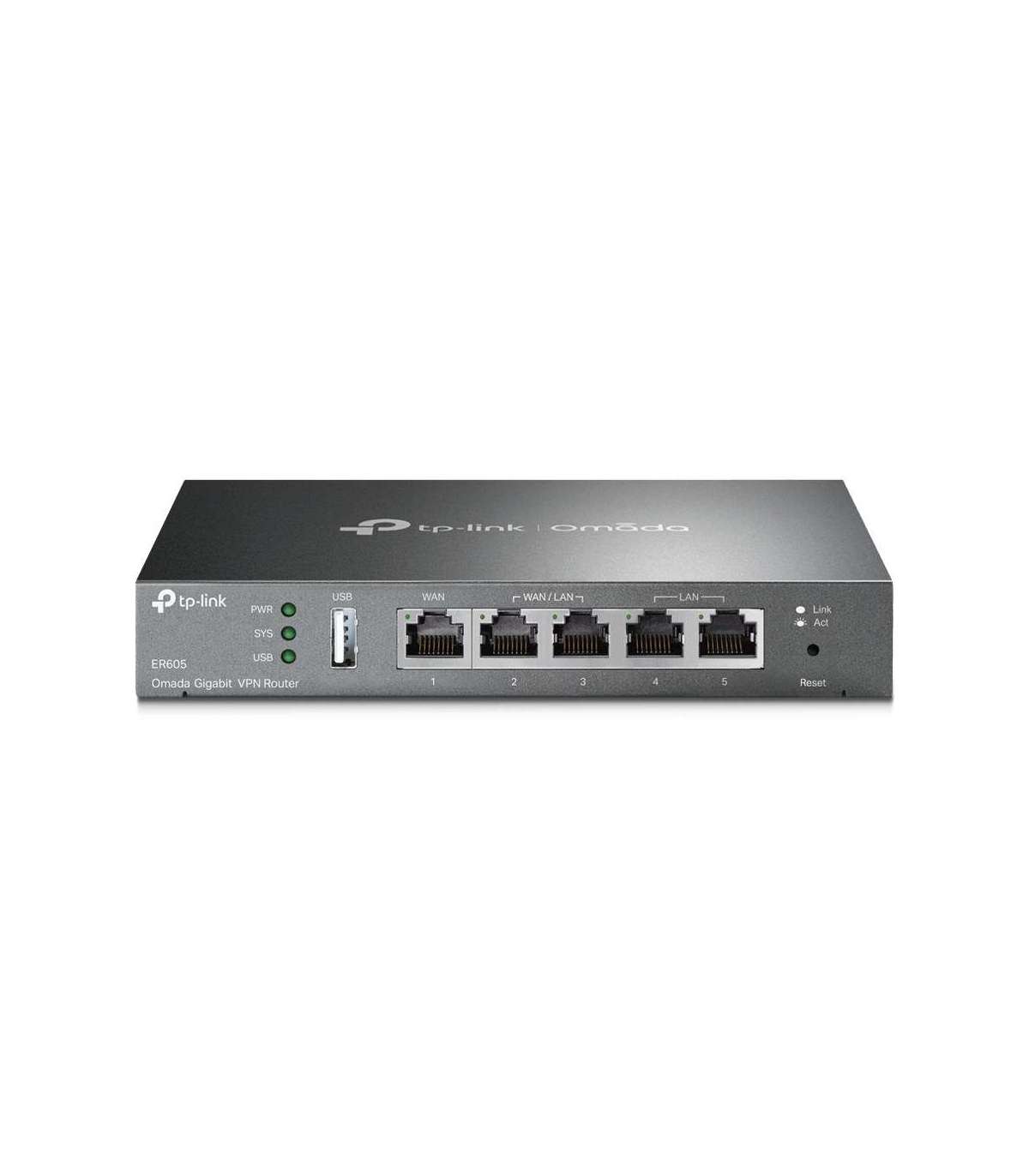

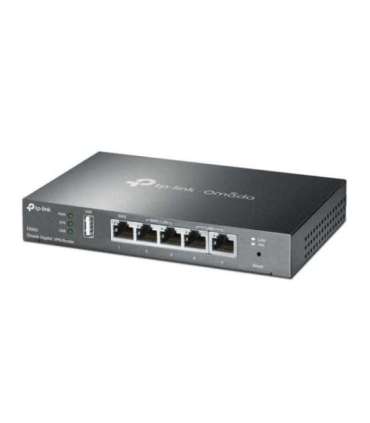

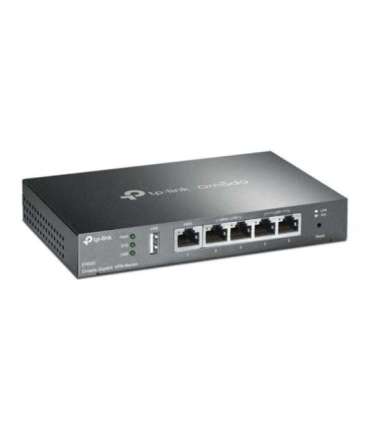

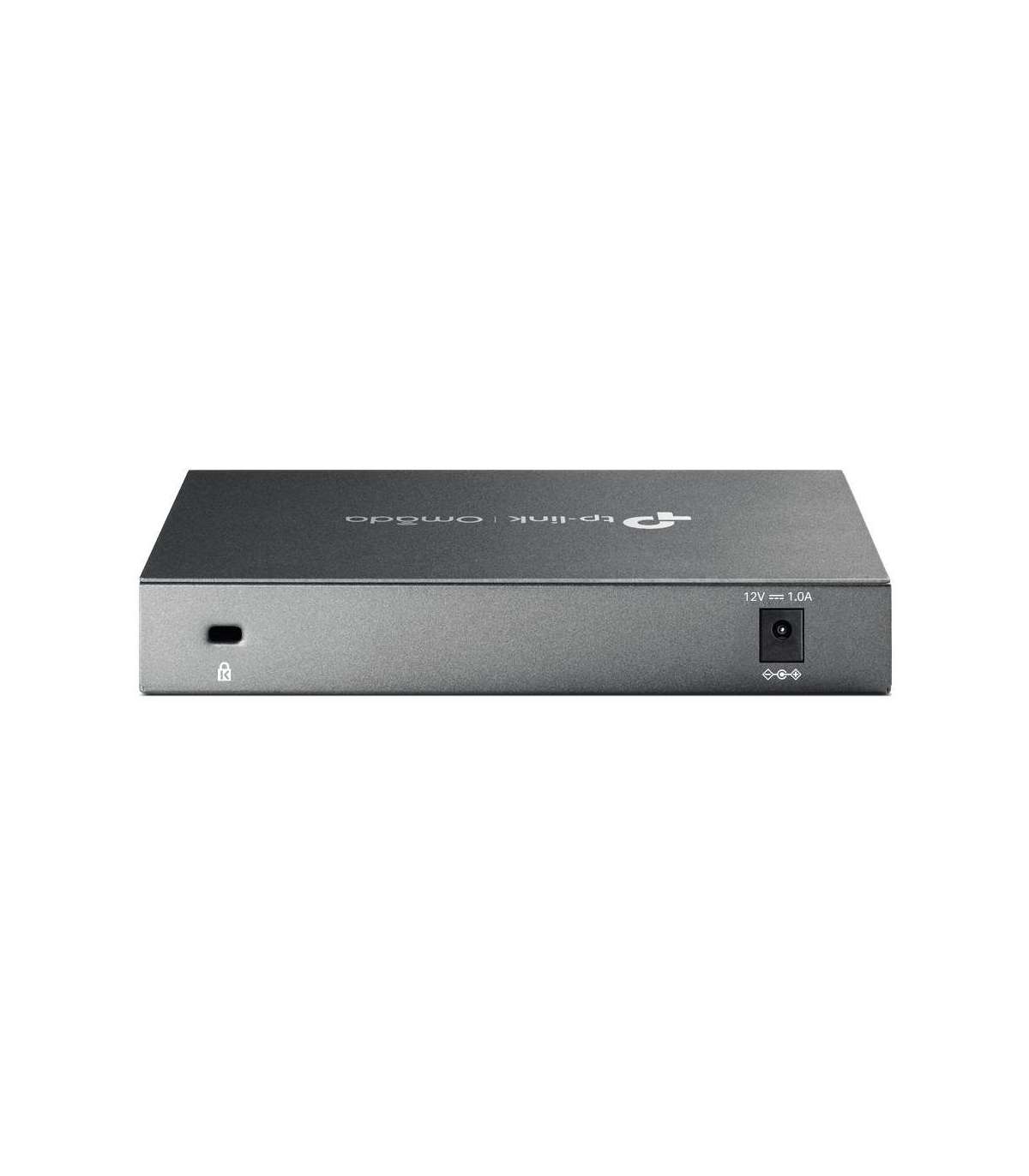

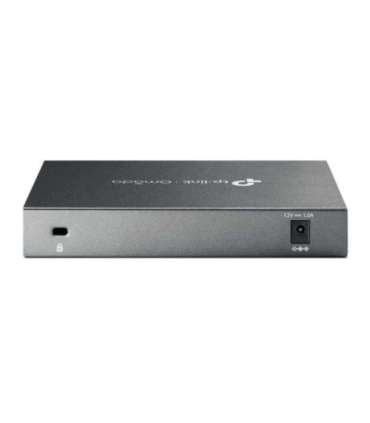

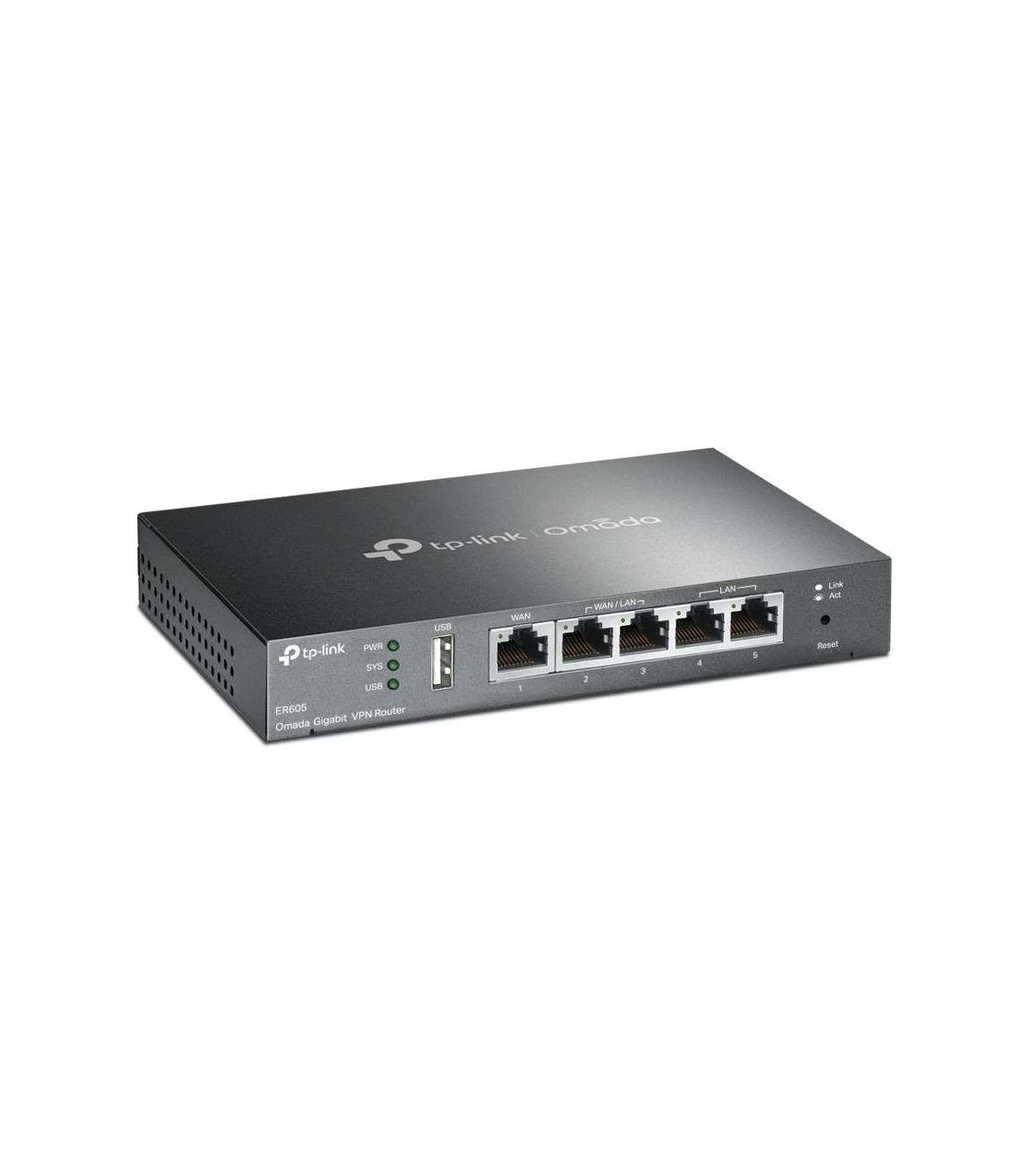

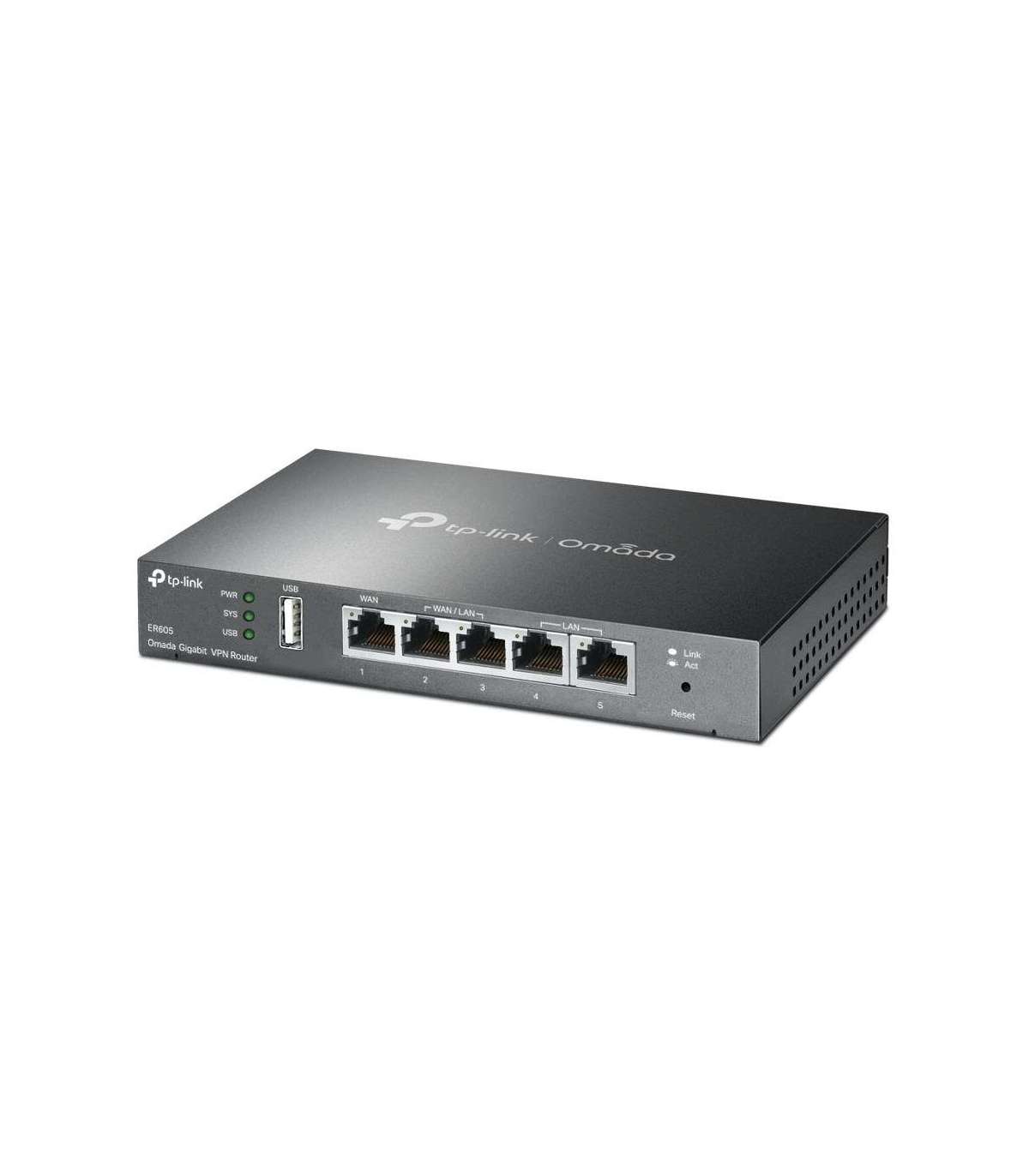

TP-Link Omada Gigabit VPN Router

Характеристики

Depth

101 mm

Height

25 mm

Width

158 mm

Package weight

650 g

Product colour

Black

Power source type

AC

Security algorithms

3DES
128-bit AES
192-bit AES
256-bit AES
DES
MD5
SHA-1

URL filtering

Yes

Firewall

Yes

DMZ support

Yes

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Reset button

Yes

Cables included

AC

Quick installation guide

Yes

DHCP client

Yes

DHCP server

Yes

Universal Plug and Play (UPnP)

Yes

Ethernet LAN (RJ-45) ports

5

DSL WAN

No

SIM card slot

No

3G/4G USB modem compatibility

No

Ethernet WAN

Yes

LED indicators

Activity
LAN
System
USB
WAN

DoS attack prevention

Yes

Web-based management

Yes

Ethernet LAN data rates

10
100 Mbit/s
1000 Mbit/s

Cabling technology

10/100/1000Base-T(X)

Networking standards

IEEE 802.1Q
IEEE 802.3
IEEE 802.3ab
IEEE 802.3u
IEEE 802.3x

Windows operating systems supported

Windows 7
Windows 8
Windows 8.1
Windows 10
Windows 98SE
Windows 2000
Windows NT
Windows Vista
Windows XP

Linux operating systems supported

Yes

Mac operating systems supported

MacOS

Package width

190 mm

Package depth

254 mm

Package height

60 mm

Compliance certificates

RoHS

Supported network protocols

TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP

Manual

Yes

Certification

CE, FCC, RoHS

Network address translation (NAT)

Yes

AC input frequency

50 - 60 Hz

AC input voltage

120 - 240 V

Quick start guide

Yes

System event log

Yes

NAT functionality

• One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

Management protocols

Telnet

Rack mounting

Yes

Internal memory

256 MB

Power consumption (typical)

7.94 W

Flash memory

16 MB
128 MB

VPN tunnels quantity

20

VLAN support

Yes

Internal memory type

DRAM

Rack capacity

1U

Embedded DRAM (eDRAM) memory

128 MB

ARP attack prevention

Yes

Authentication method

SHA-1, MD5

Traffic control

Yes

Concurrent connections

150000

Ethernet interface type

Gigabit Ethernet

Policy-based routing

Yes

Routing protocols

RIP-1
RIP-2

Supported protocols

IPsec/PPTP/L2TP

USB ports quantity

1
