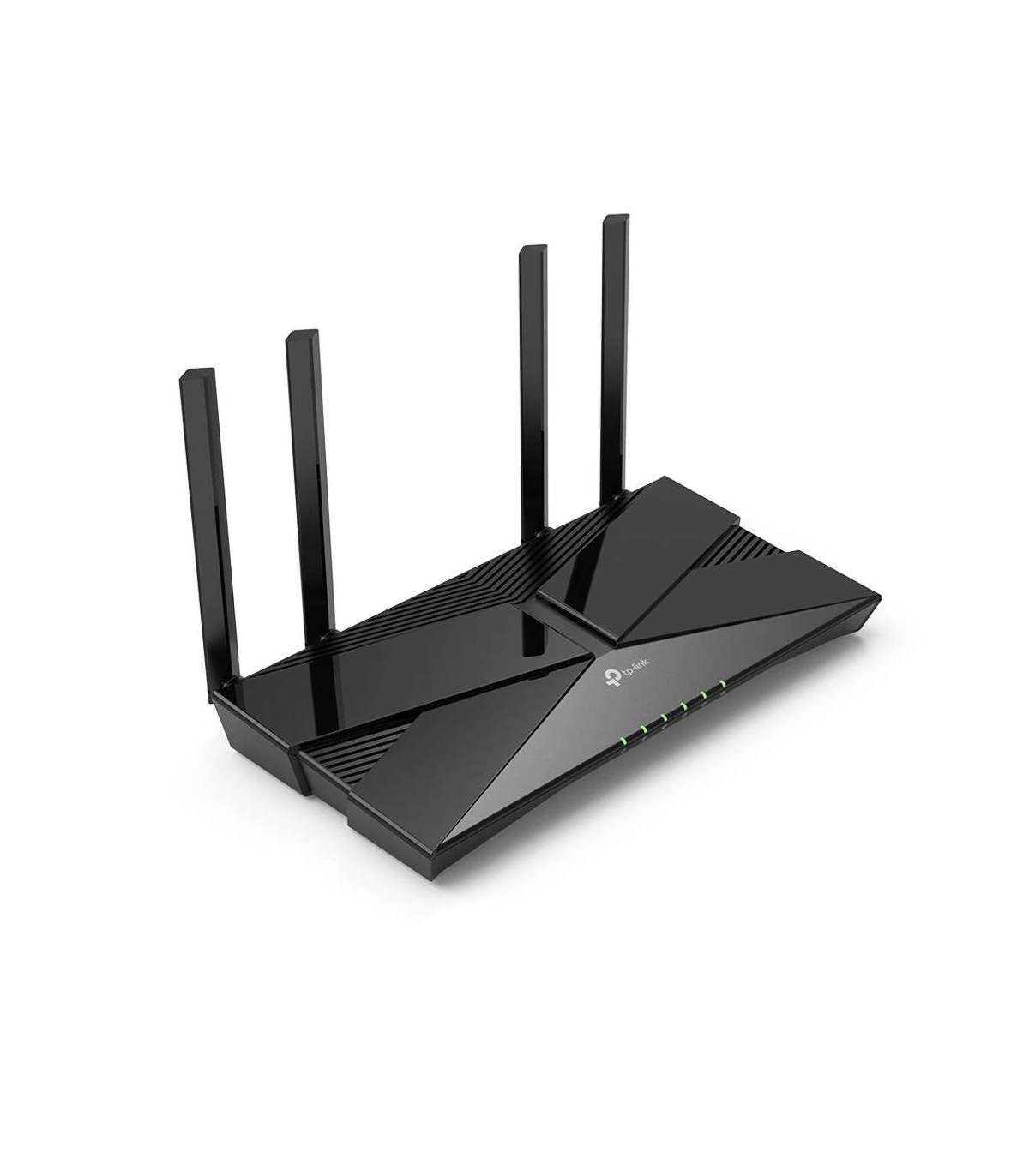

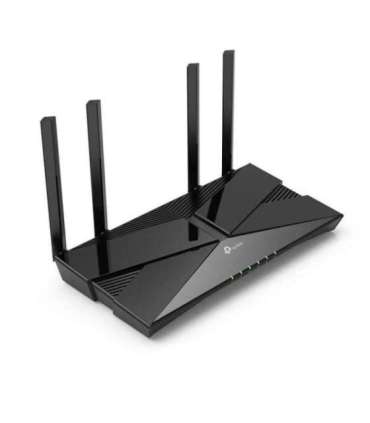

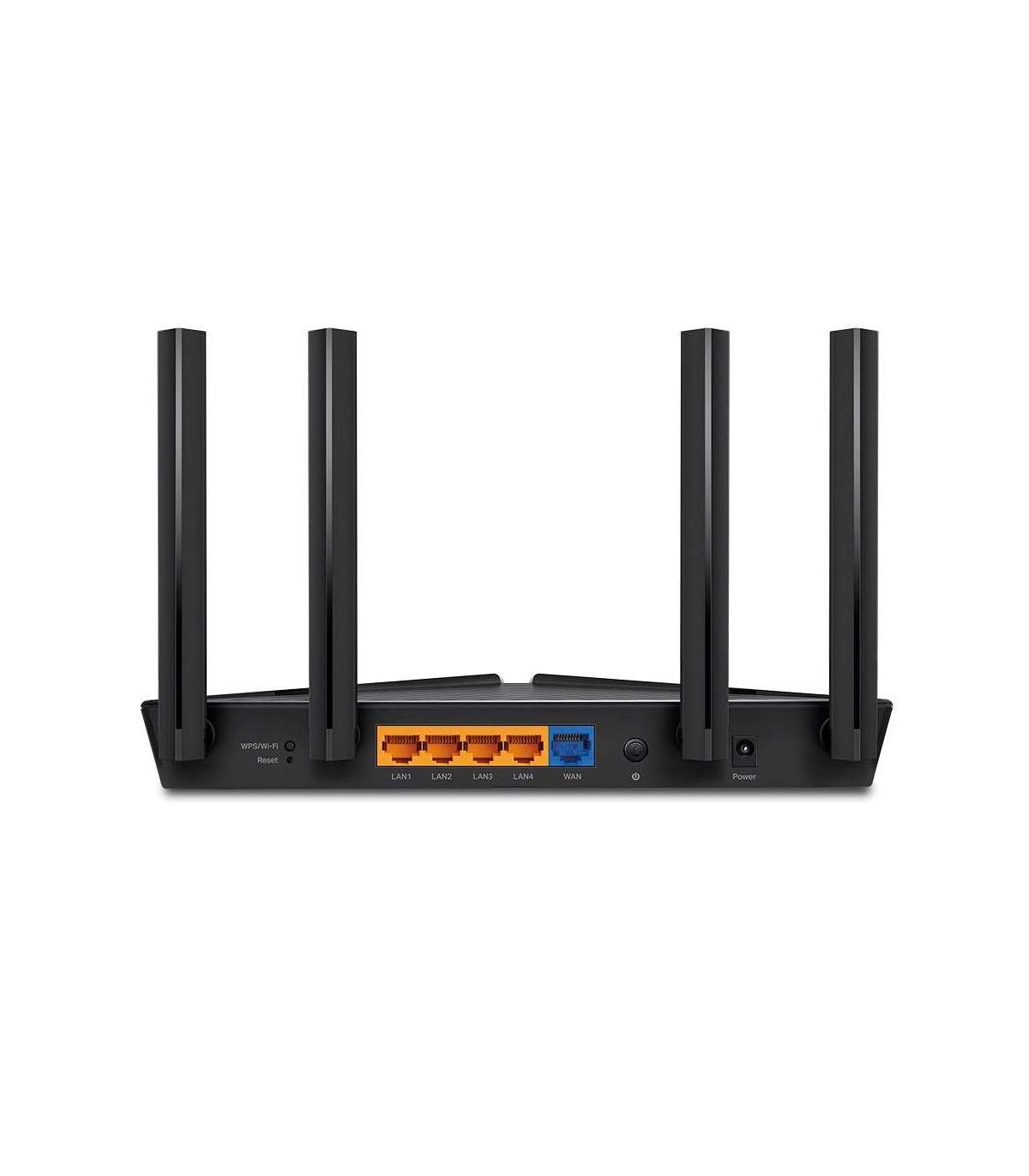

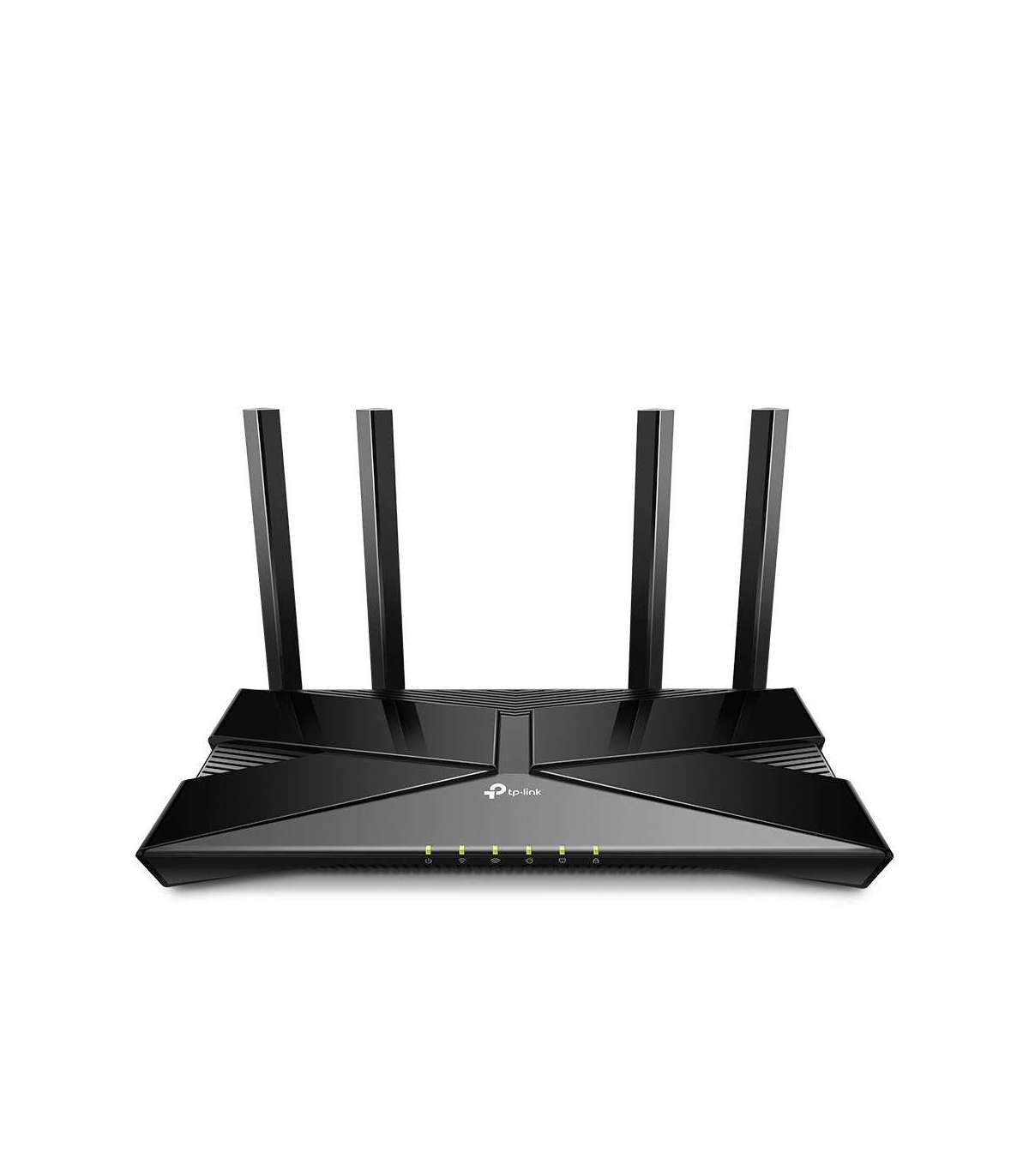

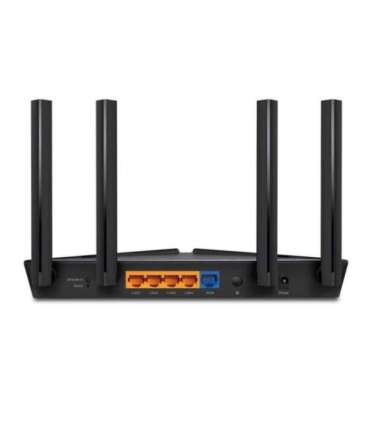

TP-Link AX1800 Dual Band Wi-Fi 6 Router

Характеристики

Product type

Tabletop router

Depth

135 mm

Height

41.6 mm

Width

260.2 mm

On/off switch

Yes

Product colour

Black

Power source type

DC

Security algorithms

SSID
WPA
WPA2
WPA3

Firewall

Yes

DMZ support

Yes

Access Control List (ACL)

Yes

Storage temperature (T-T)

-40 - 60 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Reset button

Yes

WPS push button

Yes

MU-MIMO technology

Yes

Ethernet LAN

Yes

Port triggering

Yes

Ethernet LAN interface type

Gigabit Ethernet

Dynamic DNS (DDNS)

Yes

Port forwarding

Yes

AC adapter included

Yes

Cables included

LAN (RJ-45)

Quick installation guide

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)

WLAN data transfer rate (first band)

574 Mbit/s

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

WLAN data transfer rate (second band)

1201 Mbit/s

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

WLAN data transfer rate (max)

1800 Mbit/s

DHCP client

Yes

DHCP server

Yes

Universal Plug and Play (UPnP)

Yes

Ethernet LAN (RJ-45) ports

4

Antennas quantity

4

Antenna design

External

DSL WAN

No

SIM card slot

No

3G/4G USB modem compatibility

No

Ethernet WAN

Yes

3G

No

4G

No

Firewall security

SPI

Stateful Packet Inspection (SPI)

Yes

DoS attack prevention

Yes

Ethernet LAN data rates

10
100 Mbit/s
1000 Mbit/s

VPN Passthrough

Yes

Cabling technology

10/100/1000Base-T(X)

Networking standards

IEEE 802.3
IEEE 802.3ab
IEEE 802.3u
IEEE 802.11a
IEEE 802.11ac
IEEE 802.11ax
IEEE 802.11b
IEEE 802.11g
IEEE 802.11k
IEEE 802.11n
IEEE 802.11r
IEEE 802.11v

Windows operating systems supported

Yes

Linux operating systems supported

Yes

Mac operating systems supported

Yes

Compliance certificates

CE

Supported network protocols

IPv4, IPv6

DC-in jack

Yes

WAN connection type

RJ-45

Warnings

Avoid contact with liquids as this may cause electric shock.
Do not open the appliance housing - risk of electric shock.
The product may emit radio waves that may interfere with other electronic devices.

Sustainability compliance

Yes

Wireless statistics

Yes

Wireless radio

Yes

Antenna included

Yes

Certification

FCC

Guest access

Yes

Indication light

Yes

VPN support

PPTP, OpenVPN, IPSec

5G

No

Wi-Fi Multimedia (WMM)/(WME)

Yes

Antenna gain level (max)

5 dBi

Browser supported

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0

MIMO

Yes

Number of products included

1 pc(s)

Input current

1 A

External power adapter

Yes

Schedule access

Yes

Built-in display

No

Input voltage

12 V
