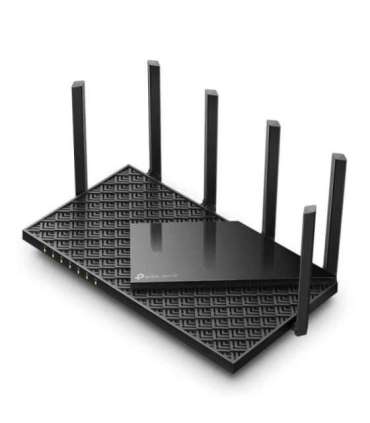

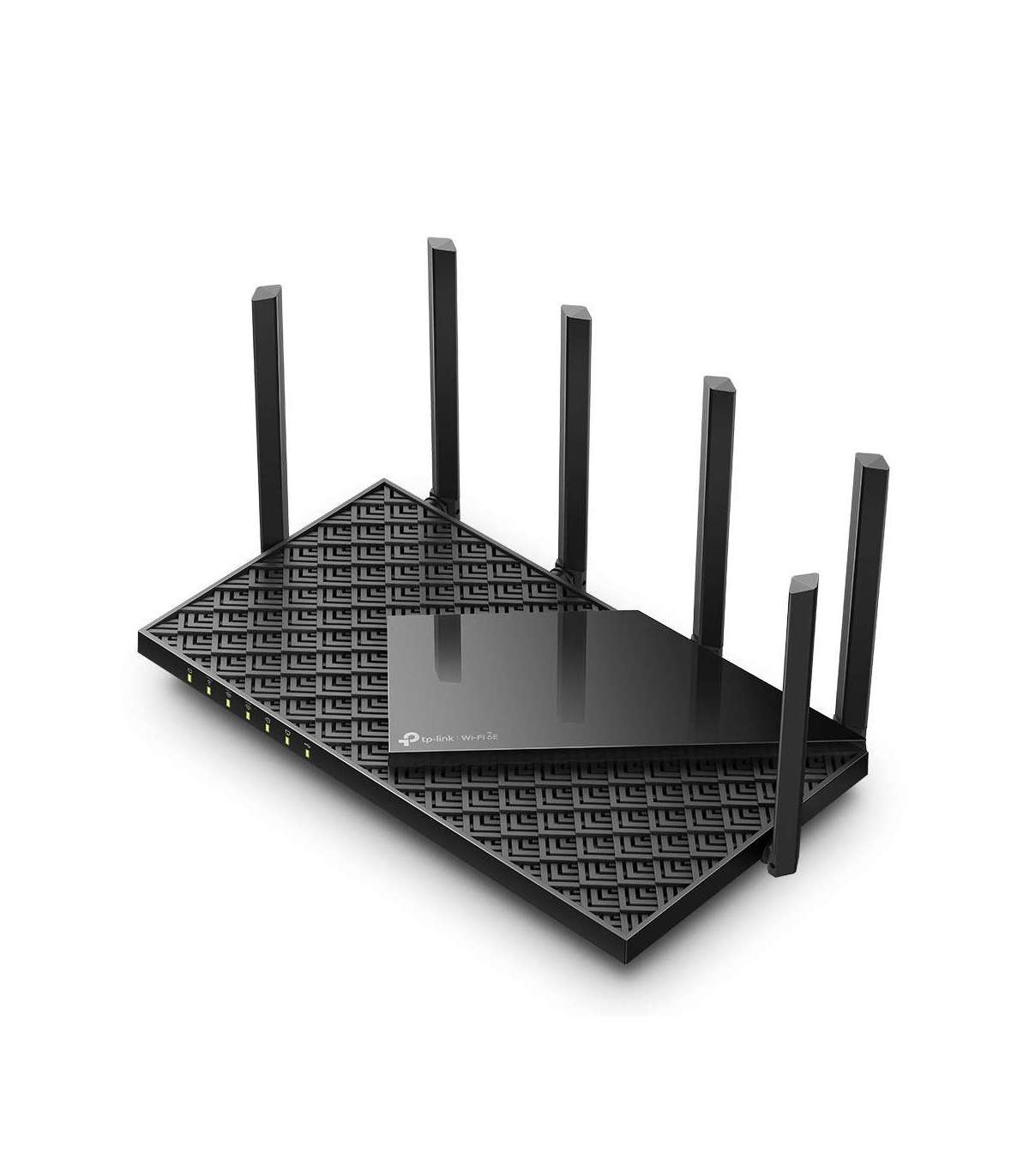

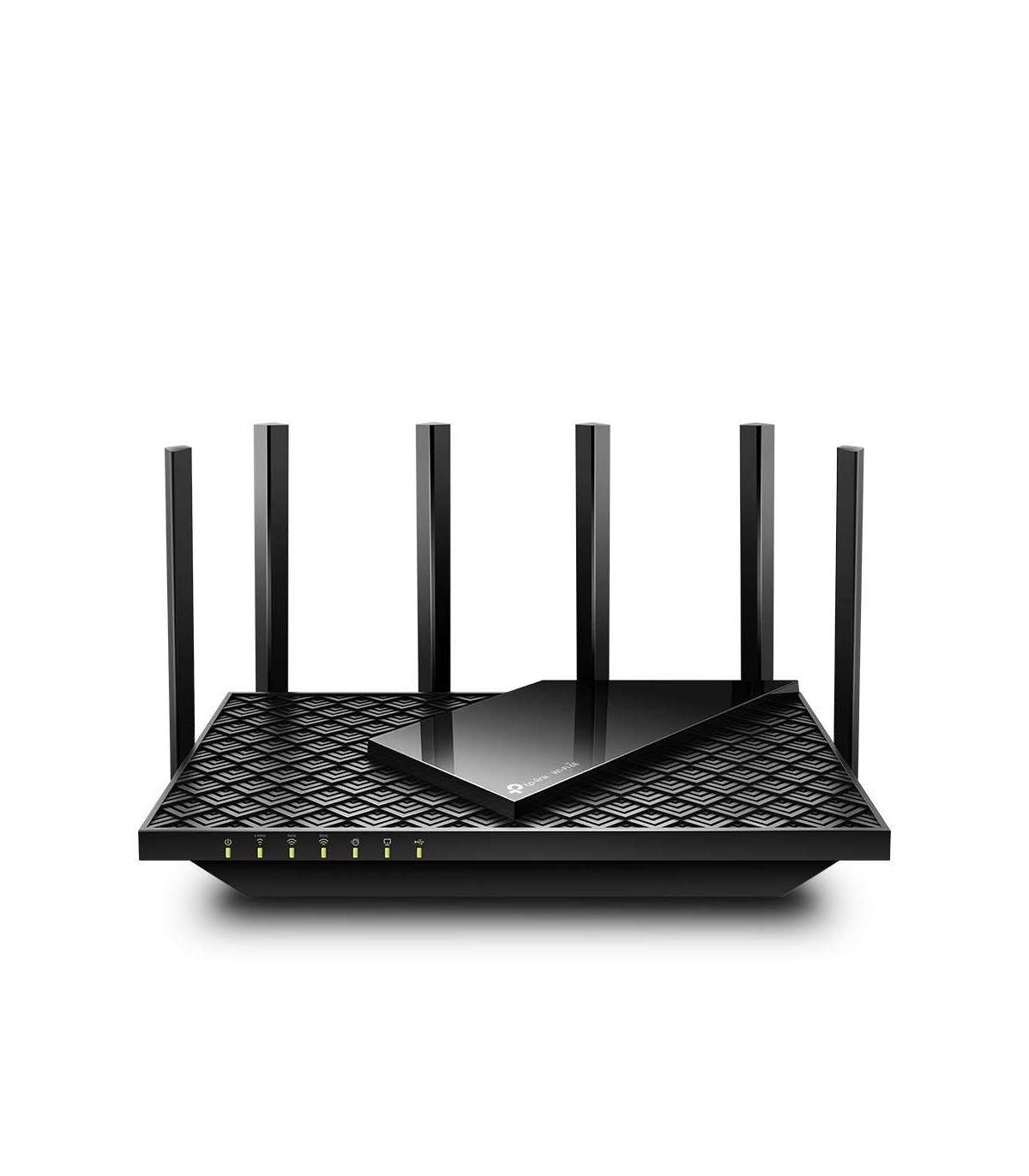

TP-Link Archer AXE5400 Tri-Band Gigabit Wi-Fi 6E Router

Характеристики

Product type

Tabletop router

Depth

147.2 mm

Height

49.2 mm

Width

272.5 mm

Package weight

1.53 kg

On/off switch

Yes

Product colour

Black

Power source type

DC

Output voltage

12 V

Output current

2.5 A

Security algorithms

WPA
WPA-Enterprise
WPA2
WPA3

URL filtering

Yes

Firewall

Yes

DMZ support

Yes

Access Control List (ACL)

Yes

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Reset button

Yes

WPS push button

Yes

VPN server

OpenVPN Server

Ethernet LAN

Yes

Port triggering

Yes

Ethernet LAN interface type

Gigabit Ethernet

Dynamic DNS (DDNS)

Yes

Port forwarding

Yes

AC adapter included

Yes

Cables included

LAN (RJ-45)

Quick installation guide

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)

WLAN data transfer rate (first band)

574 Mbit/s

Wi-Fi band

Tri-band (2.4 GHz / 5 GHz / 6 GHz)

WLAN data transfer rate (second band)

2402 Mbit/s

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

WLAN data transfer rate (max)

5400 Mbit/s

DHCP client

Yes

DHCP server

Yes

Universal Plug and Play (UPnP)

Yes

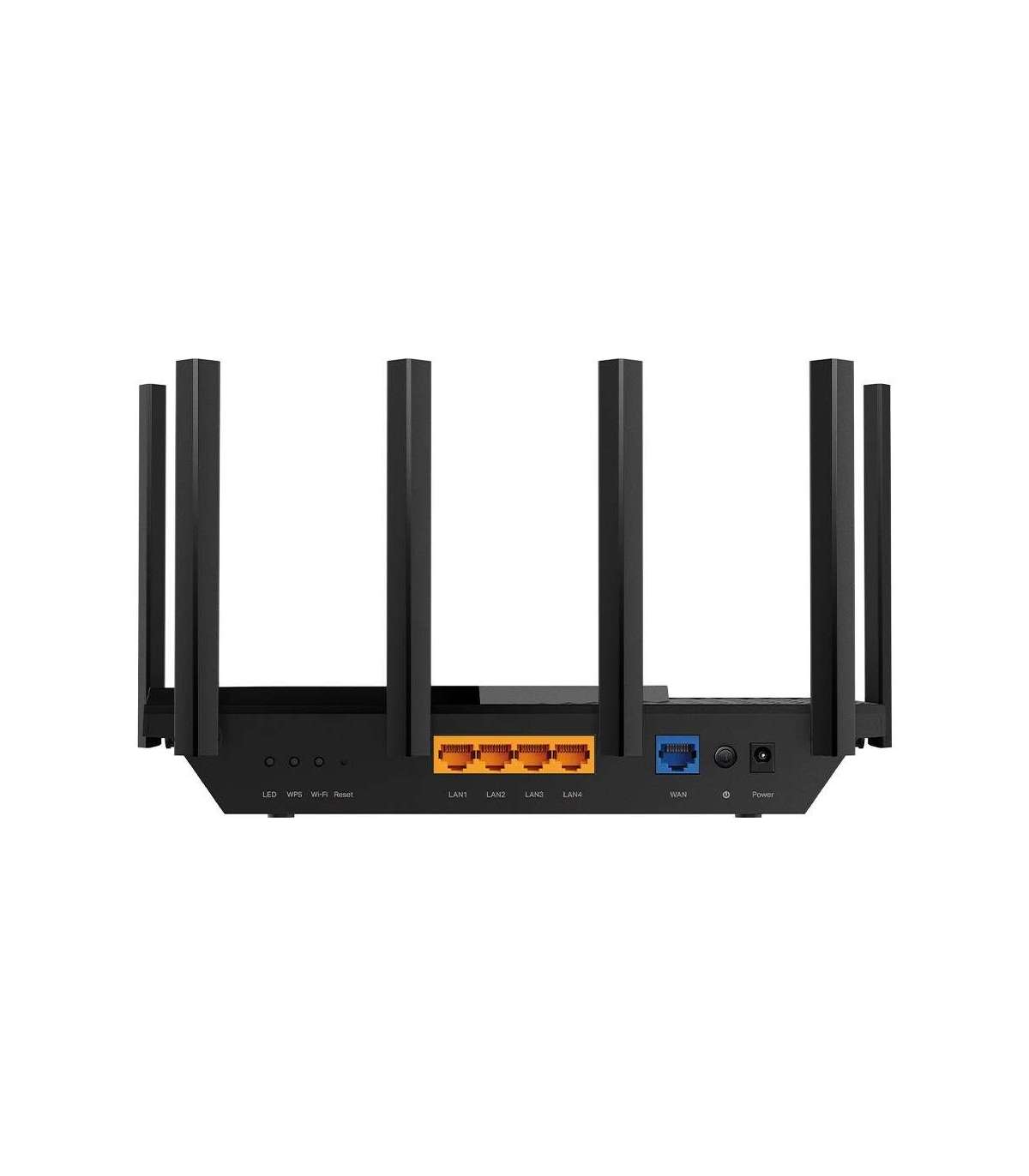

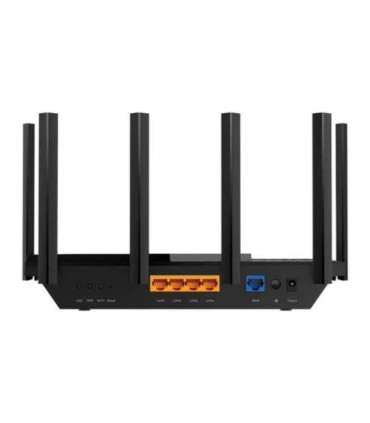

Ethernet LAN (RJ-45) ports

5

Antennas quantity

6

Antenna design

External

DSL WAN

No

SIM card slot

No

3G/4G USB modem compatibility

No

Ethernet WAN

Yes

Processor cores

4

Built-in processor

Yes

LED indicators

Power, WAN, WLAN

Firewall security

SPI Firewall

IP address filtering

Yes

DoS attack prevention

Yes

MAC address filtering

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Number of guest networks (2.4 GHz)

1

Ethernet LAN data rates

2500 Mbit/s

VPN Passthrough

Yes

Cabling technology

10/100/1000Base-T(X)

Networking standards

IEEE 802.11a
IEEE 802.11ac
IEEE 802.11ax
IEEE 802.11n

Package width

328 mm

Package depth

265 mm

Package height

120 mm

Compliance certificates

Federal Communications Commission (FCC)
RoHS

Supported network protocols

IPv4, IPv6

USB port

Yes

Transmit power

FCC: ≤29dBm (2.4 GHz), ≤28dBm (5 GHz), ≤22dBm (6 GHz) CE: ≤17dBm (2.4 GHz), ≤27dBm (5 GHz), ≤20dBm (6 GHz)

WAN connection type

RJ-45

Harmonized System (HS) code

85176990

Warnings

Avoid contact with liquids as this may cause electric shock.
Do not open the appliance housing - risk of electric shock.
The product may emit radio waves that may interfere with other electronic devices.

Sustainability compliance

Yes

Wireless statistics

Yes

Number of guest networks (5 GHz)

1

Processor frequency

1700 MHz

Guest access

Yes

Network address translation (NAT)

Yes

VPN support

OpenVPN Server
PPTP VPN Server
L2TP VPN Server

Wall mountable

Yes

Detachable antenna(s)

Yes

Static route

No

Number of products included

1 pc(s)

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Firmware upgradeable

Yes

Built-in FTP server

Yes

Support Samba (storage)

Yes

Media server

Yes

DDoS protection

Yes

Wake-on-LAN ready

Yes

WLAN data transfer rate (third band)

2402 Mbit/s
