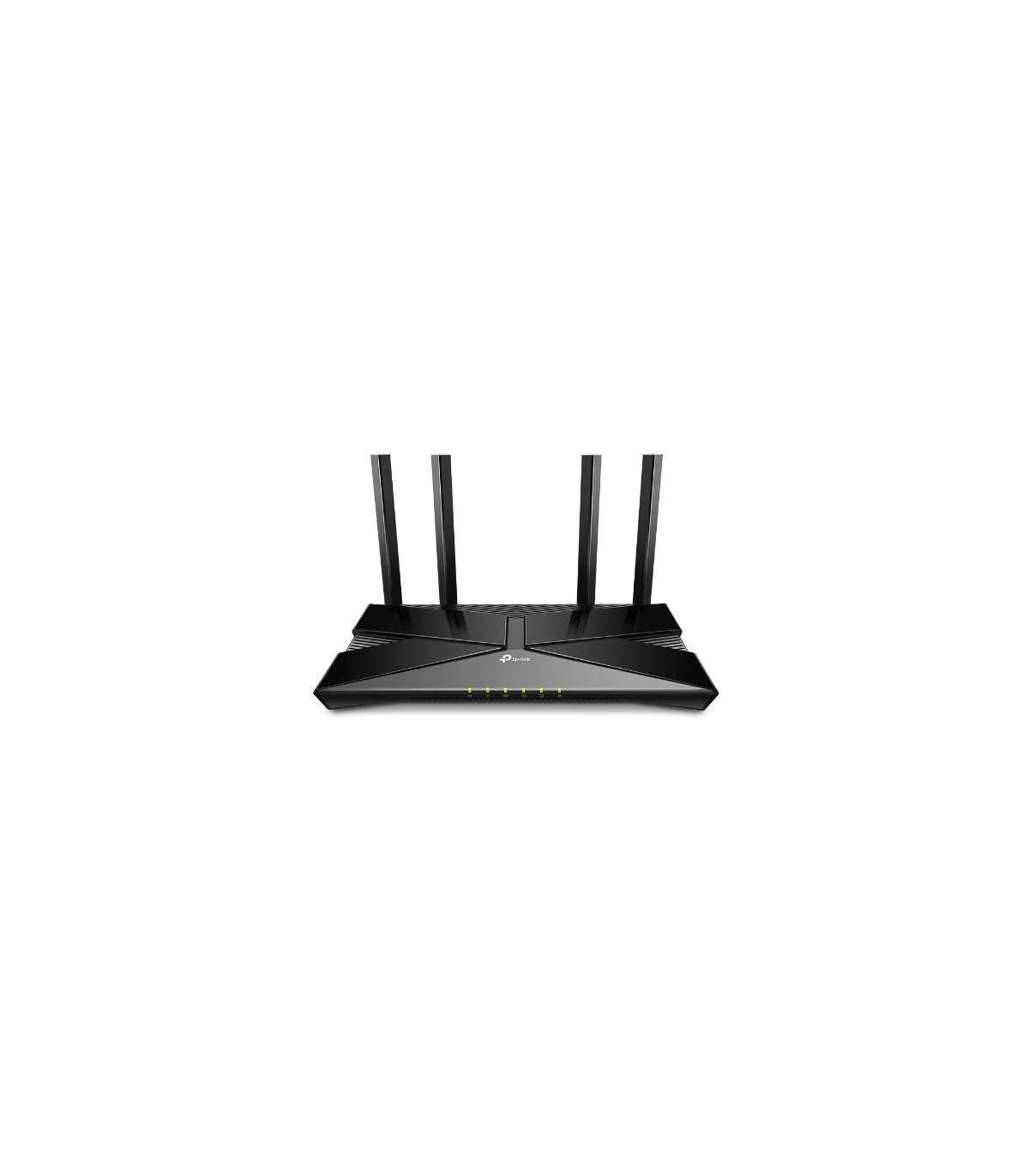

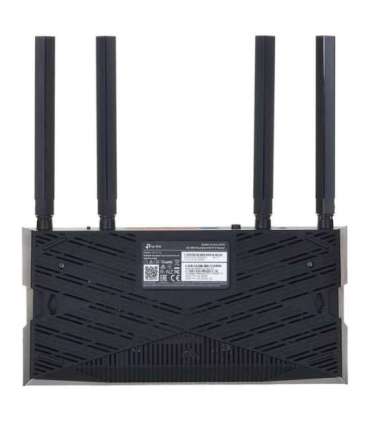

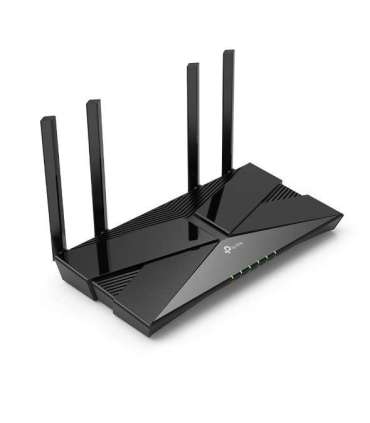

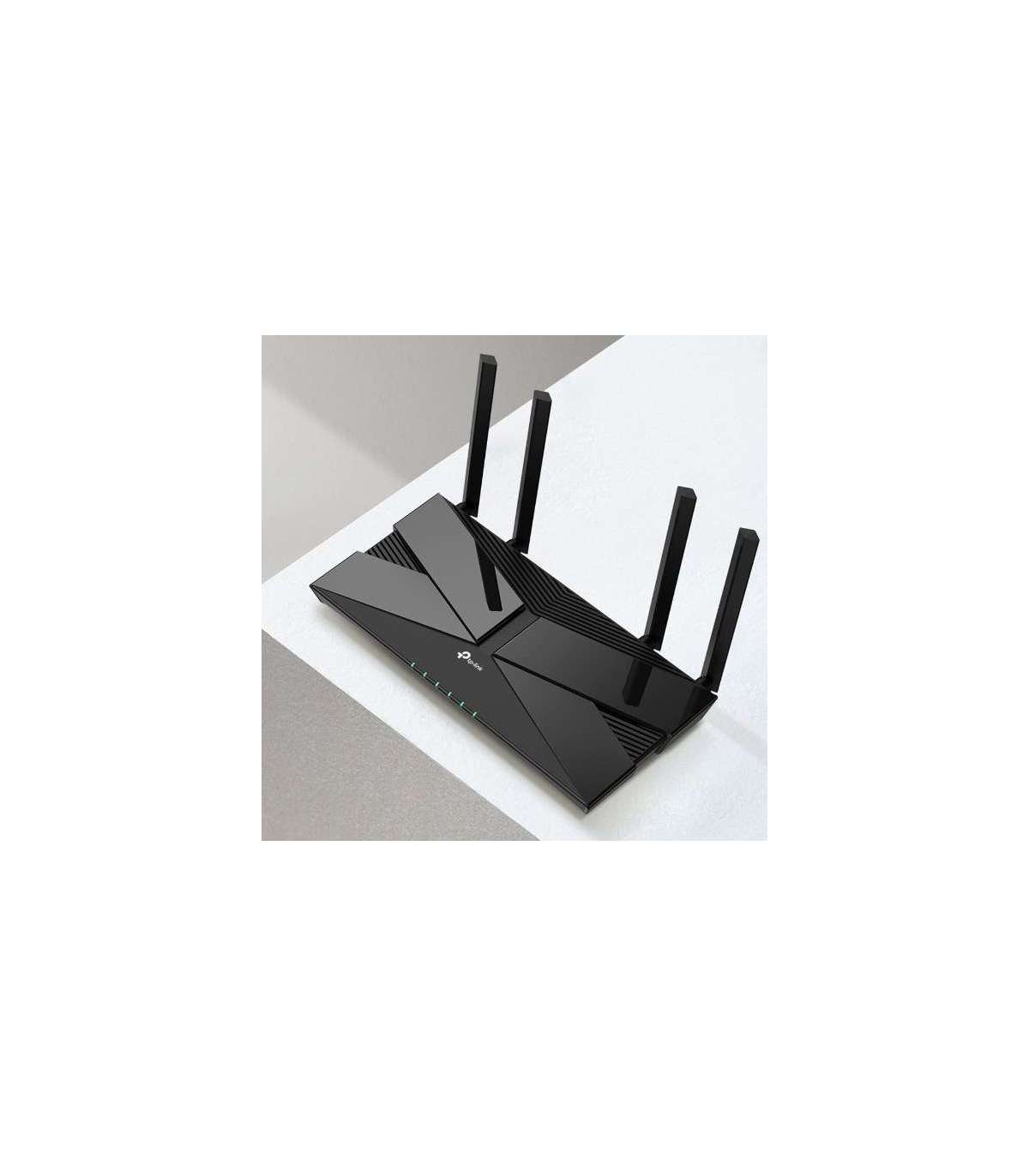

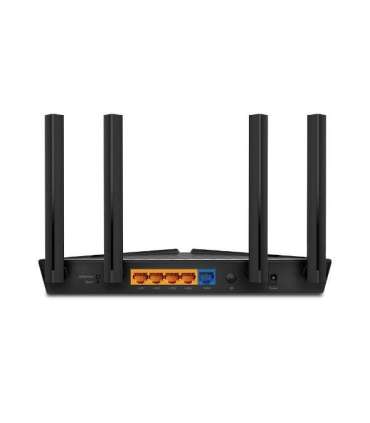

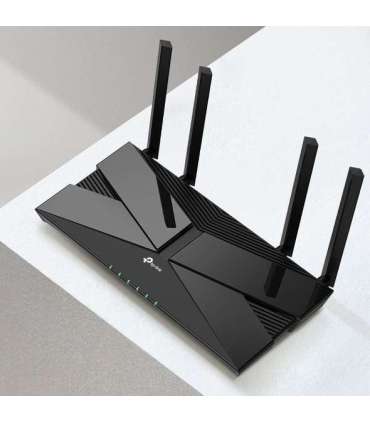

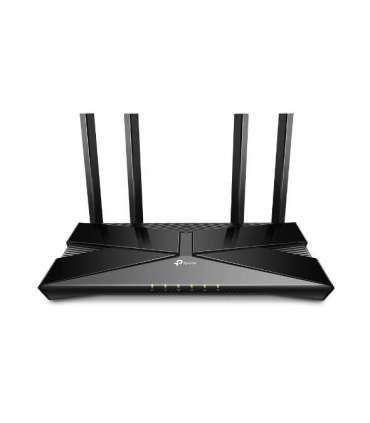

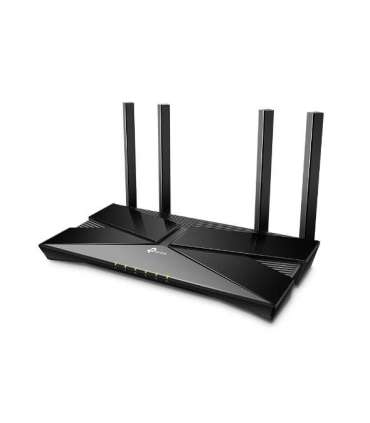

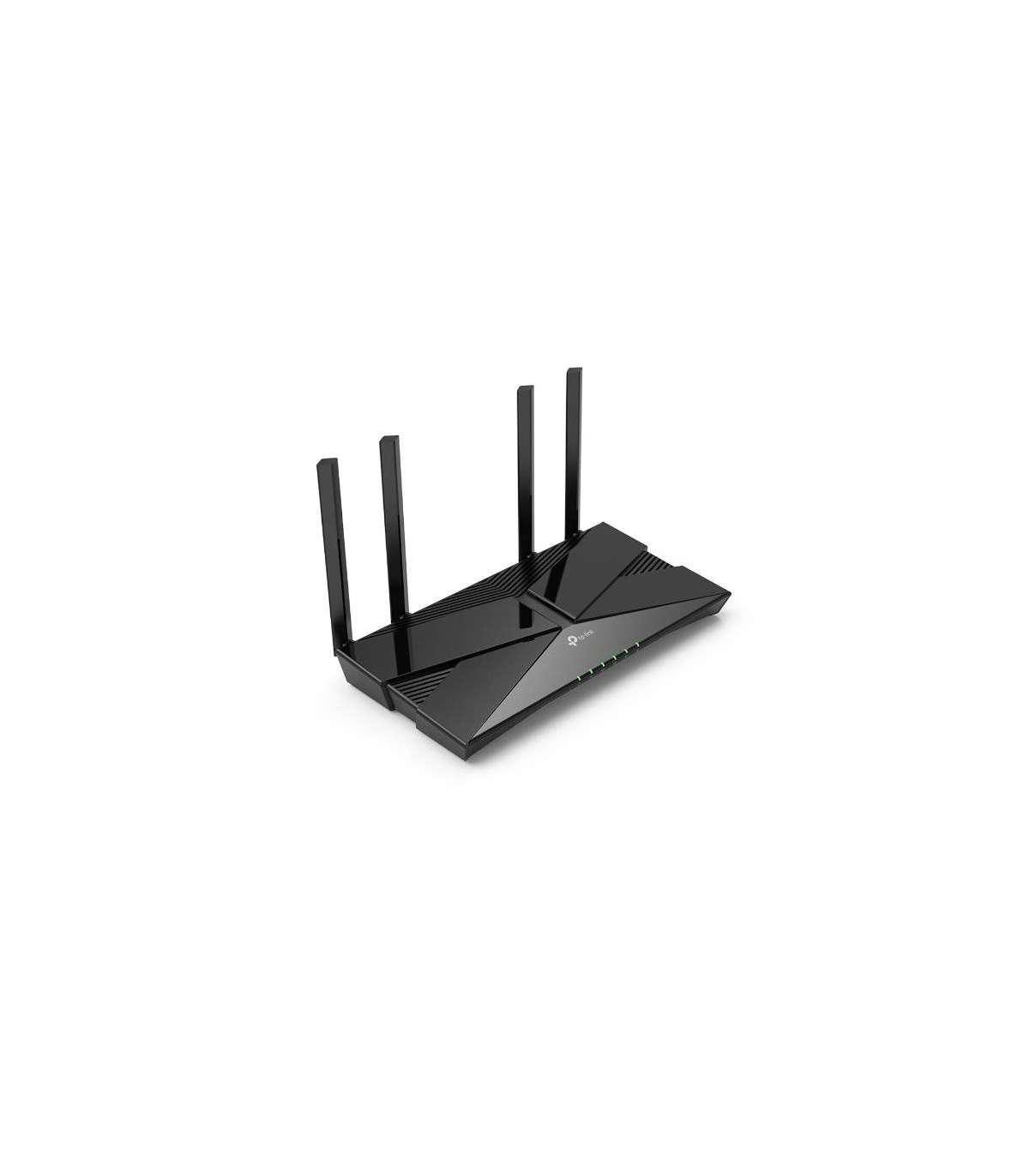

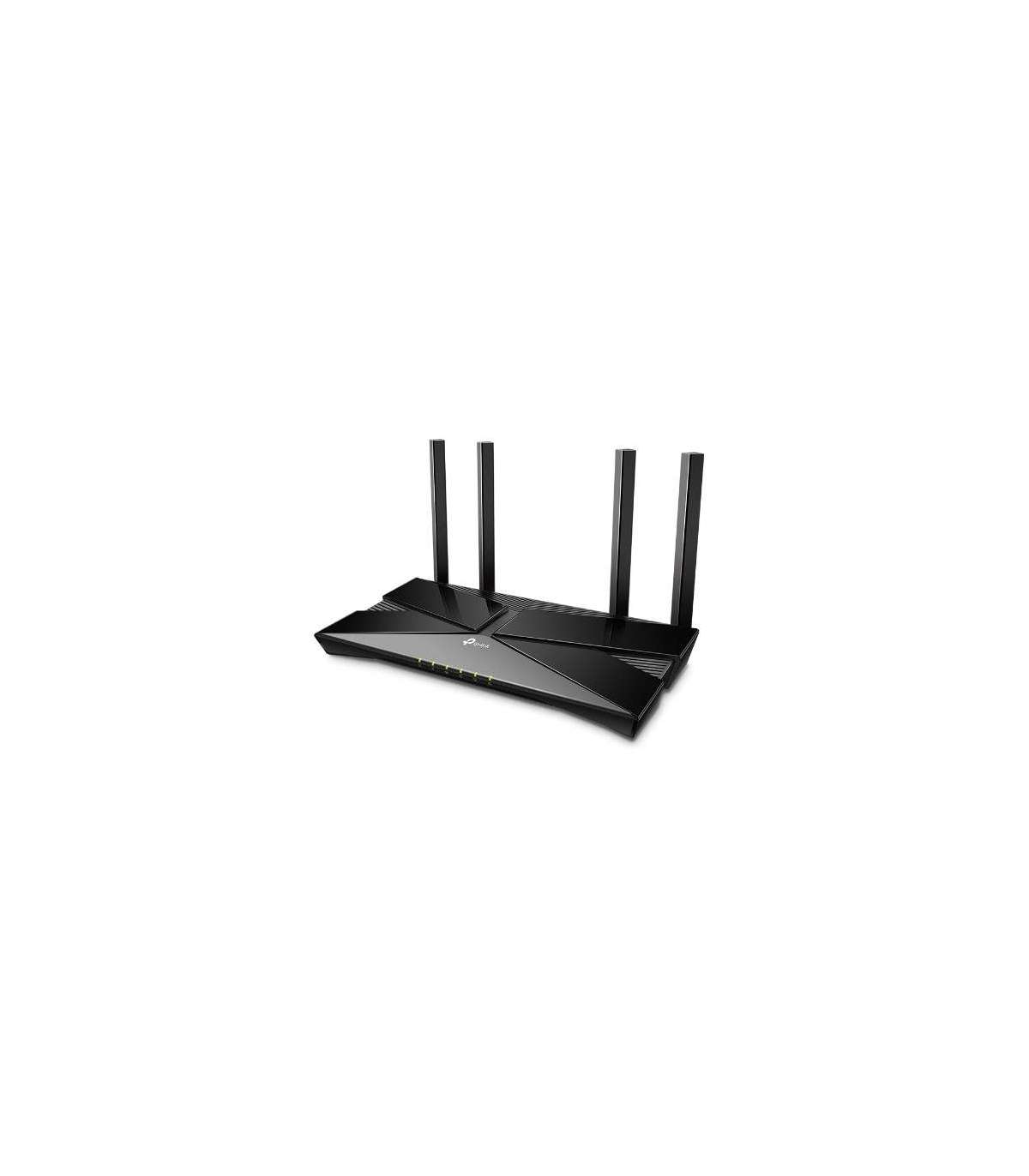

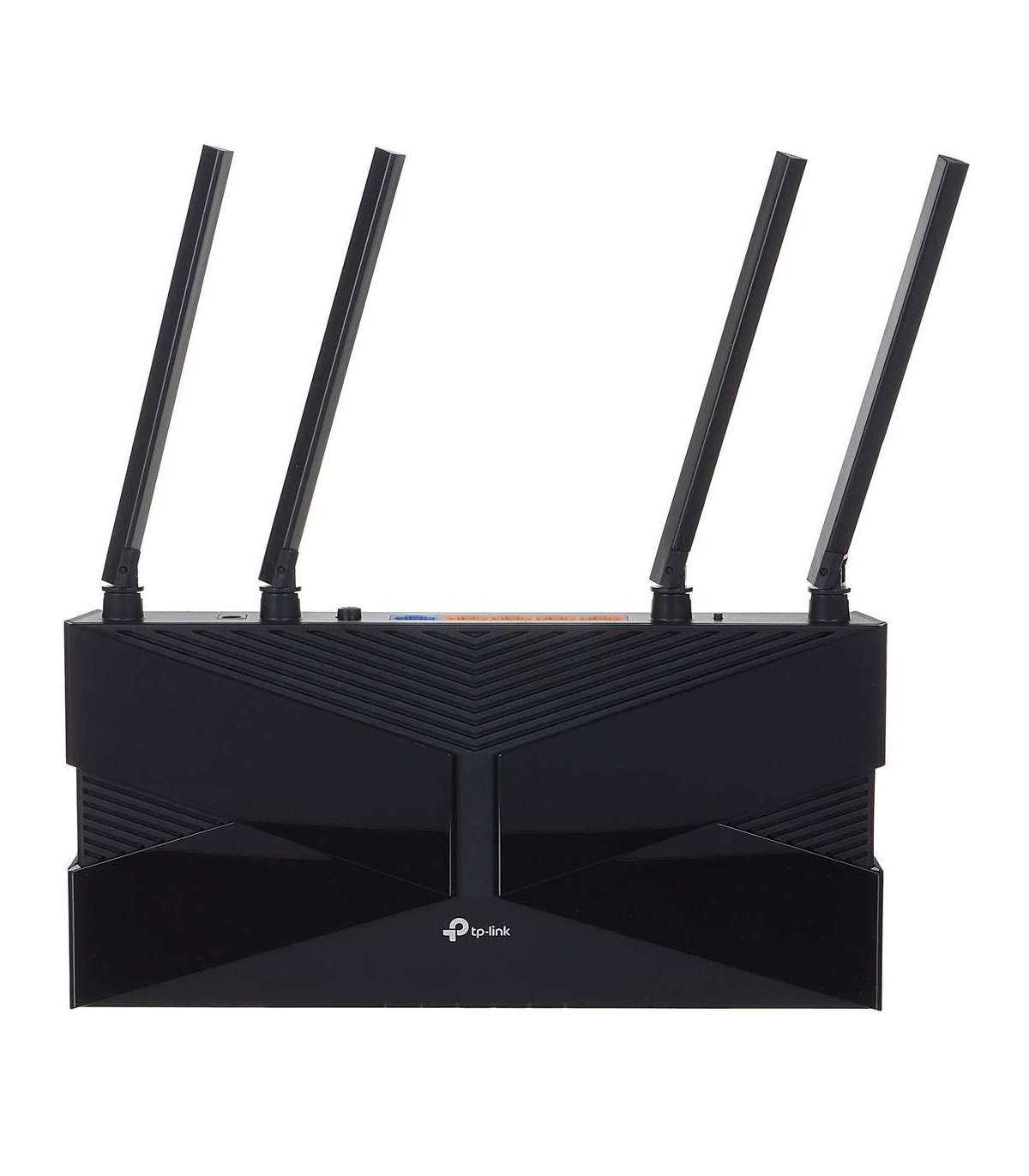

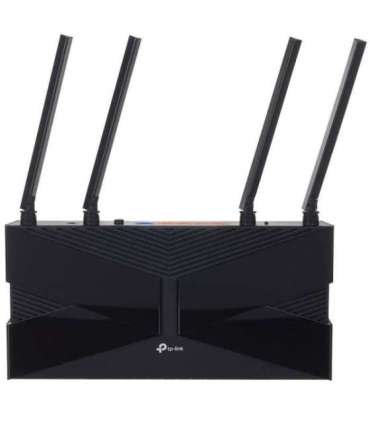

TP-Link Archer AX1800 Dual-Band Wi-Fi 6 Router

Характеристики

Product type

Tabletop router

Depth

135 mm

Height

41.6 mm

Width

260.2 mm

Package weight

730 g

Product colour

Black

Power source type

DC

Output voltage

12 V

Output current

1 A

Security algorithms

64-bit WEP
128-bit WEP
WMM
WPA
WPA-PSK
WPA2
WPA2-PSK

URL filtering

Yes

DMZ support

Yes

Access Control List (ACL)

Yes

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Reset button

Yes

WPS push button

Yes

Ethernet LAN

Yes

Ethernet LAN interface type

Gigabit Ethernet

Dynamic DNS (DDNS)

Yes

Port forwarding

Yes

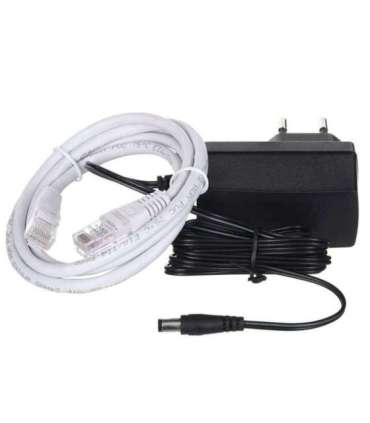

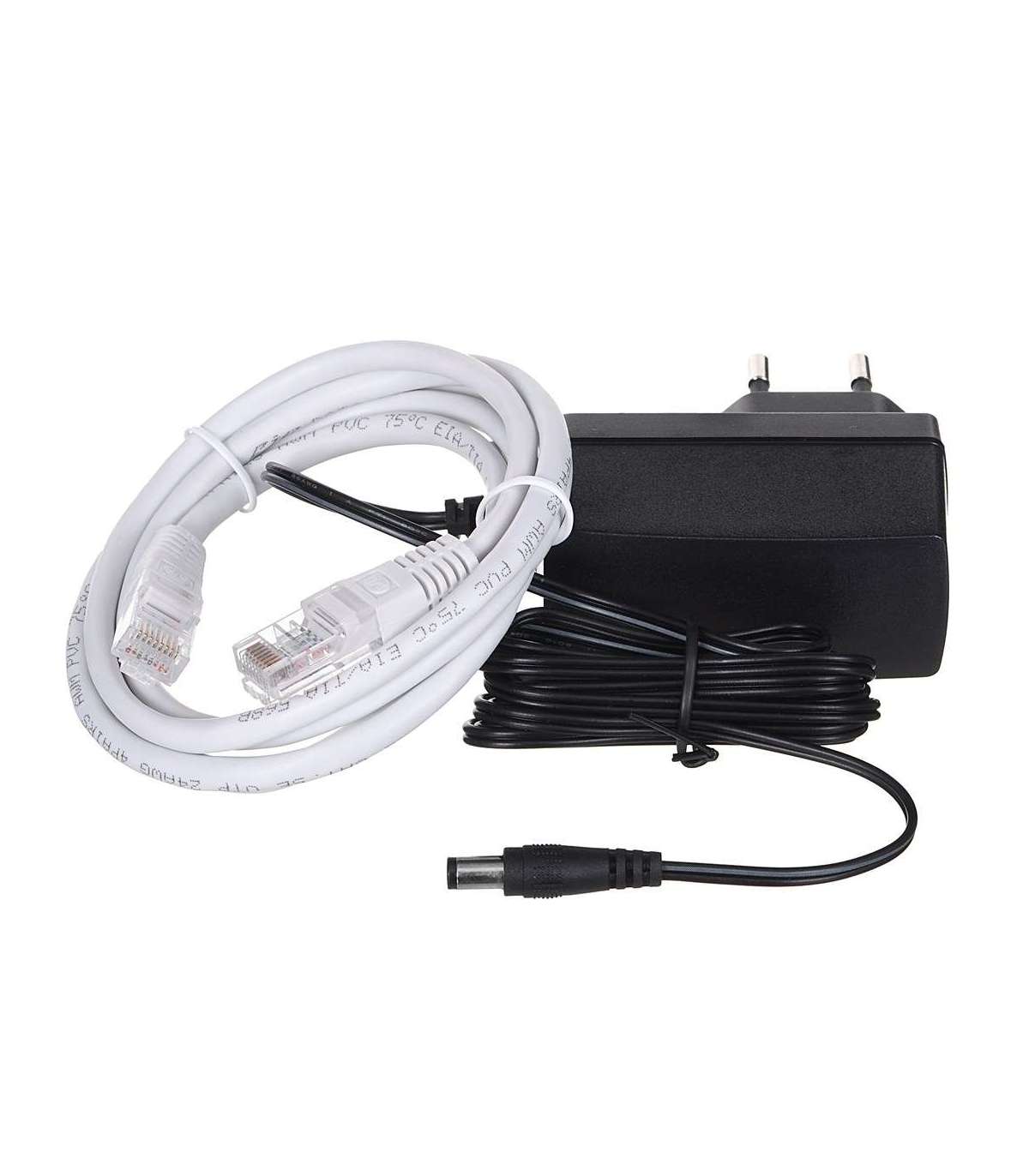

AC adapter included

Yes

Cables included

LAN (RJ-45)

Quick installation guide

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)

WLAN data transfer rate (first band)

574 Mbit/s

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

WLAN data transfer rate (second band)

1201 Mbit/s

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

WLAN data transfer rate (max)

1800 Mbit/s

DHCP client

Yes

DHCP server

Yes

Universal Plug and Play (UPnP)

Yes

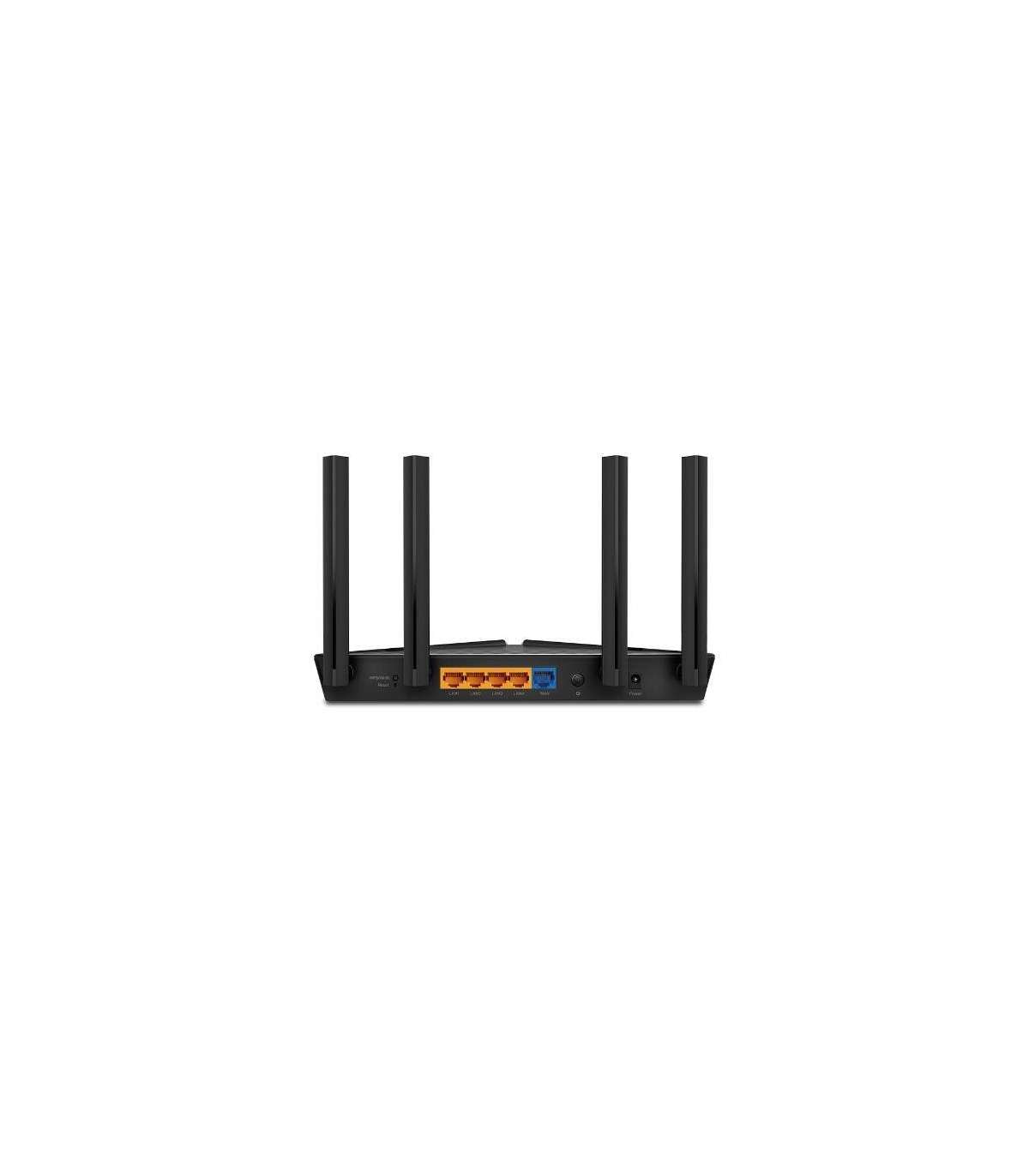

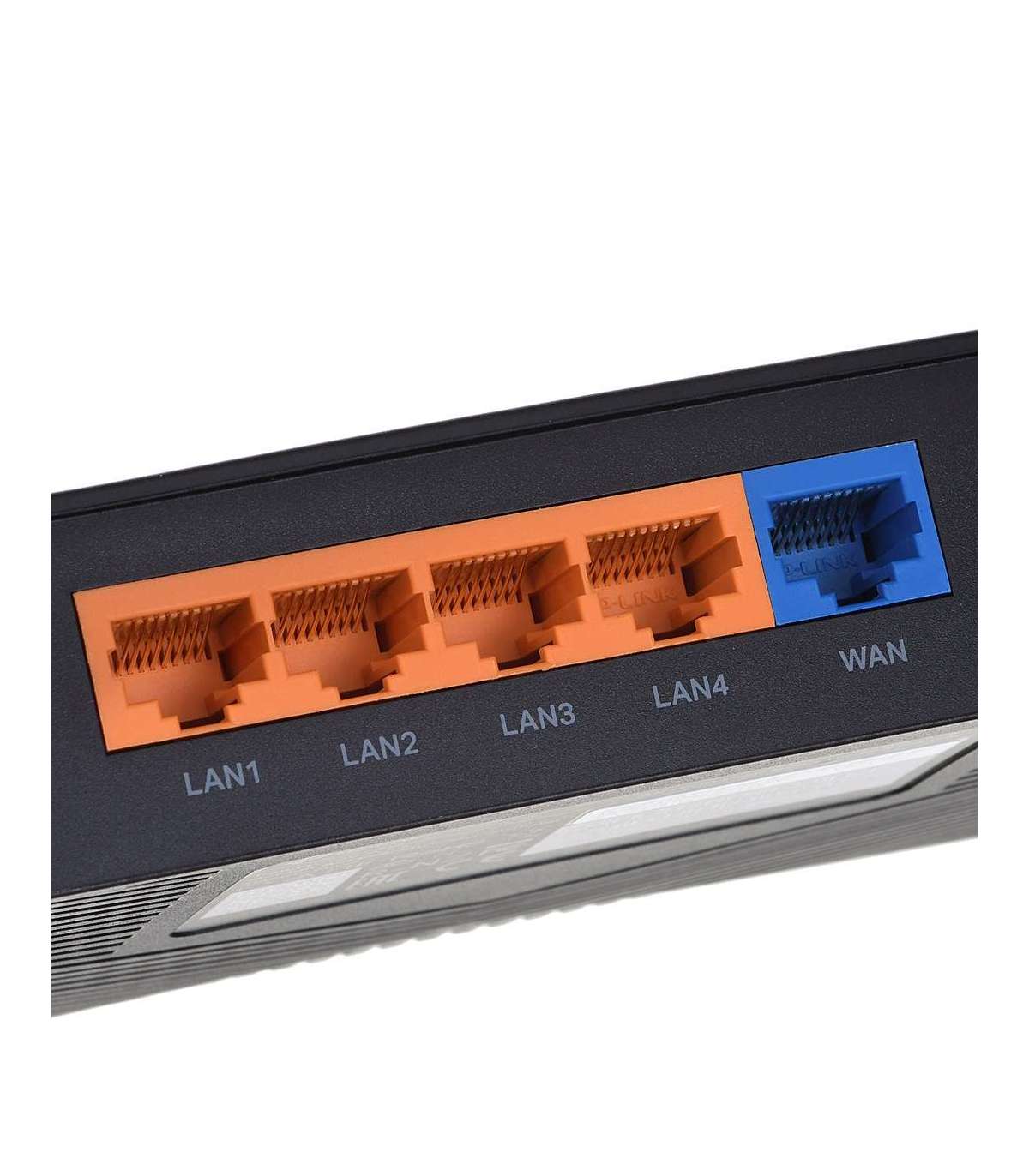

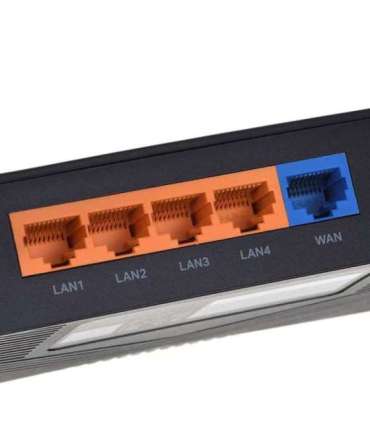

Ethernet LAN (RJ-45) ports

4

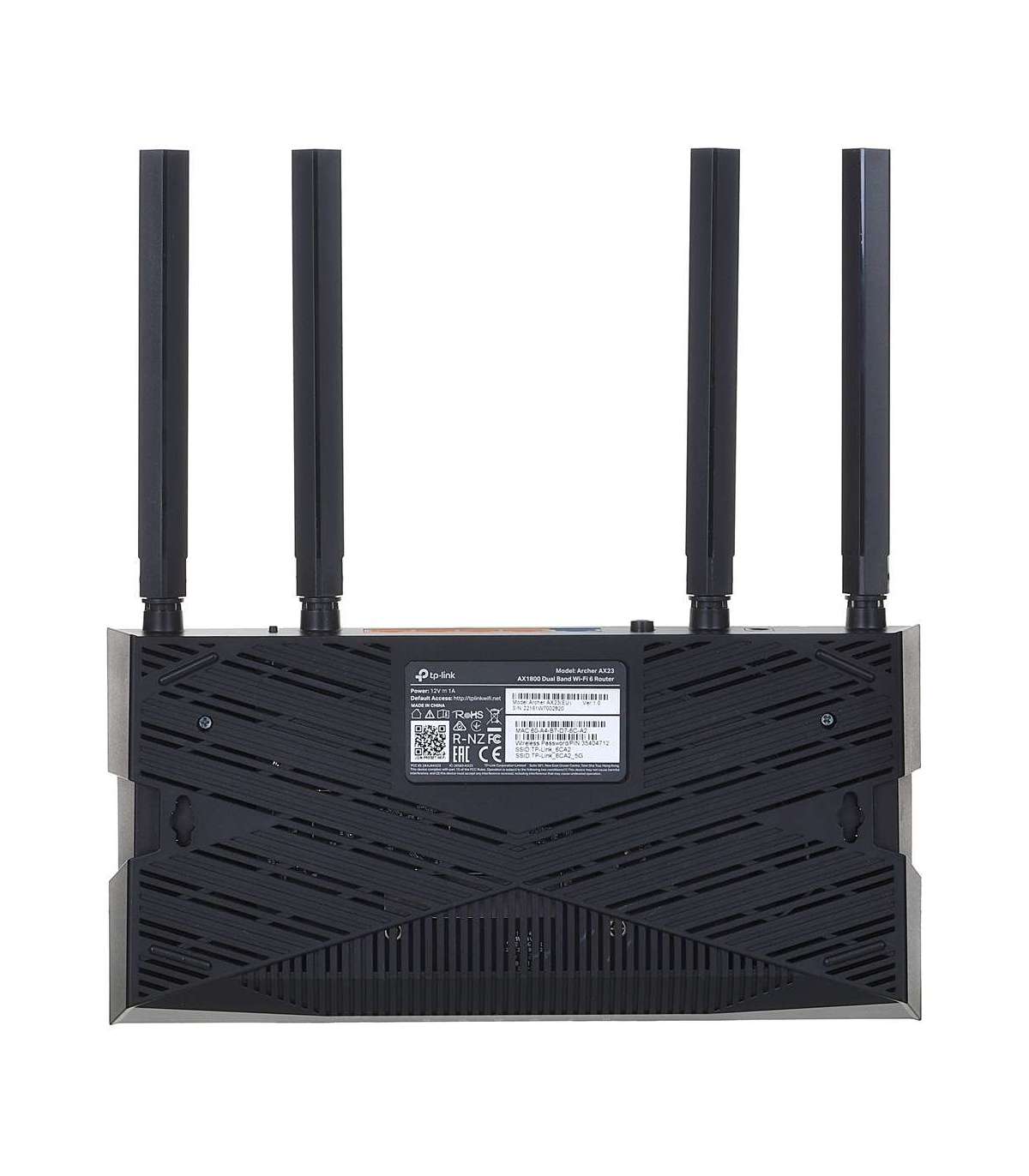

Antenna design

External

SIM card slot

No

Ethernet WAN

Yes

4G

Yes

Processor cores

2

Built-in processor

Yes

IP address filtering

Yes

Web-based management

Yes

Ethernet LAN data rates

10
100 Mbit/s
1000 Mbit/s

Networking standards

IEEE 802.11a
IEEE 802.11ac
IEEE 802.11ax
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Windows operating systems supported

Windows 7
Windows 7 Enterprise
Windows 7 Enterprise x64
Windows 7 Home Basic
Windows 7 Home Basic x64
Windows 7 Home Premium
Windows 7 Home Premium x64
Windows 7 Professional
Windows 7 Professional x64
Windows 7 Starter
Windows 7 Starter x64
Windows 7 Ultimate
Windows 7 Ultimate x64
Windows 7 x64
Windows 8
Windows 8 Enterprise
Windows 8 Enterprise x64
Windows 8 Pro
Windows 8 Pro x64
Windows 8 x64
Windows 8.1
Windows 8.1 Enterprise
Windows 8.1 Enterprise x64
Windows 8.1 Pro
Windows 8.1 Pro x64
Windows 8.1 x64
Windows 10
Windows 10 Education
Windows 10 Education x64
Windows 10 Enterprise
Windows 10 Enterprise x64
Windows 10 Home
Windows 10 Home x64
Windows 10 IOT Core
Windows 10 IoT Enterprise
Windows 10 Pro
Windows 10 Pro x64
Windows 98SE
Windows 2000
Windows 2000 Professional
Windows Vista
Windows Vista Business
Windows Vista Business x64
Windows Vista Enterprise
Windows Vista Enterprise x64
Windows Vista Home Basic
Windows Vista Home Basic x64
Windows Vista Home Premium
Windows Vista Home Premium x64
Windows Vista Ultimate
Windows Vista Ultimate x64
Windows Vista x64
Windows XP
Windows XP Home
Windows XP Home x64
Windows XP Professional
Windows XP Professional x64

Linux operating systems supported

Yes

Mac operating systems supported

Yes

Package width

500 mm

Package depth

350 mm

Package height

395 mm

USB port

No

DC-in jack

Yes

WAN connection type

RJ-45

Harmonized System (HS) code

85176990

Certification

FCC, CE, RoHS

Processor frequency

1500 MHz

Guest access

Yes

Network address translation (NAT)

Yes

System event log

Yes

NAT functionality

Port Forwarding, Port Triggering, UPnP, DMZ

Web-based setup wizard

Yes

Bandwidth control

Yes

Static route

Yes

Flow control support

Yes

Full duplex

Yes

Warranty card

Yes

Antenna connector type

SMA
