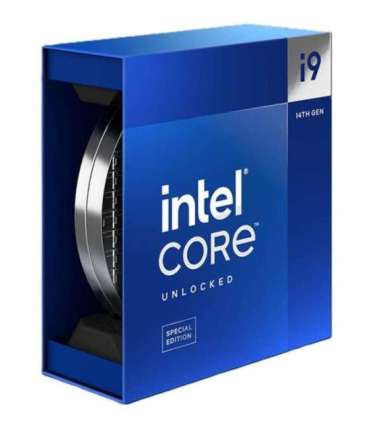

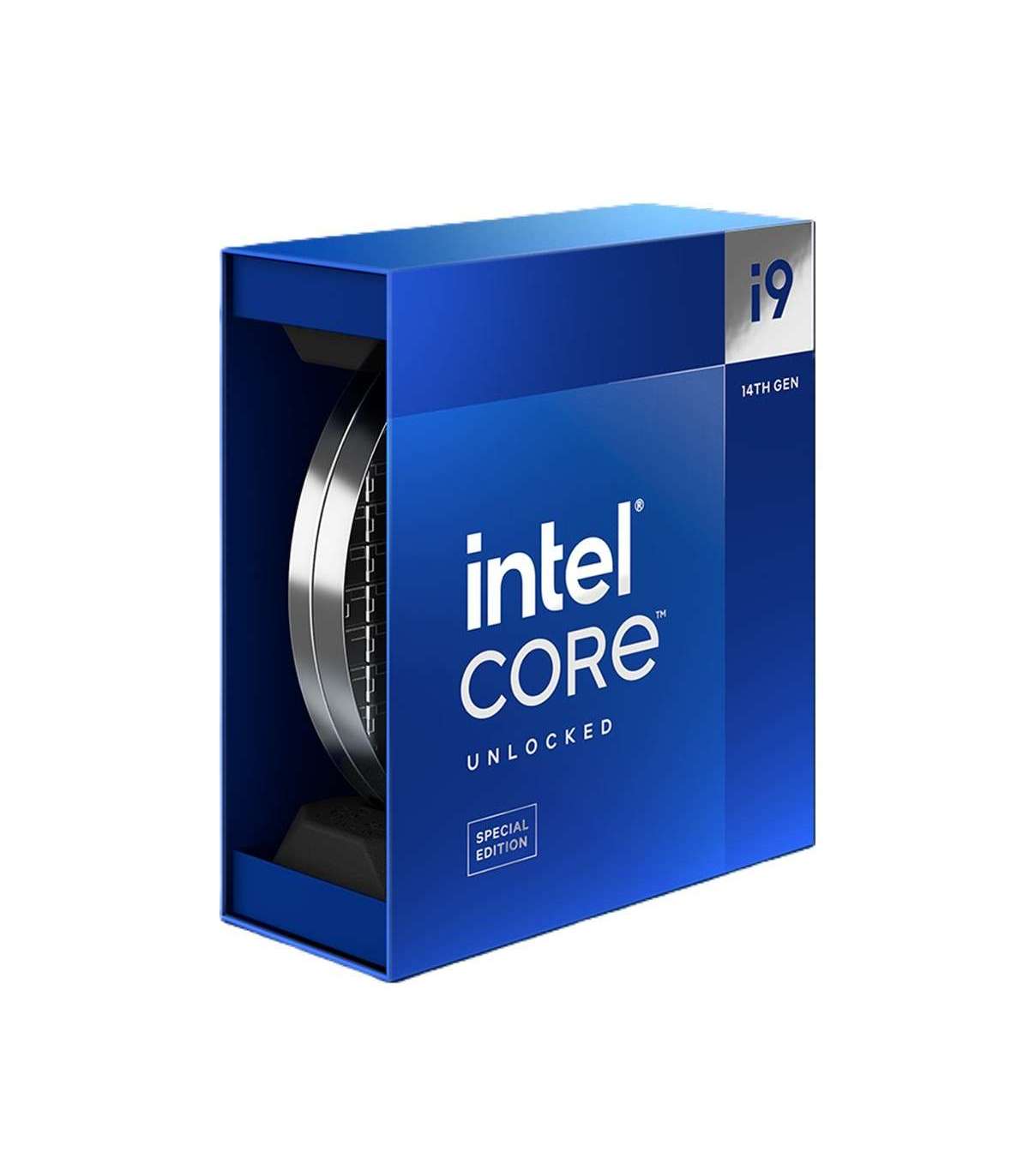

Intel Core i9-14900KS processor 36 MB Smart Cache Box

Характеристики

Embedded options available

No

Execute Disable Bit

Yes

ECC

Да

Maximum number of PCI Express lanes

20

On-board graphics card OpenGL version

4.5

On-board graphics card DirectX version

12.0

Number of execution units

32

Intel® Quick Sync Video Technology

Yes

Commodity Classification Automated Tracking System (CCATS)

740.17B1

Enhanced Intel SpeedStep Technology

Yes

Intel 64

Yes

Processor operating modes

64-bit

Intel® AES New Instructions (Intel® AES-NI)

Yes

Intel® Secure Key

Yes

Supported instruction sets

AVX 2.0
SSE4.1
SSE4.2

Processor ARK ID

237504

Intel® OS Guard

Yes

Processor package size

45 x 37.5 mm

Intel® Hyper Threading Technology (Intel® HT Technology)

Yes

Thermal Monitoring Technologies

Yes

Performance-core boost frequency

5.7 GHz

Maximum internal memory supported by processor

192 GB

Memory types supported by processor

DDR4-SDRAM
DDR5-SDRAM

Status

Launched

Launch date

Q1'24

Processor codename

Raptor Lake

Box

Yes

Memory bandwidth supported by processor (max)

89.6 GB/s

Maximum number of DMI lanes

8

On-board graphics card outputs supported

DisplayPort 1.4a
Embedded DisplayPort (eDP) 1.4b
HDMI 2.1

On-board graphics card refresh rate at maximum resolution (HDMI)

60 Hz

On-board graphics card dynamic frequency (max)

1650 MHz

On-board graphics card refresh rate at maximum resolution (DisplayPort)

60 Hz

On-board graphics card base frequency

300 MHz

On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)

120 Hz

On-board graphics card ID

0xA780

Number of displays supported (on-board graphics)

4

On-board graphics card maximum resolution (DisplayPort)

7680 x 4320 pixels

On-board graphics card maximum resolution (HDMI)

4096 x 2160 pixels

On-board graphics card maximum resolution (eDP - Integrated Flat Panel)

5120 x 3200 pixels

Multi-Format Codec Engines

2

Direct Media Interface (DMI) Revision

4.0

PCI Express configurations

1x16+1x4
2x8+1x4

Scalability

1S

Idle States

Yes

Use conditions

PC/Client/Tablet

Tjunction

100 °C

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel Virtualization Technology (VT-x)

Yes

Intel® Standard Manageability (ISM)

Yes

Intel® Volume Management Device (VMD)

Yes

Intel® Deep Learning Boost (Intel® DL Boost) on CPU

Yes

Intel® Thread Director

Yes

Intel® Speed Shift Technology

Yes

Intel® Turbo Boost Technology

2.0

Mode-based Execute Control (MBE)

Yes

Intel® Clear Video HD Technology (Intel® CVT HD)

Yes

Intel® Threat Detection Technology (TDT)

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Turbo Boost Max Technology 3.0

Yes

Intel® Boot Guard

Yes

Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0

Yes

Intel® Control-flow Enforcement Technology (CET)

Yes

Graphics output

eDP 1.4b, DP 1.4a, HDMI 2.1

L2 cache

32768 KB

Export Control Classification Number (ECCN)

5A992C

Intel® Thermal Velocity Boost

Yes

Intel Trusted Execution Technology

Yes

Intel® One-Click Recovery

Yes

Intel® Remote Platform Erase (RPE)

Yes

Intel® Virtualization Technology with Redirect Protection (VT-rp)

Yes

Intel® Active Management Technology (Intel® AMT)

Yes

Intel® Total Memory Encryption - Multi Key

Yes

Intel vPro® Essentials Platform Eligibility

Yes

Intel vPro® Enterprise Platform Eligibility

Yes

Intel® Hardware Shield Eligibility

Yes

Stepping

B0

Intel® Turbo Boost Max Technology 3.0 frequency

5.9 GHz

Intel® Thermal Velocity Boost Frequency

6.2 GHz

Intel® Adaptive Boost Technology

Yes

Семейство процессоров

Intel® Core™ i9

Ядра процессора

24

Модель процессора

i9-14900KS

Потоки процессора

32

Сокет процессора

LGA 1700

Кулер в комплекте

No

Версия слотов PCI Express

4.0
5,0

Максимальная внутренняя память

192 GB

Конфигурация процессора (макс.)

1

Кэш процессора

36 MB

Код Гармонизированной системы (HS)

8542310001

Предупреждения

Avoid contact with liquid.
Do not install on a switched-on device.
Protect against overheating.

Пропускная способность памяти (макс.)

89.6 GB/s

Версия OpenCL

3.0

Производительные ядра

8

Энергоэффективные ядра

16

Каналы памяти

Dual-channel

Производитель процессора

Intel

Тип кэша процессора

Smart Cache

Модель дискретной видеокарты

Not available

Встроенная видеокарта

Yes

Модель встроенной видеокарты

Intel UHD Graphics 770

Дискретная видеокарта

No

Поколение процессора

Intel® Core™ i9 (14th gen)

Максимальная мощность турбины

253 W

Базовая частота производительного ядра

3.2 GHz

Базовая мощность процессора

150 W

Сегмент рынка

Desktop

Без ECC

Yes
