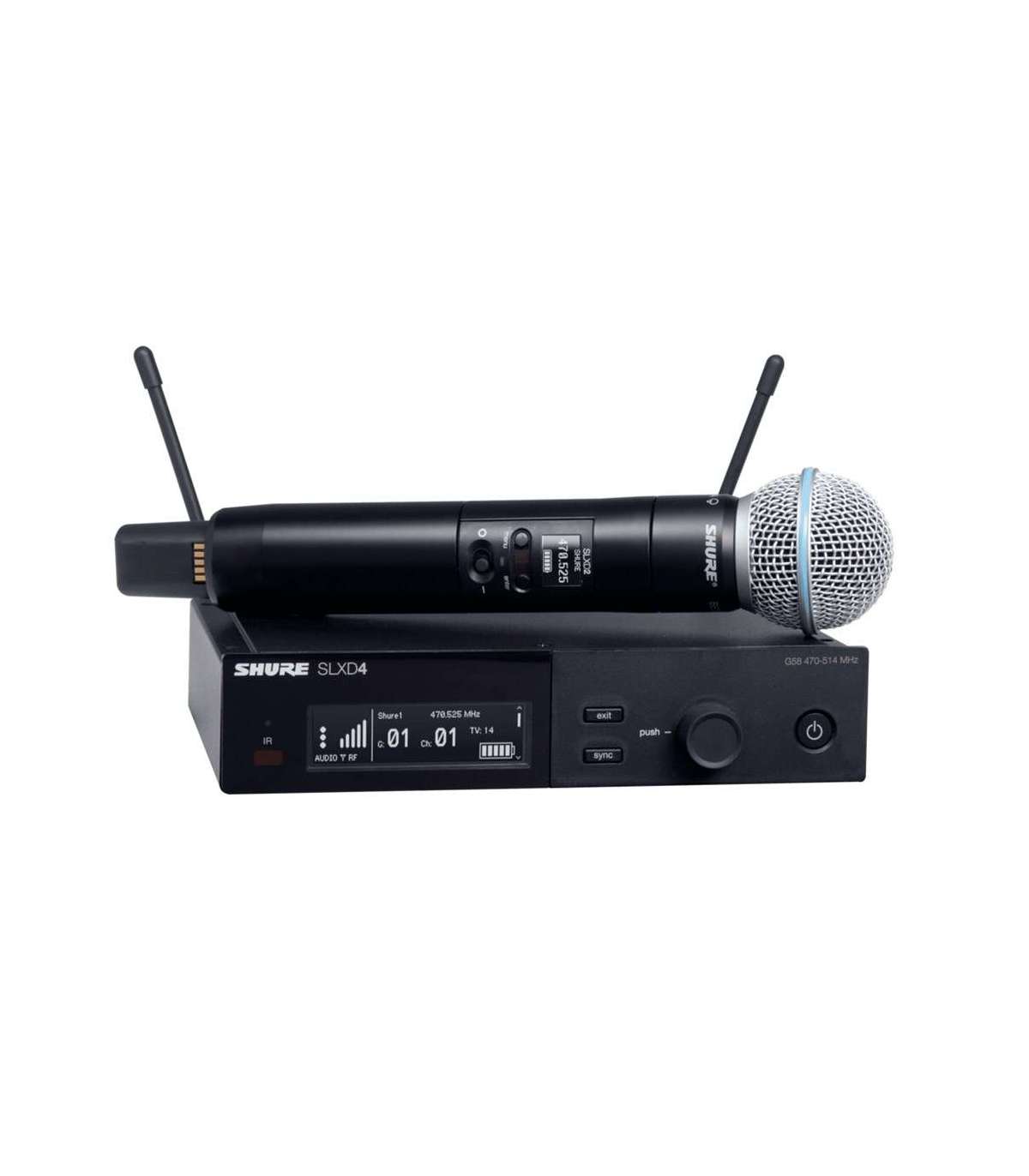

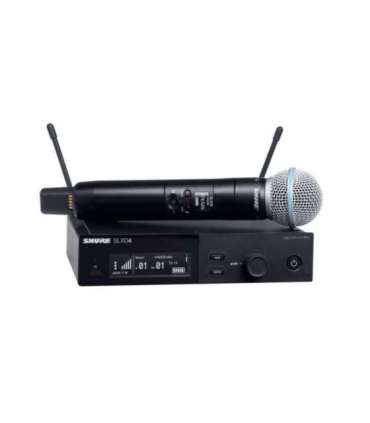

Shure SLXD24E/B58-G59 wireless microphone system

Характеристики

Storage temperature (T-T)

-29 - 74 °C

Operating temperature (T-T)

-18 - 50 °C

Antennas quantity

2

Warnings

Avoid contact with water.
Do not open the unit housing.

Antenna connector type

BNC

RJ-45 ports quantity

1

Battery technology

Lithium-Ion (Li-Ion)

Battery voltage

1.5 V

Battery type

AA

Transmitter weight

147 g

Microphone type

Handheld microphone

Total Harmonic Distortion (THD)

0.02%

Dynamic range

118 dB

Channels quantity

32 channels

Microphone connectivity

RF Wireless

6.35 mm (1⁄4-inch) output

1

XLR out

1

Receiver dimensions (WxDxH)

197 x 152 x 42 mm

Transmitter dimensions (WxDxH)

37.1 x 37.1 x 176 mm

Receiver weight

816 g

Transmitter type

Handheld transmitter

Receiver type

Stationary receiver

Receiver display

Yes

Radio Frequency (RF) range

470 - 514 MHz

Operating frequency type

Ultra High Frequency (UHF)

Operating voltage (receiver)

15 V

Number of transmitters included

1

Number of receivers included

1

Number of microphones included

1

Microphone frequency response

50 - 16000 Hz

Microphone transducer principle

Dynamic microphone

Transmitter housing material

Metal

Receiver housing material

Steel

Power consumption (receiver) (max)

600 mA

Pick-up pattern

Super-Cardioid

Microphone power source type

Battery

Transmitter display

Yes

Receivers AF frequency response

20 - 20000 Hz
