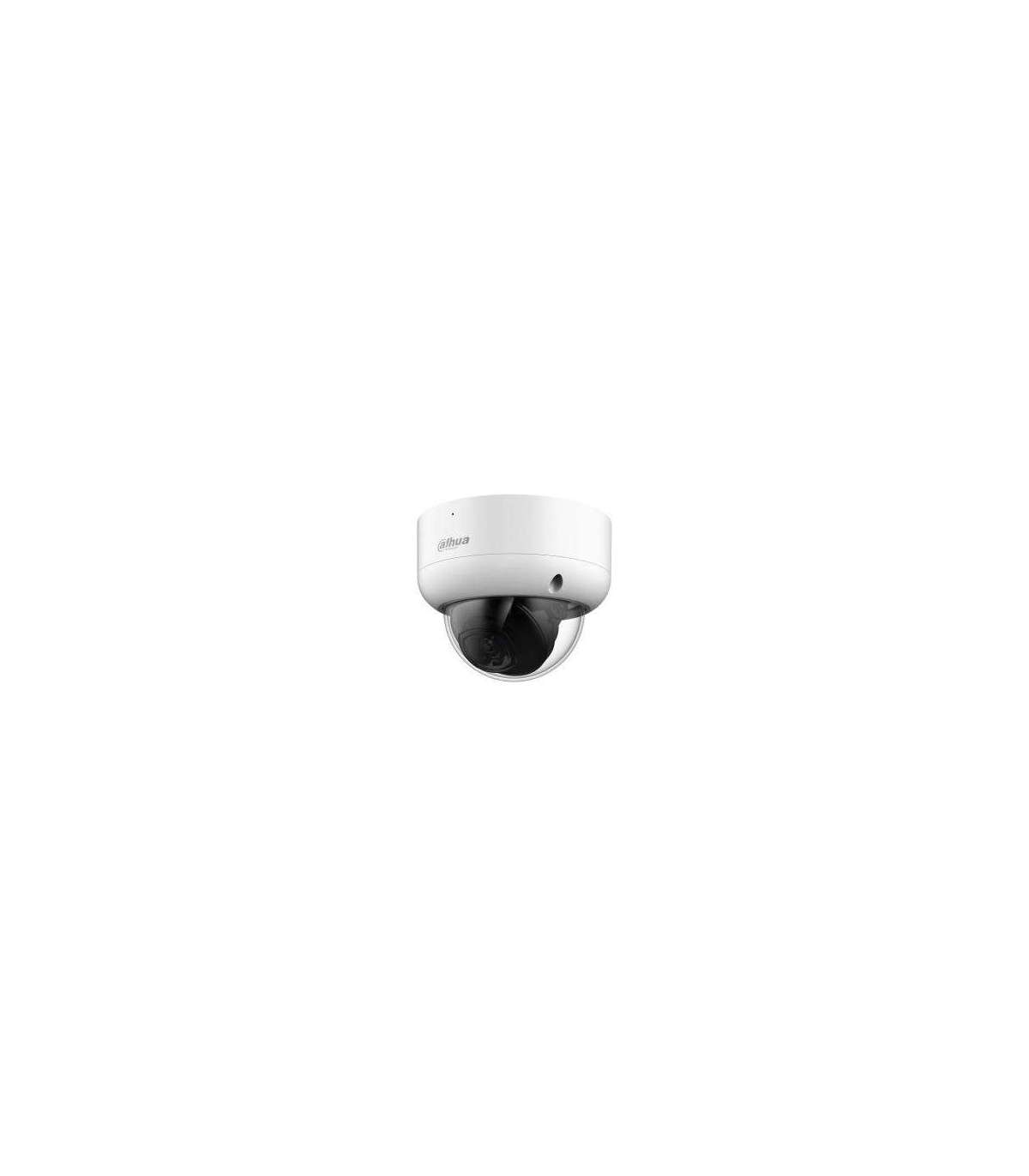

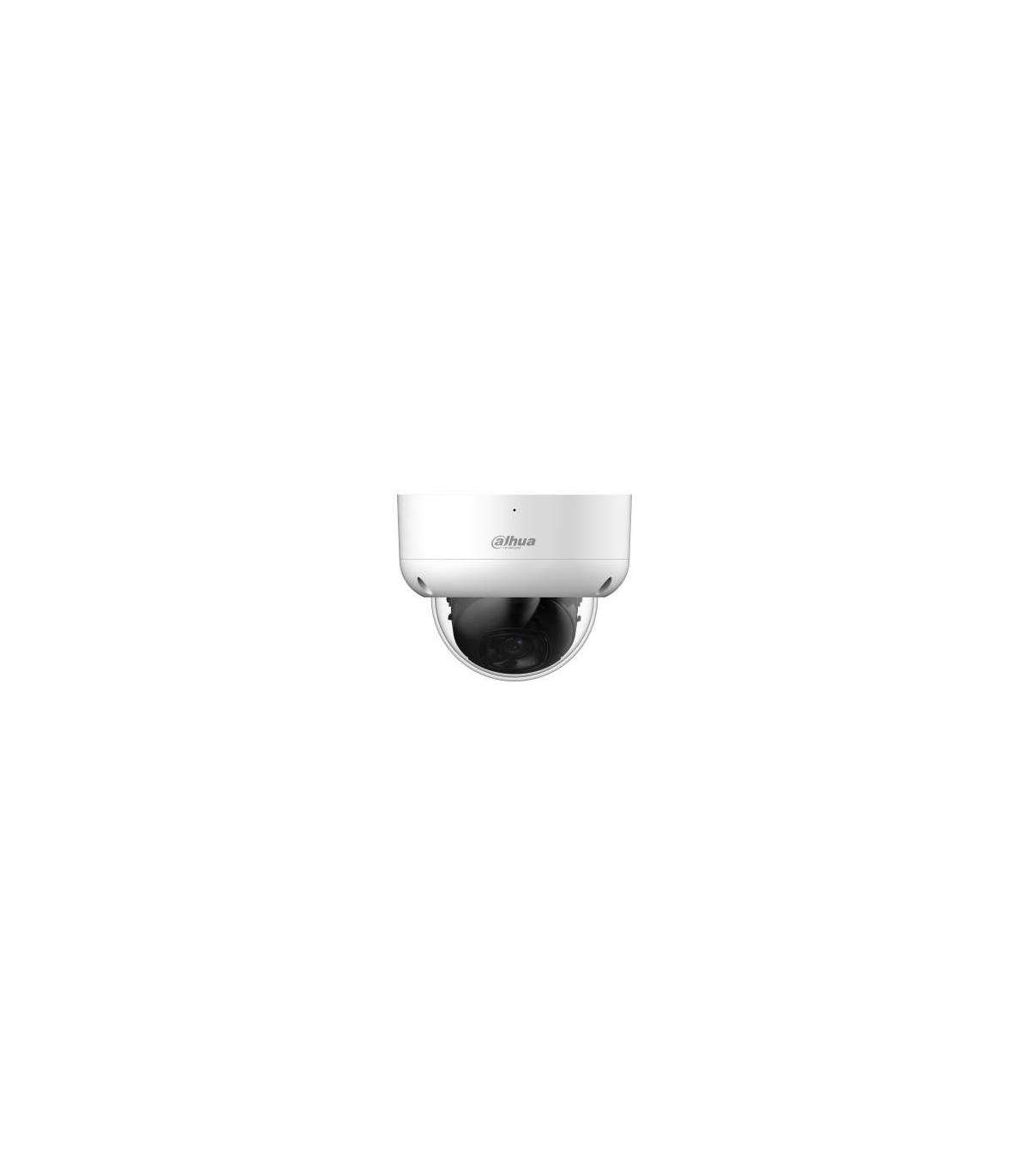

CAMERA HDCVI 5MP DOME/HDBW1500EA-A-0280B-S3DIP DAHUA
The Lite Series is a great choice for consumers looking for high-quality monitoring products at a reasonable price. Its low cost and high performance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as full color and starlight, providing various solutions for different scenarios.
Starlight
With its large image sensor and large aperture, the camera delivers high performance and quality even in low-light conditions. The Starlight feature allows the camera to capture highly detailed images in accurate color, recognizing targets even at night or in scenes with limited light.
Built-in Mic
Audio signal transmission over coaxial cables is supported by the HDCVI camera. It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the collected audio information. This is important for video surveillance applications that use audio as supplementary evidence.
Smart IR Illumination
With its IR illumination, the camera provides optimal performance in low-light conditions, ensuring uniform brightness in black-and-white images. Through smart IR technology, it compensates for the distance of targets by adjusting the intensity of its IR LEDs, preventing overexposure as targets move closer.
Super Adapt
With its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images.
Advanced 3DNR
Dahua’s advanced 3DNR technology reduces image noise with little to no impact on image sharpness, especially in poor lighting conditions. It detects noise and compares sequential frames to reduce it effectively while also saving bandwidth and storage space.
Protection (IP67, IK10, Wide Voltage)
IP67: The camera passed rigorous dust and immersion tests. Its enclosure is dust-proof and waterproof and can function normally while immersed in water up to 1 m deep for 30 minutes.
IK10: The enclosure can withstand up to five impacts from a 5 kg hammer falling from a height of 40 cm (20 J impact energy).
Wide voltage: The camera has ±30% input voltage tolerance (for some power supplies) and a wide voltage range, making it suitable for various outdoor scenarios.
4 Signals over 1 Coaxial Cable
HDCVI technology supports four signals (video, audio*, data, and power) transmitted simultaneously over a coaxial cable. Dual-way data transmission allows the HDCVI camera to interact with the XVR to perform actions such as sending control signals and triggering alarms. HDCVI also supports PoC, making installation quick and easy. Audio input is available for select HDCVI camera models.
- The parameters and datasheets below can only be applied to 1500-S3 series
- In order to use the 5 MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version Max. 25 fps@5 MP (16:9 video output)
- Starlight, 3D NR
- 40 m illumination distance
- Built-in MIC
- 3.6 mm fixed lens (2.8 mm optional)
- CVI/CVBS/AHD/TVI switchable
- IP67, 12 VDC
Характеристики
- Number of cameras
- 1
- Mirror
- Yes
- Video motion detection
- Yes
- Built-in HDD
- No
- Number of sensors
- 1
- Number of lenses
- 1
- Intelligent Video Surveillance (IVS) system features
- Intrusion/Tripwire
- Lens viewing angle, vertical
- 62.1 °
- Lens viewing angle, diagonal
- 134.3 °
- Lens viewing angle, horizontal
- 113.3 °
- Pan range
- 0 - 355 °
- Back Light Compensation (BLC)
- Yes
- Digital watermark
- Yes
- Camera shutter speed
- 1/100000 s
- Noise reduction technology
- 3D noise reduction
- Gain control type
- Auto/Manual
- Digital Wide Dynamic Range (DWDR)
- Yes
- Smart IR
- Yes
- Observe distance
- 23.9 m
- Recognize distance
- 12 m
- Detect distance
- 59.8 m
- Identify distance
- 6 m
- Minimum illumination
- 0.01 lx
- IK code
- IK10
- Number of Privacy masking areas
- 8
- Highlight Compensation (HLC)
- Yes
- Fixed focus
- Yes
- Alarm input channels
- 1
- Alarm output channels
- 1
- Remote viewing
- Yes
- Вес
- 440 g
- Диаметр
- 112 mm
- Тип
- IP security camera
- Высота
- 89.1 mm
- Сосредоточенность
- Motorized/Manual
- Тип датчика
- CMOS
- Относительная влажность при хранении (H-H)
- 0 - 95 %
- Рабочая температура (T-T)
- -40 - 60 °C
- Рабочая относительная влажность (H-H)
- 0 - 95 %
- Температура хранения (T-T)
- -40 - 60 °C
- Максимальное разрешение
- 2880 x 1620 pixels
- Руководство
- Да
- Технология подключения
- Проводной
- Гнездо питания DC
- Да
- Поддерживаемые графические разрешения
- 1920 x 1080 (HD 1080)/2560 x 1440/2880 x 1620/960 x 480
- Потребляемая мощность (max)
- 3,5 Вт
- Сертификация
- CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
- Встроенный микрофон
- Да
- Форм-фактор
- Dome
- Вес посылки
- 620 g
- Защитные функции
- Vandal proof
- Единиц в транспортной коробке
- 1
- Вычисленный объём единицы
- 0.002759 cubm
- Тип источника питания
- DC
- Общее количество мегапикселей
- 5 MP
- Баланс белого
- Area white balance/Auto
- Тип затвора камеры
- Electronic
- Частота кадров
- 30 fps
- Максимальное значение диафрагмы
- 1.6
- Отношение сигнал/шум (SNR)
- 65 dB
- Количество светодиодов подсветки
- 3
- Алгоритмы безопасности
- HTTPS
- Тип монтажа
- Ceiling/wall
- Материал корпуса
- Metal/Plastic
- Веб-управление
- Да
- Шумоподавление
- Да
- Международный код защиты (IP)
- IP67
- Угол поворота
- 355 °
- Цвет товара
- White
- Фиксированное фокусное расстояние
- 2.8 mm
- Дневной/ночной режим
- Yes
- Тревожный вход/выход
- Yes
- Широкий динамический диапазон (WDR)
- Yes
- Выходное напряжение постоянного тока
- 12
- Ночное видение
- Yes
- Дальность ночного видения
- 40 m
- Диапазон угла наклона
- 0 - 80 °
- Прогрессивная развертка
- Yes
- Размещение поддерживается
- Indoor & outdoor
-
