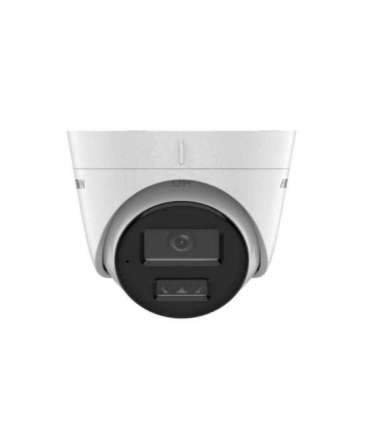

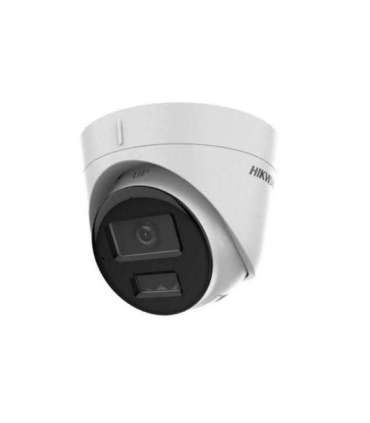

IP camera Hikvision DS-2CD1343G2-LIU(2.8mm)

Характеристики

Weight

340 g

Height

89.2 mm

Package weight

560 g

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Quality of Service (QoS) support

Yes

Web-based management

Yes

Networking standards

IEEE 802.3af

Package width

150 mm

Package depth

150 mm

Package height

141 mm

Housing material

Metal
Plastic

Dedicated application

Hik-Connect (Android, iOS)

Power consumption (max)

5 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Number of users

32 user(s)

Form factor

Turret

Password protection

Yes

Bluetooth

No

Built-in microphone

Yes

DC output voltage

12

Optical sensor size

25.4 / 3 mm (1 / 3")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

2560 x 1440 pixels

Noise reduction

Yes

Type

IP security camera

Diameter

11 cm

Number of cameras

1

Video streaming

Yes

Fixed focal length

2.8 mm

Viewing angle, vertical

54°

Viewing angle, horizontal

98°

Tilt angle range

0 - 75°

Supported graphics resolutions

640 x 360
640 x 480 (VGA)
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2560 x 1440

Placement supported

Outdoor

Mounting type

Ceiling/wall

Mirror

Yes

DC output current

0.4 A

Video motion detection

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

20 fps

Total megapixels

4 MP

Infra-red wavelength

850 nm

Night vision distance

30 m

LED type

IR

Night vision

Yes

Number of lenses

1

Camera pan control

Yes

Camera tilt control

Yes

Pan range

0 - 360°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness
White balance

Maximum aperture number

1.6

Angle of rotation

360°

Power consumption (Power over Ethernet (PoE))

6.5 W

Digital watermark

Yes

Heartbeat

Yes

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Gain control type

Auto

Privacy masking

Yes

Bit rate

32 Kbps - 8 Mbps

Viewing angle, diagonal

114°
