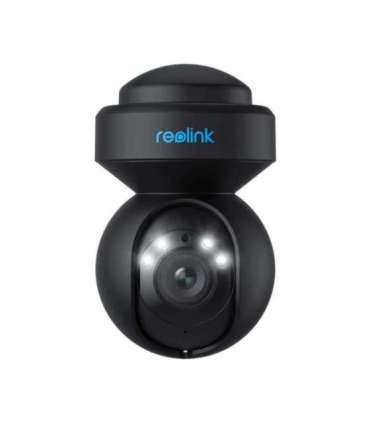

Reolink E Series E540 - IP camera, black

Характеристики

Weight

415 g

Height

120 mm

Product colour

Black

Power source type

DC

Security algorithms

WPA
WPA2

Operating temperature (T-T)

-10 - 50 °C

Operating relative humidity (H-H)

10 - 90%

Reset button

Yes

Ethernet LAN

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)

Ethernet LAN (RJ-45) ports

1

Networking standards

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Supported network protocols

HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

DC-in jack

Yes

Manual

Yes

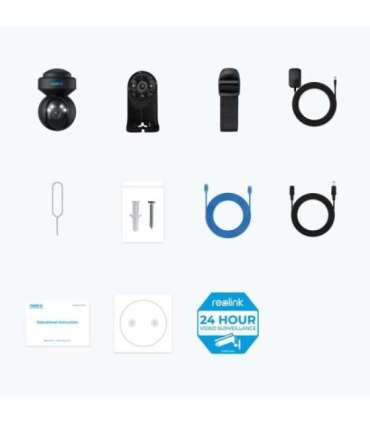

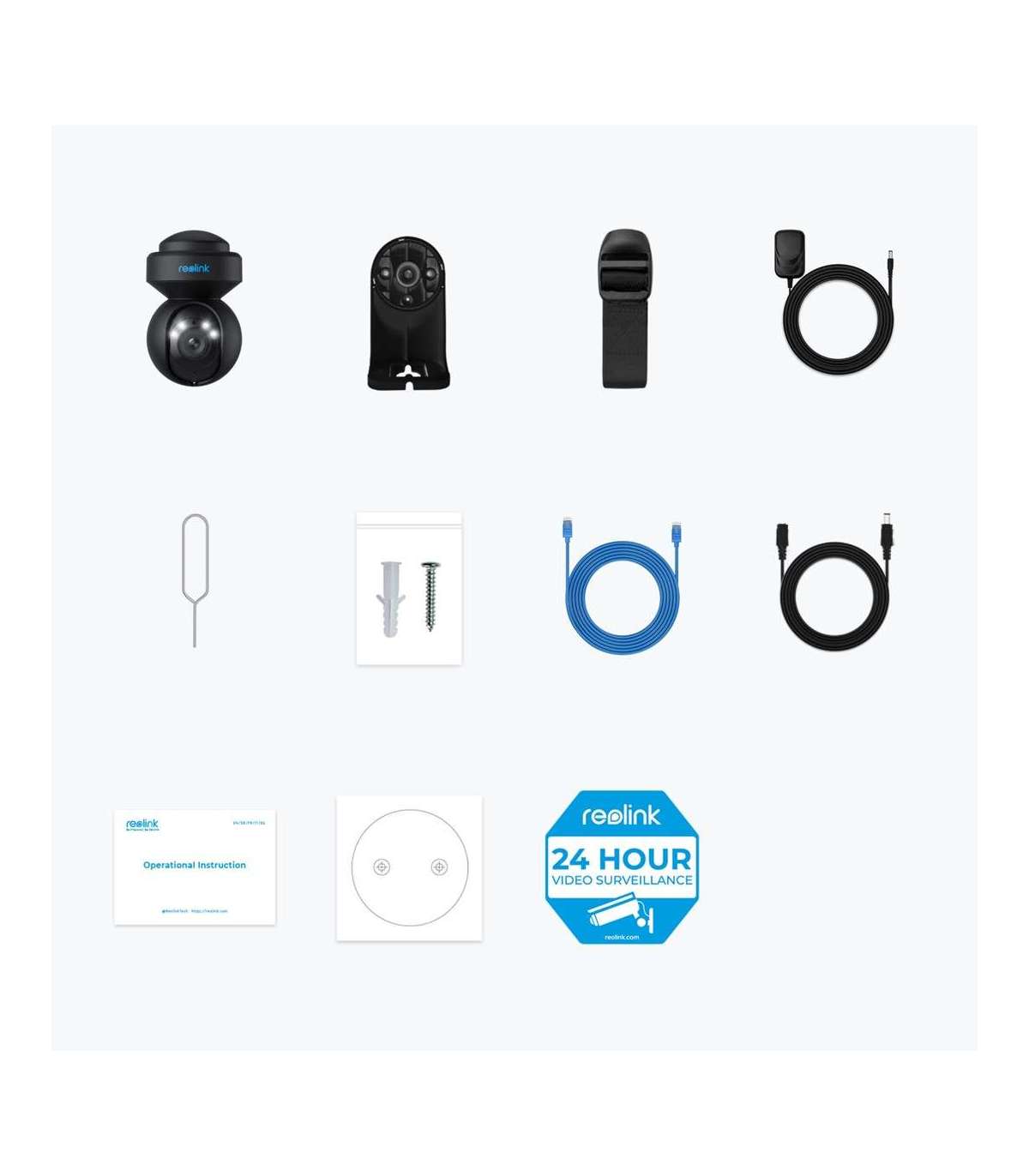

Packaging content

1* E Series E540-B
1* Security Bracket
1* Strap
1* Power Adapter
1* Reset Needle
1* Pack of Screws
1* 4.5m Power Extension Cable
1* 1m Network Cable
1* Mounting Template
1* Quick Start Guide
1* Surveillance Sticker

Power consumption (max)

12 W

Wi-Fi

Yes

Connectivity technology

Wired & Wireless

International Protection (IP) code

IP65

Mounting kit

Yes

Ethernet interface type

Fast Ethernet

Mobile operating systems supported

Android
iOS

Number of users

20 user(s)

Compatible memory cards

MicroSD (TransFlash)

Card reader integrated

Yes

Form factor

Spherical

Bluetooth

No

Built-in speaker(s)

Yes

Built-in microphone

Yes

Audio system

2-way

DC output voltage

12

Video formats supported

H.264

Maximum memory card size

256 GB

Virtual assistant

Google Assistant

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Sensor type

CMOS

Video compression formats

H.264

Maximum resolution

2560 x 1920 pixels

Screws included

Yes

Type

IP security camera

Diameter

9 cm

Number of cameras

1

Live view

Yes

Video streaming

Yes

Tilt angle range

0 - 50°

Supported graphics resolutions

2560 x 1920

Placement supported

Indoor & outdoor

Mounting type

Ceiling

Video recording

Yes

DC output current

1 A

Video motion detection

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

20 fps

Total megapixels

5 MP

Infra-red wavelength

850 nm

Night vision distance

12 m

LED type

IR/White

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

37 - 68°

Lens viewing angle, horizontal

48 - 90°

Pan range

0 - 355°

Focal length range

2.8 - 8 mm

Maximum aperture number

1.6

Infrared (IR) cut-off filter

Yes

Bit rate

64 Kbps - 5120 Kbps

Number of illumination LEDs

12

User access level

Administrator, User

Human and vehicle targets classification

Yes
