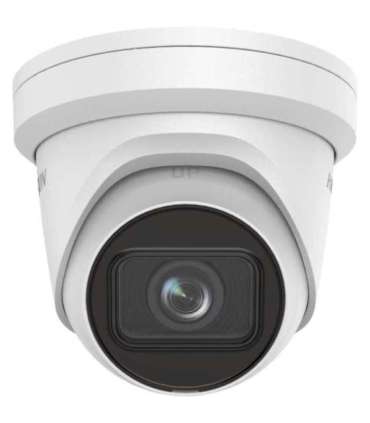

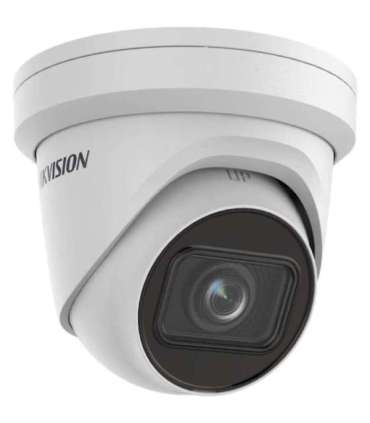

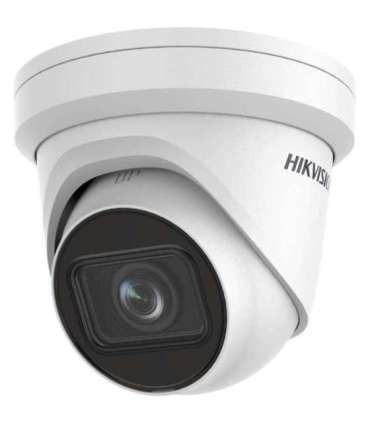

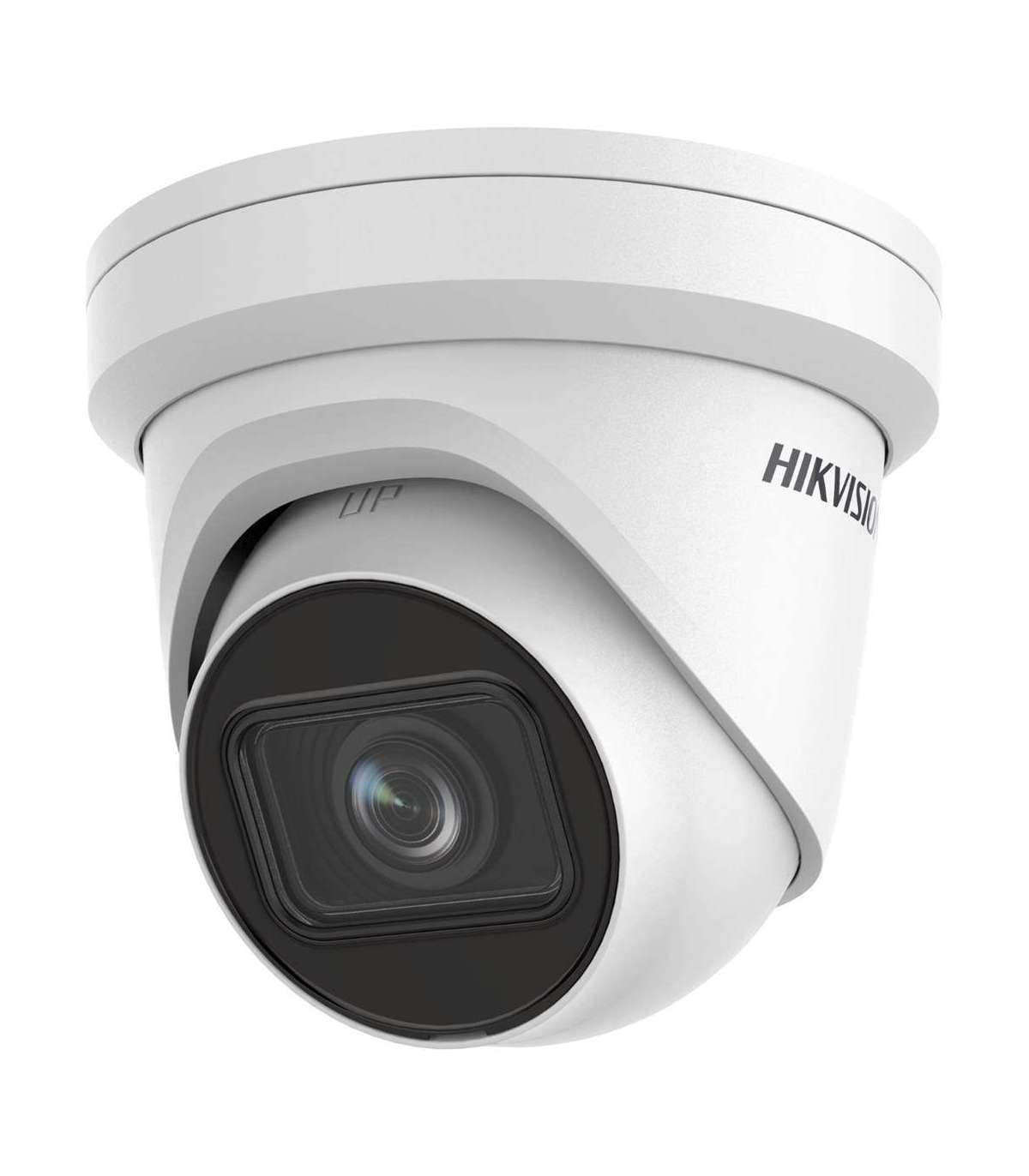

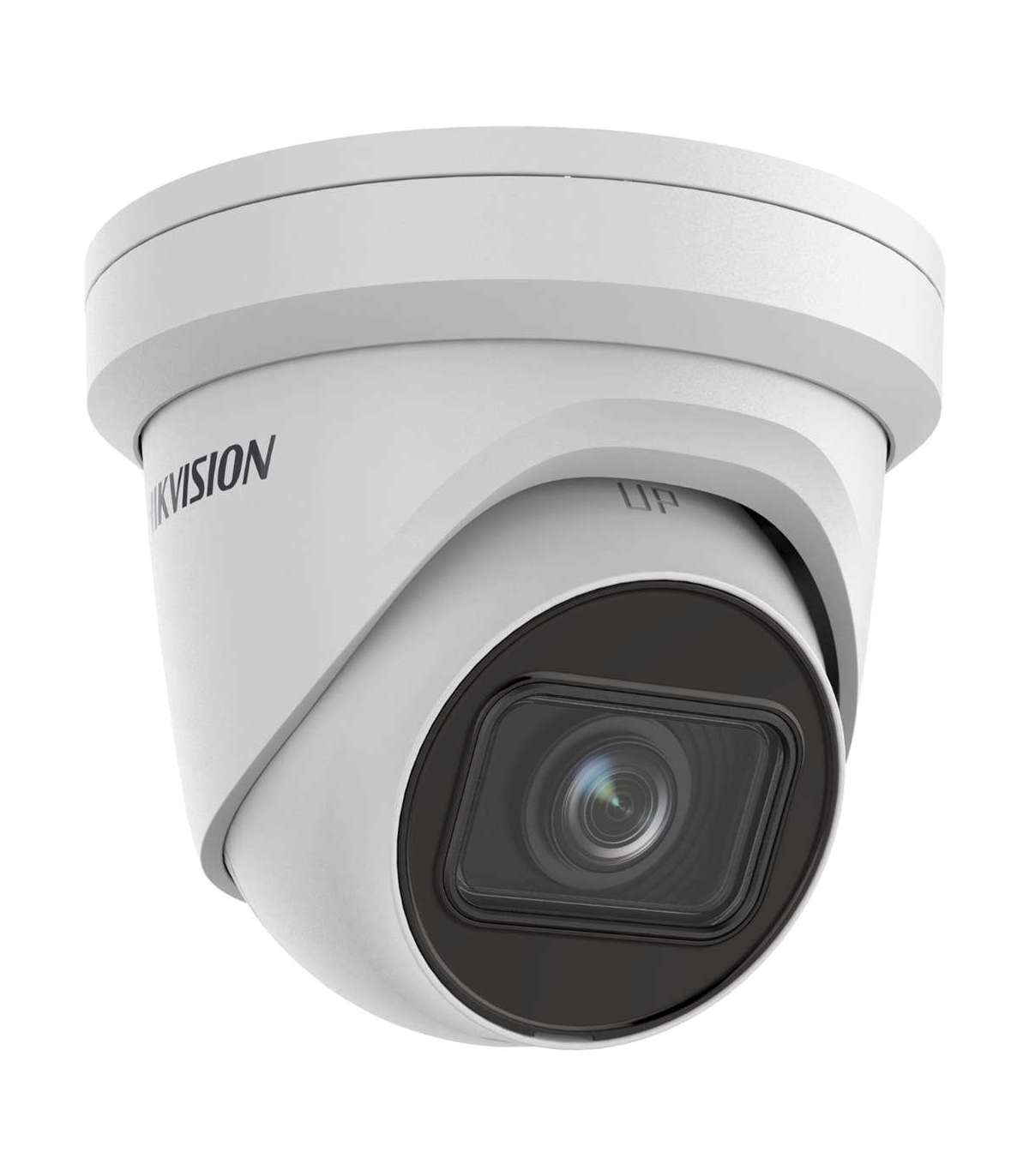

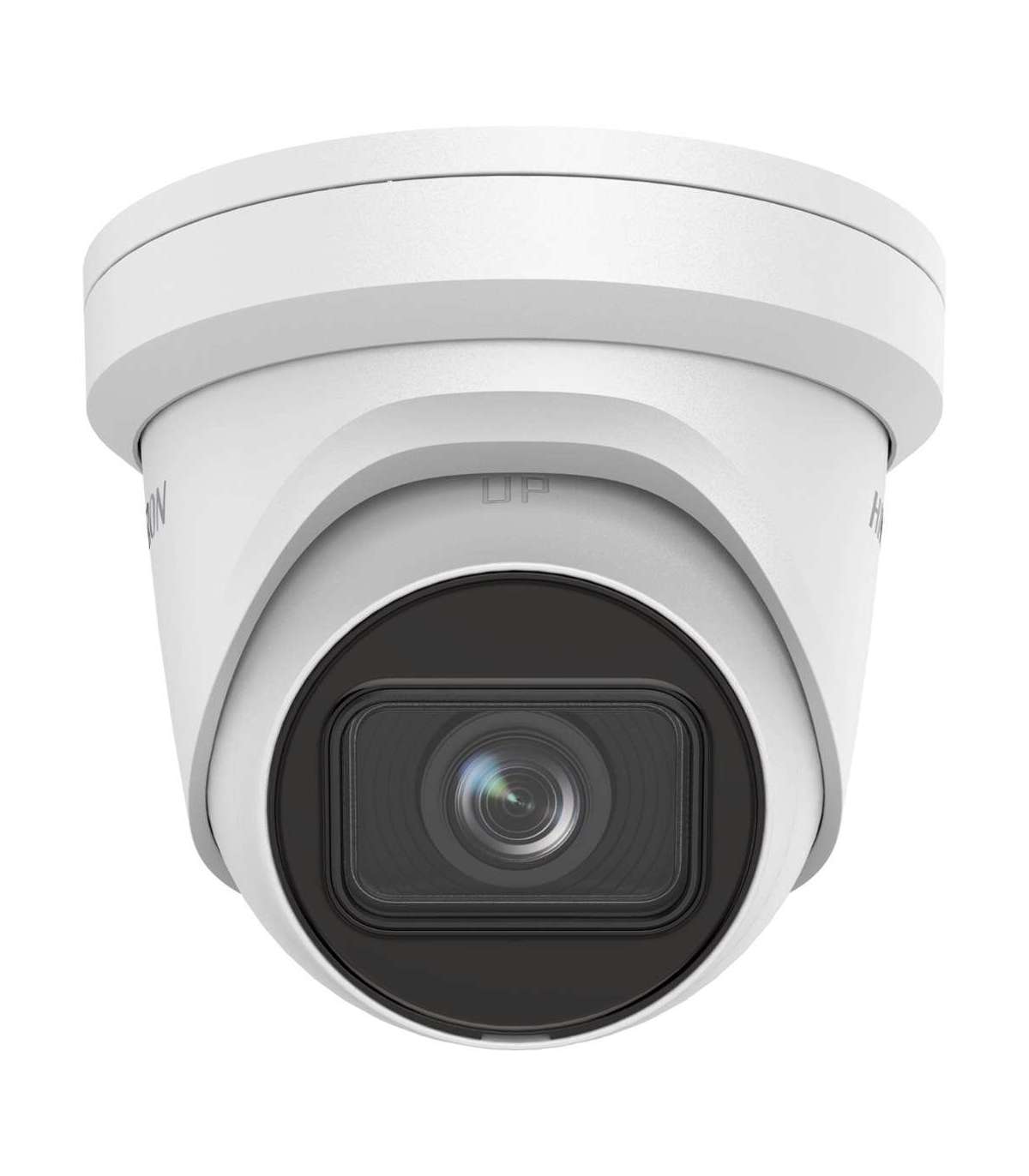

Hikvision DS-2CD2H83G2-IZS In-Ear IP Security Camera Outdoor 3840 x 2160 px Ceiling / Wall

Характеристики

Weight

830 g

Height

126 mm

Package weight

1.16 kg

Product colour

Black
White

Power source type

DC, PoE

Security algorithms

HTTPS
TLS

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Reset button

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Networking standards

IEEE 802.1x
IEEE 802.3af

Package width

216 mm

Package depth

121 mm

Package height

118 mm

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Housing material

Aluminium

Power consumption (max)

11.04 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Languages support

Bulgarian
Czech
Danish
Dutch
English
Estonian
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
LAT
Lithuanian
Norwegian
Polish
Portuguese
Romanian
Russian
SER
Slovak
Slovenian
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Ukrainian
Vietnamese

Compatible memory cards

MicroSD (TransFlash)

Card reader integrated

Yes

Form factor

Dome

Password protection

Yes

Bluetooth

No

DC output voltage

12

Audio formats supported

MP3

Maximum memory card size

256 GB

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

3840 x 2160 pixels

Noise reduction

Yes

Type

IP security camera

Diameter

13.8 cm

Number of cameras

1

Video streaming

Yes

Tilt angle range

0 - 75°

Supported graphics resolutions

640 x 360
640 x 480 (VGA)
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2688 x 1520
3840 x 2160

Placement supported

Outdoor

Mounting type

Ceiling/wall

DC output current

0.92 A

Video motion detection

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

8 MP

Infra-red wavelength

850 nm

Night vision distance

40 m

LED type

IR

Night vision

Yes

Number of lenses

1

Camera pan control

Yes

Camera tilt control

Yes

Intelligent Video Surveillance (IVS) system features

Face detection

Lens viewing angle, vertical

56°

Lens viewing angle, diagonal

131°

Lens viewing angle, horizontal

108°

Pan range

0 - 360°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness

Back Light Compensation (BLC)

Yes

Focal length range

2.8 - 12 mm

Maximum aperture number

1.6

Angle of rotation

360°

Power consumption (Power over Ethernet (PoE))

12.5 W

Heartbeat

Yes

Anti-flicker

Yes

HTTPS encryption

Yes

Number of languages

33

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1/3 - 1/100000 s

Noise reduction technology

3D noise reduction

Privacy masking

Yes

Bit rate

32 Kbps - 16 Mbps

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

IK code

IK10

Voice codecs

AAC
G.711alaw
G.711ulaw
G.722.1
G.726
MP2L2
PCM

Highlight Compensation (HLC)

Yes

Sample rate

48 kHz

Behavior analysis

Intrusion detection, Line crossing detection
