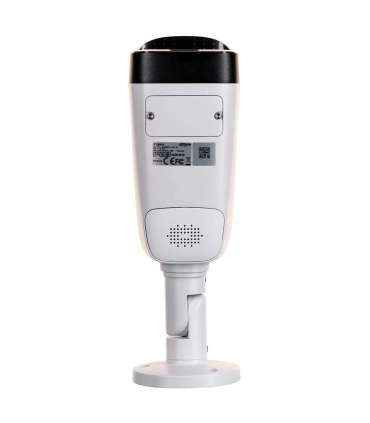

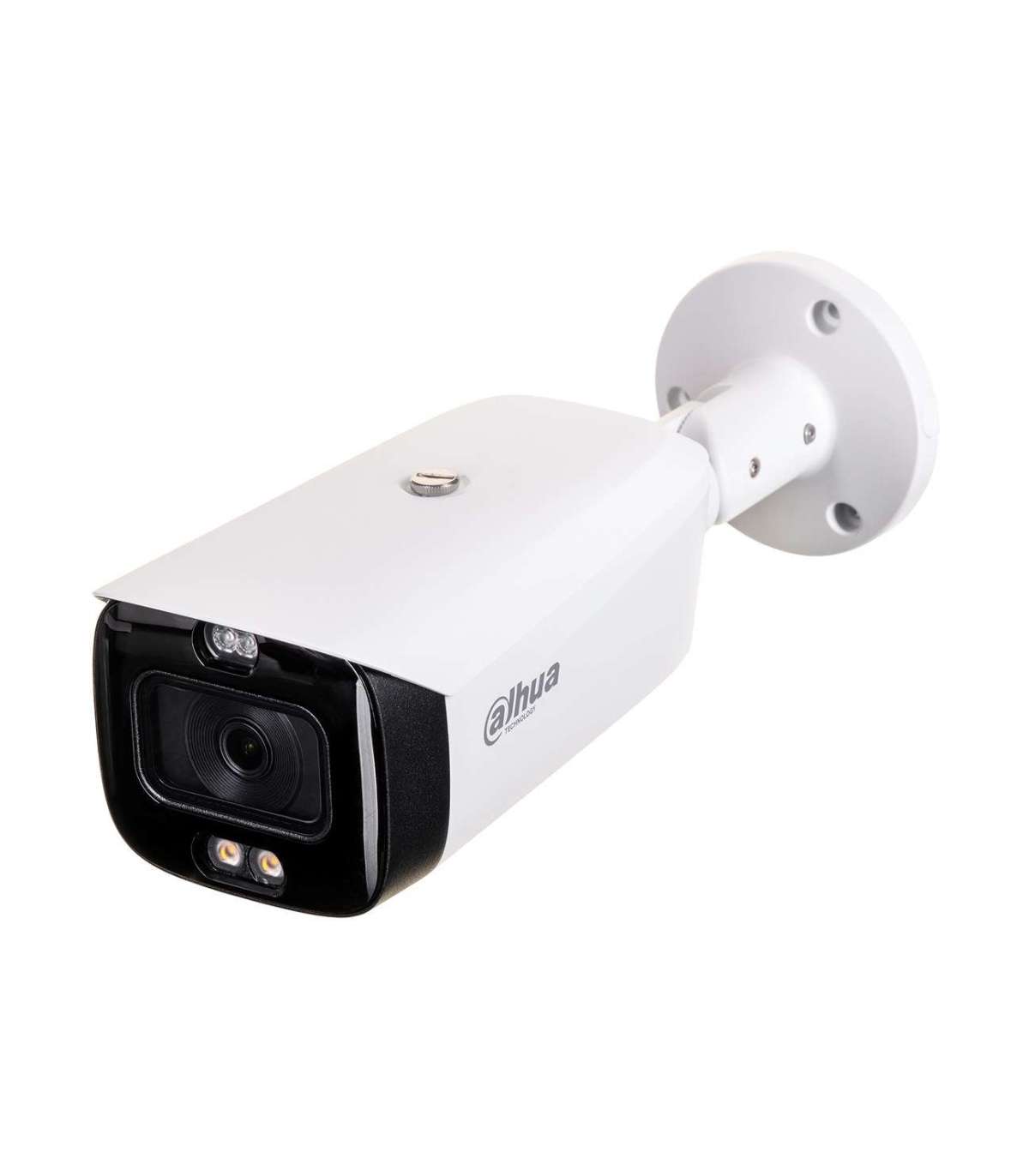

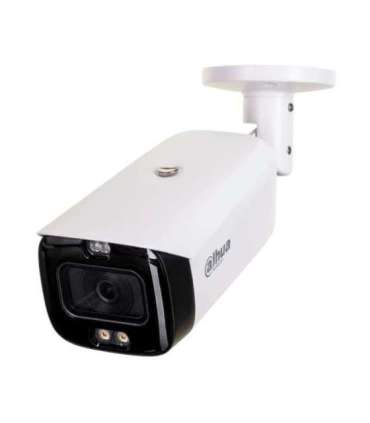

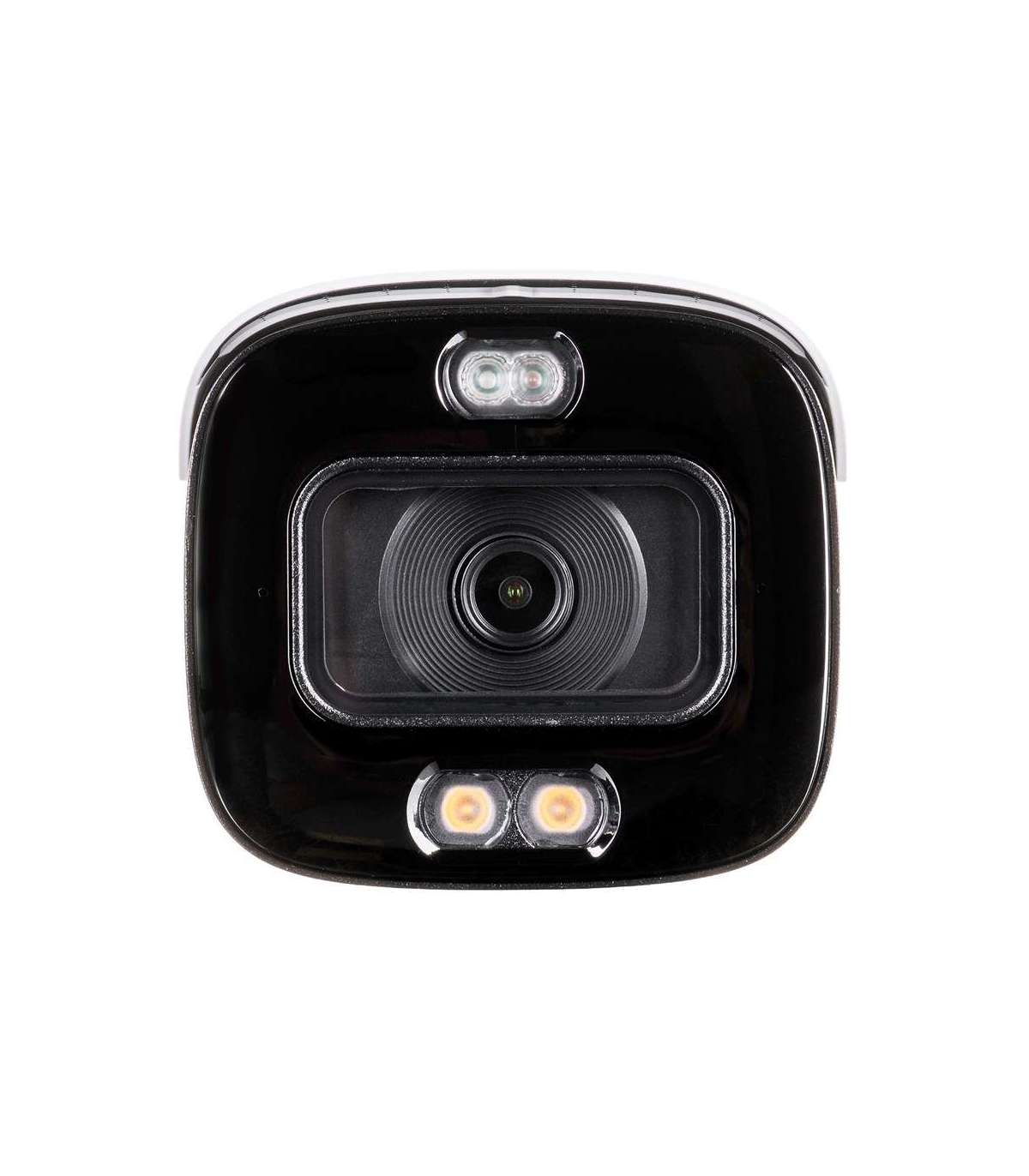

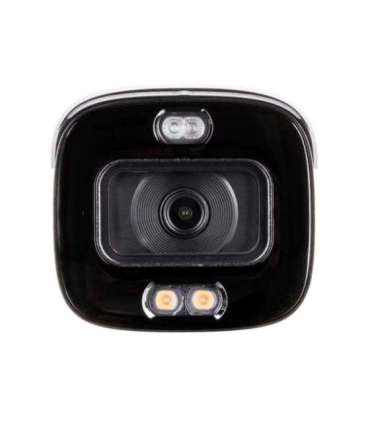

IP CAMERA DAHUA IPC-HFW3849T1-AS-PV-0280B-S4 TIOC 2.0

Характеристики

Depth

84.7 mm

Weight

1 kg

Width

94.4 mm

Package weight

1.23 kg

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-40 - 60 °C

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Quality of Service (QoS) support

Yes

Networking standards

IEEE 802.1x
IEEE 802.3af

Certification

CE-LVD: EN62368-1
CE-EMC: 2014/30/EU
FCC: 47 CFR FCC 15, B

Housing material

Metal
Plastic

Internal memory

512 MB

Power consumption (max)

8.2 W

Wi-Fi

No

Connectivity technology

Wired

Ethernet interface type

Fast Ethernet

Number of users

20 user(s)

Compatible memory cards

MicroSD (TransFlash)

Card reader integrated

Yes

Form factor

Bullet

Bluetooth

No

Built-in microphone

Yes

DC output voltage

12

Maximum memory card size

256 GB

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Audio output channels

1.0 channels

Maximum resolution

3840 x 2160 pixels

Noise reduction

Yes

Type

IP security camera

Length

288.4 mm

Number of cameras

1

Video streaming

Yes

Fixed focal length

2.8 mm

Tilt angle range

0 - 90°

Supported graphics resolutions

352 x 240
352 x 288
640 x 480 (VGA)
704 x 480
704 x 576
1280 x 720 (HD 720)
1280 x 960
1920 x 1080 (HD 1080)
2592 x 1944
2688 x 1520
3072 x 1728
3072 x 2048
3840 x 2160

Placement supported

Outdoor

Mounting type

Ceiling/wall

Mirror

Yes

Video motion detection

Yes

Alarm input/output

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

8 MP

Night vision distance

30 m

LED type

IR

Night vision

Yes

Number of lenses

1

Camera pan control

Yes

Camera tilt control

Yes

Intelligent Video Surveillance (IVS) system features

Intrusion
Tripwire

Lens viewing angle, vertical

56°

Lens viewing angle, diagonal

127°

Lens viewing angle, horizontal

107°

Pan range

0 - 360°

Progressive scan

Yes

Back Light Compensation (BLC)

Yes

Maximum aperture number

1.4

Angle of rotation

360°

Power consumption (Power over Ethernet (PoE))

9.7 W

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Gain control type

Auto/Manual

Privacy masking

Yes

Bit rate

3 kbps–8192 kbps

Streaming method

Multicast

ROM capacity

128 MB

White balance

Auto
Manual
Natural
Outdoor

Camera shutter type

Electronic

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Number of illumination LEDs

2

Closest focusing distance

1.5 m

Minimum illumination

0.007 lx

Voice codecs

G.711Mu
G.711a
G.726
PCM

Adjustment shutter speed

Auto/Manual

Observe distance (wide)

35.1 m

Highlight Compensation (HLC)

Yes

Identify distance (wide)

8.8 m

Recognize distance (wide)

17.5 m

Detect distance (wide)

87.7 m

Audio input channels

1.0 channels

Recognize distance (tele)

22.1 m

Detect distance (tele)

110.3 m

Identify distance (tele)

11 m

Observe distance (tele)

44.1 m
