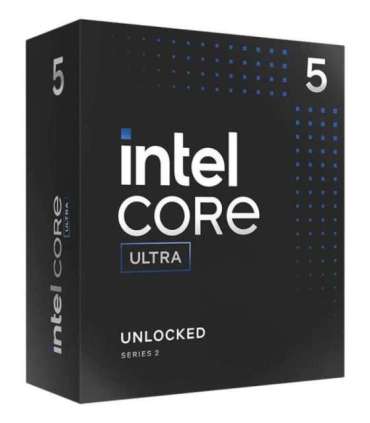

Intel Core Ultra 5 225 processor 20 MB Smart Cache Box

Характеристики

Processor cores

10

Warnings

Do not dispose of the processors in the normal rubbish bin - they require special disposal due to their potential environmental impact.
Ensure that the CPU is properly mounted in the CPU socket to avoid damage.

Processor model

225

Processor manufacturer

Intel

Processor cache type

Smart Cache

Processor family

Intel Core Ultra 5

Processor cache

20 MB

Processor threads

10

Processor generation

Intel Core Ultra (Series 2)

On-board graphics card

Yes

Discrete graphics card model

Not available

Discrete graphics card

No

On-board graphics card model

Intel Graphics

Maximum internal memory

192 GB

Processor base power

65 W

Efficient cores

4

Maximum turbo power

121 W

Performance cores

6

Memory channels

Dual-channel

Embedded options available

Yes

Execute Disable Bit

Yes

Performance-core base frequency

3.3 GHz

Neural processor unit (NPU)

Intel AI Boost

Windows Studio effects support

Yes

AI software frameworks supported by NPU

DirectML
ONNX RT
OpenVINO
WebNN
Windows ML

Sparsity support

Yes

Maximum number of PCI Express lanes

24

On-board graphics card OpenGL version

4.5

On-board graphics card DirectX version

12.0

Intel® Quick Sync Video Technology

Yes

Total processor performance up to

23 TOPs

NPU performance up to

13 TOPs

Intel® Thunderbolt 4

Yes

GPU performance up to

4 TOPs

Enhanced Intel SpeedStep Technology

Yes

Intel 64

Yes

Processor operating modes

64-bit

Processor socket

FCLGA1851

PCI Express slots version

4.0
5.0

Intel® AES New Instructions (Intel® AES-NI)

Yes

Intel® Secure Key

Yes

Supported instruction sets

AVX 2.0
SSE4.1
SSE4.2

Processor ARK ID

241070

Intel® OS Guard

Yes

Thermal Monitoring Technologies

Yes

Performance-core boost frequency

4.9 GHz

Maximum internal memory supported by processor

192 GB

Memory types supported by processor

DDR5-SDRAM

OpenCL version

3.0

Status

Launched

Launch date

Q1'25

Processor codename

Arrow Lake

Box

Yes

Maximum number of DMI lanes

8

On-board graphics card outputs supported

DisplayPort 2.1
Embedded DisplayPort (eDP) 1.4b
HDMI 2.1

On-board graphics card refresh rate at maximum resolution (HDMI)

60 Hz

On-board graphics card dynamic frequency (max)

1800 MHz

On-board graphics card refresh rate at maximum resolution (DisplayPort)

60 Hz

On-board graphics card base frequency

300 MHz

On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)

60 Hz

On-board graphics card ID

0x7D67

Number of displays supported (on-board graphics)

4

Direct Media Interface (DMI) Revision

4.0

Scalability

1S

Idle States

Yes

Market segment

Desktop

Use conditions

PC/Client/Tablet

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel Virtualization Technology (VT-x)

Yes

Intel® Standard Manageability (ISM)

Yes

Intel® Volume Management Device (VMD)

Yes

Intel® Deep Learning Boost (Intel® DL Boost) on CPU

Yes

Intel® Thread Director

Yes

Intel® Speed Shift Technology

Yes

Intel® Turbo Boost Technology

2.0

Mode-based Execute Control (MBE)

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel® Boot Guard

Yes

Intel® Control-flow Enforcement Technology (CET)

Yes

Graphics output

DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b

L2 cache

22528 KB

Memory clock speeds supported by processor

6400 MHz

Intel Trusted Execution Technology

Yes

AI software frameworks supported by CPU

DirectML
ONNX RT
OpenVINO
WebNN
Windows ML

Xe-cores

2

Intel® Deep Learning Boost (Intel® DL Boost) on GPU

Yes
