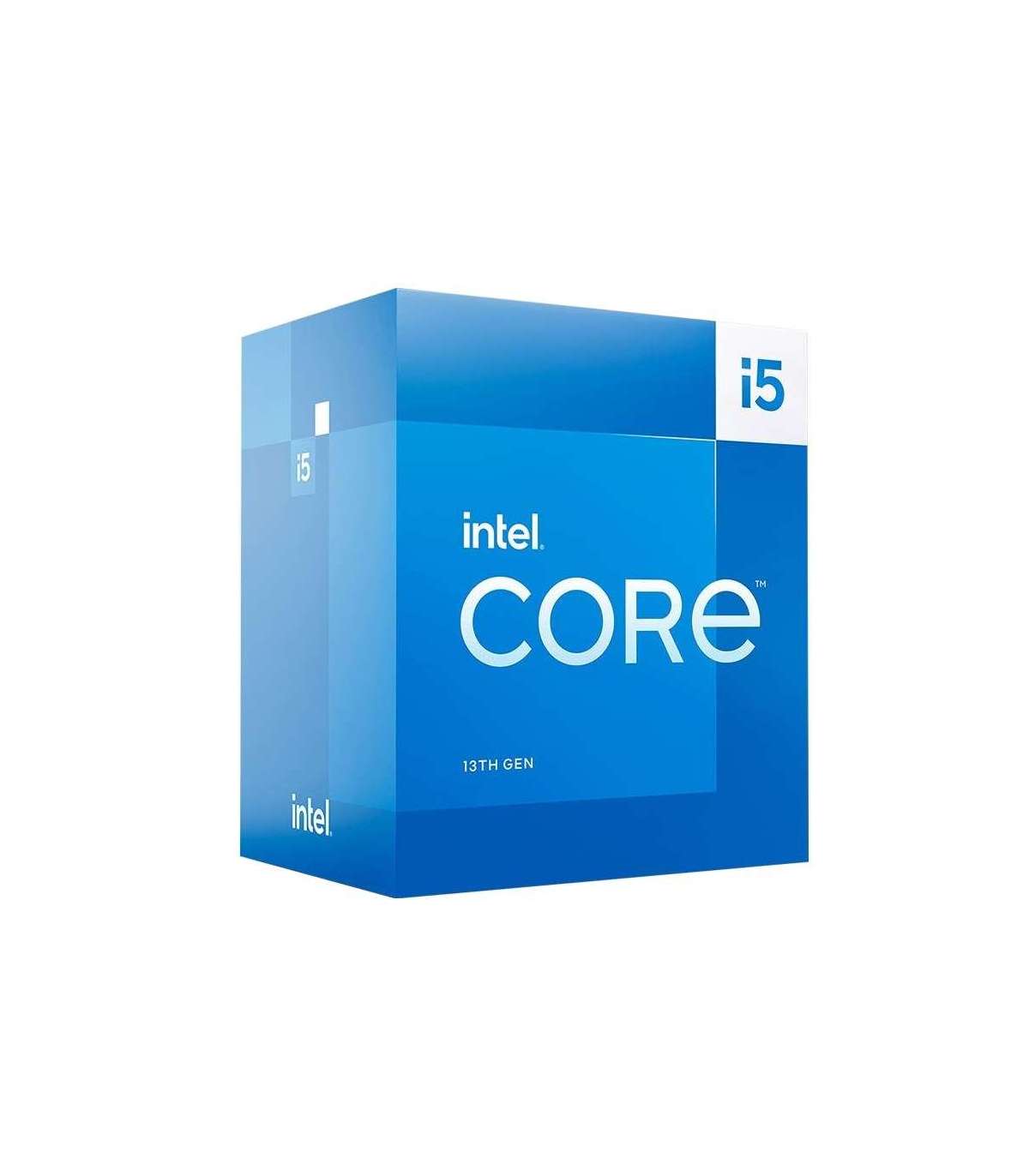

Intel Core i5-13400 processor 20 MB Smart Cache Box

Характеристики

Processor cores

10

Harmonized System (HS) code

8542310001

Warnings

Do not dispose of the processors in the normal rubbish bin - they require special disposal due to their potential environmental impact.

Processor model

i5-13400

Processor manufacturer

Intel

Processor cache type

Smart Cache

Processor family

Intel® Core™ i5

Processor cache

20 MB

Processor threads

16

Processor generation

13th gen Intel® Core™ i5

On-board graphics card

Yes

Discrete graphics card model

Not available

Discrete graphics card

No

On-board graphics card model

Intel UHD Graphics 730

Maximum internal memory

192 GB

Processor base power

65 W

Efficient cores

4

Maximum turbo power

154 W

Performance cores

6

Memory channels

Dual-channel

Embedded options available

Yes

Execute Disable Bit

Yes

Non-ECC

Yes

Performance-core base frequency

2.5 GHz

Maximum number of PCI Express lanes

20

On-board graphics card OpenGL version

4.5

On-board graphics card DirectX version

12.0

Number of execution units

24

Intel® Quick Sync Video Technology

Yes

CPU configuration (max)

1

Commodity Classification Automated Tracking System (CCATS)

740.17B1

Enhanced Intel SpeedStep Technology

Yes

Intel 64

Yes

Processor operating modes

64-bit

Processor socket

LGA 1700

PCI Express slots version

4.0
5.0

Intel® AES New Instructions (Intel® AES-NI)

Yes

Intel® Secure Key

Yes

Supported instruction sets

AVX 2.0
SSE4.1
SSE4.2

Processor ARK ID

230495

Intel® OS Guard

Yes

Processor package size

45 x 37.5 mm

Intel® Hyper Threading Technology (Intel® HT Technology)

Yes

Thermal Monitoring Technologies

Yes

Memory bandwidth (max)

76.8 GB/s

Performance-core boost frequency

4.6 GHz

Maximum internal memory supported by processor

192 GB

Memory types supported by processor

DDR4-SDRAM
DDR5-SDRAM

OpenCL version

3.0

Launch date

Q1'23

Processor codename

Raptor Lake

Box

Yes

Cooler included

Yes

Maximum number of DMI lanes

8

On-board graphics card outputs supported

DisplayPort 1.4a
Embedded DisplayPort (eDP) 1.4b
HDMI 2.1

On-board graphics card refresh rate at maximum resolution (HDMI)

60 Hz

On-board graphics card dynamic frequency (max)

1550 MHz

On-board graphics card refresh rate at maximum resolution (DisplayPort)

60 Hz

On-board graphics card base frequency

300 MHz

On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)

120 Hz

On-board graphics card ID

0x4682/0xA782

Number of displays supported (on-board graphics)

4

On-board graphics card maximum resolution (DisplayPort)

7680 x 4320 pixels

On-board graphics card maximum resolution (HDMI)

4096 x 2160 pixels

On-board graphics card maximum resolution (eDP - Integrated Flat Panel)

5120 x 3200 pixels

Multi-Format Codec Engines

1

Direct Media Interface (DMI) Revision

4.0

PCI Express configurations

1x16+1x4
2x8+1x4

Scalability

1S

Idle States

Yes

Market segment

Desktop

Use conditions

PC/Client/Tablet

Tjunction

100 °C

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel Virtualization Technology (VT-x)

Yes

Intel® Standard Manageability (ISM)

Yes

Intel® Volume Management Device (VMD)

Yes

Intel® Deep Learning Boost (Intel® DL Boost) on CPU

Yes

Intel® Thread Director

Yes

Intel® Speed Shift Technology

Yes

Intel® Turbo Boost Technology

2.0

Mode-based Execute Control (MBE)

Yes

Intel® Clear Video HD Technology (Intel® CVT HD)

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Turbo Boost Max Technology 3.0

No

Intel® Boot Guard

Yes

Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0

Yes

Intel® Control-flow Enforcement Technology (CET)

Yes

Graphics output

eDP 1.4b, DP 1.4a, HDMI 2.1

L2 cache

9728 KB

Export Control Classification Number (ECCN)

5A992C
