Infrared motion sensor MCE201B

Описание:

Infrared motion detector PIR modern Maclean Energy MCE201B range 12m black IP65

The product is distinguished by high sensitivity through the use of an integrated circuit. It combines automatism, convenience of use, safety, energy saving and practical functions. This device uses infrared radiation emitted by a human being as a signal to start working when someone is within detection range. It automatically detects day and night and is easy to install and use.

Thanks to our sensor, you will save on electricity bills because the lighting will only come on when you need it! Detection angle: 180° !!!

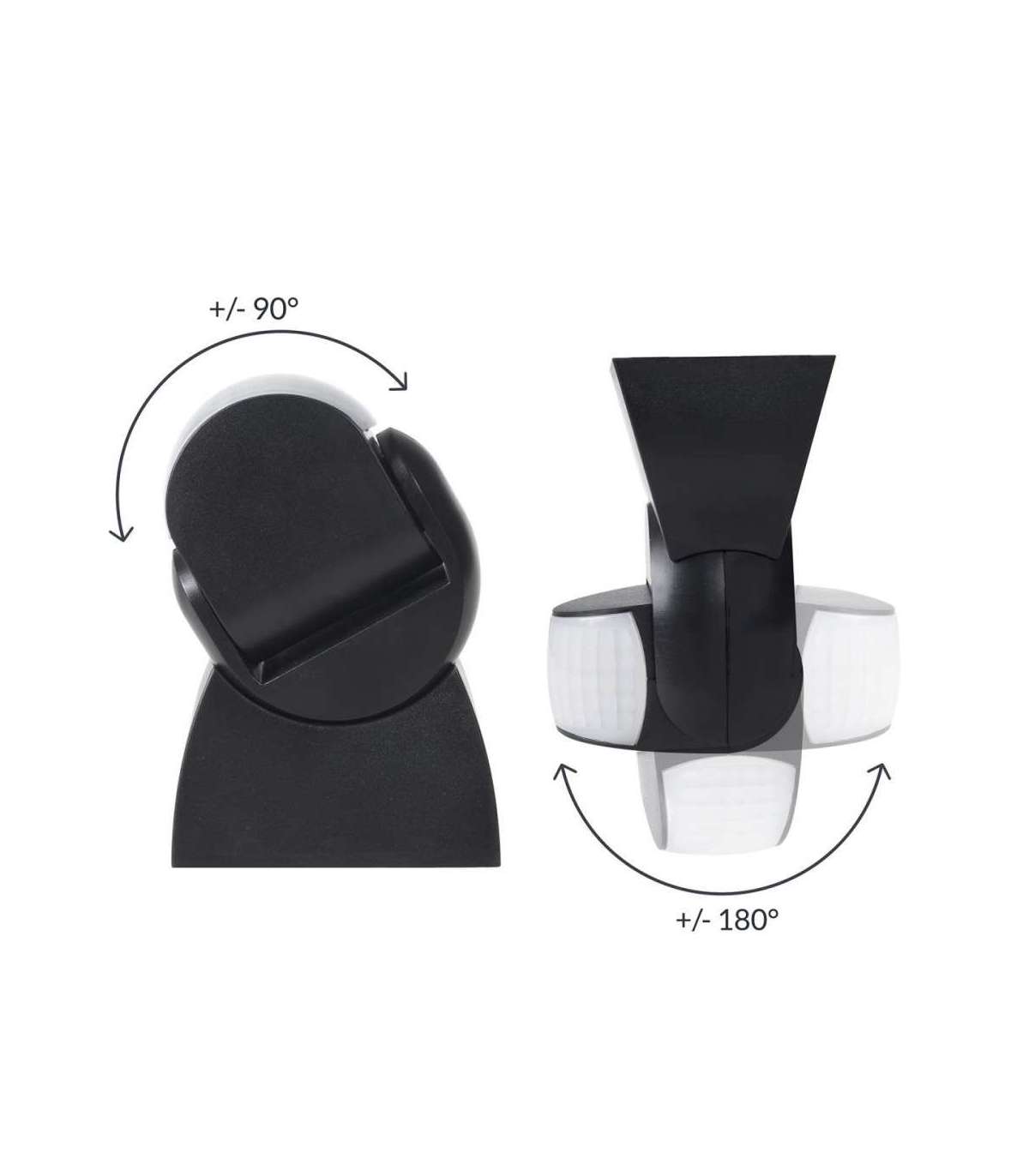

The sensor is used for automatic control of lighting or other electrical devices. Potentiometers for regulation: lighting time and sensitivity of light intensity. Mechanical vertical and horizontal adjustment.

Product features:

• A motion sensor, which operates by turning on and after a specified period of switching off the electric circuit when an object emitting infrared radiation is detected

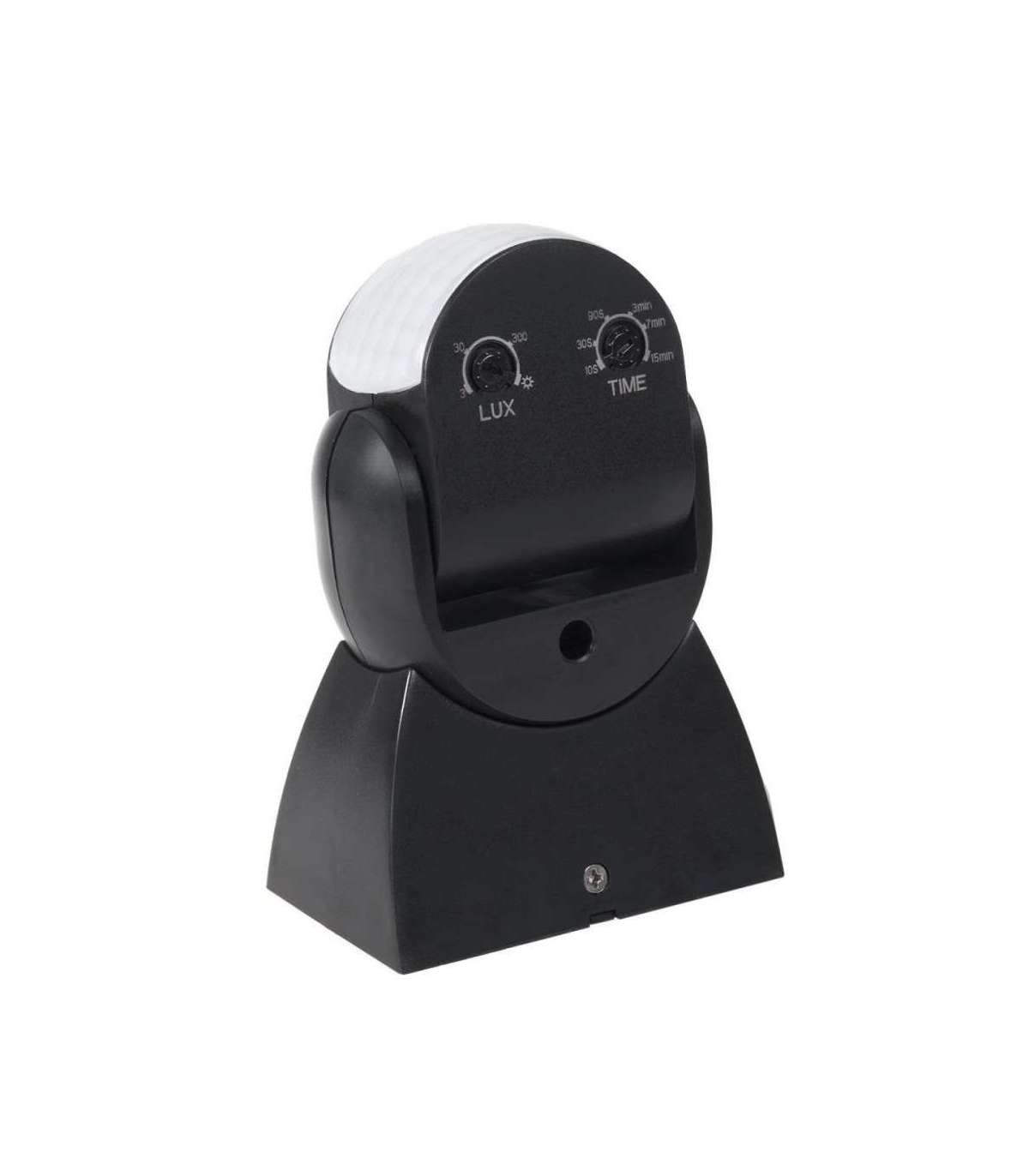

• The sensor has 2 knobs: the LUX knob allows you to adjust the threshold of light intensity (thanks to this feature, we can adjust it to operate only from dusk to dawn) and the TIME knob, thanks to which it is possible to adjust the hold-back time
• Easy fastening with 2 dowels (included)
• Application: automation of the process of switching the current on and off, eg switching on lighting, switching on alarm systems
• Also works with LED lighting

The new generation - infrared sensor has high stability, nice, modern and practical appearance, wide range of working voltages, easy installation and a wide range of detection. Automatically detects day and light at night. SMT technology used, in line with European standards. It is designed for automatic lighting control in homes, gardens, hotels, offices, stairwells, corridors, basements, toilets, etc.

• Detection angle: 180°
• Light intensity:

  Frequency range:

  50/60Hz

  Электропитание:

  • Power supply: 220-240V/AC

  • Power consumption: ~ 0.5W

  • Max. load: 1200W (resistive load)/300W (inductive load)

  Габариты:

  52 x 80 x 124 mm

  Designation:

  CE+WEEE
